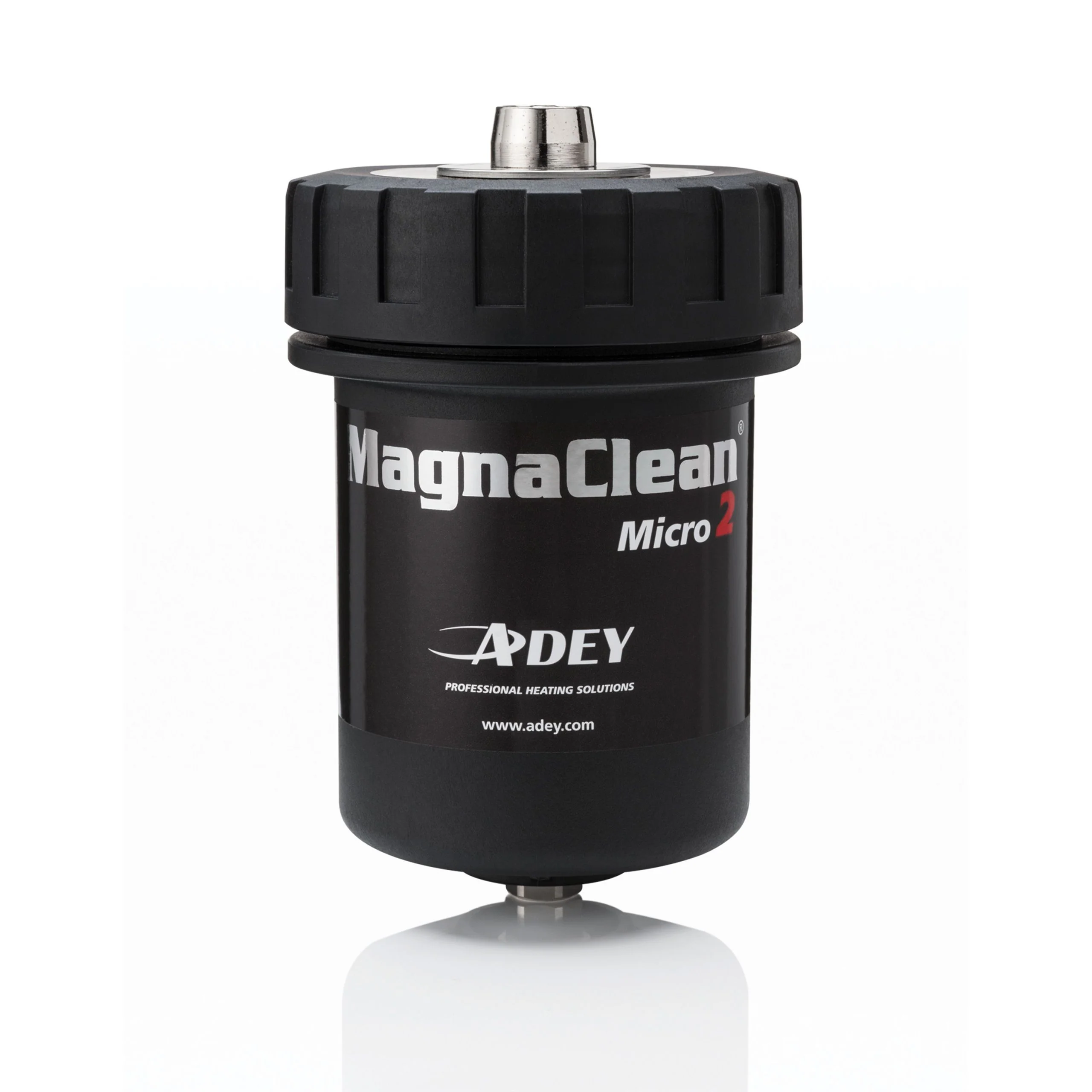

ADEY MagnaClean Micro2 22mm System Filter Compact Apartments Flats
The ADEY MagnaClean Micro2 is ADEY's evolved compact filter — delivering next-generation protection for smaller domestic heating systems including flats, apartments, and small bungalows. Building on the original Micro with a redesigned twin reverse-flow debris chamber, speed-fit connectors, low-profile drain valve, and bi-directional flow, the Micro2 packs more filtration technology into a smaller space than any previous ADEY filter at this size. Independently proven to reduce heating bills by up to 6% annually and maintenance costs by up to 33%.
ADEY claims the Micro2 has the smallest installation and servicing height of any filter in its class — critical for flats and apartments where the boiler may be in a kitchen cupboard with only centimetres of clearance above the return pipe. Engineers can remove, clean, and refit the canister without awkward repositioning or pipe disconnection.
The Micro2 introduces a twin reverse-flow non-magnetic debris chamber — a significant upgrade over the original Micro. The bi-directional reverse-flow geometry maximises the contact time between circulating water and the magnetic capture zone, improving overall debris capture efficiency compared to simpler single-pass designs.
Speed-fit compression connectors speed up both first installation and subsequent service visits. The low-profile drain valve sits flush to the body, reducing the overall height footprint and avoiding fouling on adjacent pipework in tight spaces — a practical detail engineers who regularly work in compact flat installations will appreciate.
The Micro2 features redesigned isolation valves with improved PTFE seals compared to the original Micro, providing greater leak resistance and smoother operation over repeated open/close cycles. The nickel-plated brass valve bodies resist corrosion from heating system water and inhibitor chemicals.
An air vent assembly is supplied as standard with the Micro2, allowing trapped air to be removed from the filter canister quickly during installation and at service visits. This is particularly useful on small systems in flats where air locks can develop after refilling the circuit, and manual bleeding can be difficult to reach on radiators.
Either port can serve as the inlet, and the Micro2 accepts horizontal, vertical, or angled pipework installations. This is especially valuable in small boiler cupboards where pipe runs may not follow ideal routing, giving engineers maximum flexibility in placing the filter without creating unnecessary bends or extended pipework.
| Specification | Value |
|---|---|
| Part Number | FL1-03-01274 |
| Connection Size | 22mm compression |
| Max Operating Pressure | 6 bar |
| Max Operating Temperature | 95°C |
| Max Flow Rate | 50 litres/minute |
| Flow Configuration | Bi-directional (either port can be inlet) |
| Canister & Lid Material | Glass-reinforced nylon |
| Magnet Housing | Stainless steel |
| Magnet Length | 97.5 mm |
| Magnet Diameter | 19 mm |
| Fluid Capacity | 250 ml |
| Valve Material | Nickel-plated brass with PTFE seals |
| Thread Interface | M6 (bleed valve), M8 (drain plug) |
| Included | Air vent assembly, speed-fit connectors |
| Warranty | 1 year (manufacturer's terms apply) |
| EAN | 5060106370563 |
