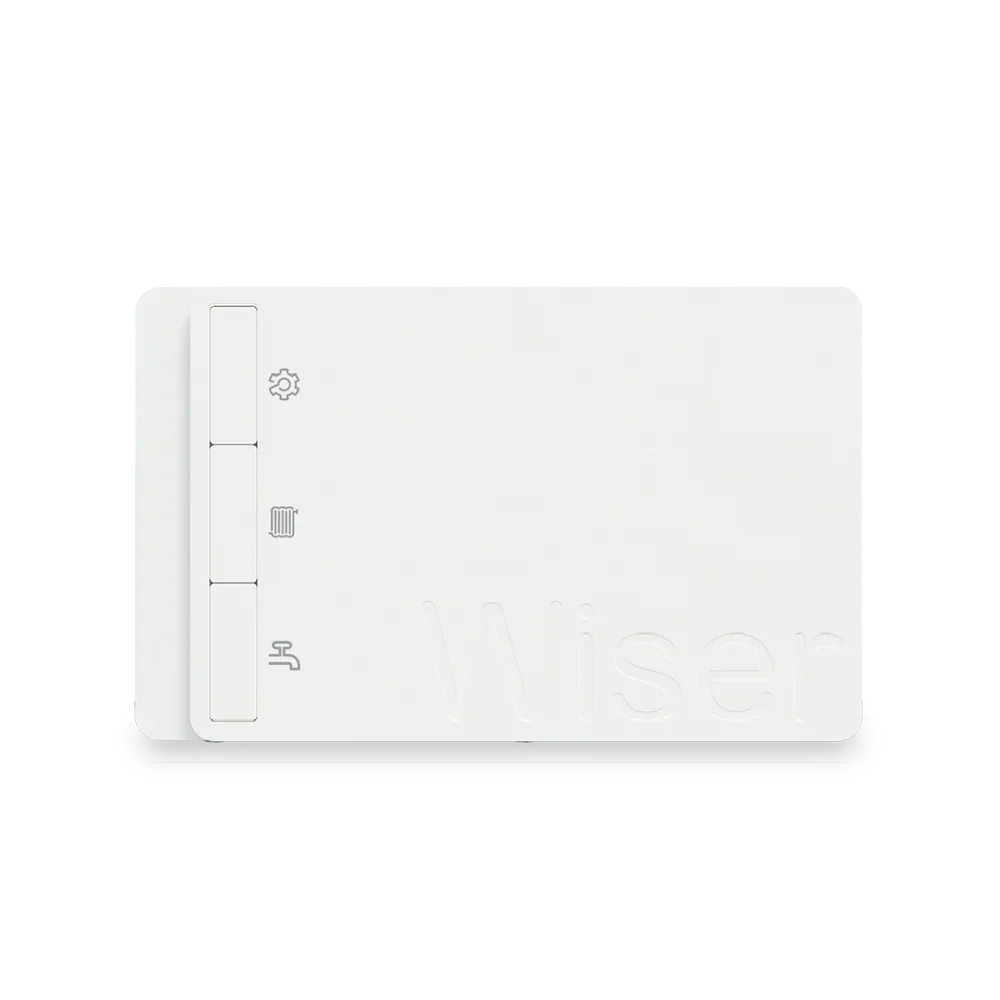

Drayton Wiser 2-Channel 2nd Generation HubR CCTFR6312G2D | Smart Heating & Hot Water Control | Conventional Boilers | OpenTherm
Drayton Wiser 2-Channel 2nd Generation HubR CCTFR6312G2D | Smart Heating & Hot Water Control | Conventional Boilers | OpenTherm
Drayton Wiser 2-Channel 2nd Generation HubR (CCTFR6312G2D) — Smart heating and hot water control for conventional boilers | 1 × Heating + 1 × Hot Water | Independent scheduling for heat and DHW | OpenTherm & relay switching | ZigBee mesh + 2.4GHz Wi-Fi | Boiler Plus compliant
The 2-Channel Hub independently controls 1 × Heating and 1 × Hot Water. Ideal for S-plan, Y-plan or conventional boiler systems with a separate hot water storage cylinder. For combi boilers, see the 1-Channel Hub (CCTFR6311G2D). For dual heating zones plus hot water, see the 3-Channel Hub (CCTFR6313G2D).
The Drayton Wiser 2-Channel 2nd Generation HubR brings full smart control of both heating and domestic hot water to properties with a conventional or system boiler and a separate hot water cylinder. Each channel can be independently scheduled — set different programmes for heating and hot water to match your household's actual usage patterns and avoid energy waste.
Supports OpenTherm communication for modulating boiler control, as well as standard relay switching for non-OpenTherm boilers and On/Off interfacing for heat pumps. Connect Wiser Radiator and Room Thermostats for independent room-by-room scheduling, and expand the system with the full range of Wiser 2nd Generation Smart Home devices for home automation and security.
The Hub's ZigBee mesh network operates independently of your home Wi-Fi, providing reliable, low-latency communication with all Wiser devices. Automatic firmware updates keep the system current without user intervention.
Key Features
Technical Specifications
| Specification | Detail |
|---|---|
| Part Number | CCTFR6312G2D |
| Brand | Drayton by Schneider Electric |
| Range | Wiser 2nd Generation |
| Channels | 2 × (1 × Heating + 1 × Hot Water) — for conventional boilers with cylinder |
| Boiler Interface | OpenTherm (modulating) + Relay switching |
| Heat Pump Compatible | Yes — On/Off heat demand signal |
| Power Supply | 230V a.c. ±10%, 50Hz (fixed wiring) |
| Switch Rating | 2(1)A 230V a.c. per switch |
| Wireless (Devices) | ZigBee 2.4 GHz, IEEE 802.15.4 |
| Wireless (Internet) | Wi-Fi 2.4 GHz, IEEE 802.11 b/g/n |
| Setpoint Range | 5°C to 30°C |
| Temperature Resolution | 0.5°C |
| Operating Temperature | 0°C to 45°C |
| IP Rating | IP30 |
| Dimensions (H × W × D) | 94 × 150.8 × 30.3mm |
| Mounting | Wall plate (fixed wiring, BS7671) |
| Voice Assistants | Amazon Alexa, Google Assistant, IFTTT |
| App | Wiser Home app — iOS & Android |
| Compliance | Boiler Plus (Part L), RED 2014/53/EU, RoHS |
What's Included
In the Box
1 × Wiser 2-Channel 2nd Generation HubR (CCTFR6312G2D) with wall plate. Radiator thermostats, room thermostat and Wiser Smart Home sensors sold separately.
Frequently Asked Questions
No. The 2-Channel Hub is designed for conventional or system boilers with a separate hot water cylinder. For combi boilers (where hot water is on-demand), choose the 1-Channel Hub (CCTFR6311G2D).
Yes. Each of the two channels has a fully independent daily and weekly schedule — heating and hot water can be set to come on at completely different times, with no interaction between them.
Yes. All Wiser 2nd Generation Smart Home devices are compatible, including motion sensors, window/door sensors, water leak detectors and smoke alarms.
The 3-Channel Hub (CCTFR6313G2D) provides 2 × Heating + 1 × Hot Water, enabling independent control of two separate heating zones as well as hot water — suited to larger properties with dual heating circuits.
Yes. The 2-Channel Hub is compatible with standard Y-plan (one 3-port valve) and S-plan (two 2-port valves) conventional boiler installations.
