Drayton Wiser Micro-Module Shade Controller (CCT5015-0002W) — Flush-mounted ZigBee blind and shutter actuator for Wiser smart home systems | Controls motorised blinds, shutters and awnings with limit switches | Mechanically & electronically interlocked relays | 4A motor rating | Requires Wiser Hub

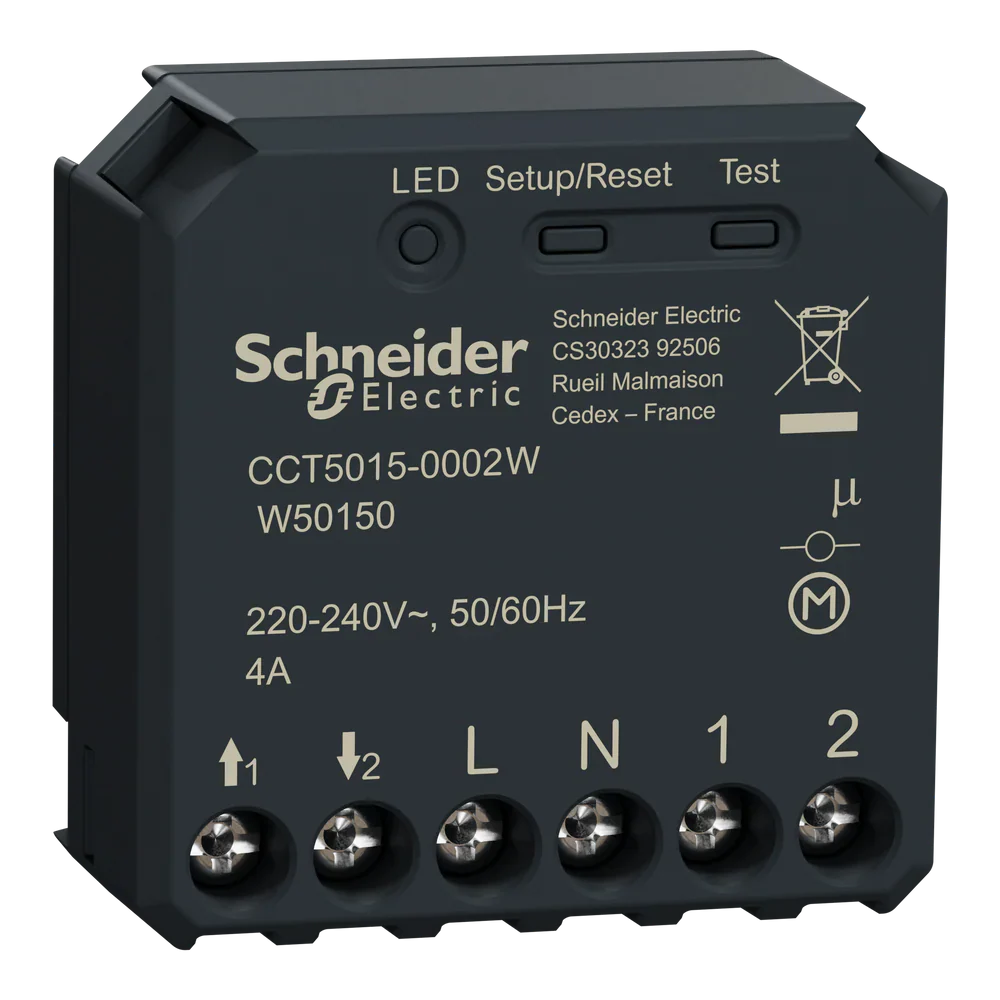

The Drayton Wiser Micro-Module Shade Controller (CCT5015-0002W) is a flush-mounted ZigBee actuator that integrates motorised blinds, roller shutters and awnings into the Wiser smart home system. Once installed behind a wall switch or in a ceiling void, it provides full app-based and voice control of any blind or shutter motor equipped with limit switches — without the need for additional wiring to a separate controller unit.
Mechanically and electronically interlocked relay contacts prevent both motor directions from being energised simultaneously, protecting the motor and mechanism from damage. The module connects to the Wiser system via ZigBee and communicates through the Wiser Hub, appearing alongside heating controls, sensors and plugs in the Wiser Home app for unified smart home management.
Set automations to open blinds at sunrise and close them at sunset, or link shade control to temperature or motion sensor events — for example, automatically closing blinds when indoor temperature rises above a threshold. Up to 64 ZigBee devices can be connected to a Wiser system hub.
Key Features
Technical Specifications
| Specification | Detail |
|---|---|
| Part Number | CCT5015-0002W |
| Brand | Schneider Electric / Drayton by Schneider Electric |
| Range | Wiser Smart Home |
| Function | Flush-mounted blind/shutter/awning motor actuator |
| Wireless Protocol | ZigBee |
| Motor Rating | 4A |
| Relay Safety | Mechanically and electronically interlocked contacts |
| Motor Compatibility | Blind, shutter and awning motors with limit switches |
| Mounting | Flush-mounted (back-box or ceiling void) |
| IP Rating | IP20 |
| Hub Requirement | Wiser Hub required (sold separately) |
| Max Devices per Hub | 64 ZigBee devices |
| Voice Assistants | Amazon Alexa, Google Assistant |
| App | Wiser Home app — iOS & Android |
| Colour | Dark grey |
Frequently Asked Questions
Any motorised blind, roller shutter, or awning motor that uses limit switches to define the upper and lower travel positions. This includes most standard tubular 230V blind motors.
No. The CCT5015-0002W communicates via ZigBee and requires a Wiser Hub to connect to the app and enable remote and voice control.
Yes. Through the Wiser Home app, you can set daily and weekly schedules for the shade controller — for example, automatically opening in the morning and closing in the evening.
Yes. The Wiser system supports automations between devices. You can configure the shade controller to respond to temperature readings from a Wiser Temp & Humidity Sensor — for example, closing blinds automatically when a room gets too warm.
