Drayton Lifestyle RFPT Wireless Programmable Room Thermostat | 7-Day | SCR Receiver Included | THD22120
Drayton Lifestyle RFPT Wireless Programmable Room Thermostat | 7-Day | SCR Receiver Included | THD22120
Drayton Lifestyle RFPT Wireless Programmable Room Thermostat (THD22120) โ 7-day wireless programmable room thermostat + SCR receiver included ย |ย No rewiring โ replaces existing programmer without chasing or replastering ย |ย Up to 6 switching periods per day ย |ย 5โ35ยฐC temperature range with user-settable min/max limits ย |ย RF range 30m typically ย |ย Thermostat powered by 2ร AA batteries ย |ย SCR receiver 230V 50Hz mains ย |ย ErP Energy Class IV ย |ย Single channel
โ Ideal for rented and social housing: The Lifestyle RFPT's user-settable minimum and maximum temperature limits can be locked to prevent adjustment outside the permitted range โ making it tamper-resistant and suitable for managed properties where occupant override needs to be controlled.

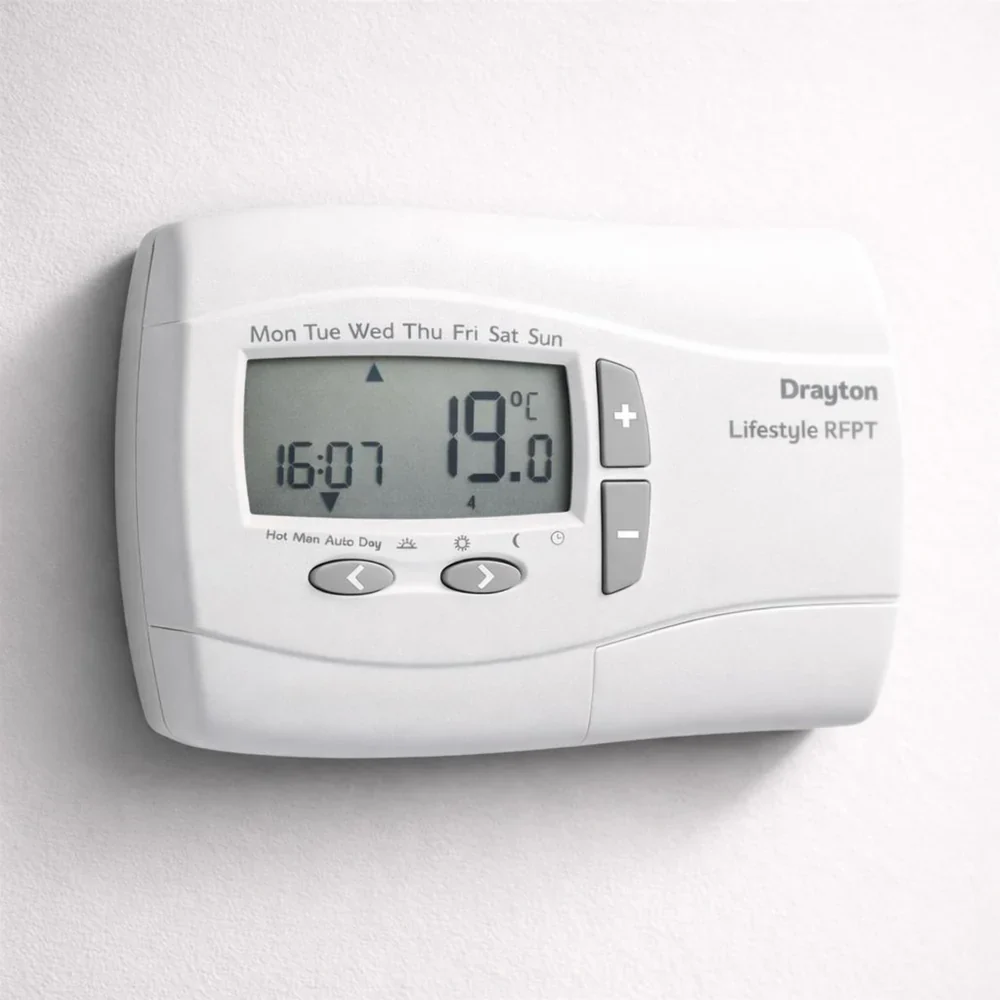

The Drayton Lifestyle RFPT is a simple, reliable wireless programmable room thermostat designed for straightforward replacement of an existing wired programmer or room thermostat โ without the need to chase cables through walls, replaster, or redecorate. The battery-powered thermostat communicates wirelessly with the mains-powered SCR receiver, which connects in place of the existing room thermostat or in the standard room thermostat wiring position at the programmer.
With a fully flexible 7-day schedule (THD22120), you can set a different programme for every day of the week โ up to 6 on/off switching periods per day โ matching your heating exactly to your household's routine rather than accepting the rigid 5-2 day compromise of a basic programmer. The 5-2 day variant (THD22121) is also available for simpler weekday/weekend patterns.
The built-in min/max temperature limit function allows an installer to cap the maximum setpoint and prevent the minimum from being turned down too far โ a practical feature for landlords, social housing providers, and vulnerable occupants who need protection from either excessively high bills or cold conditions. Both limits are set at the thermostat by an installer and are not visible or adjustable by the end user without knowing the access method.
Key Features
Technical Specifications
| Thermostat (RFPT) | |
|---|---|
| Brand / Range | Drayton / Lifestyle |
| Model | Lifestyle RFPT โ THD22120 (7-day) / THD22121 (5-2 day) |
| Type | Wireless programmable room thermostat |
| Scheduling | 7-day (THD22120) or 5-2 day (THD22121) |
| Switching periods per day | Up to 6 |
| Temperature range | 5ยฐC to 35ยฐC |
| Min/max temperature limits | User/installer settable โ tamper-proof capability |
| Power supply | 2ร 1.5V IEC LR6 (AA) alkaline batteries |
| Radio frequency | 433MHz |
| Radio signal range | 30m typically (may be reduced by walls) |
| Mounting | Surface or conduit box mounting |
| Energy class | Class IV = 2% (Acc. EU 811/2013, 812/2013, 813/2013, 814/2013) |
| SCR Receiver | |
| Power supply | 230V AC, 50Hz (mains) |
| Switch type | SPDT (volt-free) |
| Switch rating | 2(1)A 230V AC |
| Wiring | Fixed wiring only โ complies with IET Wiring Regulations (BS7671) |
| Channel | Single channel |
| Mounting | Industry-standard wall plate |
| Compliance | |
| Directives | 2014/53/EU Radio Equipment Directive; 2011/65/EU RoHS Directive |
| Applied standards | EN60730-1; EN60730-2-7; EN60730-2-9; EN 300 220-2; EN 301 489-3 |
What's in the Box
- Drayton Lifestyle RFPT wireless programmable room thermostat
- Drayton Lifestyle SCR single-channel receiver
- Wall fixing hardware for both units
- Installation and user guide
AA alkaline batteries not included.
Frequently Asked Questions
The SCR receiver must be wired in place of the existing room thermostat connection โ this involves mains electrical wiring and must be carried out by a competent person in compliance with current IET Wiring Regulations (BS7671). In most cases a Gas Safe registered heating engineer will carry out this work as part of a boiler service or controls upgrade. The battery-powered thermostat itself requires no electrical connection and can be positioned by the homeowner once the SCR is installed.
The RFPT replaces the room thermostat function in your heating system โ it does not replace the separate programmer (timeswitch). In a conventional system with a wired programmer and wired room thermostat, the SCR receiver is wired in place of the existing room thermostat. The RFPT then takes over room temperature control; the programmer continues to control on/off times independently (or you can use the RFPT's own schedule if the programmer is set to "continuous on"). Consult the installation guide for wiring diagrams covering common system configurations.
THD22120 is the 7-day model, which allows you to set a completely different heating programme for each day of the week. THD22121 is the 5-2 day model, which uses one programme for Monday to Friday and a separate programme for Saturday and Sunday. For most households, the 7-day model (THD22120) offers more flexibility, particularly if weekend routines differ significantly from weekday routines.
The RFPT includes a user-settable minimum and maximum temperature limit. By setting both the minimum and maximum to the same value, the thermostat operates as a fixed-temperature stat with no user adjustment possible. Alternatively, the min and max can be set to a narrow range (e.g. 18โ22ยฐC) to prevent extremes while still allowing occupant comfort adjustment within acceptable limits. Refer to the installation guide for the installer options access procedure.
The RFPT and SCR receiver communicate over a typical range of 30 metres. This is more than sufficient for the vast majority of UK domestic properties โ including most detached and semi-detached houses โ when thermostat and receiver are on the same floor. Range can be reduced by thick stone walls, reinforced concrete, or multiple floors between the two units. If range is a concern, position the SCR receiver as centrally as possible in the property.
๐ง Installation Notes
The SCR receiver requires mains electrical connection and must be installed by a competent person. Key installation requirements are summarised below.
Full installation, wiring and commissioning instructions are provided with the unit. Drayton's Technical Helpline is available for installer support.
