Drayton Wiser Electrical Heat Switch | 16A Smart Switch | Electric UFH | Radiators | ZigBee Range Extender
HomeStore

Drayton Wiser Electrical Heat Switch | 16A Smart Switch | Electric UFH | Radiators | ZigBee Range Extender

Drayton Wiser Electrical Heat Switch | 16A Smart Switch | Electric UFH | Radiators | ZigBee Range Extender

WE714U1A0902 Wiser Add-On 16A Relay Electric Heating ZigBee Range Extender IP44

Drayton Wiser Electrical Heat Switch (WE714U1A0902) — Smart switch for electric heating loads up to 16A / 3680W  |  Electric UFH, radiators, towel rails & infrared heaters  |  Hard-wired ZigBee range extender  |  Requires Wiser HubR & Room Thermostat  |  Alexa & Google Assistant compatible  |  Floor sensor input for UFH temperature limiting

Smart Control for Electric Heating Devices

The Drayton Wiser Electrical Heat Switch (WE714U1A0902) is a hard-wired smart switching device that brings any electrical heating appliance into your Wiser smart home ecosystem. Whether you have electric underfloor heating, electric radiators, towel rails or infrared panel heaters, this device lets you schedule and control them remotely via the Wiser Home app — just like your wet central heating system.

With a 16A relay capable of switching loads up to 3680W, it handles everything from a modest bathroom towel rail to a full electric underfloor heating circuit. Being hard-wired rather than plug-in, it also acts as a permanent ZigBee range extender, improving wireless signal reliability throughout your home. One Wiser Room Thermostat and one HubR are required per heat switch — neither are included and must be purchased separately.

✅ Works with any Drayton Wiser Kit — HubR Gen 1 or Gen 2 required

Ideal for mixed heating systems: control wet radiators alongside electric heating, all from a single app.

Compatible Electrical Heating Devices

🔥 Electric Underfloor Heating Control resistive electric UFH circuits. A remote floor sensor (sold separately) is required to set floor temperature limits.
🔥 Electric Radiators Schedule and remotely control plug-in or hard-wired electric radiators as part of a unified Wiser heating zone.

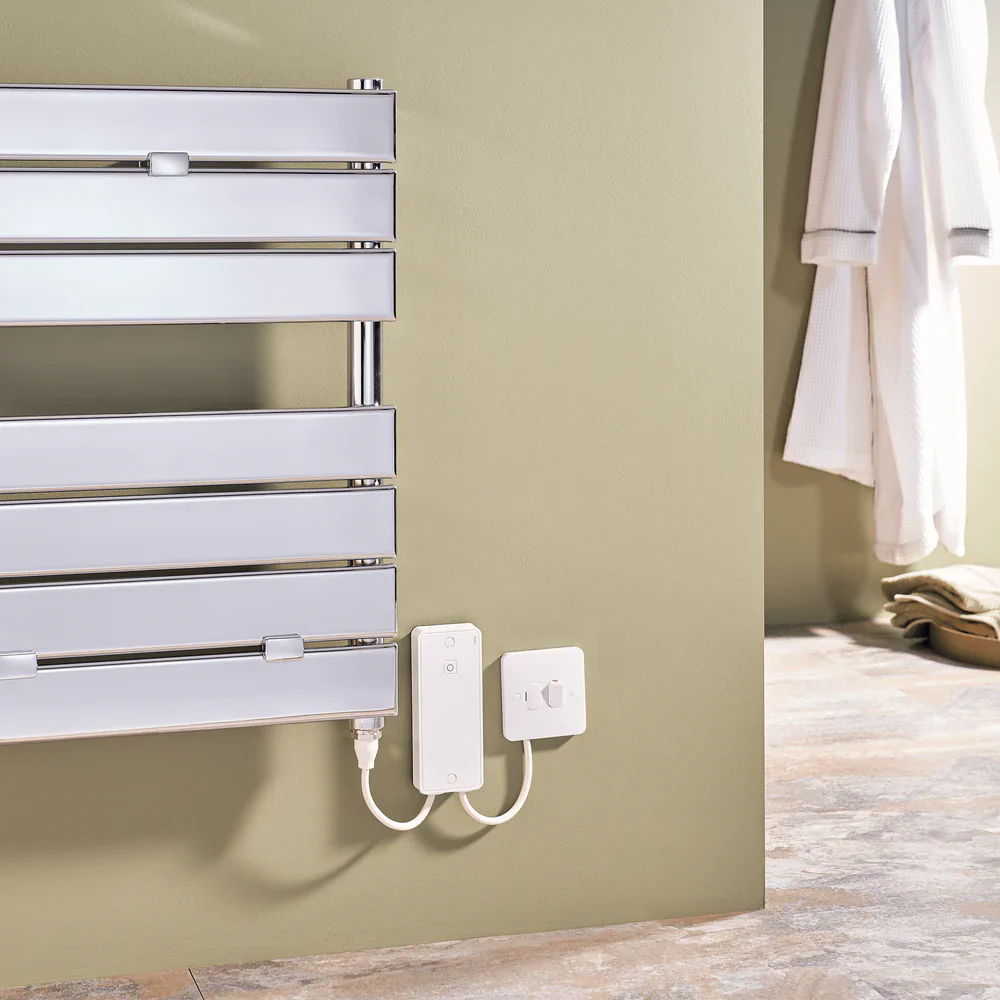

🛁 Electric Towel Rails Bring electric towel rails into the Wiser ecosystem with full scheduling and remote on/off control.
☀️ Infrared Panel Heaters Integrate infrared heaters into the Wiser system for centralised control and energy-saving schedules.
⚠️ Important: Not Suitable for Inductive Loads The Electrical Heat Switch is designed for resistive heating loads only. It must not be used to control inductive loads such as motors, compressors, fans or fluorescent lighting. It is not a standalone timer — a Wiser Room Thermostat and HubR are both required for operation.

Key Features

⚡ 16A / 3680W Relay Switches resistive electrical heating loads safely at up to 16 amps — sufficient for most residential electric heating circuits.
📡 Hard-Wired Range Extender Being permanently mains-powered, the heat switch also extends ZigBee signal throughout the home, improving reliability for all Wiser devices.
🌡️ Remote Floor Sensor Input Dedicated terminals for a remote NTC floor sensor (33kΩ Drayton, 10kΩ ELKO, or 15kΩ DEVI) to monitor and limit floor surface temperature — essential for electric UFH systems.
📱 App & Voice Control Schedule and control via the Wiser Home app from anywhere. Compatible with Amazon Alexa, Google Assistant and IFTTT.
🛡️ IP44 Rated IP44 ingress protection allows installation in bathrooms and other damp environments (subject to local wiring regulations).
🔧 Manual Override A press of the button toggles the output on/off even before pairing, with LED amber indication when output is active — useful for commissioning and testing.

What's Included in the Box

✅ 1× Wiser Electrical Heat Switch
✅ 2× Cable Clamps
✅ 2× Cable Clamp Screws
✅ 2× Rubber Grommets
✅ 4× Blanking Plugs
✅ Installation Leaflet

Not included: Wiser HubR, Wiser Room Thermostat, remote floor sensor (required for electric UFH). These must be purchased separately.

Technical Specifications

Parameter Specification
Part Number WE714U1A0902
Power Supply 230V a.c., 50Hz — fixed wiring only (BS7671)
Output Relay Rating 16A (resistive loads only)
Maximum Load 3680W at 230V
Wireless Protocol ZigBee 2.4GHz
Dimensions (W × H × D) 90mm × 67mm × 44.1mm
Operating Temperature 0°C to 50°C
IP Rating IP44
Floor Sensor Compatibility 33kΩ (Drayton Ref 193720) / 10kΩ (ELKO Ref 5491605) / 15kΩ (DEVI Ref 140F1091)
Interface Push button + LED indicator
LED Indication Amber = output on  |  Green flash = paired  |  Red flash = join failed
Mounting Surface mount — wall or floor (below or beside heat source)
Voice Assistants Amazon Alexa, Google Assistant, IFTTT
App Wiser Home app — iOS & Android (free)
Required Accessories (sold separately) Wiser HubR (any generation), Wiser Room Thermostat
Optional Accessory Remote floor sensor (required for electric UFH)
Guarantee 1.5 years

Installation Notes

The Electrical Heat Switch must be installed by a qualified electrician in accordance with current IET Wiring Regulations (BS7671). It is not SELV — fixed wiring connection to the mains supply is required. The unit should be mounted below or to the side of the heat source; it must not be mounted behind or above a wall-mounted heater. Rubber grommets are provided for cable entry; blanking plugs seal any unused openings to maintain IP44 protection.

Frequently Asked Questions

Do I need a Wiser Room Thermostat as well? Yes. The Electrical Heat Switch cannot operate as a standalone device. A Wiser Room Thermostat is required to provide temperature-based control — without it the switch will only function as a simple on/off device without temperature regulation.
Do I need a floor sensor for electric underfloor heating? Yes. If controlling electric UFH, a remote floor sensor is required and must be set up in the Wiser app. Compatible sensors are the Drayton 33kΩ (ref 193720), ELKO 10kΩ (ref 5491605) or DEVI 15kΩ (ref 140F1091). Only these three sensor types are supported.
Can I control multiple electric heaters with one heat switch? One Wiser Electrical Heat Switch controls one electrical heating device or circuit. A separate heat switch (and Room Thermostat) is required for each independently controlled zone or device.
Can I use it with Fil Pilote (electronic thermostat) heaters? The updated version of the product (16A Relay, part 06490339) also supports Fil Pilote control commands, allowing single-wire control of compatible French-style electronic thermostatic heaters. Check the installation guide for wiring details.
Does the heat switch extend my Wiser ZigBee network? Yes. Because it is hard-wired and permanently powered, the Electrical Heat Switch acts as a ZigBee repeater — strengthening the mesh network for all Wiser devices nearby.
$40.62

Original: $116.07

-65%
Drayton Wiser Electrical Heat Switch | 16A Smart Switch | Electric UFH | Radiators | ZigBee Range Extender—

$116.07

$40.62
