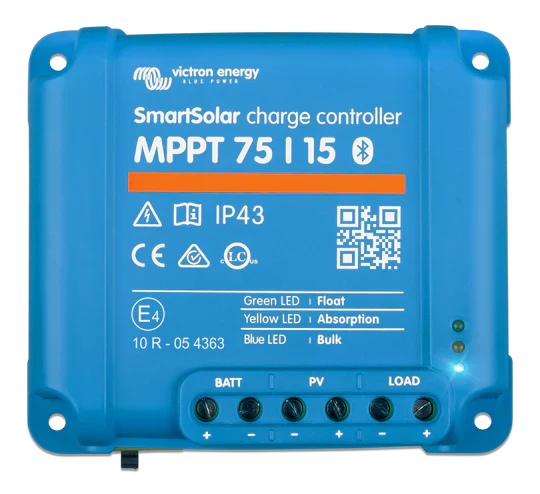

Victron SmartSolar MPPT 75/15 Charge Controller – 12V/24V, 15A, Bluetooth
The Victron SmartSolar MPPT 75/15 is a high‑performance 15A solar charge controller designed to maximise energy harvest from your solar panels while protecting and extending the life of your 12V or 24V battery bank. Its ultra-fast MPPT tracking, intelligent battery management and built‑in Bluetooth make it an ideal choice for both homeowners and trade professionals looking for a reliable, future‑proof solar controller.
With support for up to 220W of solar at 12V or 440W at 24V and a maximum PV open‑circuit voltage of 75V, this compact controller is perfect for off‑grid, campervan, marine, shed and small residential systems where efficiency, monitoring and long‑term reliability matter.
Key Product Details
-
Brand: Victron Energy
-
Model: SmartSolar MPPT 75/15 Retail
-
MPN: SCC075015060R
-
EAN: 8719076040804
-
Battery Voltage: 12V / 24V (auto‑select)
-
Rated Charge Current: 15A
-
Max PV Open Circuit Voltage: 75V
-
Max PV Power: 220W (12V), 440W (24V)
- Bluetooth: Integrated Bluetooth Smart for VictronConnect app
Why Buy This Controller?
- Ultra‑fast MPPT technology continuously tracks the optimal power point, delivering more usable energy from your solar panels than PWM or slower MPPT controllers, especially in cloudy or mixed‑light conditions.
- Intelligent BatteryLife algorithm helps prevent chronic under‑charging by managing loads and charge stages, supporting better battery health and longer service life.
- Built‑in Bluetooth lets you monitor performance, change settings and view history directly from your phone or tablet using the VictronConnect app – no extra dongle required.
- Wide PV input range (up to 75V) allows flexible array design, including series‑wired panels, helping to reduce cable losses and simplify installation.
- High peak efficiency up to 98% and fan‑less design reduce wasted energy and moving parts, contributing to quiet, dependable long‑term operation.
- Backed by Victron’s 5‑year warranty and proven track record in off‑grid, marine and residential solar applications for peace of mind.
Key Features
-
Ultra‑fast MPPT – Rapid tracking of the maximum power point for higher daily energy yield.
-
Advanced MPPT in partial shading – Optimises output when parts of the array are shaded or under variable irradiance.
-
Automatic 12/24V detection – Auto‑selects system voltage on first power‑up for straightforward setup.
-
15A charge and load output – Integrated load output with automatic disconnect for DC loads up to 15A.
-
BatteryLife management – Smart load shedding algorithm to help avoid excessive battery discharge.
-
Programmable charge algorithm – Flexible multi‑stage charging with presets, including lithium‑compatible profiles.
-
Comprehensive protections – Over‑temperature protection with power derating, PV short‑circuit protection, reverse polarity and reverse current protection.
-
VictronConnect app – Real‑time monitoring, configuration and firmware updates via Bluetooth Smart.
-
Compact, robust housing – Encapsulated electronics with IP43 protection for the electronics and IP22 for connections.
Suitable For
- Homeowners with small off‑grid or backup solar systems (cabins, sheds, garden offices, tiny homes).
- Campervans, motorhomes and caravans needing efficient battery charging from roof‑mounted solar.
- Marine installations on boats and yachts where space is tight and reliability is critical.
- Trade professionals designing 12V/24V DC systems for off‑grid, telecoms, CCTV, lighting or remote power applications.
- Installers upgrading older PWM controllers to increase yield and add Bluetooth monitoring.
Technical Specifications
| Parameter | Value |
|---|---|
| Brand | Victron Energy |
| Product name | SmartSolar MPPT 75/15 Retail |
| MPN | SCC075015060R |
| EAN | 8719076040804 |
| Battery system voltage | 12V / 24V (automatic detection) |
| Rated charge current | 15A |
| Nominal PV power (12V system) | 220W max |
| Nominal PV power (24V system) | 440W max |
| Max PV open circuit voltage (Voc) | 75V |
| Max PV short circuit current (Isc) | 15A |
| Peak efficiency | Up to 98% |
| Charge algorithm | Multi‑stage, fully programmable; presets for lead‑acid and lithium batteries |
| Load output | Yes, 15A with automatic load disconnect and BatteryLife management |
| Bluetooth | Integrated Bluetooth Smart for VictronConnect monitoring and configuration |
| IP rating | IP43 (electronics), IP22 (connections) |
| Operating temperature | −30°C to +60°C (with automatic power derating at high temperature) |
| Dimensions (H × W × D) | 100 × 113 × 40 mm |
| Weight | 0.5 kg |
| Recommended applications | Off‑grid, campervan, marine, remote power and small residential systems |
| Certifications / standards | EN/IEC 62109‑1, UL 1741, CSA C22.2 (according to SmartSolar MPPT series data) |
| Warranty | 5 years manufacturer warranty on SmartSolar range |
Installation & Use Notes
- Auto‑detects system voltage at first startup; ensure the controller is connected to the battery before the PV array.
- Observe the 75V maximum PV open‑circuit voltage and 15A short‑circuit current ratings when designing the solar array.
- Use appropriately sized cabling and DC protection (fuses/breakers) in line with local regulations and best practice.
$28.82
Original: $82.33
-65%Victron SmartSolar MPPT 75/15 Charge Controller – 12V/24V, 15A, Bluetooth—
$82.33
$28.82More Images
Victron SmartSolar MPPT 75/15 Charge Controller – 12V/24V, 15A, Bluetooth
The Victron SmartSolar MPPT 75/15 is a high‑performance 15A solar charge controller designed to maximise energy harvest from your solar panels while protecting and extending the life of your 12V or 24V battery bank. Its ultra-fast MPPT tracking, intelligent battery management and built‑in Bluetooth make it an ideal choice for both homeowners and trade professionals looking for a reliable, future‑proof solar controller.
With support for up to 220W of solar at 12V or 440W at 24V and a maximum PV open‑circuit voltage of 75V, this compact controller is perfect for off‑grid, campervan, marine, shed and small residential systems where efficiency, monitoring and long‑term reliability matter.
Key Product Details
-
Brand: Victron Energy
-
Model: SmartSolar MPPT 75/15 Retail
-
MPN: SCC075015060R
-
EAN: 8719076040804
-
Battery Voltage: 12V / 24V (auto‑select)
-
Rated Charge Current: 15A
-
Max PV Open Circuit Voltage: 75V
-
Max PV Power: 220W (12V), 440W (24V)
- Bluetooth: Integrated Bluetooth Smart for VictronConnect app
Why Buy This Controller?
- Ultra‑fast MPPT technology continuously tracks the optimal power point, delivering more usable energy from your solar panels than PWM or slower MPPT controllers, especially in cloudy or mixed‑light conditions.
- Intelligent BatteryLife algorithm helps prevent chronic under‑charging by managing loads and charge stages, supporting better battery health and longer service life.
- Built‑in Bluetooth lets you monitor performance, change settings and view history directly from your phone or tablet using the VictronConnect app – no extra dongle required.
- Wide PV input range (up to 75V) allows flexible array design, including series‑wired panels, helping to reduce cable losses and simplify installation.
- High peak efficiency up to 98% and fan‑less design reduce wasted energy and moving parts, contributing to quiet, dependable long‑term operation.
- Backed by Victron’s 5‑year warranty and proven track record in off‑grid, marine and residential solar applications for peace of mind.
Key Features
-
Ultra‑fast MPPT – Rapid tracking of the maximum power point for higher daily energy yield.
-
Advanced MPPT in partial shading – Optimises output when parts of the array are shaded or under variable irradiance.
-
Automatic 12/24V detection – Auto‑selects system voltage on first power‑up for straightforward setup.
-
15A charge and load output – Integrated load output with automatic disconnect for DC loads up to 15A.
-
BatteryLife management – Smart load shedding algorithm to help avoid excessive battery discharge.
-
Programmable charge algorithm – Flexible multi‑stage charging with presets, including lithium‑compatible profiles.
-
Comprehensive protections – Over‑temperature protection with power derating, PV short‑circuit protection, reverse polarity and reverse current protection.
-
VictronConnect app – Real‑time monitoring, configuration and firmware updates via Bluetooth Smart.
-
Compact, robust housing – Encapsulated electronics with IP43 protection for the electronics and IP22 for connections.
Suitable For
- Homeowners with small off‑grid or backup solar systems (cabins, sheds, garden offices, tiny homes).
- Campervans, motorhomes and caravans needing efficient battery charging from roof‑mounted solar.
- Marine installations on boats and yachts where space is tight and reliability is critical.
- Trade professionals designing 12V/24V DC systems for off‑grid, telecoms, CCTV, lighting or remote power applications.
- Installers upgrading older PWM controllers to increase yield and add Bluetooth monitoring.
Technical Specifications
| Parameter | Value |
|---|---|
| Brand | Victron Energy |
| Product name | SmartSolar MPPT 75/15 Retail |
| MPN | SCC075015060R |
| EAN | 8719076040804 |
| Battery system voltage | 12V / 24V (automatic detection) |
| Rated charge current | 15A |
| Nominal PV power (12V system) | 220W max |
| Nominal PV power (24V system) | 440W max |
| Max PV open circuit voltage (Voc) | 75V |
| Max PV short circuit current (Isc) | 15A |
| Peak efficiency | Up to 98% |
| Charge algorithm | Multi‑stage, fully programmable; presets for lead‑acid and lithium batteries |
| Load output | Yes, 15A with automatic load disconnect and BatteryLife management |
| Bluetooth | Integrated Bluetooth Smart for VictronConnect monitoring and configuration |
| IP rating | IP43 (electronics), IP22 (connections) |
| Operating temperature | −30°C to +60°C (with automatic power derating at high temperature) |
| Dimensions (H × W × D) | 100 × 113 × 40 mm |
| Weight | 0.5 kg |
| Recommended applications | Off‑grid, campervan, marine, remote power and small residential systems |
| Certifications / standards | EN/IEC 62109‑1, UL 1741, CSA C22.2 (according to SmartSolar MPPT series data) |
| Warranty | 5 years manufacturer warranty on SmartSolar range |
Installation & Use Notes
- Auto‑detects system voltage at first startup; ensure the controller is connected to the battery before the PV array.
- Observe the 75V maximum PV open‑circuit voltage and 15A short‑circuit current ratings when designing the solar array.
- Use appropriately sized cabling and DC protection (fuses/breakers) in line with local regulations and best practice.
