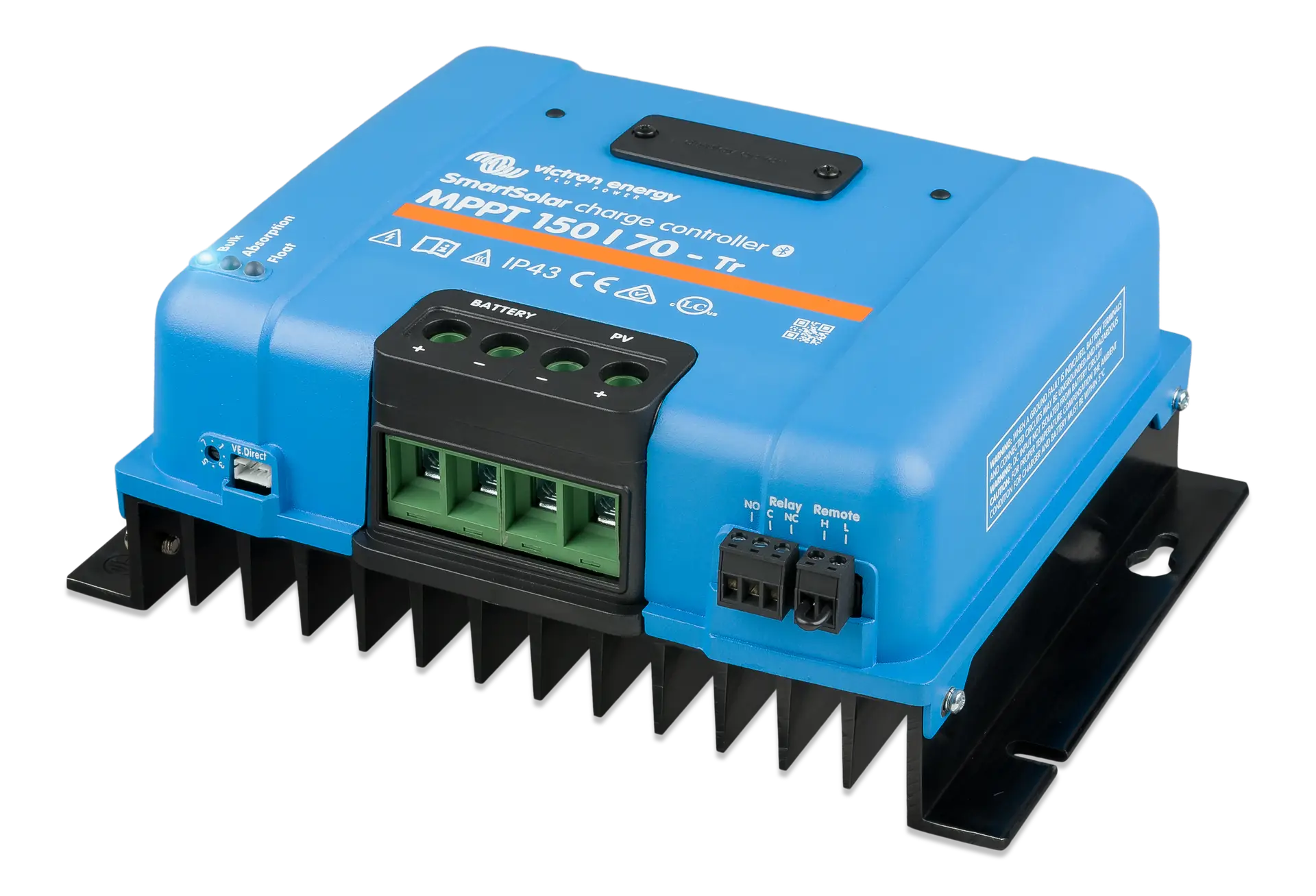

Victron SmartSolar MPPT 150/70-TR VE.Can – 150V 70A Solar Charge Controller
The Victron SmartSolar MPPT 150/70-TR VE.Can is a high‑performance 70A solar charge controller designed to maximise energy harvest from your PV array and reliably charge 12V, 24V, 36V or 48V battery banks. Its ultra-fast MPPT tracking, advanced protection features and flexible communication options make it ideal for both residential and professional off‑grid or hybrid solar installations.
Key Product Benefits
- Increase solar yield by up to 30% compared with PWM controllers and up to 10% compared with slower MPPT devices, helping you get more usable energy from the same array.
- Works with 12V, 24V, 36V and 48V systems, giving you flexibility for future upgrades or mixed‑voltage portfolios.
- Handles up to 150V PV open‑circuit voltage, allowing longer strings and reduced cable losses on larger rooftops or ground‑mount systems.
- Integrated Bluetooth and VE.Can / VE.Direct connectivity enable easy monitoring, configuration and system integration without complex wiring.
- High conversion efficiency (up to 98%) helps minimise losses and keeps running costs low over the life of the system.
- Robust electronic protections and wide operating temperature range support reliable operation in demanding UK and global environments.
Why Buy
- Trusted Victron performance: Proven reliability from a leading brand in marine, off‑grid and professional power systems, supporting long‑term peace of mind for homeowners and installers.
- Optimised battery care: Multi‑stage adaptive charging with programmable algorithms for lead‑acid and lithium batteries helps extend battery lifespan and maintain stable system performance.
- Smart monitoring out of the box: Built‑in Bluetooth plus VE.Can and VE.Direct interfaces make it easy to connect to Victron GX devices, apps and remote monitoring platforms.
- Scalable for larger systems: Parallel operation via VE.Can allows multiple controllers (up to 25 units) to work together in synchronised arrays for higher‑power projects.
- Installer‑friendly design: Compact enclosure, clear terminals and optional pluggable LCD display simplify installation, commissioning and ongoing maintenance.
Key Features
-
Ultra-fast Maximum Power Point Tracking (MPPT) for rapidly changing irradiance conditions (cloudy or partially shaded sites).
- Advanced MPPT detection algorithm to locate the optimal power point under partial shading instead of locking onto a sub‑optimal MPP.
- Rated charge current of 70A with nominal PV power up to 1000W (12V), 2000W (24V), 3000W (36V) and 4000W (48V).
- Automatic battery voltage recognition for 12V/24V/48V systems and manual selection for 36V systems through Victron settings.
- Wide PV input range with maximum open‑circuit voltage of 150V and maximum PV short‑circuit current of 50A.
- Multi‑stage adaptive charging (absorption, float and equalisation) with selectable or fully programmable charge profiles.
- Integrated temperature compensation for accurate charging in varying climates.
- Comprehensive protection: PV reverse polarity, PV short‑circuit, over‑temperature with automatic power derating and reverse current protection.
- Fully discharged battery recovery function, able to start charging from batteries at or near 0V (if cells are not permanently damaged).
- Built‑in Bluetooth for wireless setup and monitoring via VictronConnect app on smartphones and tablets.
- VE.Can and VE.Direct interfaces for wired communication with GX devices and third‑party systems.
- Programmable relay and remote on/off capability for integration into more complex energy systems and BMS solutions.
- Optional SmartSolar pluggable LCD display (front‑mounted) for at‑a‑glance local monitoring.
Suitable For
- Home solar and battery systems (off‑grid, backup or hybrid) requiring reliable, efficient DC charging control.
- Trade and professional installations in marine, campervan, commercial vehicle and remote site applications.
- Medium to large PV arrays wired up to 150V open‑circuit, including higher‑power 24V, 36V and 48V battery banks.
- Systems using lead‑acid (flooded, AGM, GEL) or lithium‑ion batteries, including those with external BMS and GX monitoring.
- Projects where remote monitoring, data logging and system expansion (multiple controllers in parallel) are required.
Technical Specifications
| General | |
|---|---|
| Product name | Victron SmartSolar MPPT 150/70-TR VE.Can |
| Technology | MPPT (Maximum Power Point Tracking) solar charge controller with VE.Can interface |
| Battery voltage | 12V / 24V / 48V auto‑select, 36V manual configuration |
| Rated charge current | 70A |
| PV Input | |
| Maximum PV open‑circuit voltage | 150V (absolute maximum in coldest conditions, 145V start‑up and operating) |
| Maximum PV short‑circuit current | 50A |
| Nominal PV power (12V battery) | Up to 1000W |
| Nominal PV power (24V battery) | Up to 2000W |
| Nominal PV power (36V battery) | Up to 3000W |
| Nominal PV power (48V battery) | Up to 4000W |
| Charging | |
| Charge algorithm | Multi‑stage adaptive with eight pre‑programmed algorithms and user‑defined option |
| Default absorption voltage | 14.4V / 28.8V / 43.2V / 57.6V (adjustable) |
| Default float voltage | 13.8V / 27.6V / 41.4V / 55.2V (adjustable) |
| Default equalisation voltage | 16.2V / 32.4V / 48.6V / 64.8V (adjustable) |
| Temperature compensation | -16mV / -32mV / -64mV per °C (depending on system voltage) |
| Maximum efficiency | Up to 98% |
| Self‑consumption | Less than 35mA @ 12V / 20mA @ 48V |
| Environment & Safety | |
| Operating temperature | -30°C to +60°C (full rated output up to 40°C) |
| Humidity | Up to 95% non‑condensing |
| Maximum altitude | Up to 5000m (full rating to 2000m) |
| Protection features | PV reverse polarity, PV short‑circuit, over‑temperature with power derating, PV reverse current protection |
| Connections & Communication | |
| Data interfaces | VE.Can, VE.Direct, integrated Bluetooth |
| Remote on/off | Yes (2‑pole connector) |
| Programmable relay | DPST relay, 240VAC / 4A or up to 4A at 35VDC |
| Parallel operation | Up to 25 units synchronised via VE.Can, up to 10 units via Bluetooth |
| Mechanical | |
| Model type | TR (screw terminals) |
| Dimensions (H x W x D) | Approx. 185 x 250 x 95mm (TR model) |
| Weight | Approx. 3kg |
| Enclosure colour | Blue (Victron RAL 5012) |
| IP / protection category | Indoor electronic equipment (see manufacturer guidance for mounting and ventilation) |
| Compliance & Warranty | |
| Safety standards | EN/IEC 62109‑1, UL 1741, CSA C22.2 |
$160.61
Original: $458.89
-65%Victron SmartSolar MPPT 150/70-TR VE.Can – 150V 70A Solar Charge Controller—
$458.89
$160.61More Images
Victron SmartSolar MPPT 150/70-TR VE.Can – 150V 70A Solar Charge Controller
The Victron SmartSolar MPPT 150/70-TR VE.Can is a high‑performance 70A solar charge controller designed to maximise energy harvest from your PV array and reliably charge 12V, 24V, 36V or 48V battery banks. Its ultra-fast MPPT tracking, advanced protection features and flexible communication options make it ideal for both residential and professional off‑grid or hybrid solar installations.
Key Product Benefits
- Increase solar yield by up to 30% compared with PWM controllers and up to 10% compared with slower MPPT devices, helping you get more usable energy from the same array.
- Works with 12V, 24V, 36V and 48V systems, giving you flexibility for future upgrades or mixed‑voltage portfolios.
- Handles up to 150V PV open‑circuit voltage, allowing longer strings and reduced cable losses on larger rooftops or ground‑mount systems.
- Integrated Bluetooth and VE.Can / VE.Direct connectivity enable easy monitoring, configuration and system integration without complex wiring.
- High conversion efficiency (up to 98%) helps minimise losses and keeps running costs low over the life of the system.
- Robust electronic protections and wide operating temperature range support reliable operation in demanding UK and global environments.
Why Buy
- Trusted Victron performance: Proven reliability from a leading brand in marine, off‑grid and professional power systems, supporting long‑term peace of mind for homeowners and installers.
- Optimised battery care: Multi‑stage adaptive charging with programmable algorithms for lead‑acid and lithium batteries helps extend battery lifespan and maintain stable system performance.
- Smart monitoring out of the box: Built‑in Bluetooth plus VE.Can and VE.Direct interfaces make it easy to connect to Victron GX devices, apps and remote monitoring platforms.
- Scalable for larger systems: Parallel operation via VE.Can allows multiple controllers (up to 25 units) to work together in synchronised arrays for higher‑power projects.
- Installer‑friendly design: Compact enclosure, clear terminals and optional pluggable LCD display simplify installation, commissioning and ongoing maintenance.
Key Features
-
Ultra-fast Maximum Power Point Tracking (MPPT) for rapidly changing irradiance conditions (cloudy or partially shaded sites).
- Advanced MPPT detection algorithm to locate the optimal power point under partial shading instead of locking onto a sub‑optimal MPP.
- Rated charge current of 70A with nominal PV power up to 1000W (12V), 2000W (24V), 3000W (36V) and 4000W (48V).
- Automatic battery voltage recognition for 12V/24V/48V systems and manual selection for 36V systems through Victron settings.
- Wide PV input range with maximum open‑circuit voltage of 150V and maximum PV short‑circuit current of 50A.
- Multi‑stage adaptive charging (absorption, float and equalisation) with selectable or fully programmable charge profiles.
- Integrated temperature compensation for accurate charging in varying climates.
- Comprehensive protection: PV reverse polarity, PV short‑circuit, over‑temperature with automatic power derating and reverse current protection.
- Fully discharged battery recovery function, able to start charging from batteries at or near 0V (if cells are not permanently damaged).
- Built‑in Bluetooth for wireless setup and monitoring via VictronConnect app on smartphones and tablets.
- VE.Can and VE.Direct interfaces for wired communication with GX devices and third‑party systems.
- Programmable relay and remote on/off capability for integration into more complex energy systems and BMS solutions.
- Optional SmartSolar pluggable LCD display (front‑mounted) for at‑a‑glance local monitoring.
Suitable For
- Home solar and battery systems (off‑grid, backup or hybrid) requiring reliable, efficient DC charging control.
- Trade and professional installations in marine, campervan, commercial vehicle and remote site applications.
- Medium to large PV arrays wired up to 150V open‑circuit, including higher‑power 24V, 36V and 48V battery banks.
- Systems using lead‑acid (flooded, AGM, GEL) or lithium‑ion batteries, including those with external BMS and GX monitoring.
- Projects where remote monitoring, data logging and system expansion (multiple controllers in parallel) are required.
Technical Specifications
| General | |
|---|---|
| Product name | Victron SmartSolar MPPT 150/70-TR VE.Can |
| Technology | MPPT (Maximum Power Point Tracking) solar charge controller with VE.Can interface |
| Battery voltage | 12V / 24V / 48V auto‑select, 36V manual configuration |
| Rated charge current | 70A |
| PV Input | |
| Maximum PV open‑circuit voltage | 150V (absolute maximum in coldest conditions, 145V start‑up and operating) |
| Maximum PV short‑circuit current | 50A |
| Nominal PV power (12V battery) | Up to 1000W |
| Nominal PV power (24V battery) | Up to 2000W |
| Nominal PV power (36V battery) | Up to 3000W |
| Nominal PV power (48V battery) | Up to 4000W |
| Charging | |
| Charge algorithm | Multi‑stage adaptive with eight pre‑programmed algorithms and user‑defined option |
| Default absorption voltage | 14.4V / 28.8V / 43.2V / 57.6V (adjustable) |
| Default float voltage | 13.8V / 27.6V / 41.4V / 55.2V (adjustable) |
| Default equalisation voltage | 16.2V / 32.4V / 48.6V / 64.8V (adjustable) |
| Temperature compensation | -16mV / -32mV / -64mV per °C (depending on system voltage) |
| Maximum efficiency | Up to 98% |
| Self‑consumption | Less than 35mA @ 12V / 20mA @ 48V |
| Environment & Safety | |
| Operating temperature | -30°C to +60°C (full rated output up to 40°C) |
| Humidity | Up to 95% non‑condensing |
| Maximum altitude | Up to 5000m (full rating to 2000m) |
| Protection features | PV reverse polarity, PV short‑circuit, over‑temperature with power derating, PV reverse current protection |
| Connections & Communication | |
| Data interfaces | VE.Can, VE.Direct, integrated Bluetooth |
| Remote on/off | Yes (2‑pole connector) |
| Programmable relay | DPST relay, 240VAC / 4A or up to 4A at 35VDC |
| Parallel operation | Up to 25 units synchronised via VE.Can, up to 10 units via Bluetooth |
| Mechanical | |
| Model type | TR (screw terminals) |
| Dimensions (H x W x D) | Approx. 185 x 250 x 95mm (TR model) |
| Weight | Approx. 3kg |
| Enclosure colour | Blue (Victron RAL 5012) |
| IP / protection category | Indoor electronic equipment (see manufacturer guidance for mounting and ventilation) |
| Compliance & Warranty | |
| Safety standards | EN/IEC 62109‑1, UL 1741, CSA C22.2 |
