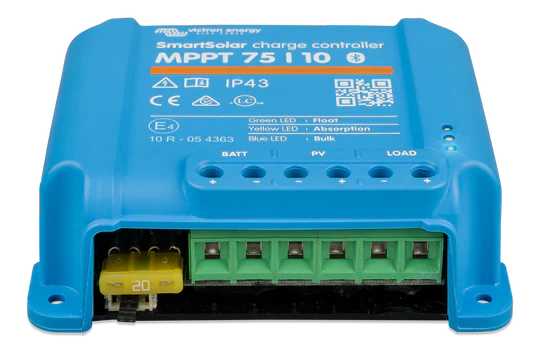

Victron SmartSolar MPPT 75/10 – 10A Solar Charge Controller with Bluetooth
The Victron SmartSolar MPPT 75/10 is a high‑performance 10A solar charge controller designed to maximise the energy harvested from your solar panels while protecting and extending the life of your batteries.
Using ultra‑fast Maximum Power Point Tracking and an intelligent multi‑stage charging algorithm, this compact controller is ideal for both homeowners and trade professionals building reliable 12V or 24V off‑grid, leisure or small residential systems.
Key Features
-
Ultra‑fast MPPT tracking to capture more energy from your solar panels than conventional PWM controllers, especially in changing or cloudy conditions.
- 10A rated charge current, suitable for up to 145 W at 12 V or 290 W at 24 V PV array size.
- Automatic 12/24 V battery voltage recognition for simple installation and system upgrades.
- Built‑in Bluetooth Smart for wireless setup, monitoring and firmware updates via the VictronConnect app on smartphones and tablets.
- Intelligent BatteryLife management with automatic load disconnect to help prevent deep discharge and extend battery lifespan.
- Load output on the controller for direct connection of DC loads with low‑voltage protection.
- Flexible, fully programmable charging algorithm with multiple pre‑set battery profiles, including options suited to lead‑acid and lithium batteries.
- High peak efficiency of up to 98% for reduced energy loss and cooler operation.
- Advanced electronic protection including over‑temperature protection, power derating at high temperature, PV short‑circuit, reverse polarity and output short‑circuit protection.
- Compact, lightweight design with IP43 protection for electronic components and robust terminals for secure cabling.
Why Buy
- Increase solar yield by up to 30% compared with basic PWM controllers, making better use of your existing panels and roof space.
- Protect your battery investment with adaptive multi‑stage charging and BatteryLife management that reduces harmful deep discharges.
- Save time on installation and commissioning using auto‑voltage detection, intuitive Bluetooth setup and clear real‑time performance data.
- Reduce call‑backs and maintenance costs on professional installs thanks to robust protections, high efficiency and proven Victron reliability.
- Enjoy peace of mind with a high‑quality European‑designed controller built for long‑term, trouble‑free operation.
Suitable For
- Off‑grid and backup power systems for homes, garden buildings, sheds and remote monitoring sites.
- Leisure vehicles including motorhomes, campervans and caravans requiring reliable 12 V or 24 V battery charging from roof‑mounted solar.
- Boats and marine applications where efficient charging and compact equipment are important.
- Small commercial, agricultural or telecoms systems needing stable DC power and robust battery protection.
- System upgrades where an existing PWM regulator is limiting performance and a Bluetooth‑enabled MPPT is preferred.
Technical Specifications
| Electrical | |
|---|---|
| Battery system voltage | 12 V / 24 V (auto‑select) |
| Rated charge current | 10 A |
| Recommended nominal PV power (12 V) | Up to 145 W |
| Recommended nominal PV power (24 V) | Up to 290 W |
| Maximum PV open‑circuit voltage | 75 V |
| Maximum PV short‑circuit current | 13 A |
| Charging algorithm | Multi‑stage adaptive (bulk, absorption, float), fully programmable |
| Absorption voltage (default) | 14.4 V / 28.8 V (adjustable) |
| Float voltage (default) | 13.8 V / 27.6 V (adjustable) |
| Peak efficiency | Up to 98% |
| Self‑consumption | Approx. 25 mA (12 V) / 15 mA (24 V) |
| Control & Connectivity | |
| Bluetooth | Bluetooth Smart built‑in for wireless monitoring and configuration |
| Data communication | VE.Direct port for connection to GX devices or PC |
| Load output | Yes – automatic low‑voltage disconnect and BatteryLife management |
| Mechanical | |
| Dimensions (H × W × D) | 100 × 113 × 40 mm |
| Weight | Approx. 0.5 kg |
| Enclosure colour | Blue (RAL 5012) |
| Terminal size | Up to 6 mm² (AWG 10) |
| Ingress protection | IP43 (electronics), IP22 (connection area) |
| Environmental | |
| Operating temperature range | −30 °C to +60 °C (full rated output up to 40 °C) |
| Humidity | Up to 95% non‑condensing |
| Protection & Safety | |
| Electronic protections | Battery reverse polarity (fuse), PV reverse polarity, PV short circuit, output short circuit, over‑temperature |
| Low‑voltage load disconnect / reconnect | Configurable thresholds or BatteryLife algorithm |
| Standards | Conforms to EN/IEC 62109‑1, UL 1741, CSA C22.2 |
| Identifiers | |
| MPN (Manufacturer Part Number) | SCC075010060R |
| EAN | 8719076040798 |
This Victron SmartSolar MPPT 75/10 controller offers an excellent balance of performance, protection and ease of use, making it a strong choice for both new solar installations and upgrades where reliability and battery care are a priority.
