Viridian Clearline Fusion F16 Landscape Roofing Kits | LL LC LR LY LJ | G1 & M10 | VIR-F16
Landscape Orientation G1 & M10 Module Formats Rectangular Arrays Clearline Fusion System 10 Variants BBA & MCS Certified Viridian Solar
The Viridian Clearline Fusion F16 Landscape Roofing Kit range provides all the flashing kits required to build a rectangular in-roof solar array in landscape orientation using Clearline PV16 modules. Available in G1 format (for PV16-335-G1) and M10 format (for PV16-405-M10). Five kit positions — Left (LL), Centre (LC), Right (LR), Row-above (LY), and Joining (LJ) — combine in defined quantities to frame any n×m rectangular landscape array. The landscape F16-L range is the direct equivalent of the portrait F16-T range, with flashings and brackets dimensioned for modules installed with their long axis horizontal. All kits work with both tile and slate roofs.
ℹ️ How to count kits for your landscape array: The formula is identical to portrait: 1× LL · (m−2)× LC · 1× LR · (n−1)× LY · (n−1)×(m−1)× LJ. Example: a 3×3 landscape array (9 panels) needs: 1× LL, 1× LC, 1× LR, 2× LY, 4× LJ.
Landscape Kit Positions — What Each Kit Does
| Kit Code | Full Name | Array Position | Role |
|---|---|---|---|
| F16-LL | Landscape Left | Left-hand edge column, bottom panel | Provides sill, left side flashing, left edge bracketing and top flashing for the bottom-left panel |
| F16-LC | Landscape Centre | Centre columns, bottom panel | Provides sill and inter-column bracketing for bottom panels in centre columns; one per centre column (m−2 total) |

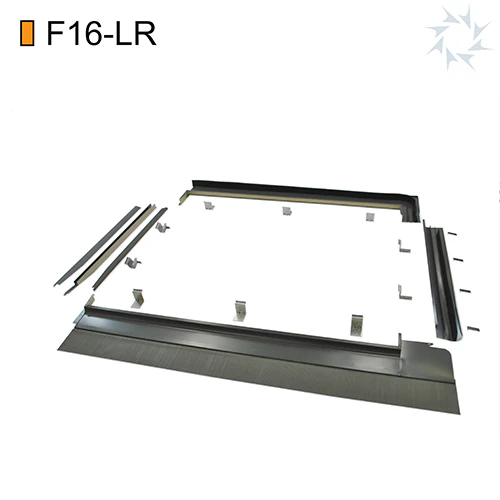

| F16-LR | Landscape Right | Right-hand edge column, bottom panel | Mirrors LL — provides sill, right side flashing, right edge bracketing and top flashing for the bottom-right panel |
| F16-LY | Landscape Row | Left or centre column, start of each additional row above the first | Provides combi-rafter bracket and joining strip to seat each new row; (n−1) per array |
| F16-LJ | Landscape Joining | Interior joins in each column above row 1 | Provides upper and lower gutters, gutter covers and fixings for every panel-to-panel join above the bottom row; (n−1)×(m−1) total |
Variant Selection
| MPN | Kit Type | Module Format | Module Height (landscape) | Kit Weight |
|---|---|---|---|---|
| VIR-F16-LL-G1 | Landscape Left | G1 (PV16-335-G1) | 686mm | ~12 kg |
| VIR-F16-LL-M10 | Landscape Left | M10 (PV16-405-M10) | 722mm | 12 kg |
| VIR-F16-LC-G1 | Landscape Centre | G1 | 686mm | — |
| VIR-F16-LC-M10 | Landscape Centre | M10 | 722mm | — |
| VIR-F16-LR-G1 | Landscape Right | G1 | 686mm | ~12 kg |
| VIR-F16-LR-M10 | Landscape Right | M10 | 722mm | 12 kg |
| VIR-F16-LY-G1 | Landscape Row | G1 | 686mm | — |
| VIR-F16-LY-M10 | Landscape Row | M10 | 722mm | — |
| VIR-F16-LJ-G1 | Landscape Joining | G1 | 686mm | — |
| VIR-F16-LJ-M10 | Landscape Joining | M10 | 722mm | — |
Key Features
- ✓Complete flashing solution for rectangular landscape arrays — LL, LC, LR, LY and LJ kits cover every position in any n×m landscape array
- ✓Available in G1 and M10 module formats — G1 kits for PV16-G1 (1,000×1,686mm); M10 kits for PV16-M10 (1,134×1,722mm); do not mix formats
- ✓Each kit is the landscape-orientation equivalent of its portrait counterpart — LL=TL, LC=TC, LR=TR, LY=TY, LJ=J; same performance, different flashings
- ✓Includes all components for that position — sill flashing, side flashings, top flashing, gutters, gutter covers, joining strip, brackets, and all fixings
- ✓5mm inter-panel row gap · 30mm inter-column gap — industry-leading minimal spacing for clean aesthetics
- ✓BRoof fire rating Class B (T1–T4, EN 13501-5) — highest UK roofing fire classification
- ✓Certified wind resistance 5.32 kPa (G1) / 4.65 kPa (M10)
- ✓Compatible with tile battens 22mm–40mm — B22/B22J accessories for 22mm; B40/B40J for 40mm
- ✓Sarking board roofs — use matching SB16 sarking bracket kits (SB16-L/C/R/Y/J equivalents)
- ✓Pitch range 20°–60°
- ✓BBA Certificate 0032 / MCS 005 / MCS 012 certified
Landscape Array Sizing Reference
Landscape array dimensions: G1 modules: Width = (m × 1,716) + 230 mm · Height = (n × 1,005) + 500 mm M10 modules: Width = (m × 1,752) + 230 mm · Height = (n × 1,139) + 500 mm (where n = rows, m = columns; to outer flashing edges)
| Specification | Value |
|---|---|
| Manufacturer | Viridian Solar Ltd |
| System | Clearline Fusion |
| Orientation | Landscape |
| Compatible Modules | Clearline PV16-G1 (1,000×1,686mm) and PV16-M10 (1,134×1,722mm) |
| Roof Pitch | 20° – 60° |
| Batten Compatibility | 25mm standard; 22mm (B22/B22J); 40mm (B40/B40J); sarking boards (SB16-L/C/R/Y/J) |
| Row Spacing | 5mm |
| Column Spacing | 30mm |
| Wind Resistance (G1) | 5.32 kPa characteristic / 5.32 kPa ultimate design |
| Wind Resistance (M10) | 4.65 kPa characteristic / 4.65 kPa ultimate design |
| Fire Rating | BRoof Class B, T1–T4 (EN 13501-5 / BS 476-3) |
| Standards | IEC 61215, IEC 61730, TÜV, MCS 005, MCS 012, BBA Certificate 0032 |
| Kit Formula | 1× LL · (m−2)× LC · 1× LR · (n−1)× LY · (n−1)×(m−1)× LJ |
Frequently Asked Questions
QWhat is the difference between portrait and landscape Clearline Fusion kits?
The F16-T kits are for portrait installation (panel long axis vertical — tall). The F16-L kits are for landscape (panel long axis horizontal — wide). The kit positions are equivalent (TL=LL, TC=LC, TR=LR, TY=LY, J=LJ) and the counting formula is identical, but the flashings and brackets are dimensioned differently for each orientation. You cannot mix portrait and landscape kits.
QCan I mix G1 and M10 landscape kits?
No — G1 and M10 module formats are different widths and all flashing dimensions differ. An array must use all-G1 or all-M10 kits throughout.
QHow many kits do I need for a landscape array?
Use the formula: 1× LL · (m−2)× LC · 1× LR · (n−1)× LY · (n−1)×(m−1)× LJ (n=rows, m=columns). For a 2×1 landscape array (2 wide, 1 tall), use VAL16 single-panel landscape kits rather than LL/LR.
QIs landscape orientation structurally equivalent to portrait?
Yes — wind resistance, fire rating, weathertightness and all certifications are identical between portrait and landscape orientations. The choice is determined by roof proportions, aesthetic preference, and panel count per row.
QMy roof has sarking boards — what do I need?
Purchase the appropriate SB16 sarking bracket kits: one per flashing kit of the matching type. For landscape kits: SB16-L covers LL/F16-LL; SB16-C covers LC/F16-LC; SB16-R covers LR/F16-LR; SB16-Y covers LY/F16-LY; SB16-J covers LJ/F16-LJ.
