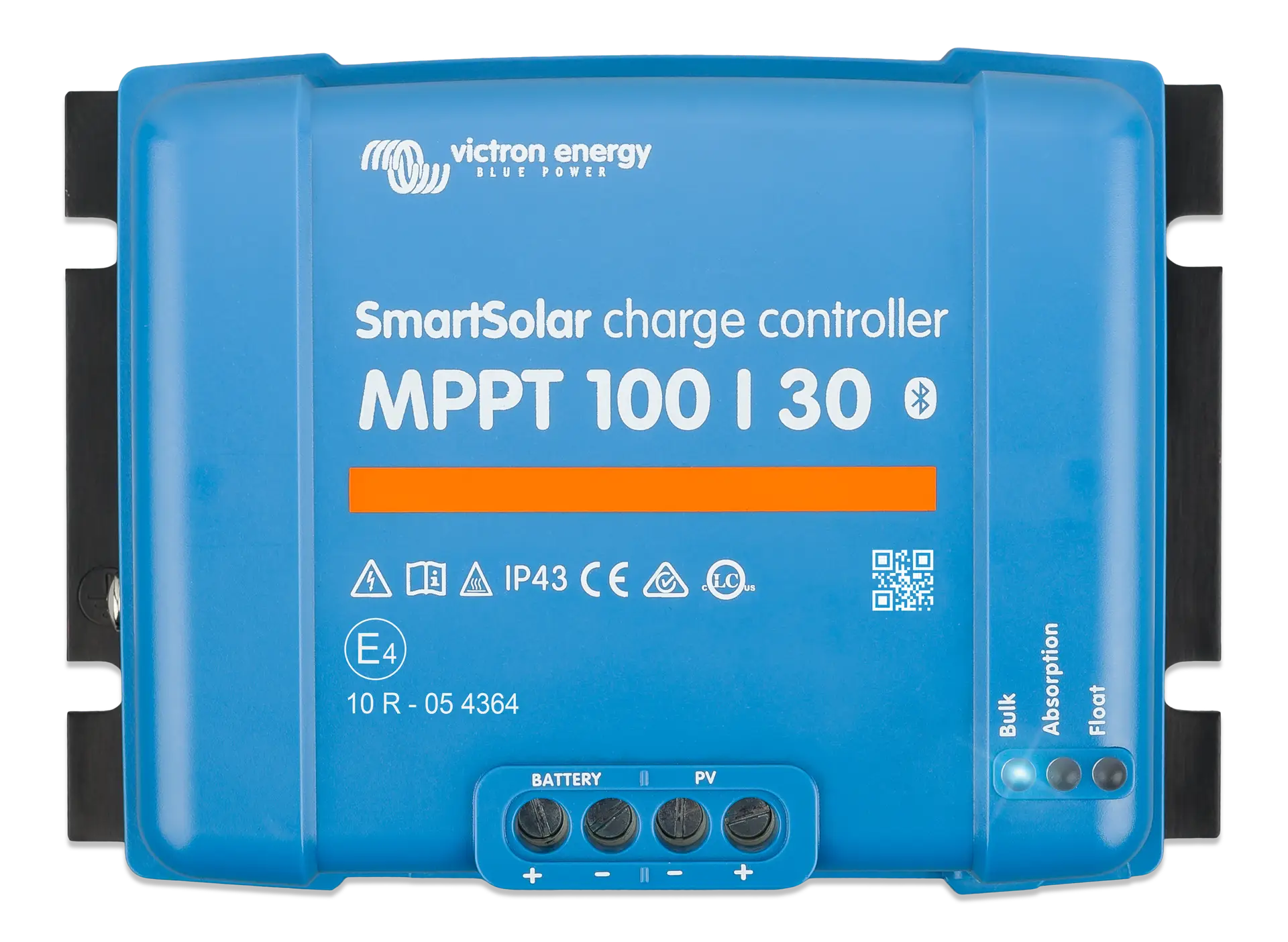

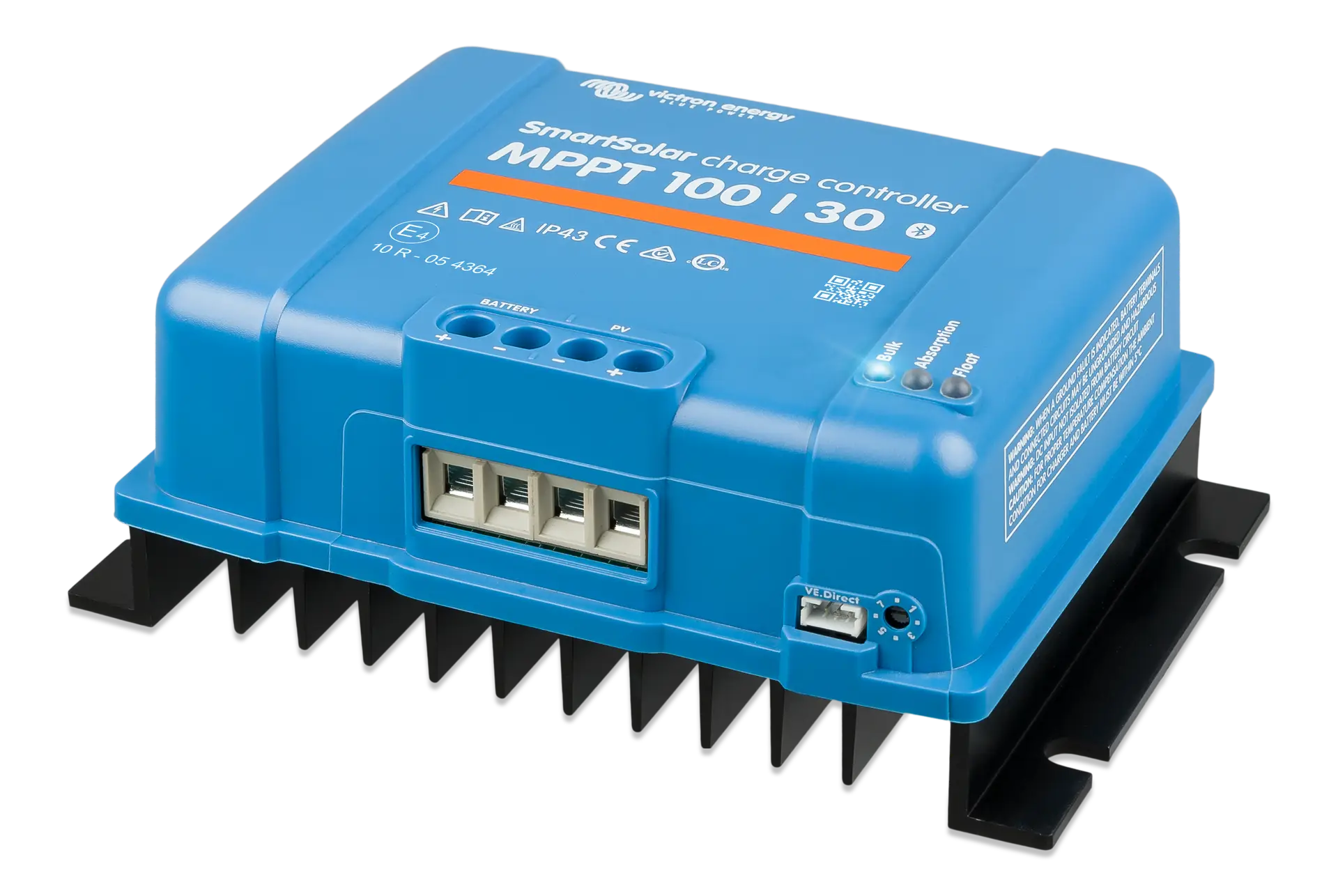

Victron SmartSolar MPPT 100/30 30A Solar Charge Controller (Bluetooth)
MPN: SCC110030210 | 30A ultra‑fast MPPT solar charge controller with integrated Bluetooth, for 12V and 24V battery systems and solar arrays up to 440W (12V) / 880W (24V) with a maximum PV open‑circuit voltage of 100V.
Why Choose This Controller?
- Delivers significantly higher solar yield than PWM and slower MPPT controllers, especially in changing or low‑light conditions.
- Handles sizeable arrays for medium systems: up to 440W on 12V or 880W on 24V, ideal for off‑grid cabins, vans, boats and small home systems.
- Integrated Bluetooth for simple setup, monitoring and firmware updates via the VictronConnect app (phone, tablet or PC).
- Advanced charge algorithms and BatteryLife‑style management (bulk/absorption/float) to protect and extend battery life.
- Victron‑grade reliability, with robust electronics, extensive protection and a 5‑year manufacturer’s warranty.
How Many Solar Panels Can I Use?
The controller is limited by 440W/880W power and 100V PV open‑circuit voltage. Typical examples:
- 12V battery bank (max 440W) – 2 × 200–220W panels in parallel, or – 3 × 150W panels (450W total, acceptable with minor clipping), or – Higher‑voltage strings (e.g. 2 × 220W in series) as long as cold‑weather Voc stays below 100V.
- 24V battery bank (max 880W) – 3–4 × 260–300W panels in series/parallel combinations, staying under 880W and 100V Voc, or – 2 × 400–440W “large” modules in series or parallel as design allows.
Always check your specific panel wattage and Voc (including cold‑temperature Voc) to keep within 100V and the relevant W limit for your battery voltage.
Key Electrical Specifications
| Battery system voltage | 12 V / 24 V auto‑select |
| Rated charge current | 30 A |
| Max PV power (12V) | 440 W |
| Max PV power (24V) | 880 W |
| Max PV open‑circuit voltage | 100 V |
| Max PV short‑circuit current | 35 A |
| Charge algorithm | 3‑stage adaptive (bulk / absorption / float), user‑configurable |
| Supported battery types | AGM, Gel, flooded, tubular plate and Lithium (with custom settings) |
| Peak efficiency | Up to ~98% |
| Self‑consumption | Approx. 10 mA |
| Temperature compensation | Internal temperature sensor with automatic voltage compensation |
Connectivity & Control
- Built‑in Bluetooth for VictronConnect: live data (PV, battery volts/amps, state of charge), 30‑day history, advanced configuration and firmware updates.
- VE.Direct communication port for optional cabled displays (e.g. MPPT Control) or external monitoring/data‑logging equipment.
- Configurable load algorithms and optional lighting / street‑light functions via VictronConnect.
Protection & Construction
- Protection against PV reverse polarity, PV short‑circuit, PV reverse current, battery reverse polarity and overheating (with derating).
- Comprehensive electronic safeguards and self‑diagnostics with LED fault indication.
- Enclosure: IP43 for electronic components, IP22 at the connection area; pollution degree PD3.
- Operating temperature: −30°C to +60°C (with automatic output derating at high temperatures).
Physical
| Dimensions (H × W × D) | 130 × 186 × 70 mm |
| Mounting dimensions | 175 × 75 mm, 4 mounting holes |
| Weight | ≈ 1.3 kg |
| Max cable size | Up to 13 mm² on power terminals |
| Warranty | 5‑year manufacturer’s warranty |
With high power handling, outstanding efficiency and full Bluetooth connectivity, the Victron SmartSolar MPPT 100/30 is a go‑to choice for robust, medium‑sized off‑grid and marine solar systems where performance and reliability matter.
