SolaX X3 Hybrid G4 (Three Phase) Inverter Range

SolaX X3 Hybrid G4 (Three Phase) Inverter Range

SolaX X3 Hybrid G4 (Three Phase) Inverter Range

The SolaX X3 Hybrid G4 series is a state-of-the-art three-phase hybrid inverter range, designed for both residential and commercial solar-plus-storage projects. These inverters combine advanced solar PV conversion with high-voltage battery storage, delivering reliable backup power, intelligent energy management, and seamless integration with smart loads and EV charging.

Key Features

  • Available sizes: 5kW, 6kW, 8kW, 10kW, 12kW, 15kW
  • Hybrid functionality: solar PV inverter and battery storage controller in one
  • In-built EPS (Emergency Power Supply) changeover switch for backup
  • Supports up to 200% PV oversizing and up to 110% AC output
  • Three-phase unbalanced output: up to 5kW per phase
  • On-grid and off-grid operation, with parallel function up to 150kW
  • Max. 28A input per MPPT for high-power solar panels
  • 30A charge/discharge capability for rapid battery cycling
  • Works at full capacity down to -35°C
  • UPS-level switchover time <10ms
  • Type II SPD (Surge Protection Device) on both AC and DC sides
  • IP65 protection for indoor or outdoor installation
  • Includes WiFi dongle for remote monitoring and management
  • Smart load management (supports heat pumps, EV chargers, etc.)
  • VPP-ready (Virtual Power Plant) and ancillary service support
  • Quick configuration via USB drive

Model Range & Specifications

  • AC Output Power: 5.0kW, 6.0kW, 8.0kW, 10.0kW, 12.0kW, 15.0kW (model dependent)
  • Max. PV Input Power: Up to 200% of inverter rating (e.g. 20kW PV for 10kW inverter)
  • Max. PV Input Voltage: 1000V (model dependent)
  • MPPT Voltage Range: Typically 180–950V (model dependent)
  • Number of MPPTs: 2 (most models)
  • Max. Input Current per MPPT: Up to 28A
  • Battery Voltage Range: 180V – 650V (model dependent)
  • Max. Charge/Discharge Current: 30A
  • Max. Efficiency: Up to 98%
  • Charge/Discharge Efficiency: Up to 97.5%
  • Operating Temperature Range: -35°C to +60°C
  • Warranty: 10–12 years (model/distributor dependent)

Applications

  • Residential and commercial solar-plus-storage systems
  • Backup power for critical loads
  • Smart home and building energy management
  • Flexible grid services and VPP participation
Select Rated Power
From $1,267.88

Original: $3,622.51

-65%
SolaX X3 Hybrid G4 (Three Phase) Inverter Range—

$3,622.51

$1,267.88

More Images

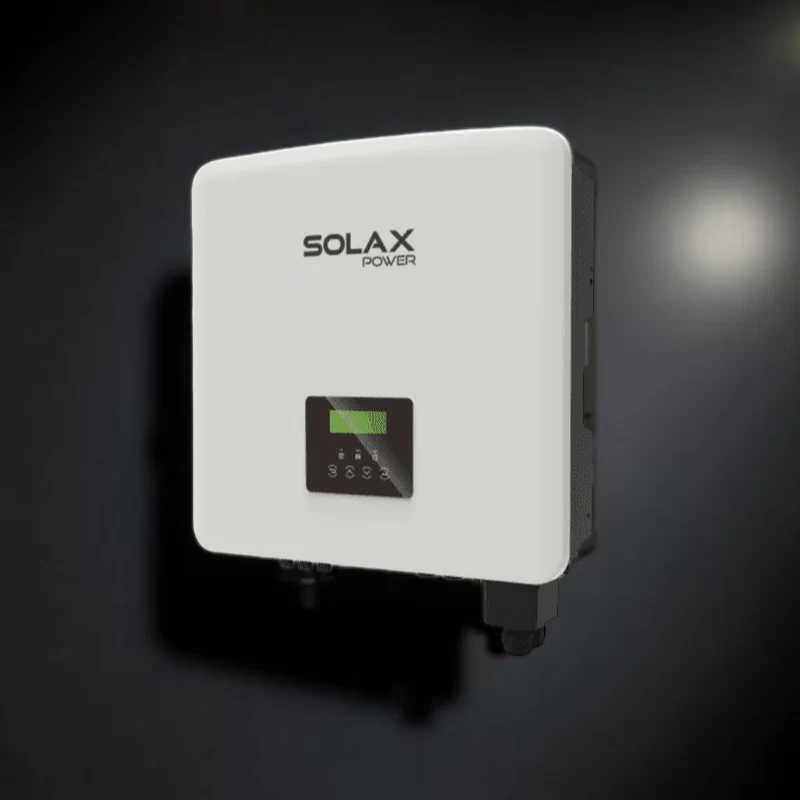

SolaX X3 Hybrid G4 (Three Phase) Inverter Range - Image 2
SolaX X3 Hybrid G4 (Three Phase) Inverter Range - Image 3

SolaX X3 Hybrid G4 (Three Phase) Inverter Range

SolaX X3 Hybrid G4 (Three Phase) Inverter Range

The SolaX X3 Hybrid G4 series is a state-of-the-art three-phase hybrid inverter range, designed for both residential and commercial solar-plus-storage projects. These inverters combine advanced solar PV conversion with high-voltage battery storage, delivering reliable backup power, intelligent energy management, and seamless integration with smart loads and EV charging.

Key Features

  • Available sizes: 5kW, 6kW, 8kW, 10kW, 12kW, 15kW
  • Hybrid functionality: solar PV inverter and battery storage controller in one
  • In-built EPS (Emergency Power Supply) changeover switch for backup
  • Supports up to 200% PV oversizing and up to 110% AC output
  • Three-phase unbalanced output: up to 5kW per phase
  • On-grid and off-grid operation, with parallel function up to 150kW
  • Max. 28A input per MPPT for high-power solar panels
  • 30A charge/discharge capability for rapid battery cycling
  • Works at full capacity down to -35°C
  • UPS-level switchover time <10ms
  • Type II SPD (Surge Protection Device) on both AC and DC sides
  • IP65 protection for indoor or outdoor installation
  • Includes WiFi dongle for remote monitoring and management
  • Smart load management (supports heat pumps, EV chargers, etc.)
  • VPP-ready (Virtual Power Plant) and ancillary service support
  • Quick configuration via USB drive

Model Range & Specifications

  • AC Output Power: 5.0kW, 6.0kW, 8.0kW, 10.0kW, 12.0kW, 15.0kW (model dependent)
  • Max. PV Input Power: Up to 200% of inverter rating (e.g. 20kW PV for 10kW inverter)
  • Max. PV Input Voltage: 1000V (model dependent)
  • MPPT Voltage Range: Typically 180–950V (model dependent)
  • Number of MPPTs: 2 (most models)
  • Max. Input Current per MPPT: Up to 28A
  • Battery Voltage Range: 180V – 650V (model dependent)
  • Max. Charge/Discharge Current: 30A
  • Max. Efficiency: Up to 98%
  • Charge/Discharge Efficiency: Up to 97.5%
  • Operating Temperature Range: -35°C to +60°C
  • Warranty: 10–12 years (model/distributor dependent)

Applications

  • Residential and commercial solar-plus-storage systems
  • Backup power for critical loads
  • Smart home and building energy management
  • Flexible grid services and VPP participation

Product Information

Shipping & Returns

Description

SolaX X3 Hybrid G4 (Three Phase) Inverter Range

The SolaX X3 Hybrid G4 series is a state-of-the-art three-phase hybrid inverter range, designed for both residential and commercial solar-plus-storage projects. These inverters combine advanced solar PV conversion with high-voltage battery storage, delivering reliable backup power, intelligent energy management, and seamless integration with smart loads and EV charging.

Key Features

  • Available sizes: 5kW, 6kW, 8kW, 10kW, 12kW, 15kW
  • Hybrid functionality: solar PV inverter and battery storage controller in one
  • In-built EPS (Emergency Power Supply) changeover switch for backup
  • Supports up to 200% PV oversizing and up to 110% AC output
  • Three-phase unbalanced output: up to 5kW per phase
  • On-grid and off-grid operation, with parallel function up to 150kW
  • Max. 28A input per MPPT for high-power solar panels
  • 30A charge/discharge capability for rapid battery cycling
  • Works at full capacity down to -35°C
  • UPS-level switchover time <10ms
  • Type II SPD (Surge Protection Device) on both AC and DC sides
  • IP65 protection for indoor or outdoor installation
  • Includes WiFi dongle for remote monitoring and management
  • Smart load management (supports heat pumps, EV chargers, etc.)
  • VPP-ready (Virtual Power Plant) and ancillary service support
  • Quick configuration via USB drive

Model Range & Specifications

  • AC Output Power: 5.0kW, 6.0kW, 8.0kW, 10.0kW, 12.0kW, 15.0kW (model dependent)
  • Max. PV Input Power: Up to 200% of inverter rating (e.g. 20kW PV for 10kW inverter)
  • Max. PV Input Voltage: 1000V (model dependent)
  • MPPT Voltage Range: Typically 180–950V (model dependent)
  • Number of MPPTs: 2 (most models)
  • Max. Input Current per MPPT: Up to 28A
  • Battery Voltage Range: 180V – 650V (model dependent)
  • Max. Charge/Discharge Current: 30A
  • Max. Efficiency: Up to 98%
  • Charge/Discharge Efficiency: Up to 97.5%
  • Operating Temperature Range: -35°C to +60°C
  • Warranty: 10–12 years (model/distributor dependent)

Applications

  • Residential and commercial solar-plus-storage systems
  • Backup power for critical loads
  • Smart home and building energy management
  • Flexible grid services and VPP participation
