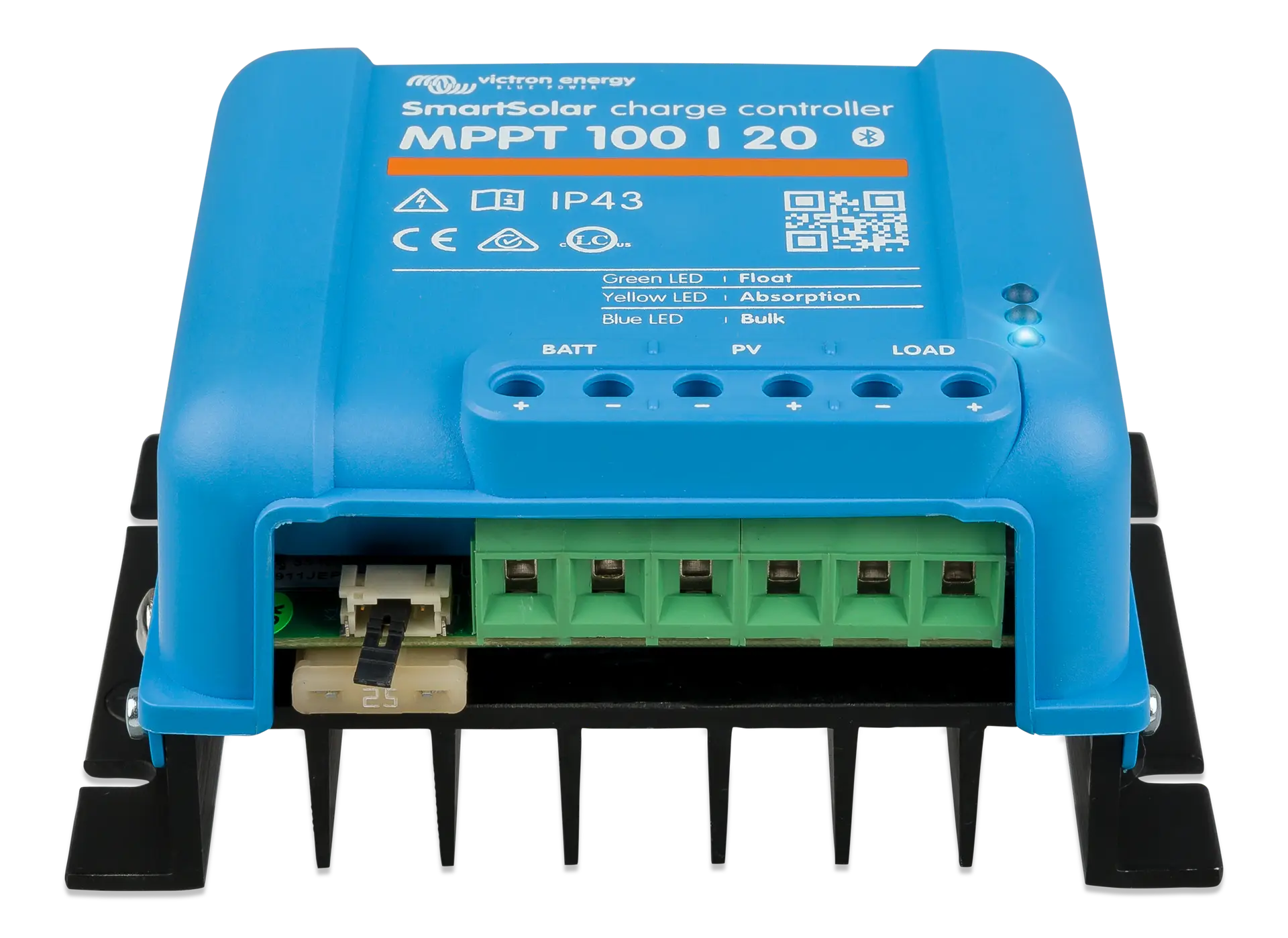

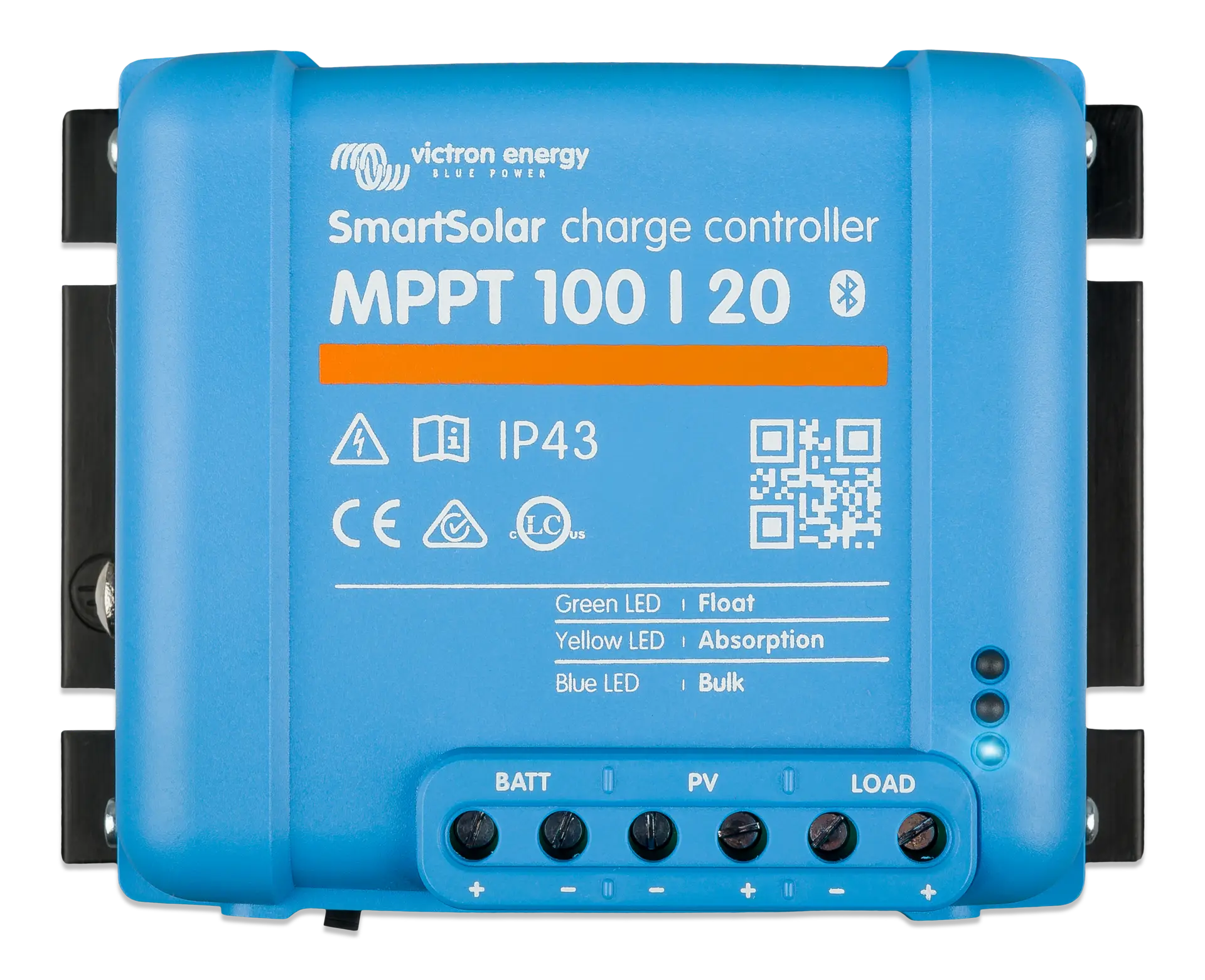

Victron SmartSolar MPPT 100/20 20A Solar Charge Controller (Bluetooth)
MPN: SCC110020160R | 20A ultra‑fast MPPT solar charge controller with integrated Bluetooth, suitable for 12V, 24V or 48V battery systems and solar arrays up to 290W (12V), 580W (24V) or 1160W (48V).
Why Choose This Controller?
- Maximises solar harvest using ultra‑fast MPPT tracking – typically up to 30% more yield than PWM and more than slower MPPTs.
- Flexible system design: works on 12V, 24V and 48V battery banks with up to 100V PV open‑circuit voltage.
- Integrated Bluetooth for effortless setup, monitoring and firmware updates via the VictronConnect app.
- BatteryLife management extends battery life by preventing chronic under‑charging and intelligently managing loads.
- Compact, robust housing (IP43/PD3) suitable for mobile, marine, off‑grid cabins, vans and small residential systems.
How Many Solar Panels Can I Use?
The limiting factors are maximum PV power and 100V open‑circuit voltage. Typical panel counts (using ~300W, 40V Voc modules as an example):
- 12V battery: Up to ~290W total – e.g. one 300W panel (slightly clipped) or 2 × 150W in series or parallel, provided array Voc stays below 100V.
- 24V battery: Up to ~580W total – e.g. 2 × 300W in series or parallel, or 3–4 smaller 150–200W modules adjusted to stay within the 580W / 100V limits.
- 48V battery: Up to ~1160W total – e.g. 3–4 × 300W in series or series/parallel, as long as cold‑weather Voc stays under 100V.
Always check your specific panel power and Voc (including cold‑temperature Voc) and keep within 100V and the relevant W limit for your battery voltage.
Key Electrical Specifications
| Battery system voltage | 12 / 24 / 48 V auto‑select |
| Rated charge current | 20 A |
| Max PV power (12V) | 290 W |
| Max PV power (24V) | 580 W |
| Max PV power (48V) | 1160 W |
| Max PV open‑circuit voltage | 100 V |
| Charge algorithm | 3‑stage adaptive (bulk / absorption / float) with BatteryLife |
| Supported battery types | AGM, Gel, flooded, tubular plate, LiFePO₄ (custom with VictronConnect) |
| Max efficiency | > 95% |
| Temperature compensation | On‑board sensor, automatic voltage compensation |
| Load output | 20A (12/24V), 1A (48V) with low‑voltage disconnect |
Connectivity & Control
- Integrated Bluetooth for VictronConnect (Android, iOS, PC): live data, 30‑day history, configuration and firmware updates.
- VE.Direct communication port for optional cabled displays (MPPT Control) or data logger/gateway devices.
- Programmable load output with multiple built‑in profiles (including street‑light functions) or fully custom behaviour.
Protection & Build
- Electronic protections: PV reverse polarity, battery reverse polarity, PV short‑circuit, over‑temperature, over‑current and load short‑circuit.
- Automatic load disconnect to protect batteries from deep discharge.
- Enclosure: IP43 for electronics, IP22 at connection area; pollution degree PD3.
- Operating temperature: −30°C to +60°C (output may derate at high temperatures).
Physical
| Dimensions (H × W × D) | 100 × 113 × 60 mm |
| Mounting dimensions | ≈ 99 × 84 mm, 4 mounting holes |
| Weight | ≈ 0.65 kg |
| Terminal size | Up to 6 mm² cable (PV, battery, load) |
| Warranty | 5‑year manufacturer’s warranty |
Compact, intelligent and highly efficient, the Victron SmartSolar MPPT 100/20 is an excellent choice for small to medium off‑grid, campervan, boat and backup systems where reliability, flexibility and detailed monitoring are essential.
