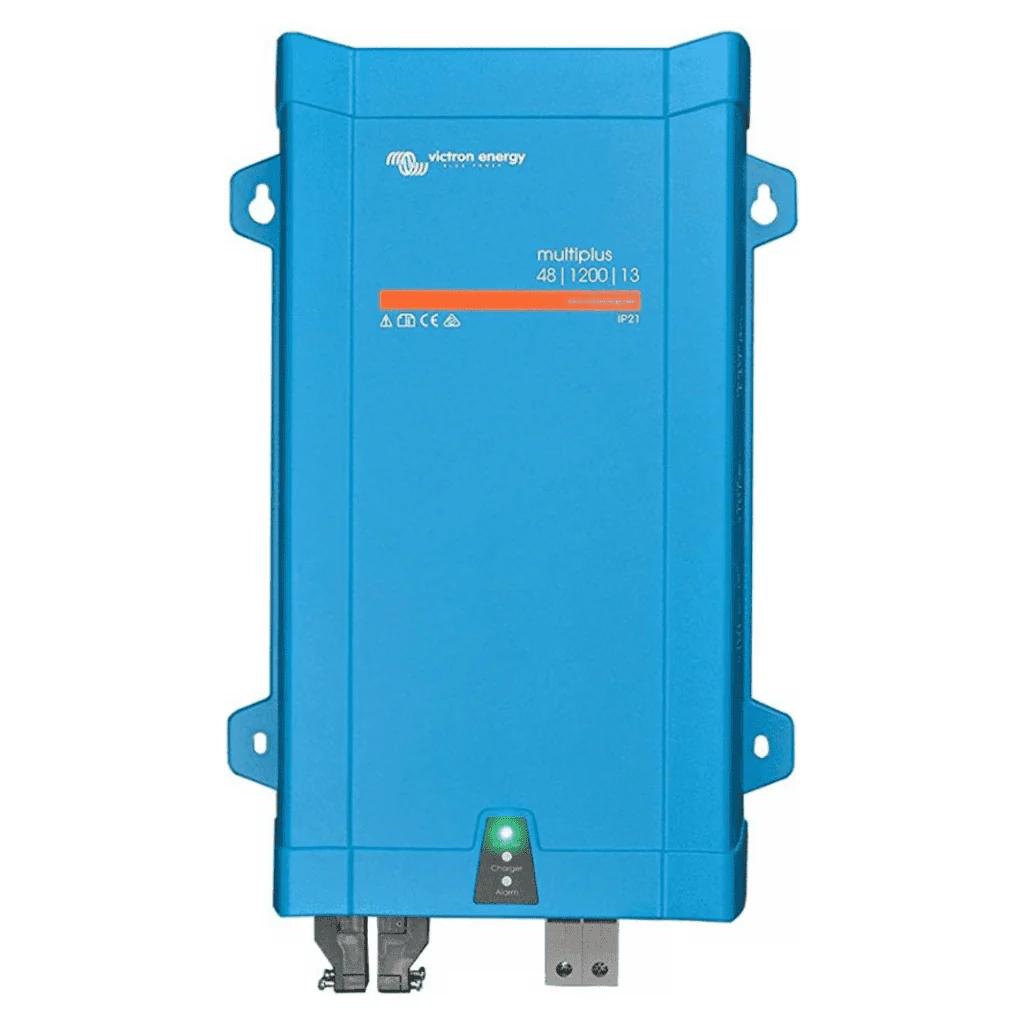

Victron MultiPlus 48/1200/13-16 230V VE.Bus | 48V 1200VA Inverter/Charger
The Victron MultiPlus 48/1200/13-16 is a compact 48V, 1200VA inverter/charger that combines a true sine wave inverter, advanced four‑stage battery charger and high‑speed 16A automatic transfer switch in one robust unit, delivering dependable AC power for homes, off‑grid systems, vehicles and professional installations
Designed for reliable everyday use, it provides up to 1000W continuous output (2400W peak), intelligent PowerAssist and PowerControl functions for managing limited grid or generator supply, and flexible integration with modern battery storage and solar systems.
Key Product Details
-
Model: Victron MultiPlus 48/1200/13-16 230V VE.Bus
-
Power rating: 1200VA / 1000W continuous at 25°C, 2400W peak
-
Battery system voltage: 48V DC (input range 38–66V)
-
AC output: 230V, 50Hz true sine wave
-
Charger: 13A four‑stage adaptive charger with support for multiple battery types
-
Transfer switch: 16A high‑speed automatic AC transfer
-
MPN: PMP482120000
-
EAN: 8719076039334
Why Buy This Inverter/Charger
- All‑in‑one solution – Combines inverter, battery charger and automatic mains transfer in a single enclosure, simplifying design and installation while reducing wiring complexity and space requirements.
- Reliable backup power – Keeps critical loads running by switching rapidly to battery power when the grid or generator fails, providing an uninterruptible‑style supply for essential home circuits and professional systems.
- Optimised for limited mains or generator – PowerControl and PowerAssist intelligently manage current draw and supplement weak supplies with battery power, helping prevent tripped breakers and improving user comfort.
- Battery‑friendly charging – Four‑stage adaptive charging and dual‑bank capability help maximise battery life and performance across lithium, AGM, gel, sealed and flooded batteries.
- Scalable for larger systems – Up to six units can be connected in parallel, with options for three‑phase or split‑phase configurations to support higher power and more demanding loads as your system grows.
- Remote control and monitoring ready – Compatible with Victron monitoring and communication accessories, enabling on‑site configuration and remote supervision of system performance.
Key Features
- Multifunctional power management – Integrated true sine wave inverter with up to 1000W continuous output at 25°C, delivering clean power suitable for sensitive electronics, appliances and tools.
- PowerControl – Allows the maximum current draw from grid or generator to be set so the MultiPlus automatically adjusts charging to avoid overloading the supply.
- PowerAssist – Temporarily adds inverter power from the battery when loads exceed shore or generator capacity, then recharges the battery when demand falls.
- Parallel and three‑phase capability – Up to six MultiPlus units can operate together for higher output, with options to configure in three‑phase for more complex installations.
- Four‑stage adaptive charger – Intelligent bulk, absorption, float and storage modes automatically adapt to battery condition, with dual‑bank charging for a main battery bank and a secondary bank such as a starter battery.
- High start‑up power – Handles loads with high inrush current such as pumps, fridges and power tools thanks to a 2400W peak rating.
- Low standby consumption – Zero‑load power of around 10W, or approximately 3W in search mode, improves efficiency in systems where loads are intermittent.
- Programmable relay and remote on/off – Configurable relay and remote control options allow integration with alarms, generator start/stop and wider system logic.
- Comprehensive protection – Built‑in safeguards against overload, short circuit, high/low battery voltage, over‑temperature and excessive input voltage ripple.
- On‑site and remote configuration – Settings can be adjusted using DIP switches or via compatible configuration tools and communication interfaces.
Suitable For
- Home backup and self‑consumption – Ideal for small battery storage systems supporting essential household circuits during outages or for optimising use of stored solar energy.
- Off‑grid cabins and holiday homes – Provides a stable 230V supply from batteries in remote locations with limited or no grid connection, working alongside solar PV and generators.
- Marine and campervan systems – Compact, efficient and robust solution for boats, motorhomes and specialist vehicles needing quiet, reliable AC power from a 48V battery bank.
- Trade and professional installations – Suitable for installers designing small commercial, telecoms, security or light industrial systems requiring a high‑quality inverter/charger with strong brand backing.
Technical Specifications
| General | |
|---|---|
| Model name | Victron MultiPlus 48/1200/13-16 230V VE.Bus |
| MPN | PMP482120000 |
| EAN | 8719076039334 |
| Technology | Pure sine wave inverter with integrated battery charger and automatic AC transfer switch |
| Battery system voltage | 48V DC (input range 38–66V) |
| Application | Off‑grid, backup power, marine, vehicles and small commercial systems |
| Inverter | |
| Continuous output power at 25°C | 1200VA / 1000W |
| Continuous output power at 40°C | 900W |
| Continuous output power at 65°C | 600W |
| Peak power | 2400W |
| AC output voltage / frequency | 230V AC ±2%, 50Hz ±0.1% |
| Maximum efficiency | 95% |
| Zero‑load power | Approx. 10W (3W in search mode) |
| Charger | |
| AC input voltage range | 187–265V AC, 45–65Hz |
| Maximum charge current (house bank) | 13A |
| Charge algorithm | Four‑stage adaptive (bulk, absorption, float, storage) |
| Battery types | Lithium, sealed, AGM, gel and flooded lead‑acid (configurable) |
| Battery temperature sensor | Yes |
| AC Input / Transfer | |
| AC input | Single‑phase 230V AC input |
| Transfer switch rating | 16A |
| PowerControl / PowerAssist | Yes – supports management of limited shore or generator supply |
| Connectivity & Control | |
| Communication port | VE.Bus for parallel/three‑phase operation, system integration and remote monitoring |
| Remote on/off | Supported – on / off / charger‑only modes |
| Programmable relay | Yes – configurable for general alarms, DC under‑voltage or generator control |
| Mechanical | |
| Dimensions (H × W × D) | 406 × 250 × 100mm |
| Weight | 8.2kg |
| Enclosure material / colour | Steel / ABS, blue (RAL 5012) |
| Protection category | IP21 / IP22 model variant |
| Battery connection | 10mm² terminals |
| AC connection | G‑ST18i connector |
| Environmental | |
| Operating temperature range | Approx. ‑40°C to +65°C (fan‑assisted cooling) |
| Relative humidity | Max. 95% non‑condensing |
| Standards & Warranty | |
| Safety standards | EN‑IEC 60335‑1, EN‑IEC 60335‑2‑29, EN 62109‑1 |
| EMC standards | EN 55014‑1, EN 55014‑2, EN‑IEC 61000‑3‑2, EN‑IEC 61000‑3‑3, IEC 61000‑6‑1/‑2/‑3 |
| Automotive directive | ECE R10‑5 |
| Product warranty | 5 years (manufacturer warranty) |
