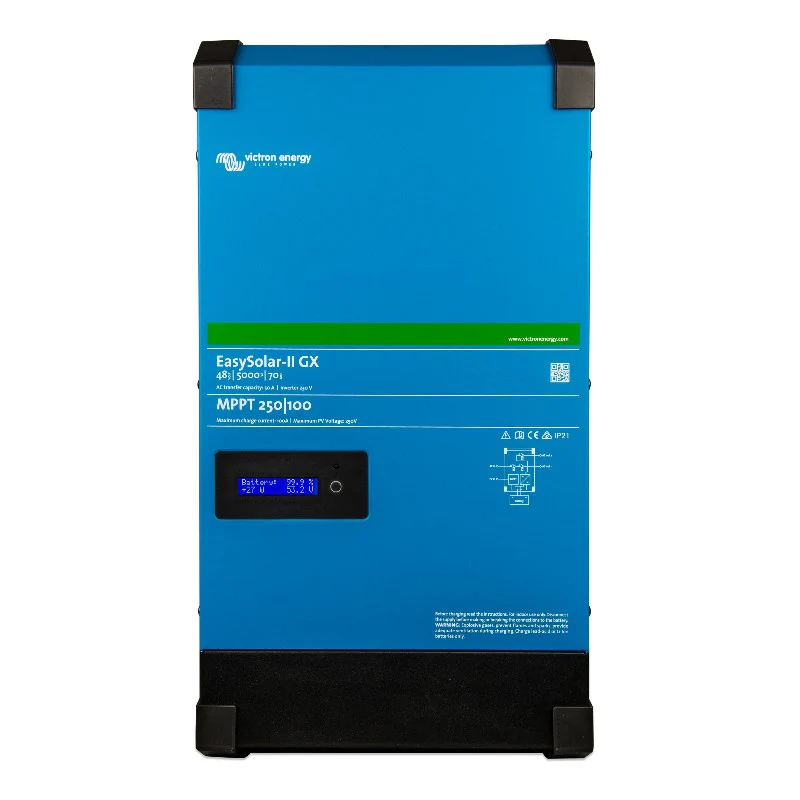

Victron EasySolar-II 48/5000/70-50 MPPT 250/100 GX – All‑in‑One 48V Solar Inverter & Charger
Victron EasySolar-II 48/5000/70-50 MPPT 250/100 GX – All‑in‑One 48V Solar Inverter & Charger
The Victron EasySolar-II 48/5000/70-50 MPPT 250/100 GX is a high‑performance, all‑in‑one solar power solution that combines a 5kVA inverter/charger, 100A MPPT solar charge controller and smart GX monitoring in a single compact unit.
Designed for professional off‑grid, hybrid and backup systems, it simplifies installation, maximises system efficiency and delivers reliable 48V power for demanding residential and commercial applications.
Key Product Details
- Brand: Victron Energy
- Model: EasySolar-II 48/5000/70-50 MPPT 250/100 GX
- MPN: PMP482507010
- EAN: 8719076049333
- Inverter rating: 5000 VA / 4000 W continuous at 25°C
- Battery system voltage: 48 V
- Solar charge controller: SmartSolar MPPT 250/100-Tr (100 A, up to 5800 W PV)
- Integrated GX device with Wi‑Fi, Ethernet, USB, VE.Bus, VE.Direct and BMS‑Can
Why Buy This EasySolar-II GX
- True all‑in‑one solution: Combines inverter/charger, 100 A MPPT and GX monitoring/control in one enclosure, reducing wiring complexity, install time and potential points of failure.
- High power, high efficiency: 5 kVA inverter with up to 4000 W continuous output and up to 5800 W of PV input, ideal for larger homes and light commercial systems
- Smart monitoring & control: Built‑in display plus Wi‑Fi and Ethernet allow local and remote monitoring, configuration and optimisation via connected devices.[6][2]
- Flexible system design: PowerControl and PowerAssist functions help manage limited grid or generator supply, automatically supplementing from battery when required.
- Professionally engineered reliability: Robust aluminium enclosure, wide operating temperature range and advanced electronic protection for long‑term dependable operation.
- Future‑ready integration: GX device interfaces with CAN‑bus batteries and other Victron components for scalable, monitored energy systems.
Suitable For
- Off‑grid homes and remote properties requiring a dependable primary power system with substantial PV capacity.
- Hybrid grid‑connected systems seeking backup power and improved self‑consumption of solar energy.
- Small commercial sites, workshops and farm buildings needing stable power where grid supply is limited or unreliable.
- Backup and emergency power systems using batteries and solar to support critical loads.
- Installations requiring remote monitoring, data logging and integration with smart energy management platforms.
Key Features
- Integrated MultiPlus-II inverter/charger: Pure sine wave inverter, advanced battery charger and high‑speed grid/generator transfer switch in one unit.
- SmartSolar MPPT 250/100-Tr: 100 A MPPT solar charge controller with up to 250 V PV open‑circuit voltage and up to 5800 W PV power for 48 V systems.
- GX control hub: Built‑in GX device with 2 x 16‑character display, BMS‑Can, USB, Ethernet, VE.Direct and VE.Bus connections for system control and expansion.[1][2]
- On‑board display & Wi‑Fi: Local display of battery, inverter and solar parameters, plus Wi‑Fi access via smartphone, tablet or laptop for configuration and monitoring.
- PowerControl & PowerAssist: Actively manages grid or generator input to prevent overload and supplements peak demand with inverter power from the battery.
- Parallel and three‑phase options: Compatible with parallel and three‑phase configurations using VE.Bus for larger or more complex systems (with additional units).
- Wide AC input range: 187–265 V AC, 45–65 Hz, suitable for connection to most grid and generator supplies.
- Advanced battery charging: 48 V charger with 70 A maximum charge current, configurable absorption, float and storage voltages and temperature‑compensated charging.
- High efficiency: Inverter efficiency up to 96% and MPPT efficiency up to 99%, maximising usable energy from both battery and solar.
- Robust build: Aluminium enclosure, IP21 protection rating and fan‑assisted cooling for operation from -20 °C to +45 °C.
- Comprehensive protection: Overload, short‑circuit, over‑temperature and electronic protections on inverter, charger and MPPT stages.
- Standards compliant: Conforms to key EN/IEC safety and EMC standards for residential and commercial use.
Technical Specifications
| General | |
|---|---|
| Brand | Victron Energy |
| Product name | EasySolar-II 48/5000/70-50 MPPT 250/100 GX |
| MPN | PMP482507010 |
| EAN | 8719076049333 |
| System voltage | 48 V DC battery system |
| Enclosure material / colour | Aluminium, blue (RAL 5012) |
| Protection rating | IP21 |
| Operating temperature | -20 °C to +45 °C (fan cooled) |
| Humidity (non‑condensing) | Up to 95% RH |
| Weight | Approx. 38.6 kg |
| Dimensions (H × W × D) | Approx. 604 × 323 × 253 mm |
| Inverter / Charger (MultiPlus-II) | |
| Nominal AC output voltage | 230 V AC ± 2% |
| Output frequency | 50 Hz ± 0.1% |
| Continuous output power (25 °C) | 5000 VA / 4000 W |
| Continuous output power (40 °C / 55 °C) | 3700 W / 3000 W |
| Peak power | 9000 W |
| Maximum efficiency (inverter) | Up to 96% |
| No‑load power | Approx. 18 W (AES 12 W, search mode 2 W) |
| AC input voltage range | 187 – 265 V AC |
| AC input frequency | 45 – 65 Hz |
| Maximum AC input current | 50 A |
| Transfer switch | 50 A automatic transfer |
| Maximum battery charge current | 70 A |
| Absorption voltage (48 V) | 57.6 V (default) |
| Float voltage (48 V) | 55.2 V (default) |
| Storage voltage (48 V) | 52.8 V |
| Battery temperature sensor | Included |
| PowerControl / PowerAssist | Yes |
| Solar Charge Controller (SmartSolar MPPT 250/100-Tr) | |
| Controller type | MPPT 250/100-Tr |
| Maximum PV power (48 V) | Up to 5800 W |
| Maximum output current | 100 A |
| Maximum PV open‑circuit voltage | 250 V DC |
| Maximum efficiency (MPPT) | Up to 99% |
| Self‑consumption | Approx. 20 mA |
| Default absorption voltage | 57.6 V |
| Default float voltage | 55.2 V |
| Interfaces & Connectivity (GX Device) | |
| Local display | 2 × 16‑character LCD |
| Wi‑Fi | Integrated Wi‑Fi for setup and monitoring |
| Ethernet | RJ45 Ethernet port |
| USB | USB host port |
| VE.Bus | For inverter/charger communication, parallel and three‑phase setups |
| VE.Direct | For MPPT and accessory communication |
| BMS‑Can | Interface for compatible CAN‑bus managed batteries (not VE.Can) |
| Remote on/off | Yes |

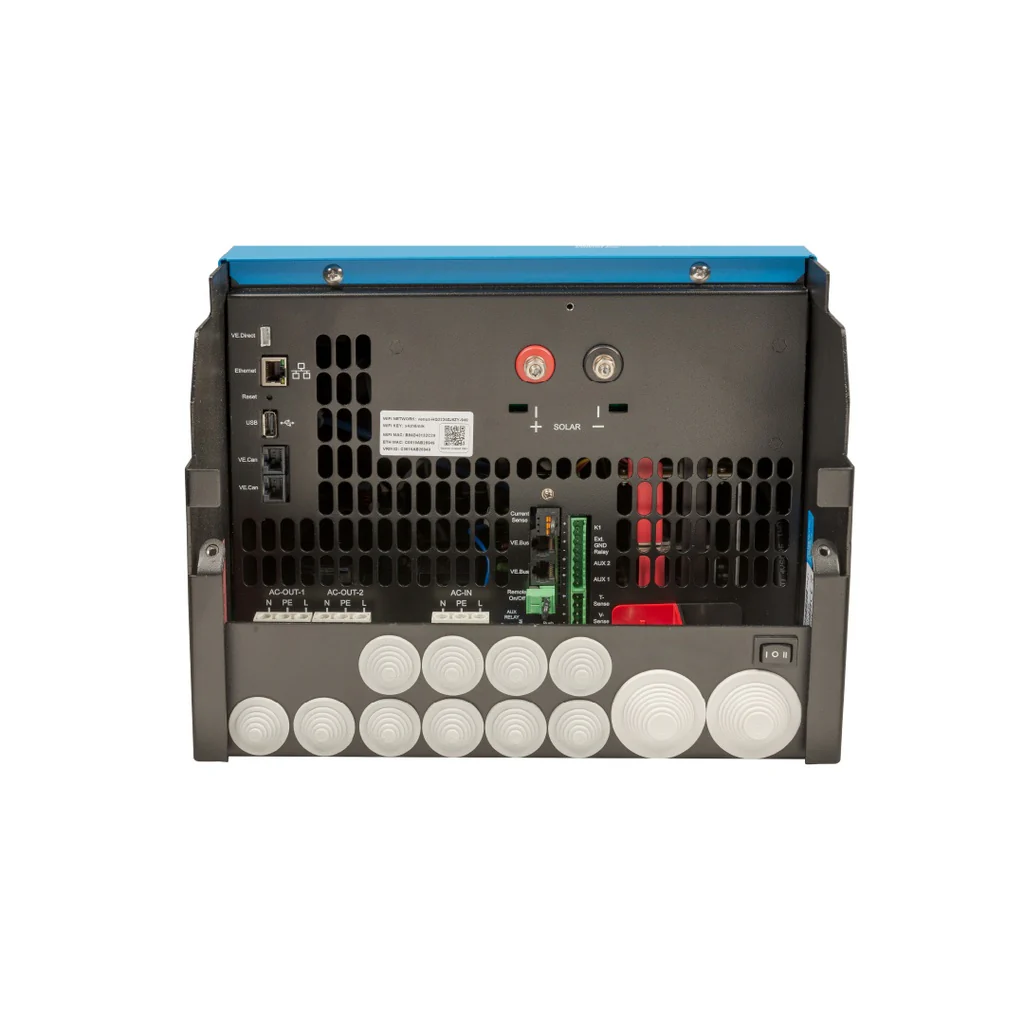

| Connections & Mechanical | |
| Battery connection | M8 bolts |
| PV connection | M6 bolts |
| AC connection | 16 mm² screw terminals |
| Standards & Compliance | |
| Safety standards | EN‑IEC 60335‑1, EN‑IEC 60335‑2‑29, EN‑IEC 62109‑1, EN‑IEC 62109‑2 |
| EMC standards | EN 55014‑1, EN 55014‑2, EN‑IEC 61000‑3‑2, EN‑IEC 61000‑3‑3 |
