Underfloor Heating 20mm Castellated Floor Panel for 15mm and 16mm Pipe | 1220 x 820 x 18mm (1m²)
Underfloor Heating 20mm Castellated Floor Panel for 15mm and 16mm Pipe | 1220 x 820 x 18mm (1m²)

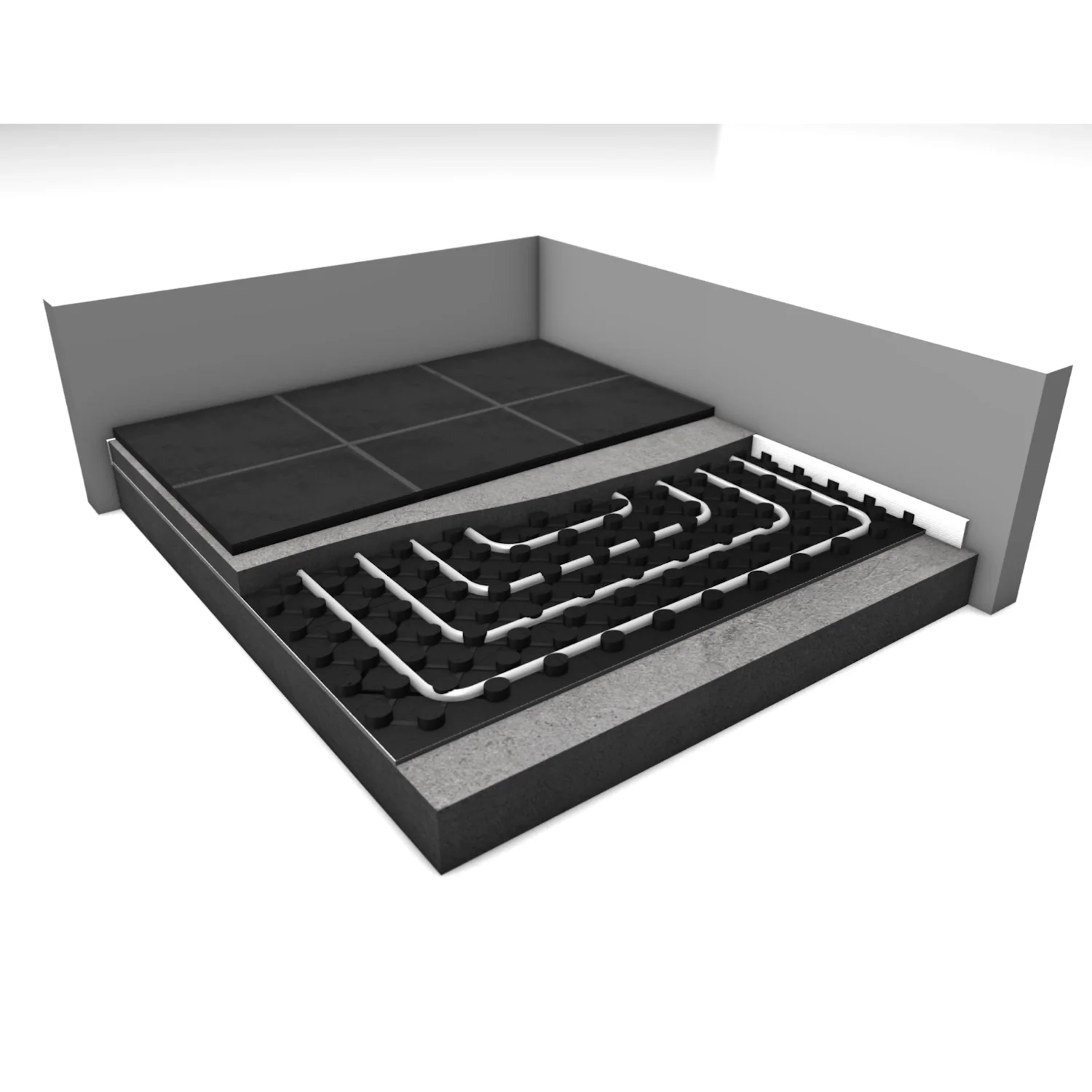

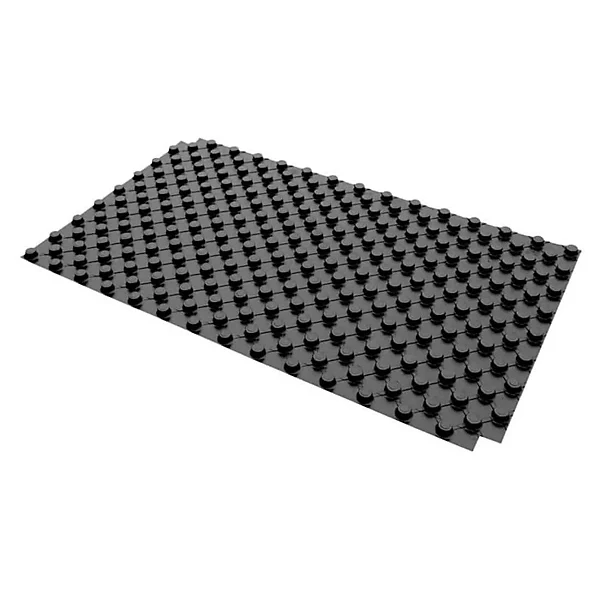

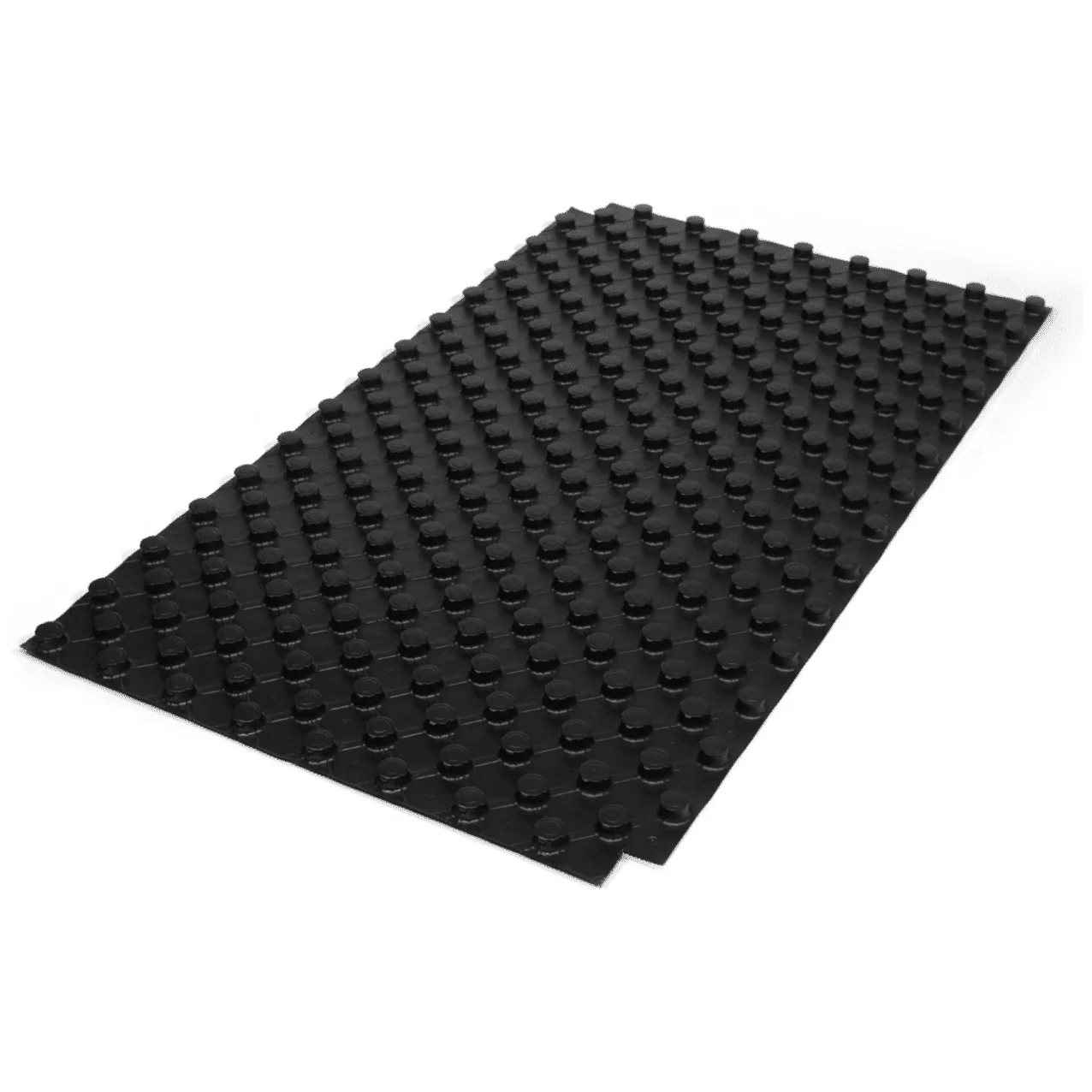

The 20mm Plastic Castellated Floor Panel is a low profile, fast-fit pipe retaining system designed for easy and accurate installation of 15mm and 16mm underfloor heating pipes. The castellated design securely grips the pipe without the need for additional clips, allowing quick piping installation ready for screeding.
These injection-moulded durable plastic panels interlock to form a continuous underfloor grid that supports and spaces pipes precisely at selectable centres (50mm, 100mm, 150mm, or 200mm). Their low 20mm height minimizes floor build-up, making them ideal for renovations and new builds where floor height is limited.
What’s Included
- Panels sized 1220mm x 820mm x 20mm (each panel covers 1.0m²)
- Designed for 15mm & 16mm underfloor heating pipe diameters
- Installation instructions included
Key Features
- Low profile panel thickness: 20mm total height
- Accurately spaced castellated knobs for pipe retention at multiples of 50mm pipe centres (50, 100, 150, 200mm)
- Interlocking edges allow seamless panel alignment and continuous coverage
- Compatible with 15mm and 16mm multilayer underfloor heating pipes
- Strong, durable injection-moulded plastic for longevity and repeated screeding resistance
- Eliminates need for separate pipe clips, speeding installation
- Vacuum formed castellations securely hold pipes below surface level, protecting from damage during screeding and site traffic
- Panels overlap for full coverage without gaps, removing need for additional damp proof membranes (DPM)
Benefits
- Speeds up installation by providing a pipe fixing template and secure grip
- Minimizes floor height buildup with low 20mm thickness
- Ensures accurate pipe spacing for consistent heat distribution
- Protects pipes from mechanical damage during construction
- Strong and durable panels suitable for heavy site traffic and screed loading
- Interlocking design promotes a nuisance-free, mess-free install
Technical Specifications
| Panel Thickness | 20 mm |
|---|---|
| Panel Dimensions | 1220 mm x 820 mm |
| Coverage per Pack | 22 m² |
| Pipe Diameter Compatibility | 15 mm & 16 mm multilayer pipe |
| Pipe Centres | 50, 100, 150, 200 mm (multiples of 50 mm) |
| Material | Injection moulded durable plastic |
| Colour | Typically black |
| Fire Classification | Typically Class E (confirm with supplier if critical) |
The Plastic Castellated Floor Panel provides a professional, quick, and reliable solution for fixing underfloor heating pipes with minimal floor height impact and outstanding durability, perfectly suited to both new construction and refurbishment projects.
