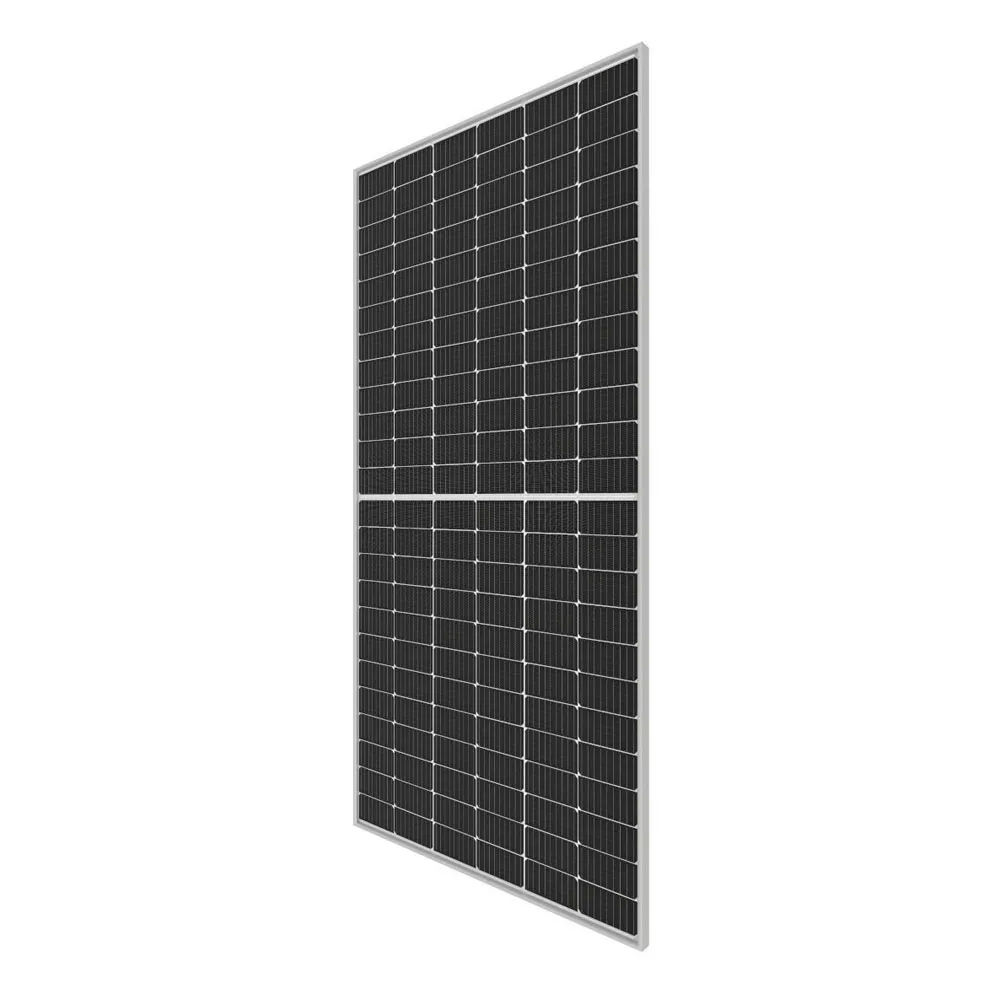

LONGi Solar 610W Hi-Mo7 HPDC 144 Cut Bi-Facial Mono Solar Module
The LONGi Solar 610W Hi-Mo7 HPDC 144 Cut Bi-Facial Mono Solar Module - Silver Frame/White Backsheet (Part No: LR7-72HGD-610M) is a high-efficiency monocrystalline bifacial solar panel designed for utility-scale and commercial applications, featuring advanced HPDC cell technology for superior performance and energy yield.
Product Description
The Hi-MO 7 Solar Module series employs Hybrid Passivated Dual Cell (HPDC) technology to achieve up to 22.6% module efficiency, capturing sunlight from both sides for increased power output. Its silver frame and white backsheet provide durability and aesthetic flexibility, while the 144 half-cell configuration minimizes shading losses and enhances reliability. Ideal for large installations, it ensures long-term energy production with low degradation rates.
Key Features
- High efficiency: Up to 22.6% module efficiency for maximum power generation.
- HPDC cell technology: Hybrid Passivated Dual Cell for improved performance and low-light response.
- Bifacial design: Generates power from both sides, with white backsheet for optimal rear-side yield.
- Silver frame: Robust anodized aluminum frame for structural integrity.
- Half-cell configuration: 144 half-cut cells reduce power loss from shading and hotspots.
- Low degradation: <1% first-year power degradation, 0.40% annual from year 2-30.
- Robust construction: Compliant with IEC 61215, IEC 61730 standards.
- Power tolerance: 0 to +3% for reliable output.
Technical Specifications
- Model: LR7-72HGD-610M – Hi-MO 7 HPDC Bifacial Silver Frame White Backsheet.
- Cell type: Monocrystalline N-type TOPCon, 144 half-cut cells.
- Maximum power (Pmax): 610 Wp.
- Voltage at Pmax (Vmpp): 44.11 V.
- Current at Pmax (Impp): 13.83 A.
- Open circuit voltage (Voc): 52.55 V.
- Short circuit current (Isc): 14.69 A.
- Module efficiency: 22.6%.
- Maximum system voltage: 1500 V DC.
- Maximum series fuse rating: 30 A.
Dimensions & Weights
- Length: 2382 mm.
- Width: 1134 mm.
- Thickness: 30 mm.
- Weight: 33.6 kg.
System & Application Notes
- Ideal for utility power plants, commercial rooftops, and ground-mounted systems where high efficiency and bifacial gains are beneficial.
- Compatible with standard PV inverters and mounting systems.
- Optimized for low-light conditions and high-temperature environments with bifacial design for extra yield.
- Installation by qualified solar professionals following LONGi guidelines and local regulations.
- Warranty: 15-year product warranty and 30-year linear power output warranty.
