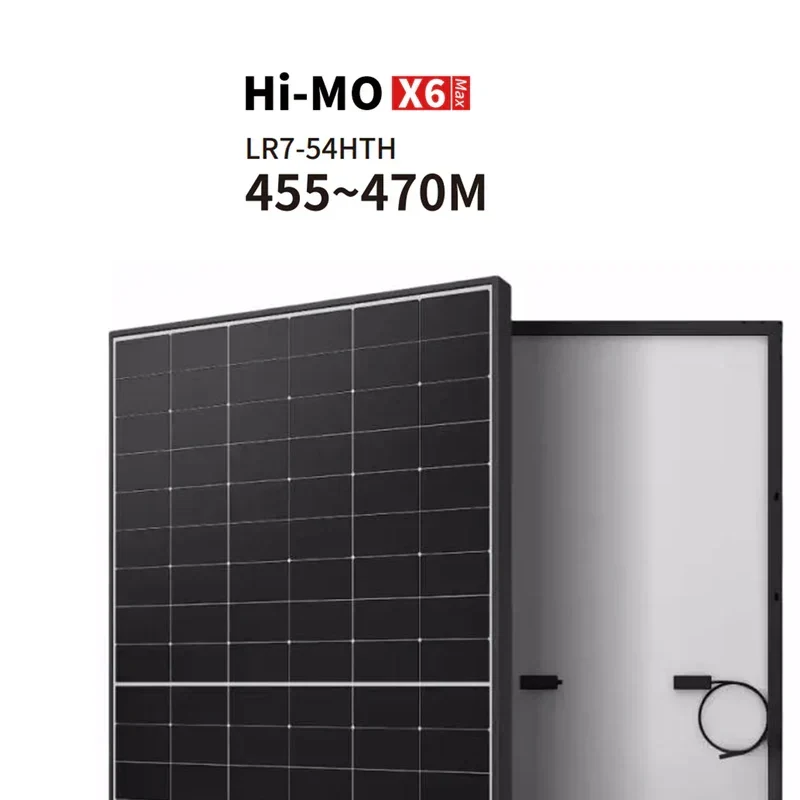

Longi 460W Hi-MO X6 Max Explorer HPBC Half Cell Black Frame SDM1
The Longi 460W Hi-MO X6 Max Explorer HPBC Half Cell Black Frame SDM1 (Part No: LR7-54HTH-460M-SDM1) is a high-efficiency monocrystalline solar panel designed for residential and commercial applications, featuring advanced HPBC cell technology for superior performance and a sleek black frame aesthetic.
Product Description
The Hi-MO X6 Max Explorer series employs Hybrid Passivated Back Contact (HPBC) cells to deliver up to 22.5% module efficiency, ensuring optimal power output in a space-efficient design. Its black frame and backsheet provide an elegant appearance suitable for various installations, while the half-cell layout minimizes shading impacts and enhances durability. Perfect for rooftops with limited space, it guarantees reliable, long-term energy production with low degradation rates.
Key Features
- High efficiency: Up to 22.5% module efficiency for enhanced energy yield.
- HPBC cell technology: Hybrid Passivated Back Contact for better low-light performance and efficiency.
- Black frame design: Aesthetic black anodized frame for seamless roof integration.
- Half-cell configuration: 108 half-cut cells to reduce shading losses and hotspots.
- Low degradation: <1.5% first-year power degradation, 0.40% annual from year 2-25.
- Robust build: Compliant with IEC 61215, IEC 61730 standards.
- Power tolerance: 0 to +3% for consistent output.
Technical Specifications
- Model: LR7-54HTH-460M-SDM1 – Hi-MO X6 Max Explorer HPBC Half Cell Black Frame.
- Cell type: Monocrystalline, 108 half-cut cells.
- Maximum power (Pmax): 460 Wp.
- Voltage at Pmax (Vmpp): 33.19 V.
- Current at Pmax (Impp): 13.86 A.
- Open circuit voltage (Voc): 39.35 V.
- Short circuit current (Isc): 14.86 A.
- Module efficiency: 22.5%.
- Maximum system voltage: 1500 V DC.
- Maximum series fuse rating: 25 A.
Dimensions & Weights
- Length: 1800 mm.
- Width: 1134 mm.
- Thickness: 30 mm.
- Weight: 21.6 kg.
System & Application Notes
- Ideal for residential rooftops, commercial structures, and ground-mounted arrays where efficiency and aesthetics matter.
- Compatible with standard PV inverters and mounting systems.
- Optimized for various environmental conditions, including low light and high temperatures.
- Packaging: 36 pcs per pallet, 864 pcs per 40' HC container.
- Installation by qualified solar professionals following LONGi guidelines and local regulations.
- Warranty: 15-year product warranty and 25-year linear power output warranty (confirm with supplier).
