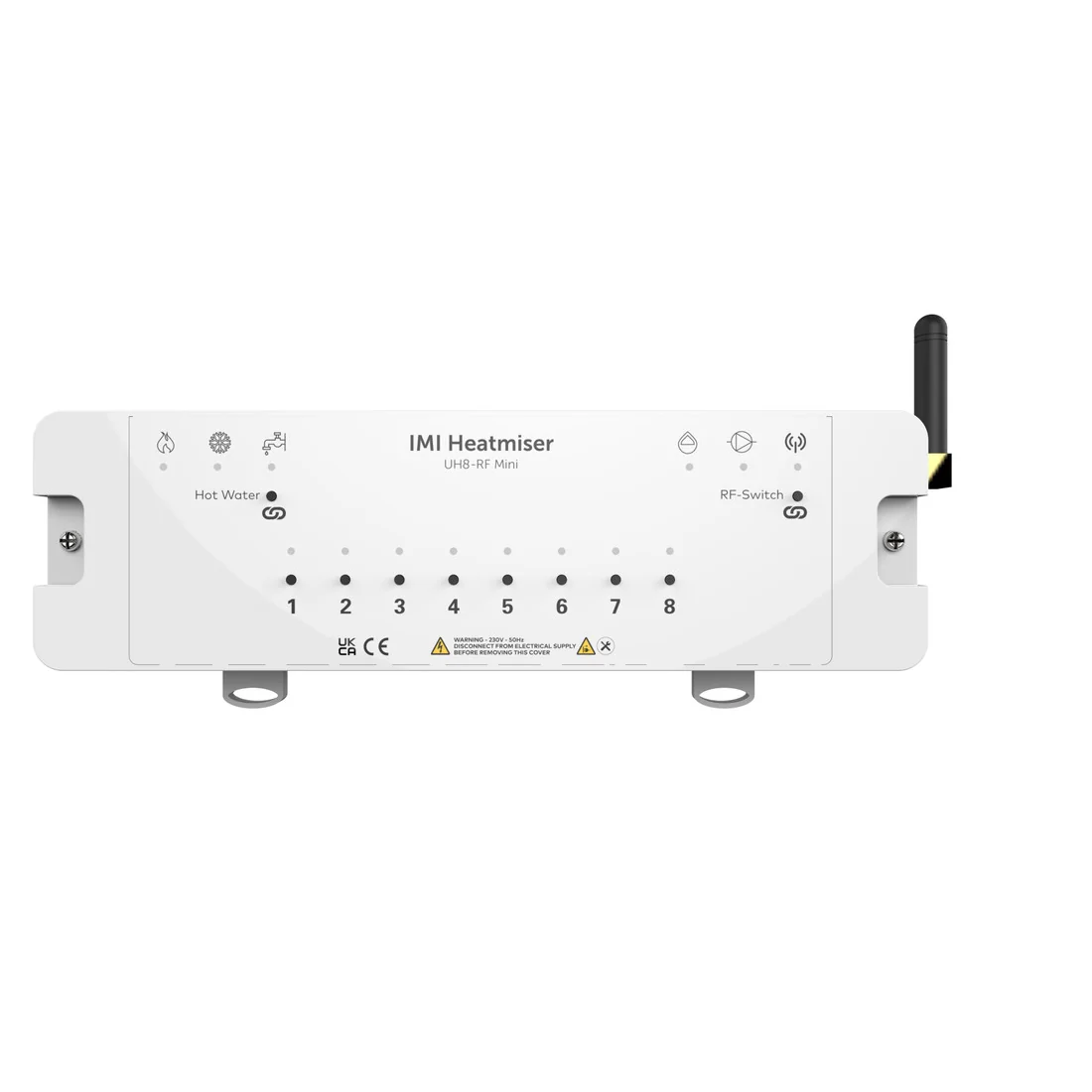

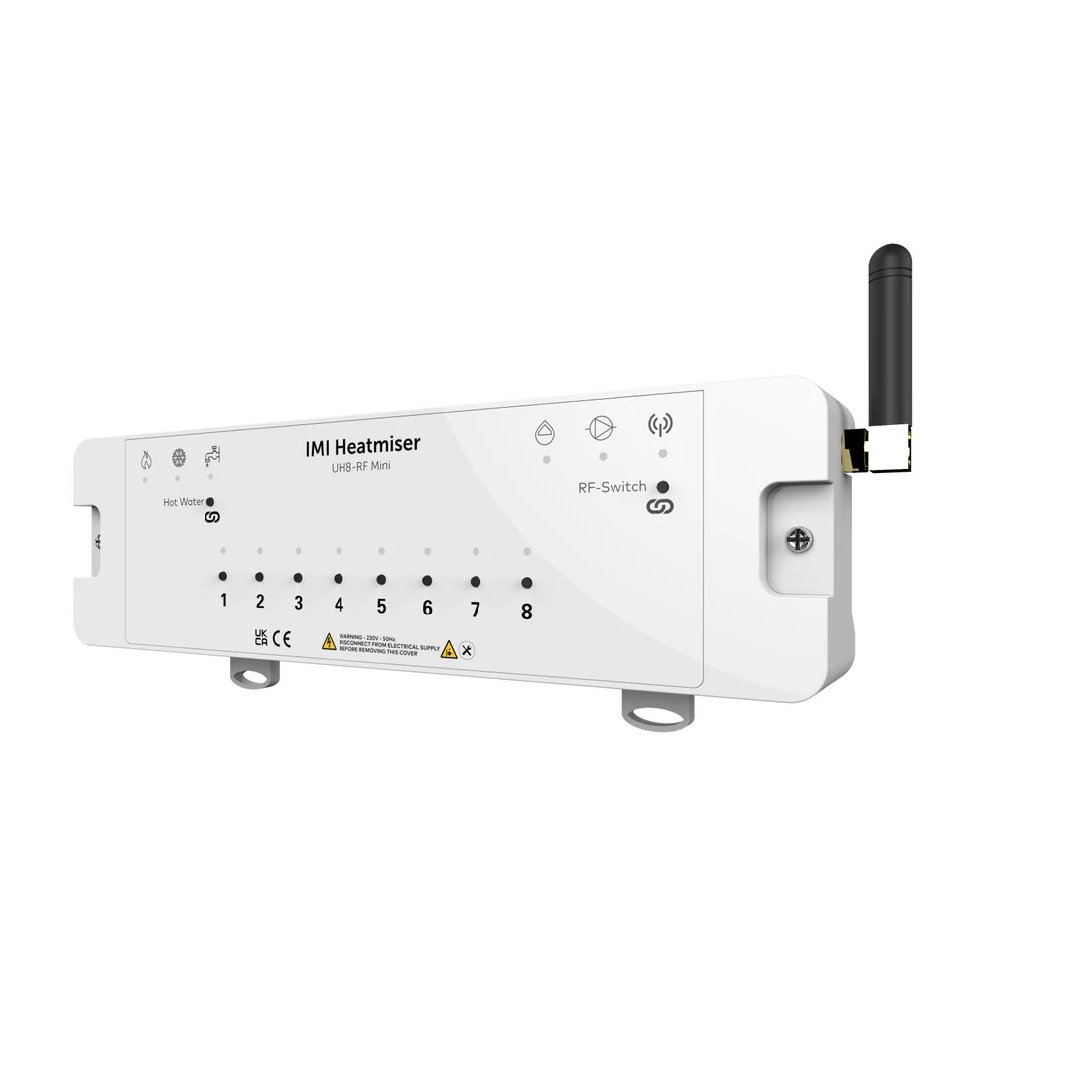

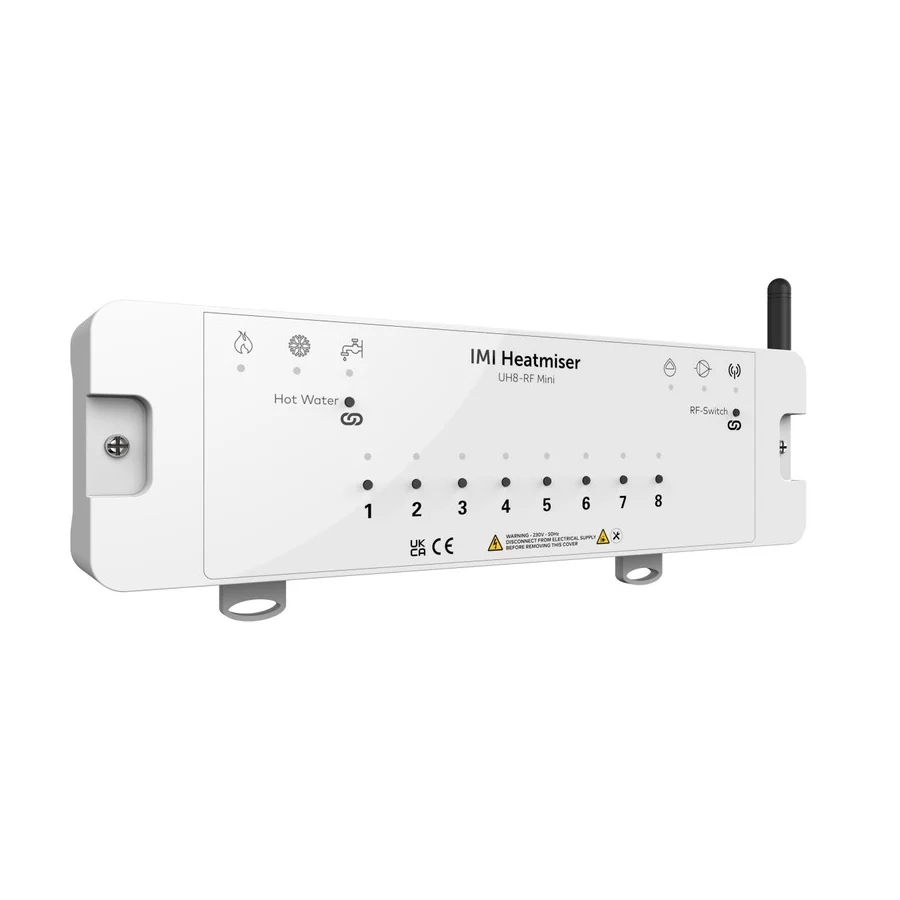

IMI Heatmiser UH8-RF Mini 8 Zone Wireless Wiring Centre
The IMI Heatmiser UH8-RF Mini - 8 Zone Wireless Wiring Centre (Part No: UH8-RF Mini) is a compact central control unit designed for wireless underfloor heating and radiator systems, supporting up to 8 zones with radio frequency connectivity to thermostats for efficient multi-room temperature management.
Product Description
The Heatmiser UH8-RF Mini is an 8-zone wireless wiring centre compatible with Heatmiser RF thermostats, providing central switching for actuators, underfloor heating pumps, and valves. It offers a wireless link to the boiler via the RF Switch and includes outputs for hot water control. With Neostat mode for automatic pairing and Din rail mounting, it is ideal for residential heating systems requiring flexible zone control without extensive wiring.
Key Features
- 8 zone control: Manages up to 8 heating zones independently.
- Wireless connectivity: RF link to thermostats and boiler switch.
- Actuator output: 230V for valves and actuators (up to 4 per zone).
- Hot water output: Dedicated control for hot water cylinders.
- Boiler and pump relays: Volt-free outputs for heat source and circulation pump.
- Neostat mode: Automatic thermostat pairing for easy setup.
- Din rail mounting: Compact design for electrical enclosures.
- RF range: Up to 100m in open space.
Technical Specifications
- Model: UH8-RF Mini – 8 Zone Wireless Wiring Centre.
- Supply voltage: 230V AC, 50Hz.
- Power consumption: 7W max.
- Relay outputs: Boiler, pump, hot water (volt-free, 3A resistive).
- Actuator outputs: 230V AC, up to 4 per zone (total 8A max).
- RF frequency: 868MHz.
- Operating temperature: 0°C to 40°C.
- Certifications: CE compliant.
Dimensions & Weights
- Width: 384 mm.
- Depth: 60 mm.
- Height: 148 mm.
- Weight: ~1.5 kg.
System & Application Notes
- Ideal for underfloor heating, radiator, or mixed systems with wireless thermostats.
- Compatible with Heatmiser Slimline-RF, neoStat-RF, and other RF thermostats.
- Suitable for multi-zone setups; pair with RF Switch for boiler control.
- Installation by qualified heating engineers; mount in accessible location.
- Supports Neostat mode for automatic configuration.
- Warranty: 2 years standard.
