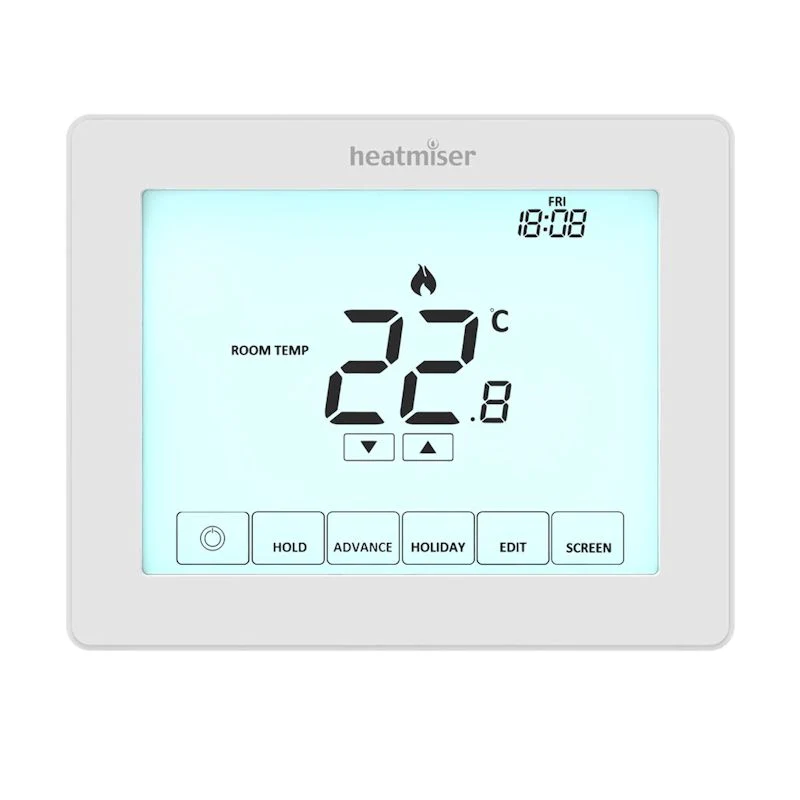

Heatmiser Touch Thermostat v2

Product Overview

The Heatmiser Touch Thermostat v2 is a modern, programmable touchscreen room thermostat designed for precise heating control in underfloor or central heating systems. The large backlit touchscreen display ensures user-friendly navigation and simple scheduling. The Touch v2 supports wireless connectivity for air sensors and window/door switches, making it ideal for energy-efficient, flexible temperature management in homes and larger open-plan spaces.

Key Features

• Large touchscreen interface: Easy-to-read white backlit display, auto-dims after 30 seconds
• Programming modes: Non-programmable, 5/2 day, 7-day, or 24-hour schedules
• Heating or timer mode: Selectable operational modes
• Temperature sensing: Built-in air sensor, supports wireless air sensors, and floor sensing option (probe not included)
• Wireless integration: Pair with Heatmiser wireless air sensors (for remote/averaged temperature) and wireless window/door switches (triggers standby mode on open)
• Comfort levels: 4 or 6 per day, user-selectable for customised comfort
• Additional functionality: Optimum start, temperature hold, holiday facility, frost protection, key lock, and C/F selectable units
• Modbus connectivity: For building management system integration
• Flush mounting: Ultra-slim profile, fits standard 35mm back box

Technical Specifications

Power supply	230V AC (220–240V)
Switching capacity	3A resistive
Temperature range	5–35°C
Max sensors/devices	Up to 16 wireless sensors or switches
Dimensions (L x H x D)	100 x 110 x 16.5mm
Mounting	Flush
IP rating	IP30
Display	Touchscreen, white LED backlight
Weight	300g
Certifications	CE marked
Warranty	2 years manufacturer guarantee

Applications

• Wet underfloor heating systems
• Central heating control (230V systems)
• Open-plan homes or properties needing remote/averaged temperature measurement

Box Contents

• Heatmiser Touch Thermostat v2
• Fixing screws
• Installation manual

Note: Floor probe not included. Wireless sensors and window/door switches are available separately. Compatible with most 230V heating systems; always consult an installer for suitability.
