Ideal Atlantic C24 Combi Boiler, Horizontal Flue & MagnaClean Micro1 Filter Bundle
Ideal Atlantic C24 Combi Boiler, Horizontal Flue & MagnaClean Micro1 Filter (SKU: 79403, MPNs: 223491 + 208173 + FL1-03-07129) is a ready‑to‑fit boiler and accessories pack for straightforward wall‑flue combi installations. It pairs the Ideal Atlantic C24 24kW combi boiler with a standard horizontal flue kit and an Adey MagnaClean Micro1 22mm magnetic filter, giving installers a neat, space‑saving and well‑protected solution for smaller UK homes.
What’s Included
- Ideal Atlantic C24 Combi Boiler (MPN: 223491) – 24kW condensing gas combi boiler with built‑in mechanical clock and compact cupboard‑fit case.
- Ideal Standard Horizontal Flue Kit (MPN: 208173) – telescopic horizontal flue terminal and fittings for direct through‑the‑wall flue runs.
- Adey MagnaClean Micro1 Filter 22mm (MPN: FL1-03-07129) – compact in‑line magnetic system filter to protect the boiler and heating system.

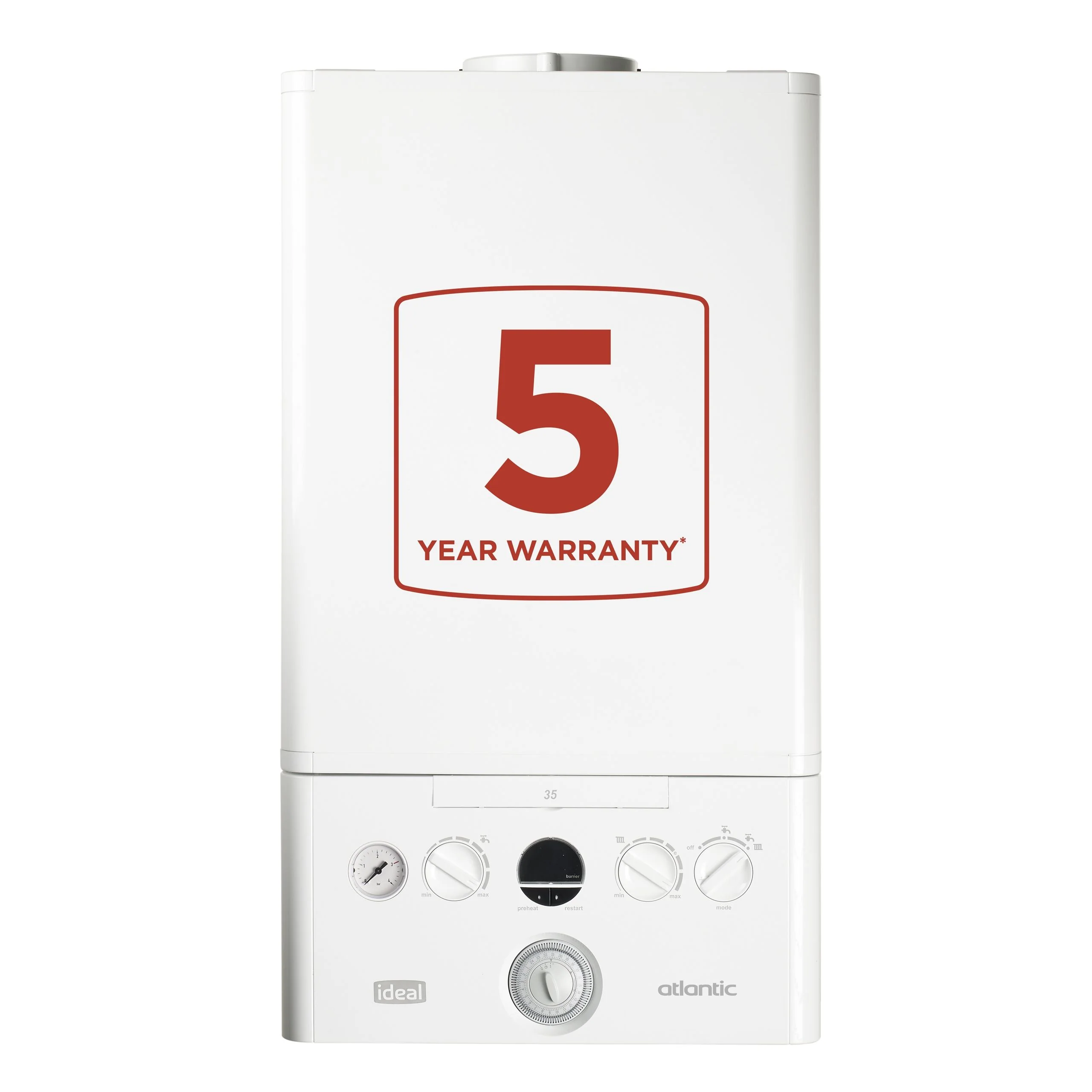

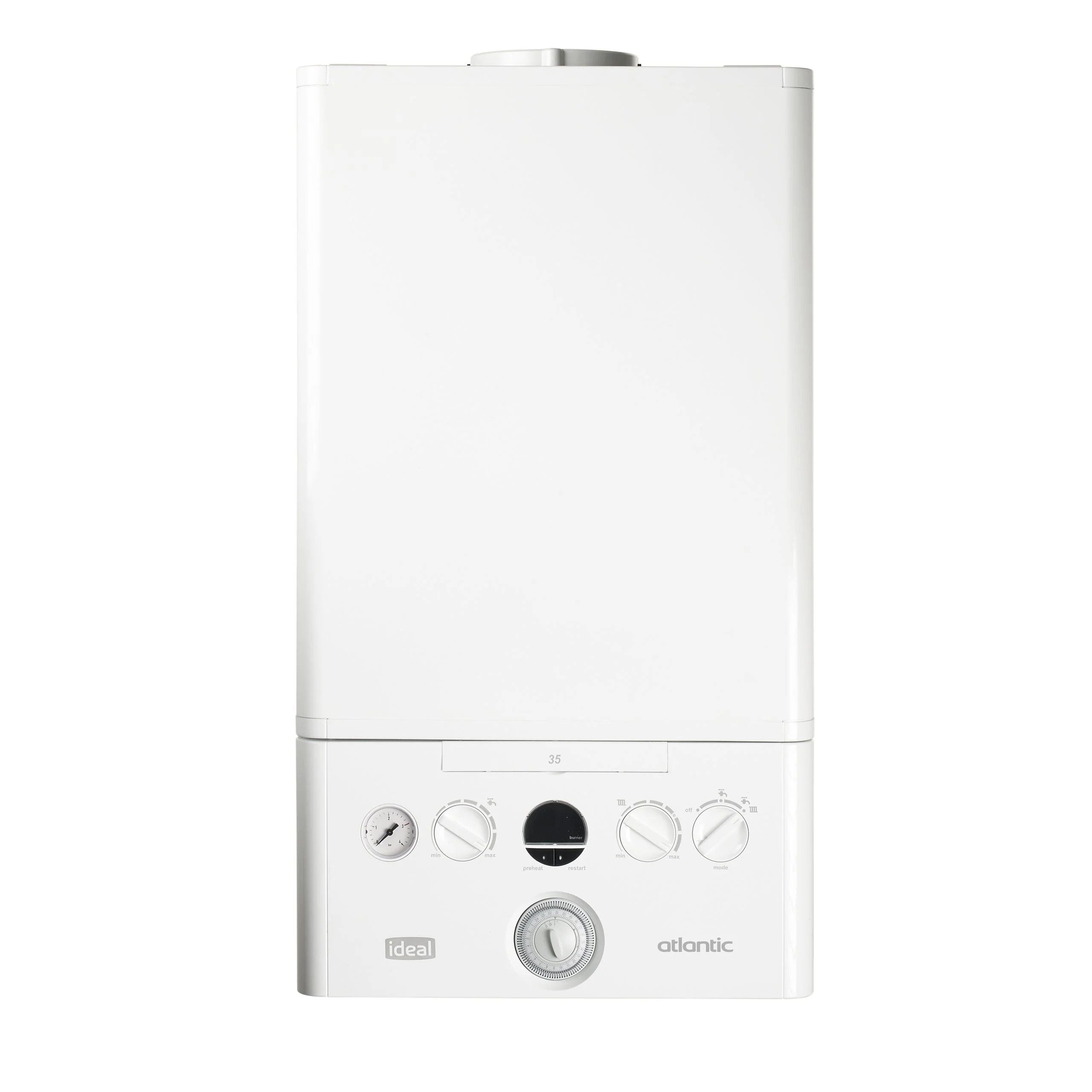

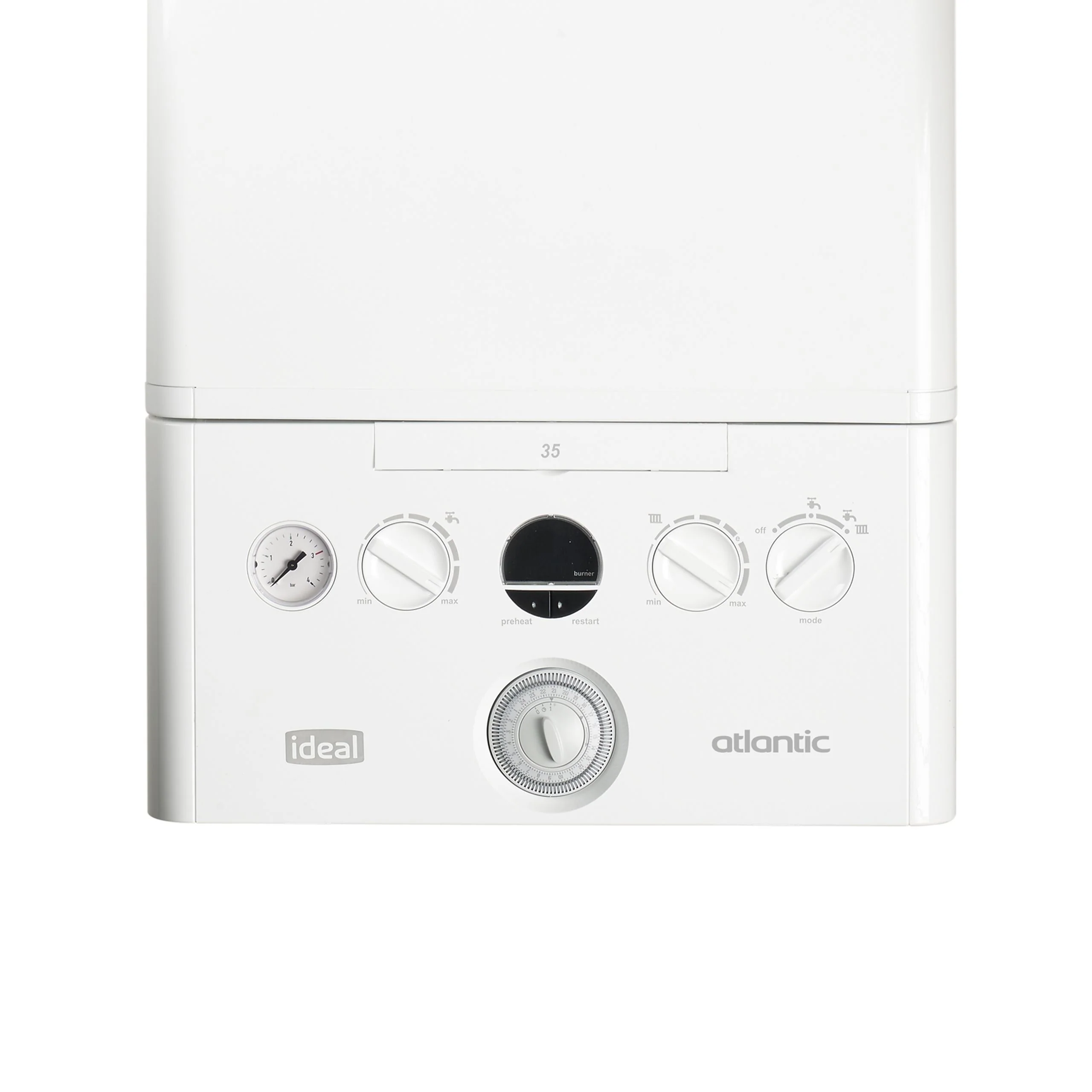

Ideal Atlantic C24 Combi Boiler – Key Features
- 24kW combi for small to medium homes – maximum domestic hot water output approx. 24.2kW with a flow rate around 9.9 litres per minute at a 35°C temperature rise, suited to one bathroom and typical kitchen usage.
- ErP A‑rated efficiency – A‑rated for both space heating and DHW, helping to reduce fuel bills and carbon emissions.
- Compact cupboard‑fit size – approximately 700mm (H) x 395mm (W) x 285mm (D), designed to sit neatly in a standard kitchen cupboard.
- Built‑in mechanical timer – integrated clock/programmer allows simple on/off time control of heating.
- Quick and easy to install – low lift weight and simple internal layout with accessible pipework and components.
- Built‑in frost protection – protects the boiler when installed in cooler areas such as lofts or garages, within manufacturer guidance.
- CH output: up to around 24–25kW (roughly 80,000–85,000 BTU/h), suitable for typical smaller semi‑detached and terraced homes (subject to heat‑loss calculation).
- Fuel type: natural gas, sealed, fan‑flued condensing combination boiler.
- Typical warranty: 5‑year parts and labour warranty when installed and registered in line with Ideal’s terms and conditions.
Ideal Horizontal Flue Kit – Key Features
- Standard horizontal flue – telescopic horizontal terminal designed for rear or side through‑the‑wall flueing from the boiler.
- Compatible flue interface – matches the flue connection used on Ideal Atlantic and Logic‑family boilers (compatibility to be confirmed in the installation manual).
- Push‑fit, twist‑lock joints – simple, secure connections that speed up installation and alignment.
- Neat external terminal – compact cowl providing safe flue gas discharge and combustion air intake with a tidy appearance.
- Ideal where side‑wall flues are suitable – suits most houses where an external wall is available for flue termination in line with siting rules.
MagnaClean Micro1 Filter – Key Features
- Compact 22mm magnetic filter – small‑format in‑line filter designed to fit under combi boilers, even in tight cupboards.
- High‑strength magnetic core – captures magnetite sludge and metal particles from the heating system to help protect the boiler and radiators.
- Slip‑socket isolation valves – 22mm compression valves with about a 98mm pipe cut‑out for quick retrofit and installation.
- Drain and vent ports – allow easy sludge removal, venting and chemical dosing, and are compatible with Adey MagnaCleanse flushing equipment.
- Efficiency and reliability benefits – cleaner system water supports sustained boiler efficiency and reduces the likelihood of breakdowns.
Why Choose This C24 Horizontal Flue Pack?
- Complete one‑box solution – boiler, standard horizontal flue kit and magnetic filter supplied together, reducing time spent sourcing separate components.
- Perfect for typical UK homes – 24kW output and 9.9 l/min DHW performance suit many 2–3 bedroom, one‑bathroom properties.
- Protected from day one – MagnaClean Micro1 helps keep the system clean, supporting long‑term efficiency and helping to meet warranty conditions.
- Simple, space‑saving installation – compact boiler and flue design fit easily in standard cupboards with a neat wall terminal.
Installation Notes
- All gas, flue and electrical work must be carried out by suitably qualified engineers (e.g. Gas Safe registered) following Ideal’s installation manual and current UK regulations.
- Horizontal flue length, terminal position, fall and clearances must comply with Ideal’s flueing tables and BS 5440 regulations.
- Install the MagnaClean Micro1 on the return to the boiler, with sufficient clearance for servicing and sludge removal, and flush/clean the system before commissioning.
- Fill, vent, dose inhibitor, commission and register the boiler and pack components correctly to activate warranties and ensure efficient, safe operation.
