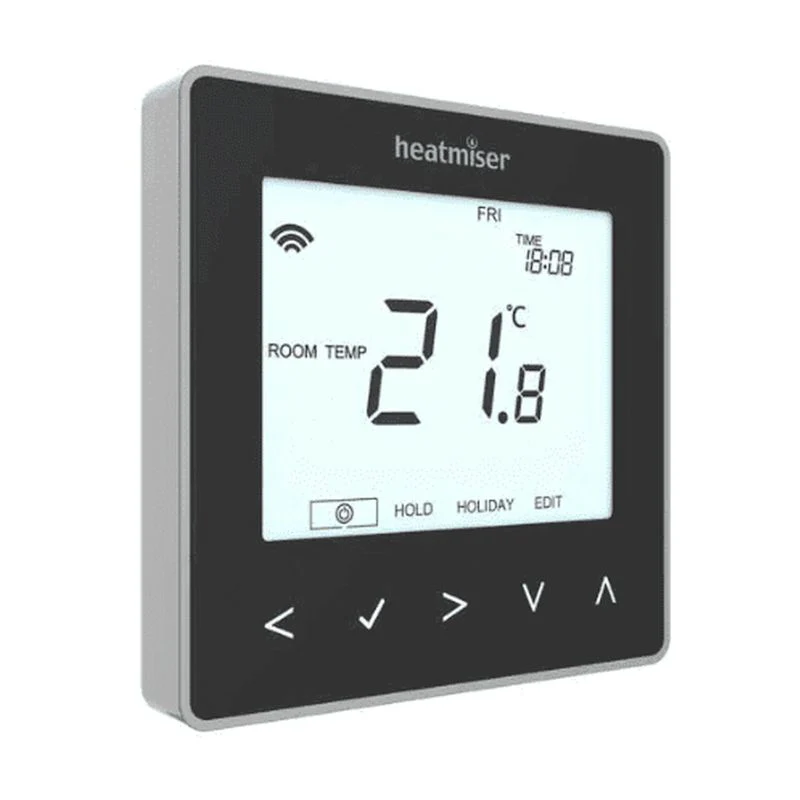

Heatmiser neoStat 12v V3 Programmable Thermostat

The Heatmiser neoStat 12v V3 is a 12V DC powered, programmable smart thermostat designed for underfloor heating and general heating zones in multi-zone smart home systems. With mesh networking capabilities (when linked with a neoHub G2), the neoStat 12v V3 enables app, voice, and remote heating control, plus flexible timer mode for towel rails or lighting. It is compatible with the Heatmiser UH8-N 12V wiring centre, making it ideal for advanced zoned heating installations.

Key Features

• 12V DC powered (suitable for Heatmiser UH8-N wiring centre)
• Volt-free switching: ideal for a wide range of heating systems
• Flush mounting design, 85 x 85 x 13 mm
• Illuminated soft-touch keys with proximity sensor
• White backlight with automatic shut-off after 30 seconds
• User-selectable operating modes: Non-programmable, 5/2 day, 7 day, or 24 hour
• Configurable as thermostat or timer (for towel rails, lighting, etc.)
• 4 comfort levels per day (option for 6 with neoHub G2)
• 5-minute programming intervals for accurate scheduling
• Temperature hold and holiday facility
• Self-learning optimum start for efficient preheating
• Mesh networking: each unit acts as a signal repeater when used with neoHub G2
• Remote/app and voice control with neoHub G2
• Celsius/Fahrenheit selectable display and key code lock
• Frost protection for safety
• IP rating: IP30
• 2-year manufacturer’s warranty

Technical Specifications

Supply Voltage	12V DC
Relay Output	Volt-free switch, max 3A
Temperature Range	5–35°C
Control Levels per Day	4 (6 with neoHub G2)
Program Interval	5 minutes
Mounting	Flush (requires standard back box)
Dimensions (W x H x D)	85 x 85 x 13 mm
IP Rating	IP30
Warranty	2 years

Applications

• 12V networked underfloor heating control (best with Heatmiser UH8-N)
• Multi-zone heating zones in smart homes or commercial projects
• Timer mode for towel rails or lighting
• Smart scheduling, remote/app, and voice control via neoHub G2

Box Contents

• Heatmiser neoStat 12v V3 Programmable Thermostat (colour as ordered)
• Mounting screws and fixings
• Quick start/installation guide
