VEGA Chargers ALOHA Lander Plus 120kW DC Fast Charger – Dual CCS2 + AC Type 2 EV Charging Station
HomeStore

VEGA Chargers ALOHA Lander Plus 120kW DC Fast Charger – Dual CCS2 + AC Type 2 EV Charging Station

VEGA Chargers ALOHA Lander Plus 120kW DC Fast Charger – Dual CCS2 + AC Type 2 EV Charging Station

120 kW DC OutputBoost Mode 500 AAC 22 kW Included3 Vehicles SimultaneouslyIP55 / IK10CE CertifiedOCPP 1.6J4G + RFID Std.

The VEGA Chargers ALOHA Lander Plus 120 kW (D) + AC is a high-power, multi-vehicle charging station delivering up to 200 km of range in just 15 minutes of connection. Configured with two CCS-2 DC connectors (250 A standard / 500 A boost) and an integrated 22 kW AC Type 2 output, it can serve up to three vehicles simultaneously, intelligently balancing power across all active sessions. Its robust stainless steel and PUR V0 enclosure meets IP55 and IK10 standards, while standard equipment includes a 15.6" TFT touchscreen, RFID card reader, 4G modem, OCPP 1.6J and customisable HMI logos.

Range Performance
Up to 200 km in 15 minutes of connection (based on WLTP 15 kWh/100 km average).
Typical session: 8 – 30 minutes typical session
Key Features
Up to 3 Vehicles Simultaneously
Two DC CCS-2 connectors plus one AC Type 2 socket enable up to three vehicles to charge at the same time, maximising throughput at busy locations.
Dual CCS-2 with Boost Mode
250 A standard / 500 A in Boost mode per DC output — intelligently split to 2 × 60 kW during simultaneous DC charging, or full 120 kW to a single vehicle.

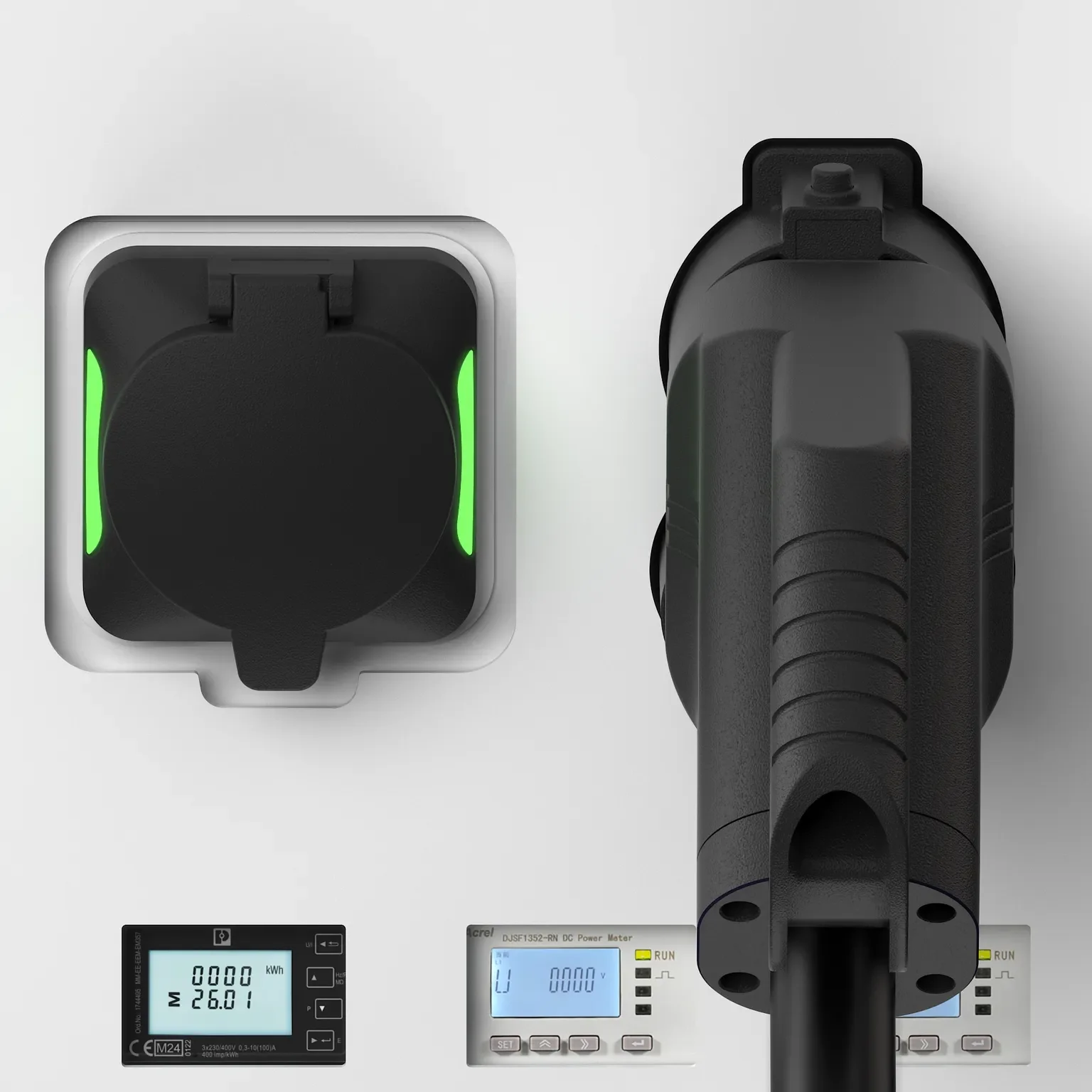

Integrated 22 kW AC Output
Type 2 AC socket rated at 22 kW / 32 A adds AC charging capability without requiring a separate AC charger, reducing infrastructure cost and footprint.
Dynamic Load Management
Automatically balances available power between all active connectors — DC and AC — preventing grid overloads and optimising energy utilisation.
Smart Charging & Autocharge
OCPP 1.6J cloud management combined with ISO 15118 Plug & Charge delivers fully automated, frictionless charging for fleet and public use.

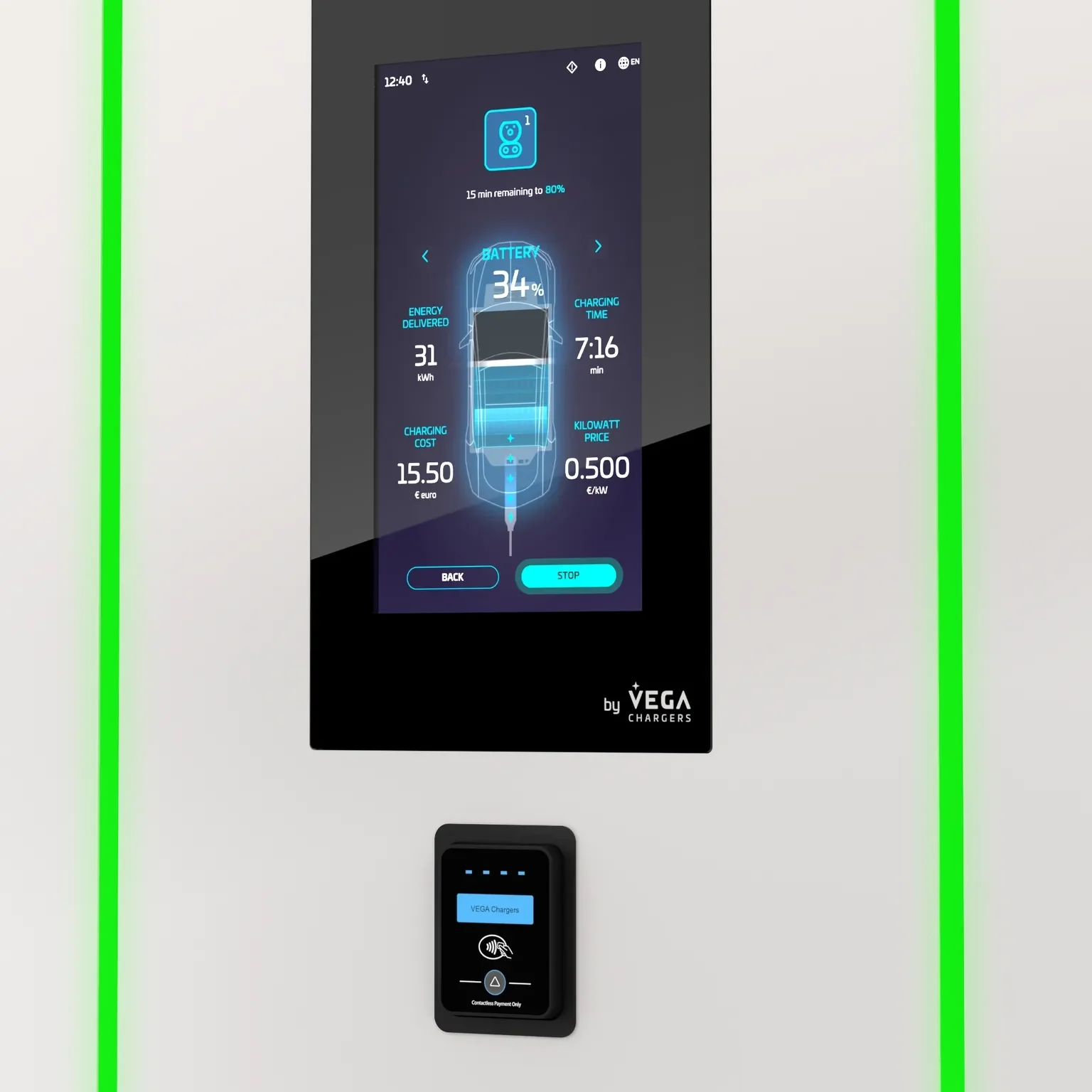

15.6" TFT Touchscreen & RFID
Large-format colour touchscreen with integrated RFID reader — HMI logos fully customisable to match operator or brand identity.
Comprehensive Electrical Protection
Dehn 20 kA surge protection, MCB curve C overcurrent protection, RCD 30 mA Type A, and DC isolation monitoring with protection fuse on every DC output.
Forklift & Eyebolt Installation
Ground-mounted with anchor bolt or structural foundation; unloading and precise placement via forklift or upper eyebolts for safe site delivery.
Typical Applications
Service Stations & Mobility Hubs
Office Buildings & Workplaces
Malls & Supermarkets
Public & Private Car Parks
Corporate Fleets & Car Sharing
Service Vehicles & Public Transport
Technical Specifications
AC INPUT
Supply Voltage 400 Vac ± 10% (3P+N+PE)
Frequency 50 / 60 Hz
Nominal Input Current 220 A (with AC output)
Apparent Power 152 kVA (with AC output)
Power Factor > 0.99
Efficiency > 95% at nominal power
THDi < 5%
Standby Consumption < 60 W
Earthing System TT / TN-S
DC OUTPUT
Max. Output Power 120 kW single / 2 × 60 kW simultaneous
Max. Output Current 250 A (500 A Boost*) / 2 × 160 A simultaneous
Output Voltage Range 150 – 1000 Vdc
DC Connectors CCS-2 + CCS-2 (4 m cables; optional 5 or 7 m)
Metering DC Official meter certified (optional)
AC OUTPUT
Max. AC Output Power 22 kW
AC Output Voltage 400 / 230 Vac ± 10% (3P+N+PE)
Max. AC Output Current 32 A
AC Connector Type 2 (Socket)
Metering AC Official meter certified (standard)
MECHANICAL
Dimensions (H × W × D) 2000 mm × 900 mm × 450 mm
Weight 435 kg
Mechanical Impact Protection IK10
Housing Material Stainless steel and PUR (V0) — customisable colour
Installation Method Ground mount — anchor bolt or structural foundation; forklift / eyebolt unloading
ENVIRONMENT
Ingress Protection IP55
Operating Temperature -10°C to +55°C (-30°C to +55°C with optional heater)
Storage Temperature -35°C to +70°C
Relative Humidity 5% to 95% non-condensing
Cooling System Exhaust fan
Noise Level ≤ 60 dBA (1 m, all directions)
Max. Altitude 2000 m
GENERAL
User Interface 15.6" TFT colour touchscreen (standard)
Communication Protocol OCPP 1.6J; Modbus TCP; Modbus RTU
Communication Interface 4G (standard); RS485; Ethernet
Access & ID RFID reader (standard) — MIFARE Classic / DESfire EV1, EV2; NFC Type 4; Autocharge; PIN code; White list
HMI Branding Customisable logos (standard)
Payment Terminal Cashless payment terminal (optional)
Status Lights RGB LED per charging connector
STANDARDS & CERTIFICATIONS
IEC / DIN / ISO IEC 61851-1/21-2/23/24; IEC 62196-1/2/3; IEC 61000; DIN70121; ISO 15118-2/-3; CHAdeMO 1.2
EU Directives LVD 2014/35/EU; EMC 2014/30/EU; RED 2014/53/EU
ℹ Installation Note: This product requires installation by a qualified electrician. Ensure supply capacity, earthing system and protection devices comply with local wiring regulations and the technical specification above.
Frequently Asked Questions
How does Boost mode work on the DC outputs?
Under specific temperature conditions and limited session duration, the DC outputs can deliver up to 500 A (vs. the standard 250 A), pushing the maximum power per connector significantly higher. Boost mode is managed automatically by the charger — no operator intervention is needed.
What is the difference between single and simultaneous DC charging?
When only one vehicle is connected to a DC port, it receives the full 120 kW. When both DC ports are in use simultaneously, Dynamic Load Management splits the power to 2 × 60 kW. The AC Type 2 output operates independently at up to 22 kW at all times.
Does the AC output require a separate meter?
No — an official AC meter is certified and included as standard on the AC output. An optional DC official meter is available for the DC outputs if required for billing or regulatory purposes.
What site preparation is needed for installation?
The unit requires a concrete foundation or anchor bolt base. It is delivered and positioned using a forklift or the upper eyebolts provided. A three-phase 400 V supply capable of 220 A nominal input current is required.
Can it be integrated with an existing energy management system?
Yes. In addition to OCPP 1.6J for charge-point management platforms, the unit supports Modbus TCP and Modbus RTU, enabling integration with building energy management systems (BEMS) for coordinated load control.
