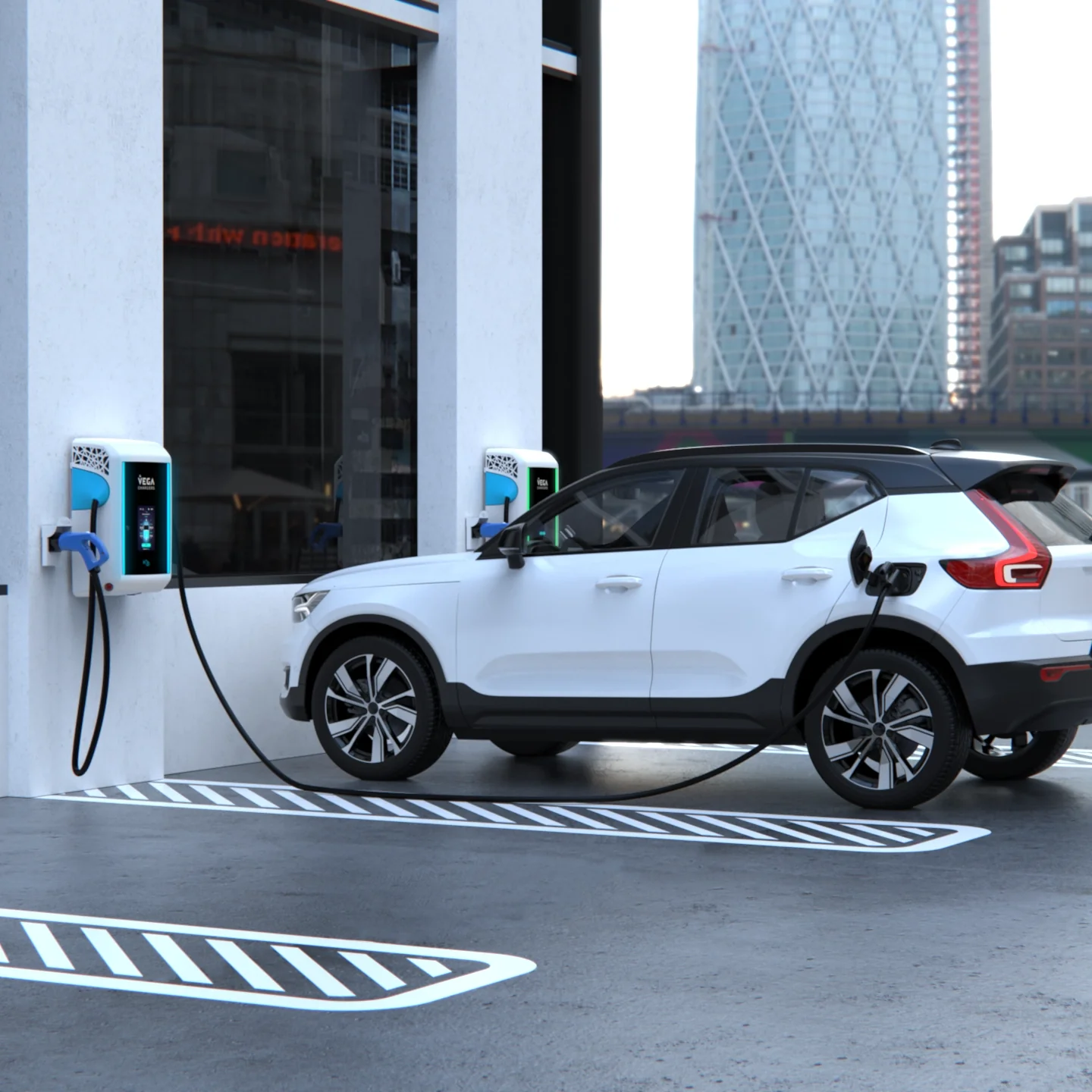

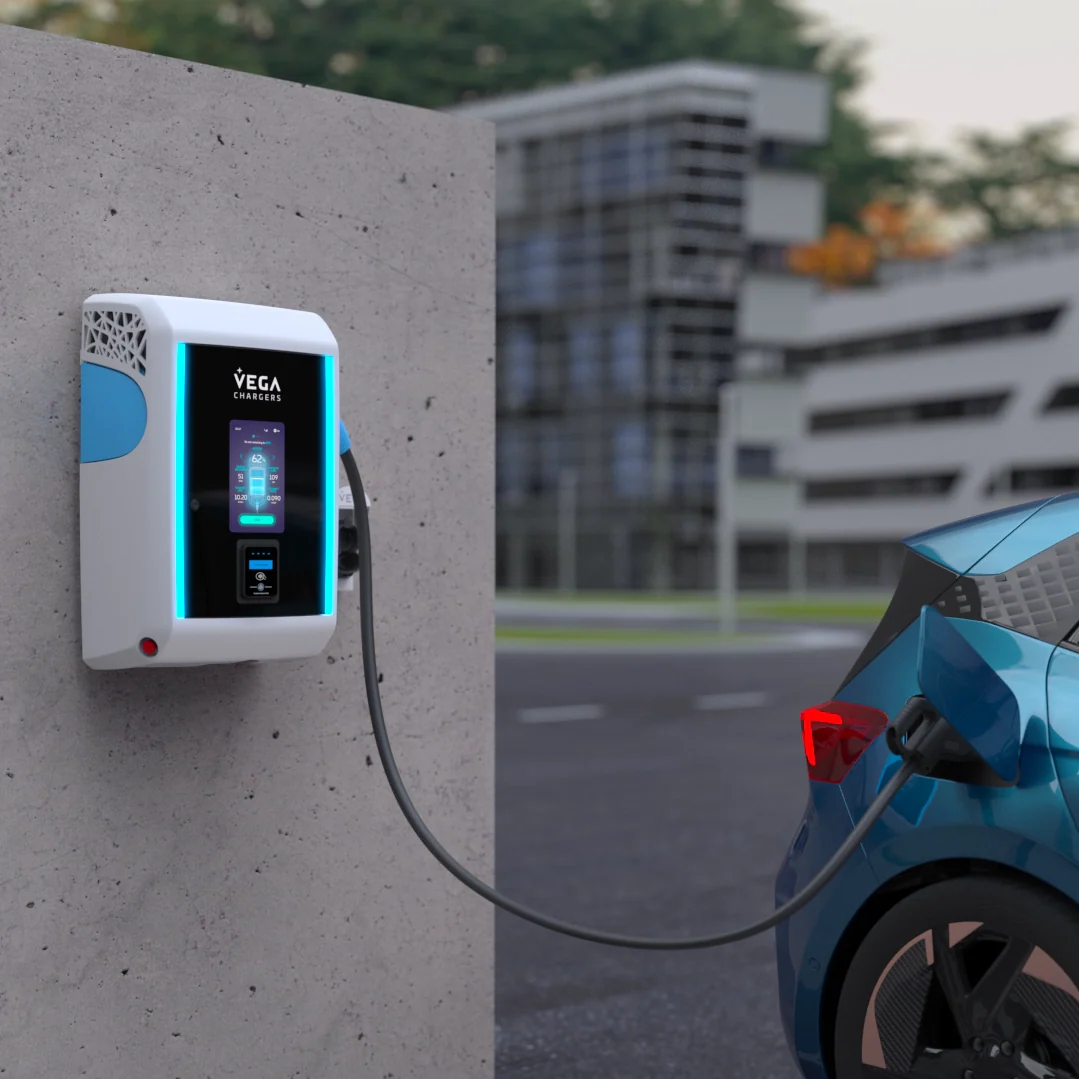

VEGA Chargers ALOHA Gravity DC 40kW EV Charging Station – Compact Wall or Pedestal DC Fast Charger

40 kW DC OutputIP55 RatedIK10 Impact ProofOCPP 1.6J

The VEGA Chargers ALOHA Gravity DC 40 kW is a compact, robust fast charger built for locations where space is at a premium but performance cannot be compromised. Delivering up to 267 km of range in a single hour of charge, it is ideal for charging sessions of 23 to 90 minutes — perfect for hotels, restaurants, office car parks, shopping centres and corporate fleets. Its stainless steel and Arfinio® housing offers outstanding durability with a premium aesthetic, while the super-silent ≤ 55 dBA operation makes it fully suitable for public-facing environments.

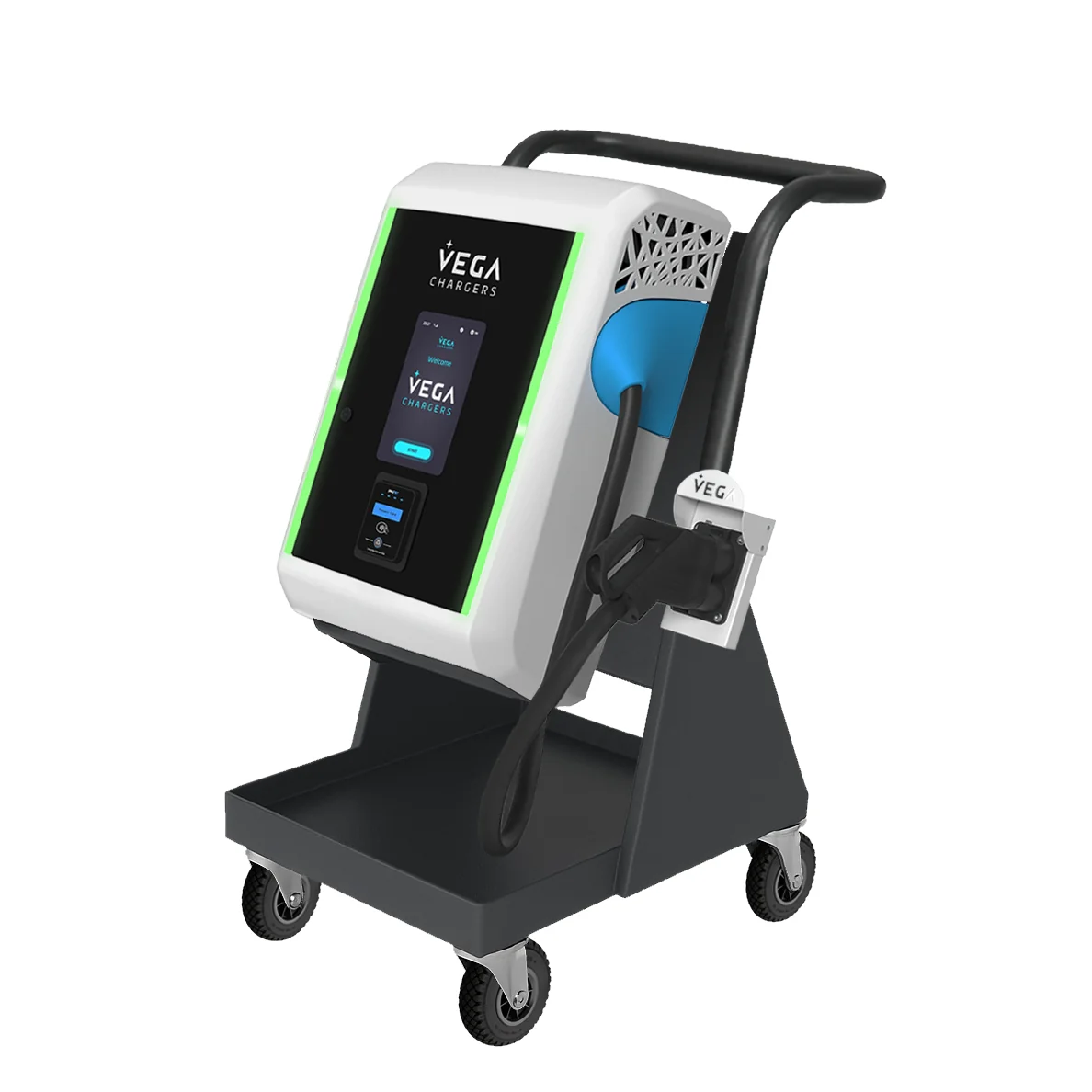

⚠ Trolley Note: Reference image only; final product trolley is fitted with braked wheels. Suitable for specific DC/DC applications upon consultation.

Key Features

Typical Applications

Technical Specifications

AC INPUT
Supply Voltage	400 Vac ± 10% (3P+N+PE)
Frequency	50 / 60 Hz
Nominal Input Current	65 A
Apparent Power	45 kVA
Power Factor	> 0.99
Efficiency	> 95% at nominal power
THDi	< 5%
Standby Consumption	< 13 W
Earthing System	TT / TN-S
DC OUTPUT
Max. Output Power	40 kW (@ V ≥ 400 Vdc)
Max. Output Current	100 A
Output Voltage Range	150 – 500 Vdc (Optional: 150 – 1000 Vdc)
Output Connectors (Single / S)	CCS-2 (5 m cable)
Output Connectors (Dual / D)	CHAdeMO + CCS-2 (5 m + 5 m cable)
Metering	DC Official meter certified (optional)
MECHANICAL
Dimensions (H × W × D)	767 mm × 485 mm × 275 mm
Weight (S / D)	59 kg / 68 kg
Mechanical Impact Protection	IK10
Housing Material	Stainless steel and PUR (V0) — customisable colour

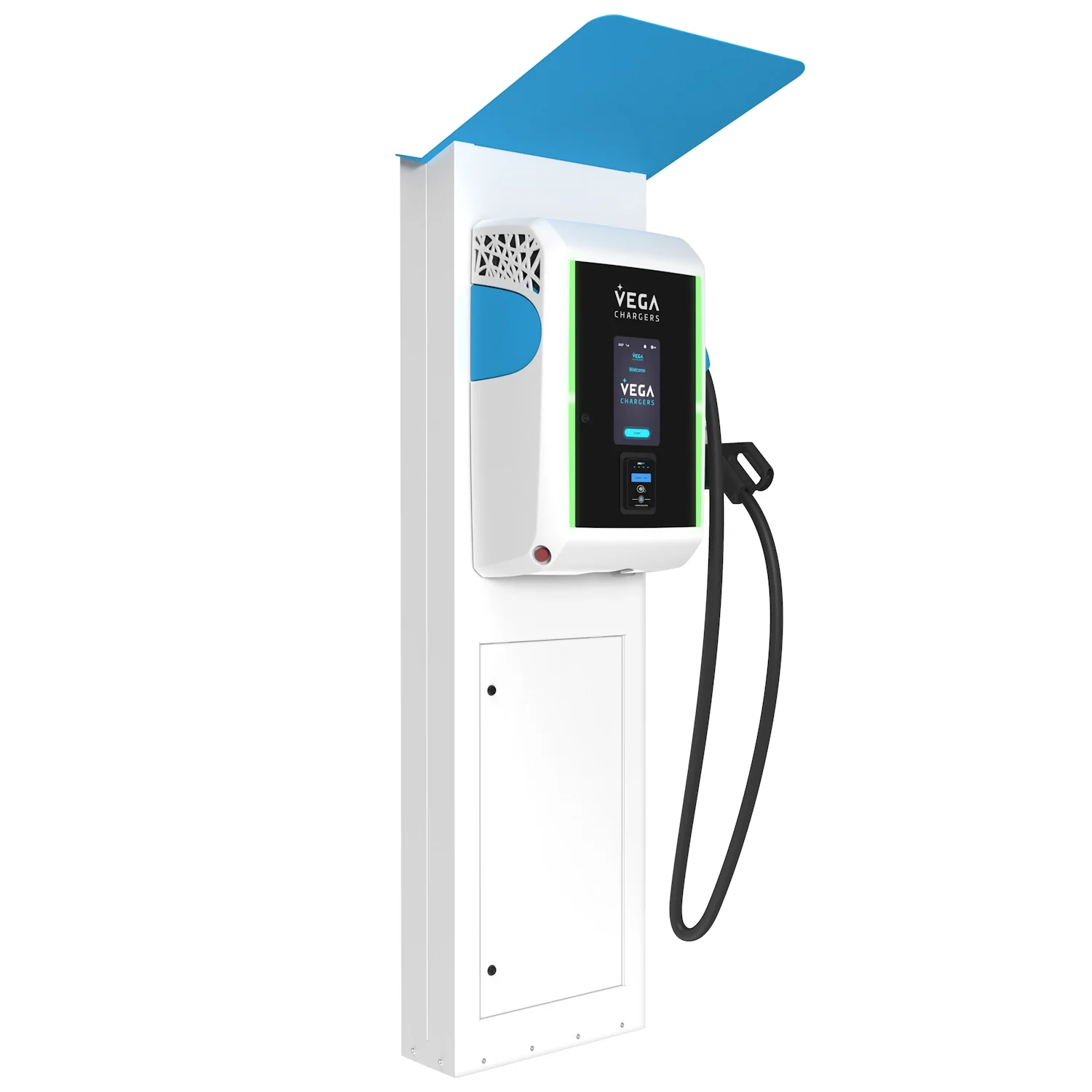

Installation Method	On wall or pedestal
ENVIRONMENT
Ingress Protection	IP55
Operating Temperature	-10°C to +55°C (-30°C to +55°C with optional heater)
Storage Temperature	-35°C to +70°C
Relative Humidity	5% to 95% non-condensing
Cooling System	Exhaust fan
Noise Level	≤ 55 dBA (1 m, all directions)
Max. Altitude	2000 m
GENERAL
User Interface	10.1" TFT colour touchscreen
Communication Protocol	OCPP 1.6J; Modbus TCP; Modbus RTU
Communication Interface	4G; RS485; Ethernet
Access & ID	RFID reader (MIFARE Classic / DESfire EV1, EV2; NFC Type 4); Autocharge; PIN code; White list
Payment Terminal	Cashless payment terminal (optional)
Status Lights	RGB LED per charging connector
STANDARDS & CERTIFICATIONS
IEC / DIN / ISO	IEC 61851-1/21-2/23/24; IEC 62196-1/3; IEC 61000; DIN70121; ISO 15118-2/-3; CHAdeMO 1.2
EU Directives	LVD 2014/35/EU; EMC 2014/30/EU; RED 2014/53/EU
Mark	CE

ℹ Installation Note: This product requires installation by a qualified electrician. Ensure supply capacity, earthing system and protection devices comply with local wiring regulations and the technical specification above.

Frequently Asked Questions

Can the ALOHA Gravity charge two vehicles at once?

The single-output (S) model features one CCS-2 connector. The dual-output (D) model provides CHAdeMO + CCS-2, allowing two vehicles to be connected — though charging is sequential, not simultaneous. For simultaneous dual-vehicle charging, consider the ALOHA Lander range.

How quiet is the ALOHA Gravity in practice?

It operates at ≤ 55 dBA measured at 1 metre in all directions — comparable to a quiet library. This makes it ideal for hotels, restaurants and residential-adjacent car parks.

Can it be installed outdoors?

Yes. The IP55 ingress protection rating means it is fully protected against dust and water jets. It can operate from -10°C to +55°C as standard, and down to -30°C with the optional internal heater.

Does it support contactless payment?

An optional cashless payment terminal allows drivers to pay without any prior registration or app — simply tap a card or device to start charging.

What communication protocols does it support?

OCPP 1.6J for back-office integration, plus Modbus TCP and Modbus RTU for building management systems. Connectivity options include 4G, RS485 and Ethernet.
