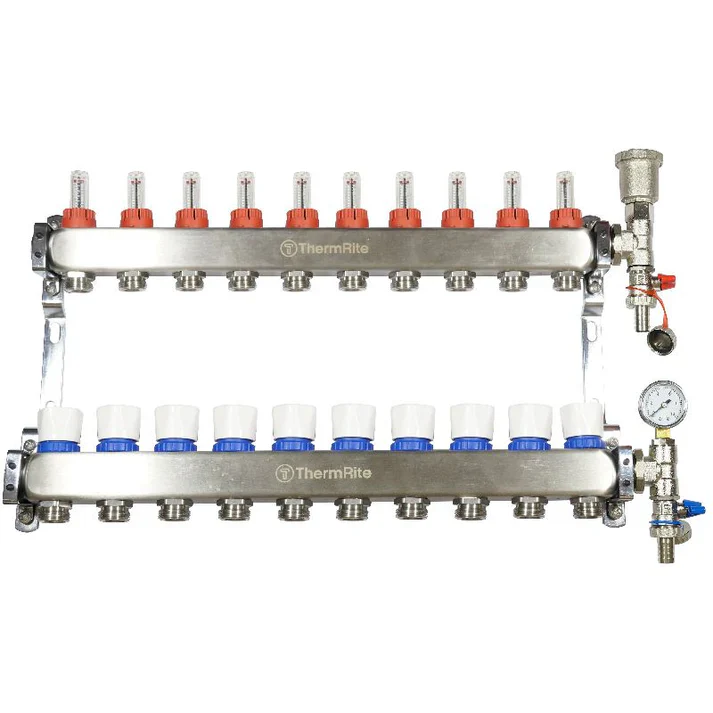

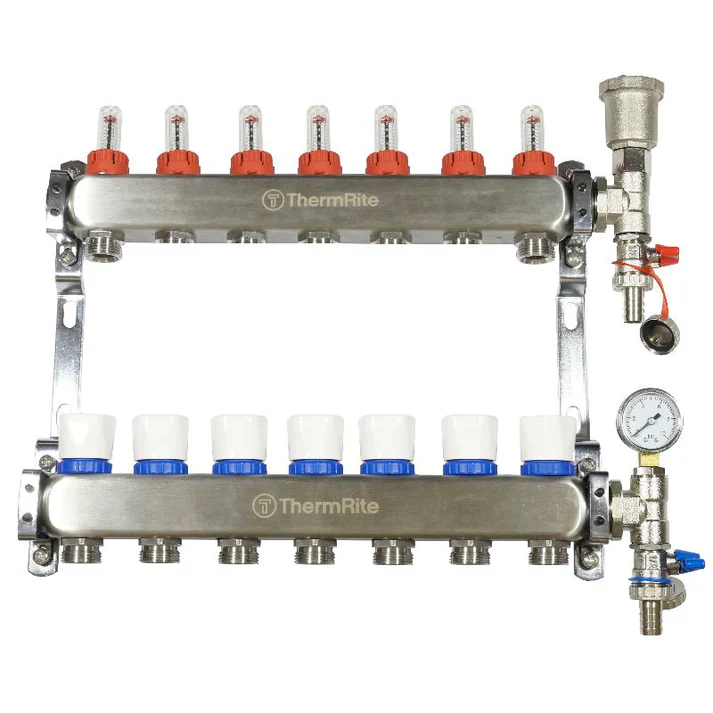

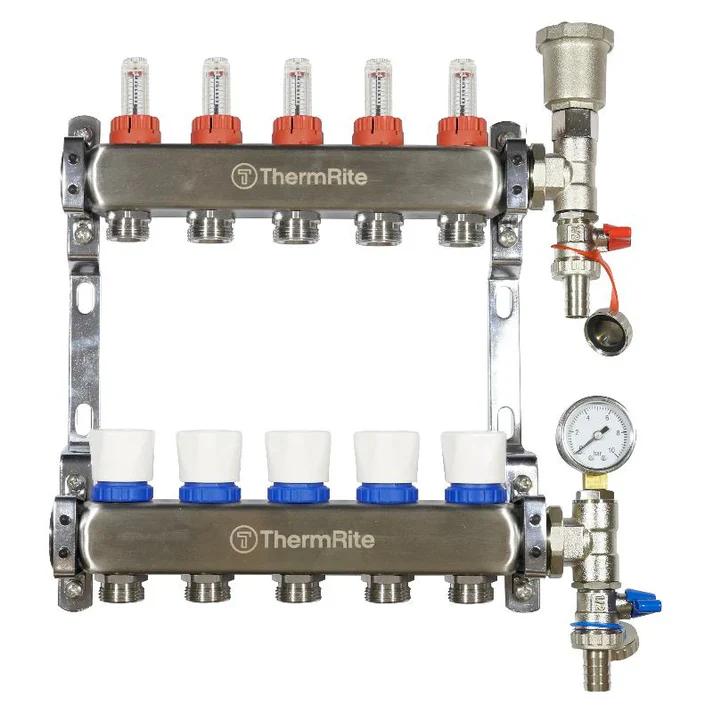

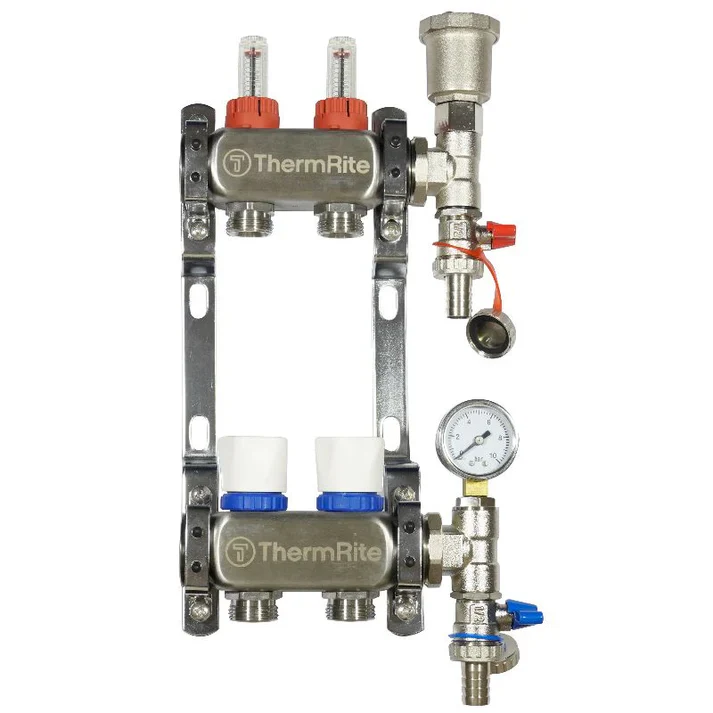

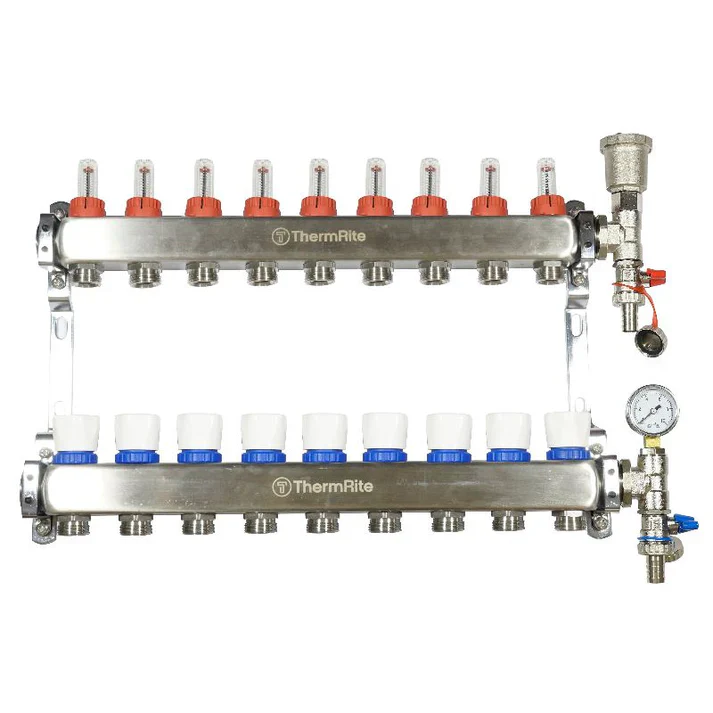

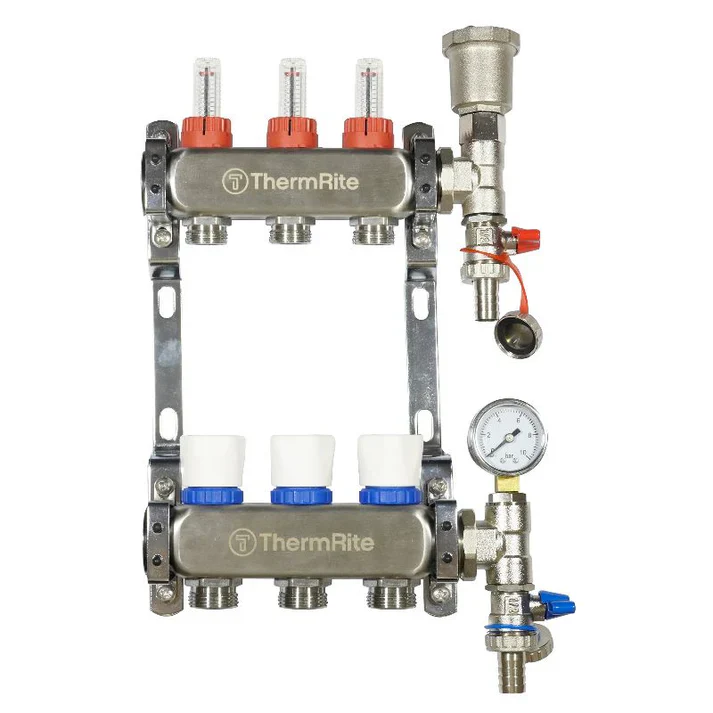

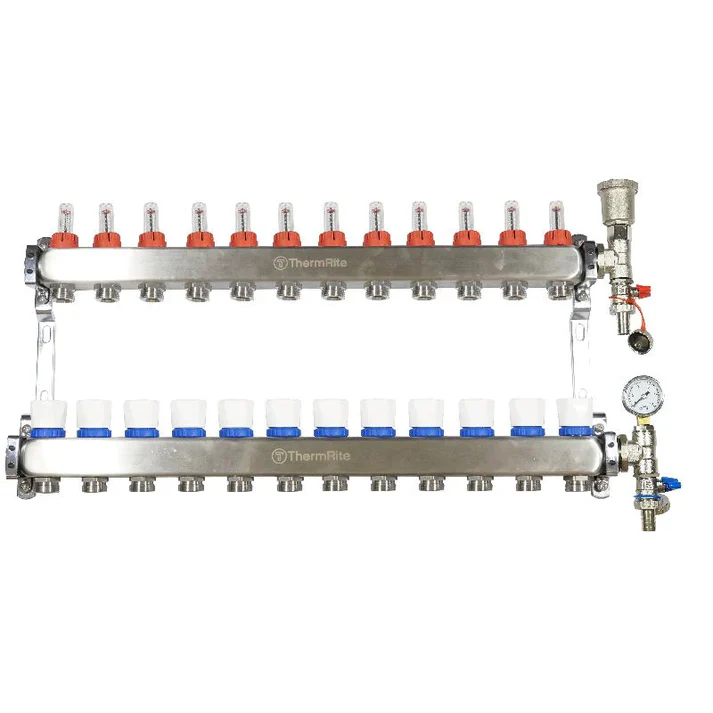

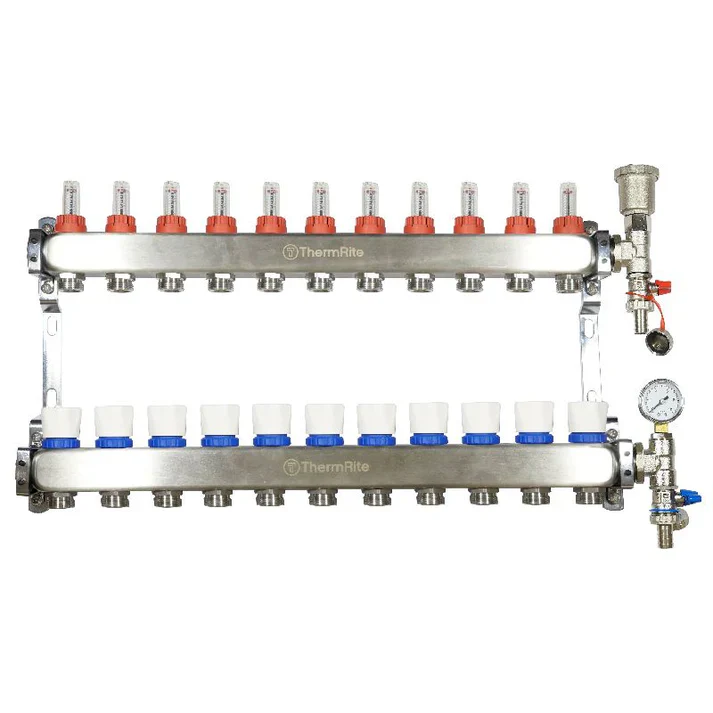

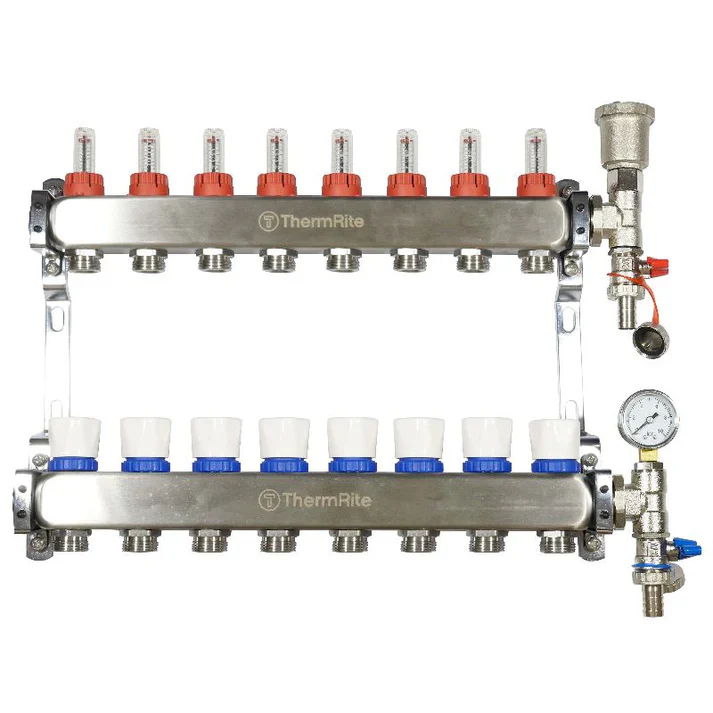

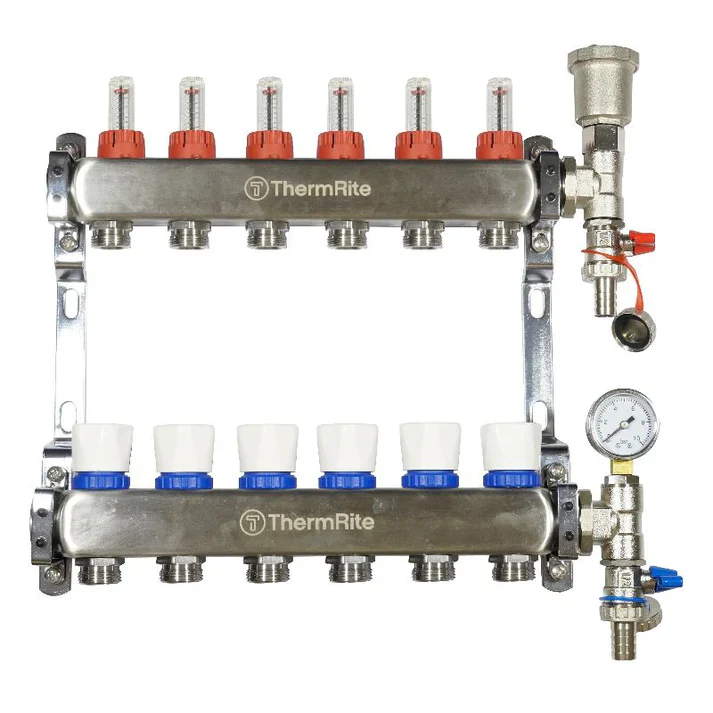

Stainless Steel Underfloor Heating Manifold 2 to 12 Port Options

This premium range of stainless steel underfloor heating manifolds is designed to provide efficient distribution, control, and balancing of warm water flow in underfloor heating manifold systems. Heating manifold available with 2 to 12 ports, these pre-assembled manifolds offer flexibility to suit projects of varying sizes — from small residential zones to larger commercial installations.

Each heating manifold assembly features dual manifold bars (flow and return), precision-engineered stainless steel construction for corrosion resistance and durability, and fully integrated components for durable, reliable performance. They are compatible with 12mm and 16mm pipework systems, and designed to meet or exceed BS EN 1264-4 standards and UK building regulations.

What’s Included

• Dual manifold body with 2 to 12 ports (flow and return)
• Lockshield valves with integrated flow meters on all flow ports for individual circuit balancing
• Ball isolation valves fitted with temperature gauges on return ports for temperature monitoring
• Automatic air vents on both flow and return manifolds to purge trapped air
• Drain and fill valves with blanking caps for convenient system filling and maintenance
• Eurocone pipe connectors compatible with 12mm and 16mm multilayer pipes
• Adjustable, corrosion-resistant metal mounting brackets for secure wall or cabinet installation
• Comprehensive installation and balancing guide documentation

Key Features

• Robust high-grade stainless steel construction (typically SUS304) for long-term durability and corrosion resistance
• Pre-assembled plug-and-play manifold system reducing installation time and complexity
• Individual flow meters on all ports with a range commonly 0 to 5 L/min for precise flow balancing
• Integrated temperature gauges for easy manual temperature monitoring and system commissioning
• Automatic air vents ensure optimum system efficiency by removing trapped air
• Valve actuators compatible for upgrade to automated control systems
• Working pressure up to 10 bar (1000 kPa) and temperature rating up to 100°C (some variants up to 105°C)
• Compact and modular design with varying manifold lengths increasing with the number of ports
• Suitable for hot water/glycol mixtures commonly used in underfloor heating

Technical Specifications by Port Count

Port Count	Manifold Length (approx.)	Height	Depth	Flow Meter Range	Max Working Pressure	Max Operating Temperature	Approx. Weight
2	284 mm	385 mm	100 mm	0-5 L/min	10 bar	100°C	~3 kg
3	334 mm	385 mm	100 mm	0-5 L/min	10 bar	100°C	~4 kg
4	384 mm	385 mm	100 mm	0-5 L/min	10 bar	100°C	~5 kg
5	434 mm	385 mm	100 mm	0-5 L/min	10 bar	100°C	~6 kg
6	484 mm	385 mm	100 mm	0-5 L/min	10 bar	100°C	~7 kg
7	534 mm	385 mm	100 mm	0-5 L/min	10 bar	100°C	~8 kg
8	584 mm	385 mm	100 mm	0-5 L/min	10 bar	100°C	~9 kg
9	634 mm	385 mm	100 mm	0-5 L/min	10 bar	100°C	~10 kg
10	684 mm	385 mm	100 mm	0-5 L/min	10 bar	100°C	~11 kg
11	734 mm	385 mm	100 mm	0-5 L/min	10 bar	100°C	~12 kg
12	784 mm	385 mm	100 mm	0-5 L/min	10 bar	100°C	~13 kg

Benefits

• Enables precise balancing and flow control for efficient, even heating across all connected underfloor heating circuits
• Robust construction ensures long service life with minimal maintenance
• Integrated temperature and flow indicators facilitate easy system management and commissioning
• Pre-assembled for fast installation, saving labor time and reducing error risks
• Compatible with automation systems for future upgrades including electronic actuators
• Compatible with a wide range of pipe diameters and materials via Eurocone connectors

These high-quality stainless steel manifold assemblies are ideal for all warm water underfloor heating installations requiring from 2 up to 12 heating zones, combining professional reliability, user-friendly operation, and regulatory compliance.
