Samsung Mono 1‑Phase Hydro Unit – 1 Zone

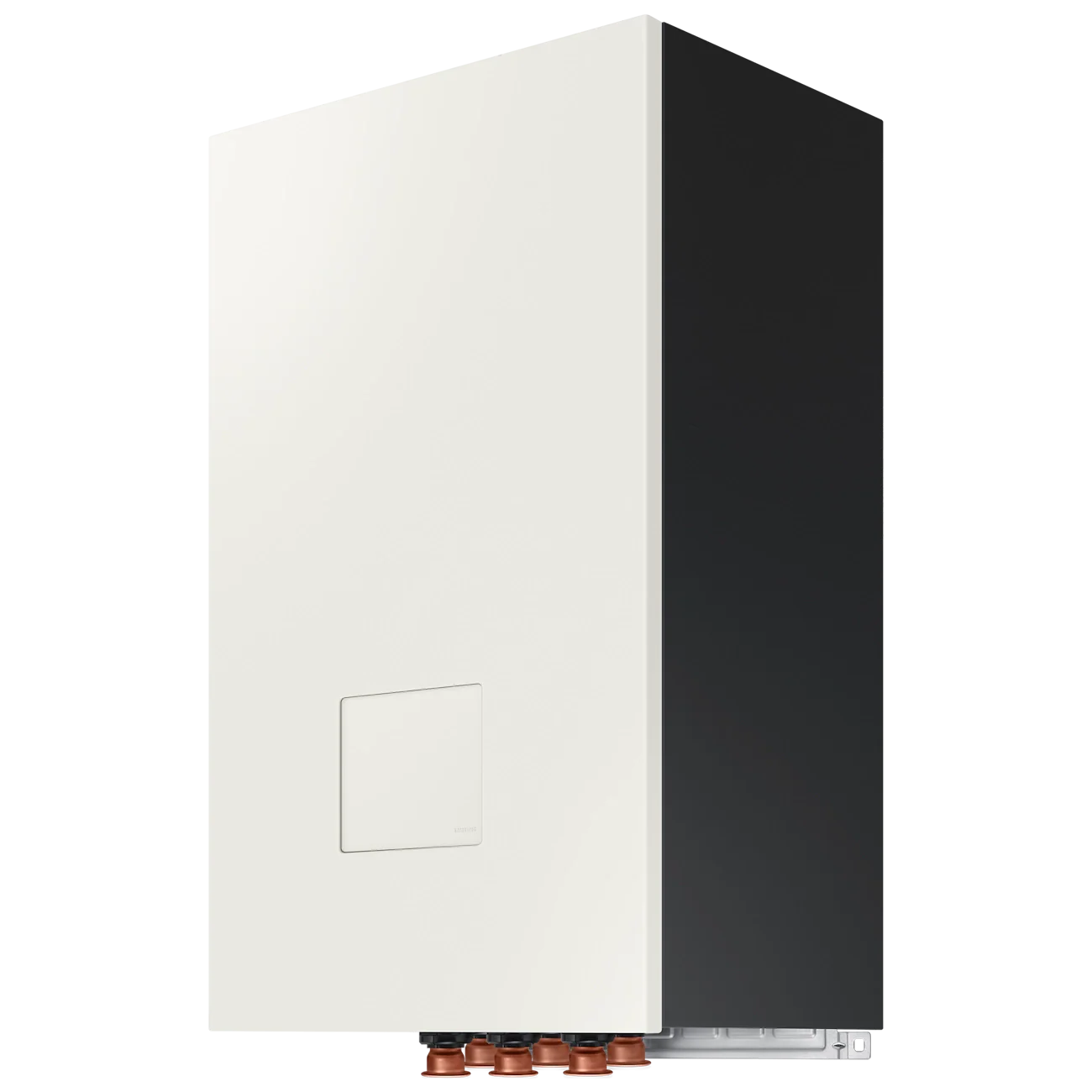

The Samsung Mono 1‑Phase Hydro Unit – 1 Zone (MPN AE160DNYMPK/EU) is a compact wall‑mounted indoor hydro unit for Samsung EHS Mono R290 heat pumps, providing all primary hydraulics, controls, Wi‑Fi and a 7″ touch display for a single heating zone when used with a separate third‑party hot‑water cylinder.
Key Features
- Hydro unit only: indoor wall‑mounted hydro module without an integrated DHW tank, designed to work with an external unvented cylinder of your choice.
- Single‑phase system: suitable for 230V 50Hz single‑phase supplies, matching single‑phase Samsung EHS Mono R290 outdoor units from 5kW up to 16kW.
- 1‑zone configuration: factory configured for a single heating zone; a mixing valve and MOS‑T1 2‑zone kit can be added if a second mixed‑temperature zone is required later.
- Integrated Wi‑Fi and 7″ touch control: includes Wi‑Fi connectivity and a 7‑inch colour touch screen (AI‑style controller) for local control, commissioning and SmartThings app integration.
Hydraulic & System Components
- Built‑in circulating pump: high‑efficiency variable‑speed circulation pump sized for the connected EHS Mono R290 outdoor unit range.
- Expansion vessel: integrated expansion vessel (around 10L) for the primary heating circuit, reducing the need for additional external vessels in many domestic systems.
- Electric backup heater: built‑in electric backup/booster heater (typically 2 + 2kW) providing support for space heating and DHW production in extreme conditions or emergency mode.
- Safety components: comes with key hydraulic safety items such as safety valve and internal filter/magnetic filtration to protect the system side of the heat pump circuit.
Technical Overview
- Model / MPN: AE160DNYMPK/EU (EHS Mono Hydro Unit S2, Standard, 1‑zone, 1‑phase).
- Capacity range: indoor hydro unit matched to outdoor units from 5kW to 16kW within the Samsung EHS Mono R290 line‑up.
- Power supply (indoor): 220–240V, 50/60Hz, single‑phase.
- Operating temperature range (system): designed for operation with outdoor temperatures down to around ‑25°C in heating mode (dependent on the matched outdoor unit) and for high leaving‑water temperatures up to 75°C for high‑temperature radiators and DHW.
- Physical size: compact wall‑mount format, approximately 530mm wide × 840mm high × 350mm deep, suitable for utility rooms or plant spaces.
Control & Connectivity
- Integrated 7″ interface: front‑mounted touch screen for commissioning, parameter adjustment, viewing operating data and daily user control.
- SmartThings enabled: built‑in Wi‑Fi allows connection to the Samsung SmartThings platform for remote control, scheduling and access to AI Energy features where available.
- Zoning options: supplied as a standard 1‑zone hydro unit; when adding a mixing valve for a second low‑temperature circuit, the MOS‑T1 2‑Zone Thermistor Kit is required for proper control.
Applications
- System type: used in split‑type configurations with Samsung EHS Mono R290 outdoor units, providing heating, cooling and DHW (via an external cylinder) through a single 1‑zone hydro module.
- Ideal installations: properties that already have, or intend to install, a separate DHW cylinder and want a compact, wall‑mounted indoor unit with integrated hydraulics and smart control for a single main heating circuit.
$3,545.58
