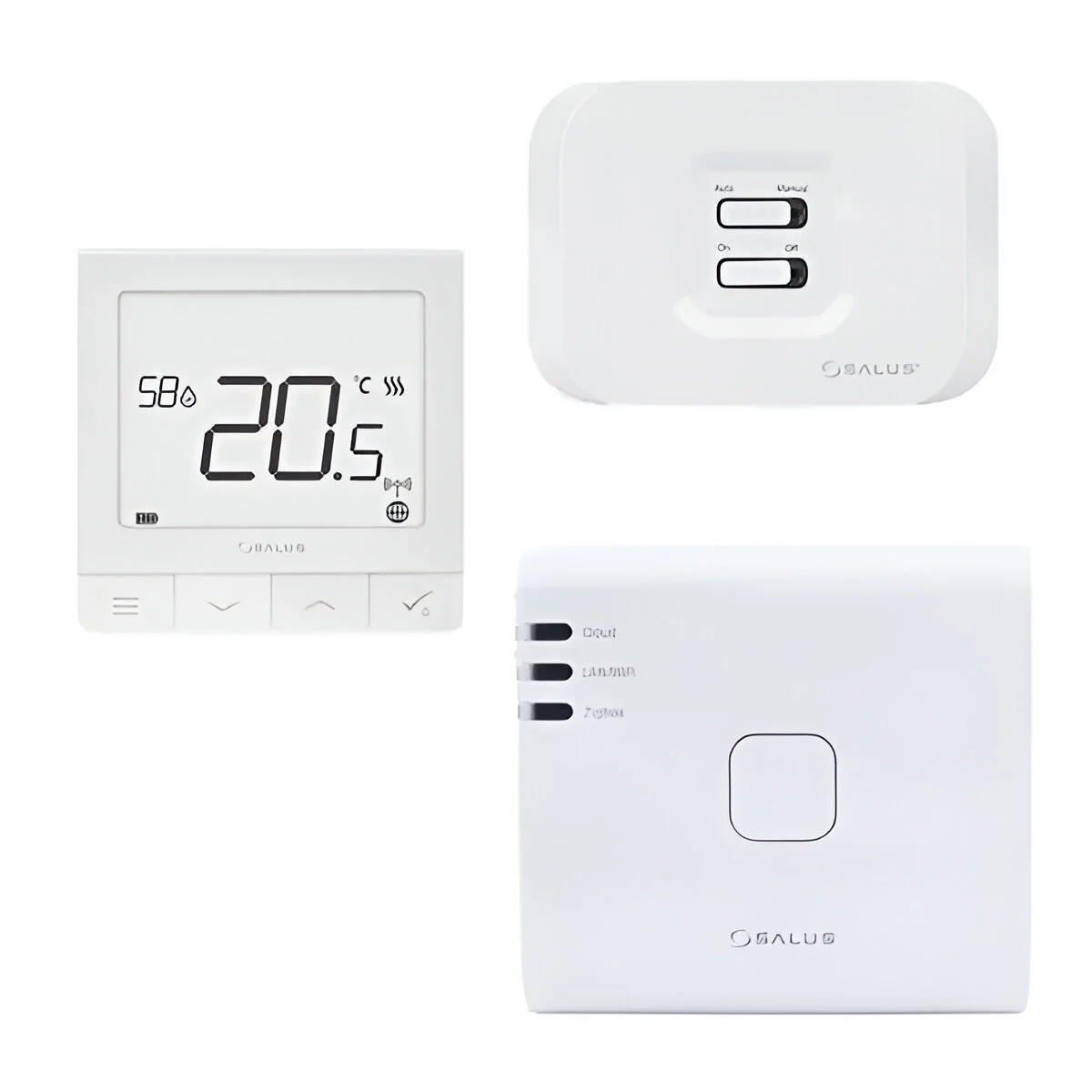

Salus Smart Home Base Pack UG800 SQ610RF RX10RF Zigbee Starter Kit Heating Control
The Salus Smart Home Base Pack contains the three components that every Salus Smart Home heating installation starts with: the UG800 Universal Gateway, the SQ610RF Quantum smart thermostat and the RX10RF boiler receiver. Together they form a complete single-zone Zigbee 3.0 heating control system for gas, LPG, oil or electric boilers — or a wet underfloor heating circuit — with full remote app and voice control from day one, and a clear path to expand.
The ultra-slim 86 × 86 × 11 mm SQ610RF Quantum uses a rechargeable Li-Ion battery and a magnetic wall plate — no mains wiring or back box at the thermostat position. Its ITLC algorithm provides precision temperature control for radiators and underfloor heating alike. The RX10RF receiver wires to the boiler and can be set as a boiler switch (RX1) or zone receiver (RX2). The UG800 connects everything to the Salus Premium Lite app — adding SALUS Sense AI energy optimisation, OneTouch automation and voice control via Alexa and Google Home.
At just 11 mm deep, the SQ610RF is one of the slimmest smart thermostats available. A rechargeable Li-Ion battery (micro-USB) removes the need for mains wiring; the magnetic backing plate means it can be repositioned without tools. The 3.5" glass-fronted LCD with touch controls shows temperature, schedule and mode at a glance.
The ITLC algorithm continuously adjusts the heating demand based on how far the room is from the setpoint and the rate of change — not a simple on/off hysteresis switch. Steadier room temperatures, less boiler short-cycling and lower energy waste. Specifically recommended for UFH and electric heating systems.
Wires to the boiler in RX1 mode (boiler switch — any thermostat can activate it) or RX2 mode (zone switch — one thermostat only). Supports volt-free and 230 V relay outputs and includes manual override for commissioning or emergency use.
The gateway connects up to 200 Zigbee 3.0 devices to the Salus cloud via Wi-Fi or Ethernet (Bluetooth-assisted setup). Enables the Salus Premium Lite app, SALUS Sense AI energy optimisation, OneTouch rules and Alexa / Google Home voice control.
The SQ610RF's S1/S2 input accepts an NTC floor sensor, external air sensor or occupancy sensor — enabling floor-temperature sensing mode with a high-temperature limit to protect delicate floor finishes on wet UFH circuits.
The SQ610RF handles both heating and cooling. If internet is lost, all three devices continue running on stored schedules in offline local mode, with full app features resuming automatically when connectivity returns.
| PACK CONTENTS | |
| 1. UG800 Universal Gateway | Zigbee 3.0 hub; Wi-Fi, LAN, Bluetooth; up to 200 devices; power adapter |
| 2. SQ610RF Quantum Thermostat | Ultra-slim Zigbee 3.0 smart thermostat; Li-Ion rechargeable; magnetic wall plate |
| 3. RX10RF Boiler Receiver | 230 V AC relay receiver; volt-free + 230V switching; RX1/RX2 configurable |
| SQ610RF THERMOSTAT | |
| Dimensions (W × H × D) | 86 × 86 × 11 mm |
| Power | Integrated Li-Ion rechargeable battery, micro-USB charge (up to 24 hours) |
| Connectivity | Zigbee 3.0 / 2.4 GHz, up to 30 m range |
| Temperature range | 5 °C – 35 °C |
| Display resolution | 0.1 °C or 0.5 °C (selectable) |
| Control algorithm | ITLC; hysteresis ±0.25/±0.5°C |
| Sensor input (S1/S2) | Floor sensor, external air sensor or occupancy sensor |
| Heating + cooling | Yes |
| Optimum Start/Stop | Yes |
| Valve protection | Yes — weekly actuator activation |
| Landlord PIN | Yes |
| ErP class | IV / V |
| Software support | To 31 December 2030 | Warranty: 5 years |
| RX10RF RECEIVER | |
| Supply voltage | 230 V AC, 50 Hz |
| Max. supply fuse | 16 A |
| Relay rating | 16 (5) A SPST |
| Outputs | Volt-free (NO/COM) and 230 V relay contact |
| Modes | RX1 (boiler — any thermostat) / RX2 (zone — one thermostat) |
| Override | Manual slide switch |
| Dimensions (mm) | 145 × 100 × 35 |
| Warranty | 5 years |
| UG800 GATEWAY | |
| Max. devices | Up to 200 Zigbee 3.0 |
| Connectivity | Zigbee 3.0; 2.4 GHz Wi-Fi; RJ45 Ethernet; Bluetooth setup |
| Power supply | AC 100–240 V adapter; 5 V DC out |
| Dimensions | 98 × 93 × 25 mm |
| App | Salus Premium Lite — iOS, Android, web |
| Voice control | Amazon Alexa, Google Home |
| Cloud / AI | AWS IoT; SALUS Sense AI; OneTouch automation |
| Software support | To 31 December 2030 | Warranty: 5 years |
What can I do on day one with this pack?
After installation: weekly heating schedules via the thermostat or app; remote temperature control from any smartphone; voice commands via Alexa or Google Home; Optimum Start/Stop for energy efficiency; and SALUS Sense AI to reduce heating waste over time. Everything for single-zone smart boiler control is included.
Can I expand the system later?
Yes — the UG800 handles up to 200 Salus Zigbee 3.0 devices. Add: TRV3RF radiator valve heads (up to 6 per SQ610RF) for room-by-room control; additional SQ610RF thermostats for more zones; a KL08RF wiring centre for multi-zone UFH; RE600 repeaters for larger buildings; or upgrade the receiver to the RX30RF for dual-channel and OpenTherm modulation.
Does the SQ610RF work with underfloor heating?
Yes — via the RX10RF (controlling the zone valve or pump) or a KL08RF multi-zone wiring centre. Connecting an NTC floor sensor to the S1/S2 input enables floor-temperature sensing mode with an adjustable limit to protect delicate floor finishes. The ITLC algorithm is specifically recommended for UFH systems.
What is the difference between RX1 and RX2 mode?
In RX1 mode the RX10RF activates when any thermostat in the network calls for heat — used as the boiler switch. In RX2 mode it activates only when its specific paired thermostat calls — used for an individual zone valve. Two RX10RF units (one RX1, one RX2) can coexist on one gateway, enabling independent boiler control and zone valve on the same installation.
