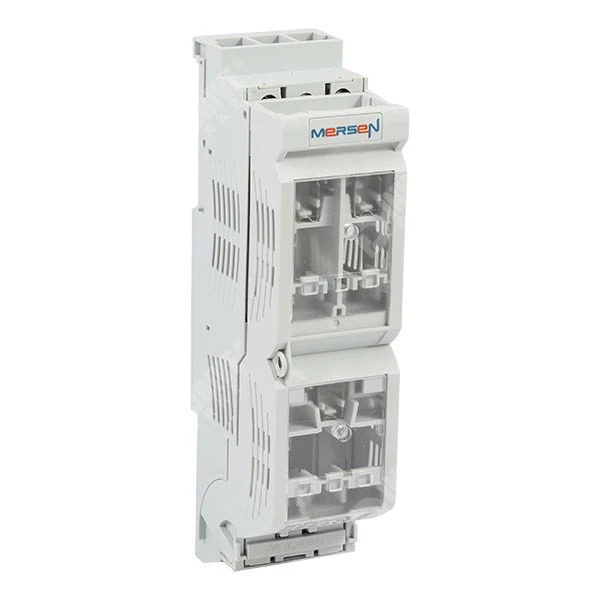

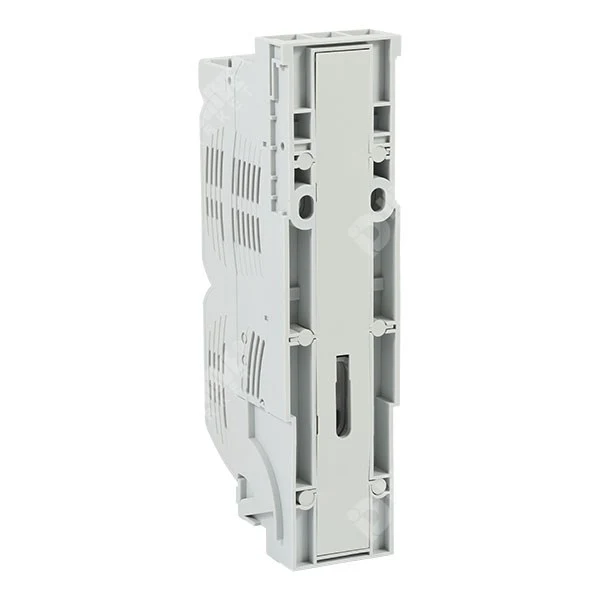

Mersen MB000 125A 3P Bottom Panel Mount Fuse Switch Disconnector
The Mersen MB000 125A 3P Bottom/Panel Mount Fuse Switch Disconnector is a robust three-pole fuse switch disconnector designed for safe isolation and protection in low-voltage electrical systems, suitable for panel or bottom mounting in industrial and commercial applications.
Product Description
The MB000 series from Mersen is a compact, modular fuse switch disconnector rated for 125A at 690V AC, providing reliable circuit protection and isolation. It accommodates NH size 000 fuses for easy replacement and features a padlockable handle for lockout/tagout safety. Ideal for distribution boards, motor control centers, and renewable energy systems, it ensures compliance with IEC standards for electrical safety and efficiency.
Key Features
- 3-pole configuration: Simultaneous disconnection of all phases for safety.
- Padlockable handle: Allows secure lockout during maintenance.
- Compact modular design: Easy integration into panels or enclosures.
- Fuse compatibility: Accepts NH000 fuses for quick replacement.
- High breaking capacity: Up to 100 kA for fault protection.
- Bottom/panel mount: Flexible installation options.
- IP20 rating: Touch-safe terminals for user protection.
Technical Specifications
- Model: D1070423 – MB000 125A 3P Fuse Switch Disconnector.
- Rated current: 125 A.
- Rated voltage: 690 V AC.
- Poles: 3.
- Fuse size: NH000.
- Breaking capacity: 100 kA.
- Power dissipation: <10 W per pole at rated current.
- Standards: IEC 60947-3 compliant.
Dimensions & Weights
- Width: 106 mm.
- Depth: 70 mm.
- Height: 135 mm.
- Weight: 0.65 kg.
System & Application Notes
- Ideal for low-voltage distribution, motor protection, and PV systems requiring fuse isolation.
- Compatible with standard NH fuses; mount on DIN rail or panel.
- Suitable for industrial and commercial setups; ensures safe disconnection under load.
- Installation by qualified electricians following IEC guidelines.
- Enhances system safety with lockable mechanism; no maintenance required.
Original: $67.48
-65%$67.48
$23.62More Images
