ENGO EFS300 Floor Temperature Sensor – NTC 10kΩ, 3m Cable, for Underfloor Heating Thermostats
ENGO EFS300 Floor Temperature Sensor – NTC 10kΩ, 3m Cable, for Underfloor Heating Thermostats
NTC 10kΩ 3 m Cable −10°C to 100°C 5-Year Warranty

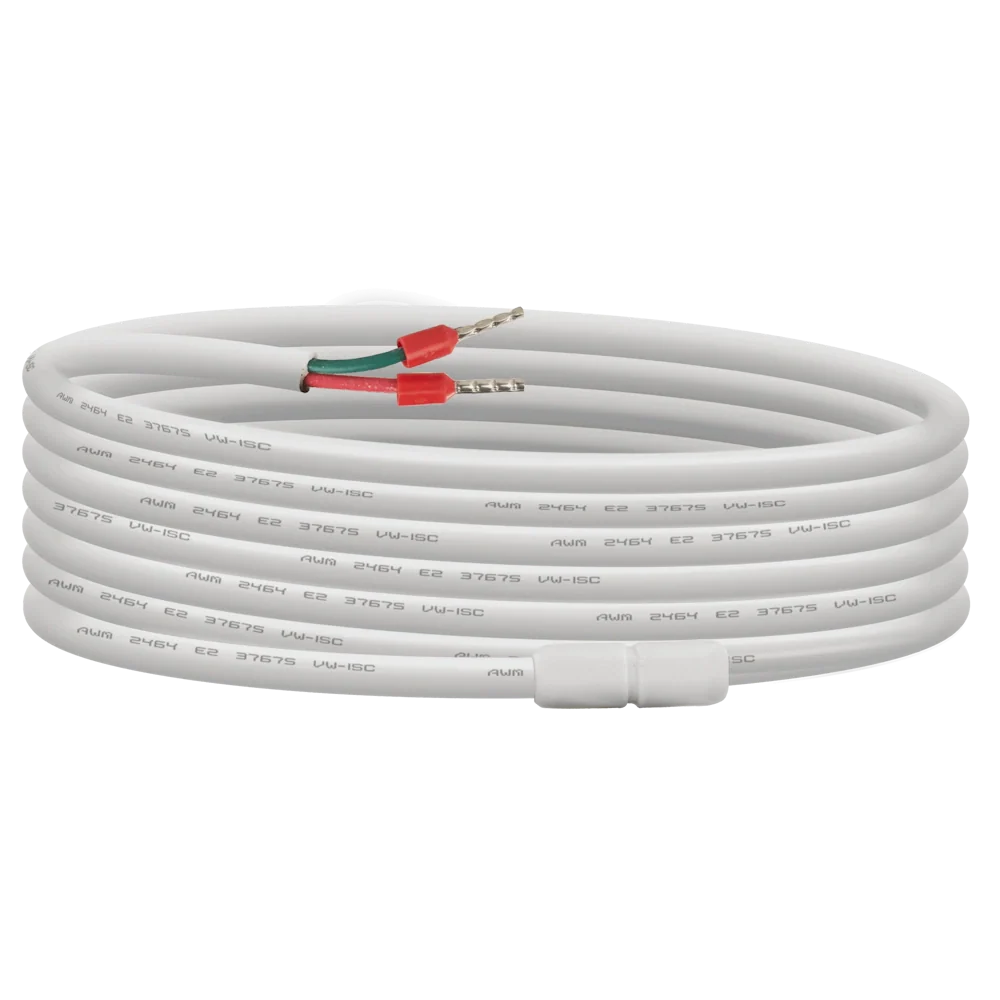

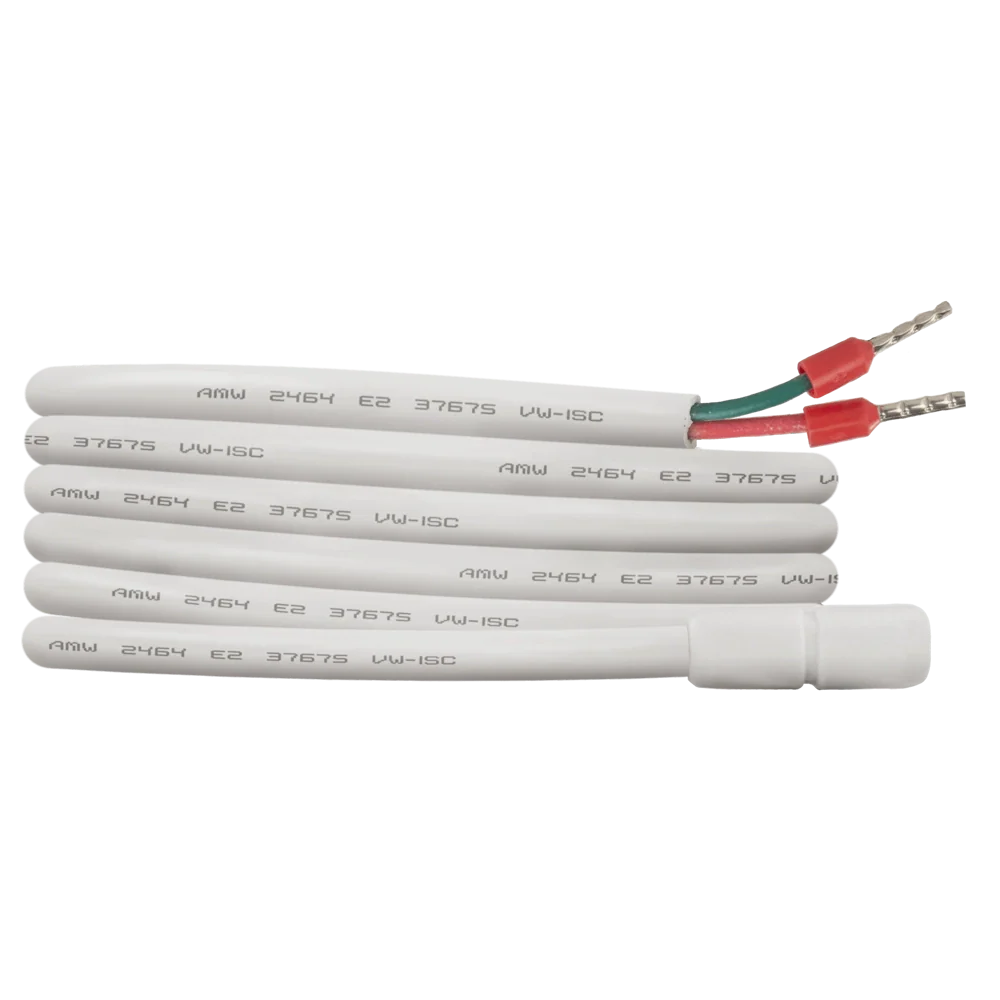

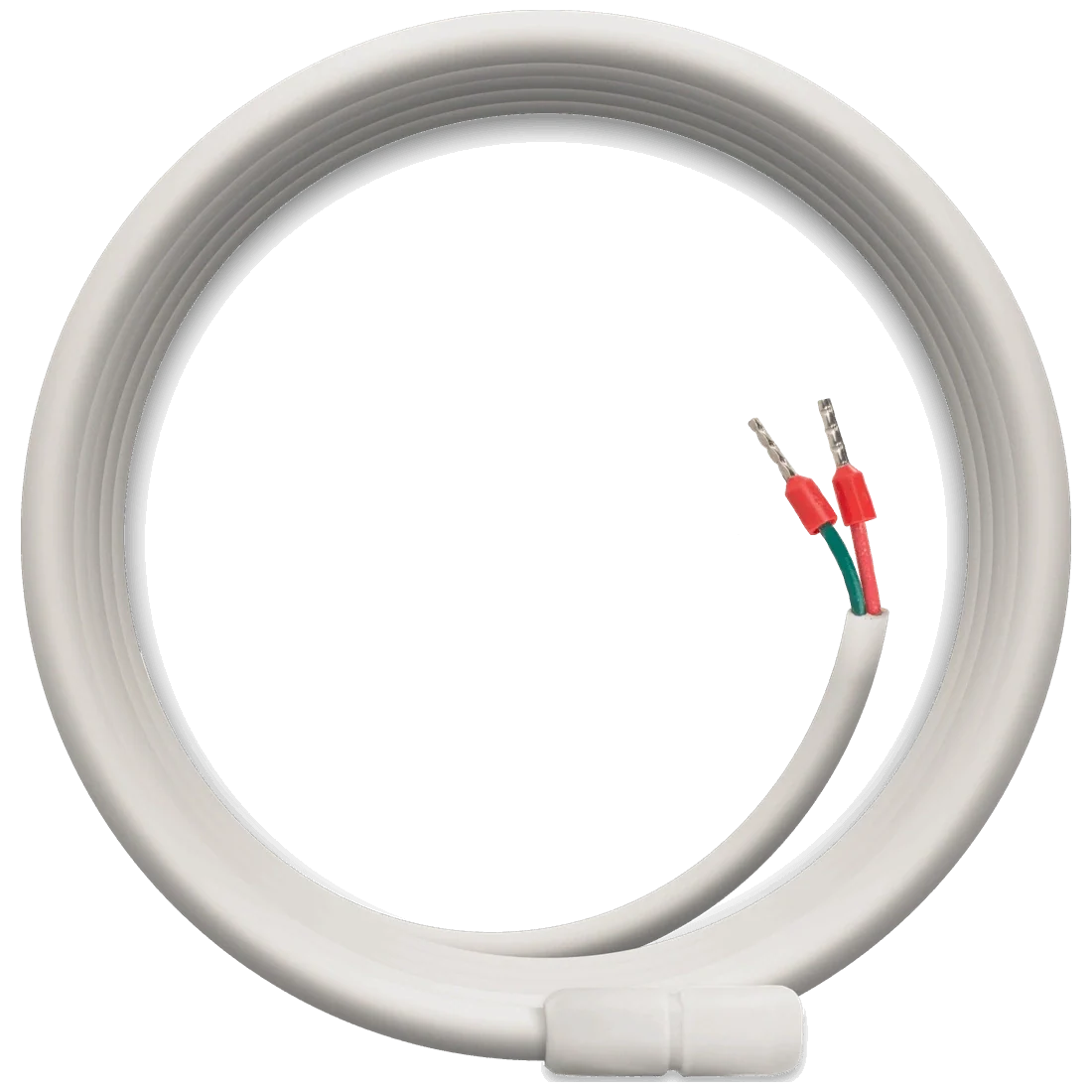

The ENGO EFS300 is a passive NTC 10kΩ temperature sensor on a 3-metre cable, designed for installation in or on floors, pipes, cylinders, or any surface where an external temperature reading is needed. It is the standard companion sensor for the ENGO ONE thermostat range (EONE-230W/B, EONE-BATW/B), the EREL-16ZB smart relay, and several other ENGO products — enabling floor protection, "comfortable floor" mode, and temperature-triggered automation.
A dedicated floor sensor is essential in any underfloor heating system where you want to protect the floor surface from overheating — particularly important with laminate, engineered wood, or LVT flooring where temperatures above around 27–29°C can cause damage or voiding of the floor warranty. The EFS300 connects to the S1/COM terminals found on compatible ENGO thermostats and relays, adding a second temperature reading point that the controller can use for floor limiting, pipe monitoring, or automation rules.
Why Choose the ENGO EFS300?
Suitable For
About the EFS300
The EFS300 is a passive NTC (Negative Temperature Coefficient) thermistor sensor with a nominal resistance of 10kΩ at 25°C. It requires no power supply of its own — the resistance value changes with temperature, and the connected thermostat or relay reads this change to calculate the temperature. This is the same sensor type used across the ENGO product range, ensuring reliable, accurate readings throughout the measurement range of −10°C to 100°C.
When connected to an EONE series thermostat, the EFS300 enables "Comfortable Floor" mode: the thermostat monitors both the room air temperature (via its internal sensor) and the floor surface temperature (via the EFS300). You can set a minimum floor temperature — for example 22°C in a bathroom — so the floor stays pleasantly warm even when the room has already reached its air temperature setpoint. Simultaneously, you can set a maximum floor temperature (typically 27°C for wood, 29°C for tile) to prevent overheating and floor damage. This dual-limit control is the most intelligent way to manage UFH in rooms with sensitive floor coverings.
The 3 m cable with 2×0.5 mm² cross-section is thin enough to be embedded in floor screed or routed under skirting boards and into a wall chase. For new installations, the sensor probe should be positioned in the floor mid-way between two heating pipes, approximately 50–100 mm from the wall — this gives the most representative reading of average floor surface temperature rather than a hot-spot directly above a pipe. The cable end connects to the S1 and COM terminals on the thermostat, relay, or other compatible ENGO device.
✅ Compatible ENGO Products
EONE-230W, EONE-230B, EONE-BATW, EONE-BATB (via S1/COM sensor input) · EREL-16ZB and EREL-16WIFI smart relays (S1/S2 input) · E10-W, E10-B thermostats · EFAN series fan coil thermostats (S1/S2 pipe or floor sensor input). Always confirm compatibility in the product manual for your specific thermostat model.
Key Features
- NTC 10kΩ thermistor — standard type compatible across the ENGO product range
- Measuring range: −10°C to 100°C
- 3-metre cable length — 2×0.5 mm² cross-section
- Designed for in-floor installation — probe suitable for embedding in screed
- Also suitable for pipe, cylinder, ambient air, or surface temperature measurement
- Enables floor overheating protection in compatible thermostats
- Enables "Comfortable Floor" mode in ENGO ONE thermostats
- Enables temperature-triggered automation rules when connected to EREL-16ZB
- Connects to S1/COM sensor terminals — no power supply required
- 5-year manufacturer's warranty
- EAN: 5905481996338
Technical Specifications
| Specification | Detail |
|---|---|
| Model | EFS300 |
| Sensor Type | NTC thermistor |
| Nominal Resistance | 10kΩ at 25°C |
| Measuring Range | −10°C to 100°C |
| Cable Length | 3 m |
| Cable Cross-Section | 2×0.5 mm² |
| Connection | S1/COM sensor terminals on compatible ENGO devices |
| Power Supply | None — passive sensor |
| Compatible Products | EONE-230W/B, EONE-BATW/B, EREL-16ZB, EREL-16WIFI, E10-W/B, EFAN series |
| Warranty | 5 years |
| EAN | 5905481996338 |
Installation Notes
For floor installation in new screed, lay the sensor probe in a conduit or protective sleeve mid-way between two UFH pipes, approximately 50–100 mm from the nearest wall. The sleeve allows the sensor to be replaced in future without disturbing the floor. Route the cable up the wall in a chase to the thermostat or wiring centre. Connect the two wires to the S1 and COM terminals — polarity does not matter for a passive NTC sensor. Once connected, configure the thermostat's sensor input to "Floor sensor" in the installer settings, and set your desired floor minimum and maximum temperature limits.
For pipe or cylinder monitoring, secure the probe to the pipe or vessel surface with tape or a clip and insulate over the top to prevent the ambient air temperature from affecting the reading. For frost protection applications, the sensor can be placed in any exposed location where you want to trigger heating if the temperature drops below a threshold.
Frequently Asked Questions
Which ENGO thermostats work with the EFS300?
The EFS300 is compatible with the EONE-230W, EONE-230B, EONE-BATW, EONE-BATB, E10-W, E10-B, and the EFAN fan coil thermostat range. It also connects to the S1/S2 input of the EREL-16ZB and EREL-16WIFI smart relays. Always check the wiring diagram for your specific thermostat model.
Do I need the EFS300 for my UFH system?
It is not mandatory, but it is strongly recommended for any installation with laminate, engineered wood, or LVT flooring. It enables floor temperature limiting, which protects the floor covering from heat damage. It is also needed if you want to use the "Comfortable Floor" mode in ENGO ONE thermostats.
Can I use the EFS300 to measure air temperature instead of floor temperature?
Yes — the EFS300 can measure the temperature of any surface, medium, or ambient air within the cable's reach. However, for measuring room air temperature, the thermostat's internal sensor is typically more accurate (positioned away from walls and draughts). The EFS300 is better suited to floor, pipe, cylinder, or surface applications.
Is the 3 m cable long enough?
For most room layouts where the thermostat is positioned on an adjacent wall, 3 m is sufficient. If you need a longer run, the cable can be extended using standard 2-core cable of the same or larger cross-section — NTC sensor cables are not sensitive to moderate cable lengths, though very long runs (over 10–15 m) may introduce slight reading inaccuracy. Use screened cable if running near mains wiring.
Does the EFS300 need a power supply?
No — it is a completely passive sensor. The connected thermostat or relay provides a small reference voltage and reads the resistance of the thermistor to calculate temperature. Simply connect the two sensor wires to the S1 and COM terminals.
What's in the Box
- 1× ENGO EFS300 NTC 10kΩ temperature sensor with 3 m cable
- Quick installation guide
Original: $14.85
-65%$14.85
$5.20More Images
