ENGO E901-UK Programmable Wired Thermostat – 7-Day, Boiler Plus Compliant | Gas, Oil & Heat Pump
ENGO E901-UK Programmable Wired Thermostat – 7-Day, Boiler Plus Compliant | Gas, Oil & Heat Pump
The ENGO E901 is a programmable wired thermostat that offers precise heating control with easy scheduling and energy-saving features. Battery-powered with a sliding panel design, it connects directly to your boiler via a volt-free relay for simple installation. Choose between weekly or 24-hour schedules, TPI or hysteresis control, and enjoy a 5-year warranty. Compatible with gas, oil, and heat pumps.
Battery Powered Wired Connection TPI or Hysteresis Boiler Plus Compliant 5-Year Warranty EAN: 5904665764046
Why Choose the ENGO E901?
🕒 Programmable Schedules
Two schedule types: weekly (with up to 6 setpoints per day) or 24-hour operation to match your routine perfectly.
🌡️ TPI or Hysteresis Control
TPI algorithm provides smart modulating control to reduce overshoot and save energy; hysteresis offers ±0.25°C or ±0.5°C precision.
✅ Boiler Plus Compliant
TPI control meets UK Boiler Plus requirements (Part L) for new installations.
🔋 Battery Powered
Runs on 2×AA batteries for over a year — no need for mains power at the thermostat location.
🔒 PIN / Key Lock
Secure with a PIN or key lock to prevent tampering — ideal for families or rentals.
🖥️ Sliding Function Panel
Stylish large LCD display with hidden sliding panel for a clean, modern look.
🏖️ Holiday Mode
Set holiday mode to protect pipes while away, with easy return to normal schedule.
⚙️ Heating / Cooling Mode
Switchable for heating or cooling systems.
📏 Min/Max Setpoints
Configure minimum and maximum temperature limits for added control.
🛡️ 5-Year Warranty
Manufacturer's 5-year warranty ensures reliability.
Suitable For
Gas Combi Boilers Gas System Boilers Oil Boilers LPG Boilers Heat Pumps (on/off) Central Heating Dial Thermostat Replacement Boiler Plus Compliance New Installations Retrofit Upgrades Holiday Homes Rental Properties
About the E901
The E901 is a wired programmable thermostat that replaces any standard room thermostat. It mounts on the wall with battery power for the display and controls, while wiring directly to the boiler's thermostat input (volt-free COM/NO connection). No additional receiver or hub is needed — just simple 2-wire installation.
🕹️ Easy-to-Use Interface
- Touch-sensitive buttons under a sliding panel
- Large backlit LCD display for clear readings
- Intuitive programming for weekly or daily schedules
- Manual override for temporary adjustments
The E901 is designed for accuracy and ease, with a well-thought-out interface based on user habits.
Key Features
- Wired communication for reliable control
- 7-day programmable schedule — up to 6 events per day
- Battery-powered (2×AA alkaline, not included)
- Volt-free COM/NO relay output — max load 5(3)A
- TPI control algorithm (Boiler Plus compliant)
- Hysteresis mode: ±0.25°C or ±0.5°C
- Temperature range: 5°C – 35°C
- Display accuracy: 0.1°C or 0.5°C
- Configurable min/max setpoint limits
- Heating / Cooling switchable mode
- PIN lock and key lock
- Holiday mode
- Sliding panel design with large LCD
- Wall fixings included
- 5-year manufacturer's warranty
Technical Specifications
| Specification | Value |
|---|---|
| Model | E901 |
| Power Supply | 2×AA alkaline batteries |
| Max Load | 5(3)A |
| Output | Volt-free COM/NO relay |
| Temperature Range | 5°C – 35°C |
| Display Accuracy | 0.1°C or 0.5°C |
| Control Algorithm | TPI or Hysteresis (±0.25°C / ±0.5°C) |
| Schedule | 7-day or 24-hour, up to 6 events/day |
| Heating/Cooling | Yes (switchable) |
| Boiler Plus | Compliant (TPI load compensator) |
| OpenTherm | Not supported — on/off volt-free control only |
| PIN Lock | Yes |
| Dimensions | 150 × 84 × 22 mm |
| Warranty | 5 years |
| EAN | 5904665764046 |

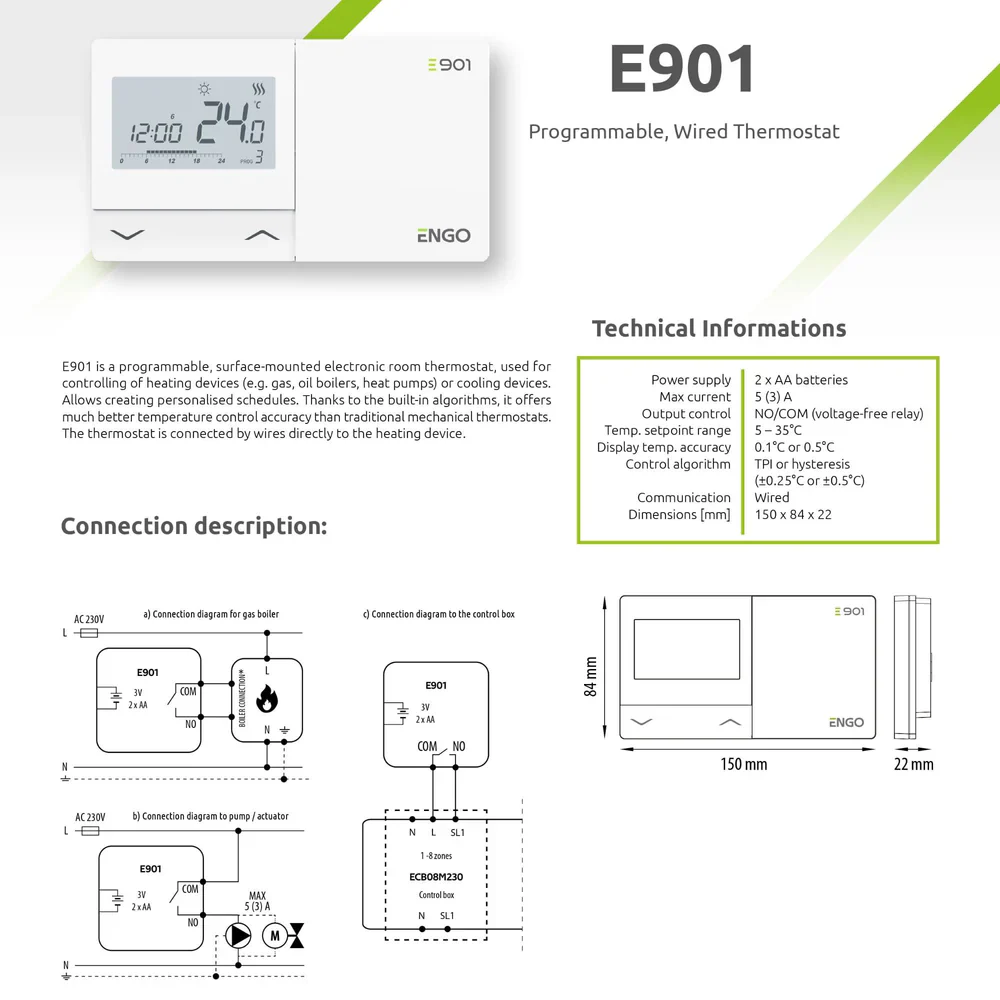

Installation Notes
Wiring must be carried out by a qualified person per BS 7671. The E901 replaces any standard 2-wire wired room thermostat at the boiler's thermostat terminals.
- Wire COM/NO to boiler thermostat input
- OpenTherm: NOT supported — on/off volt-free control only
- Mount at ~1.5 m above floor, away from heat sources and direct sunlight
Frequently Asked Questions
Is the E901 compatible with my boiler?
Yes — works with any gas, oil, or LPG boiler with a standard volt-free thermostat input. Also suitable for on/off heat pumps.
Does it require mains power?
No — the thermostat runs on batteries; only the relay output is wired to the boiler.
What's the difference between the E901 and E901-WIFI?
The E901 is wired without smart features; the E901-WIFI adds wireless RF and app control. For basic programmable control, choose E901.
Does it support OpenTherm?
No — uses volt-free on/off control. For modulating control, a dedicated OpenTherm thermostat is needed.
What's in the Box
- 1× E901 thermostat (battery-powered)
- Wall fixings
- Full instruction manual
Note: 2×AA batteries not included.
Wiring by qualified person per BS 7671. OpenTherm not supported. For wireless versions, see E901-RF or E901-WIFI.
Original: $51.29
-65%$51.29
$17.95More Images
