EcoFlow Gateway Backup Box Single-phase

EcoFlow Gateway Backup Box Single-phase

The EcoFlow Gateway Backup Box Single-phase is an automatic transfer switch and critical load panel designed to provide seamless backup power from Power Ocean hybrid inverters during grid outages for UK residential applications.

Product Description

This single-phase gateway automatically detects grid failure and switches critical household loads to inverter backup power within 20ms. Featuring integrated surge protection, load monitoring, and programmable priority circuits, it enables whole-home or selected backup capability up to the inverter's rated output (3.68-6kW).

Key Features

  • Seamless transfer: 20ms switchover time prevents device interruptions.
  • Critical load selection: Prioritises essential circuits (lights, fridge, router, heating controls).
  • Integrated protection: Type 2 SPD, RCBOs, and overload management.
  • Load shedding: Automatic sequential reconnection prevents inverter overload.
  • Modbus integration: Real-time status monitoring via EcoFlow app.
  • Plug-and-play: Pre-wired for Power Ocean inverters with colour-coded terminals.

Technical Details

  • Backup capacity: 3.68-6kW continuous (matches inverter rating).
  • Switch rating: 63A single-phase (230V).
  • Transfer time: <20ms grid to backup.
  • Circuits: 6x 16A RCBOs (2x lighting, 4x power).
  • Surge protection: Type 2 SPD (20kA).
  • Communication: RS485 Modbus RTU to inverter.
  • Grid reconnection: Auto-reclose with soft-start (voltage/frequency check).

Physical Specifications

  • Dimensions (W × H × D): 400 × 600 × 200mm.
  • Weight: 28kg.
  • Enclosure: IP65 polycarbonate (outdoor rated).
  • Mounting: Wall-mount with keyhole fixings.
  • Cable entry: 7x PG21 bottom/top knockouts.
  • Operating temperature: −20°C to +50°C.

System & Application Notes

  • Compatibility: Power Ocean 3.68kW, 5kW, 6kW single-phase inverters.
  • Installation: Connects between main consumer unit and critical loads; Sparks install required.
  • Wiring: Grid input 63A, backup from inverter 32A, 6x load outputs 16A max each.
  • Load management: Programmable priority via app; auto-sheds non-essentials if overloaded.
  • Applications: Whole-home backup (small homes), critical loads (heat pumps, lighting, WiFi).
  • Compliance: BS EN 61439, G99 backup, 18th Edition wiring regs.
  • Warranty: 5 years; matches inverter warranty terms.
$393.97

Original: $1,125.62

-65%
EcoFlow Gateway Backup Box Single-phase—

$1,125.62

$393.97

More Images

EcoFlow Gateway Backup Box Single-phase - Image 2

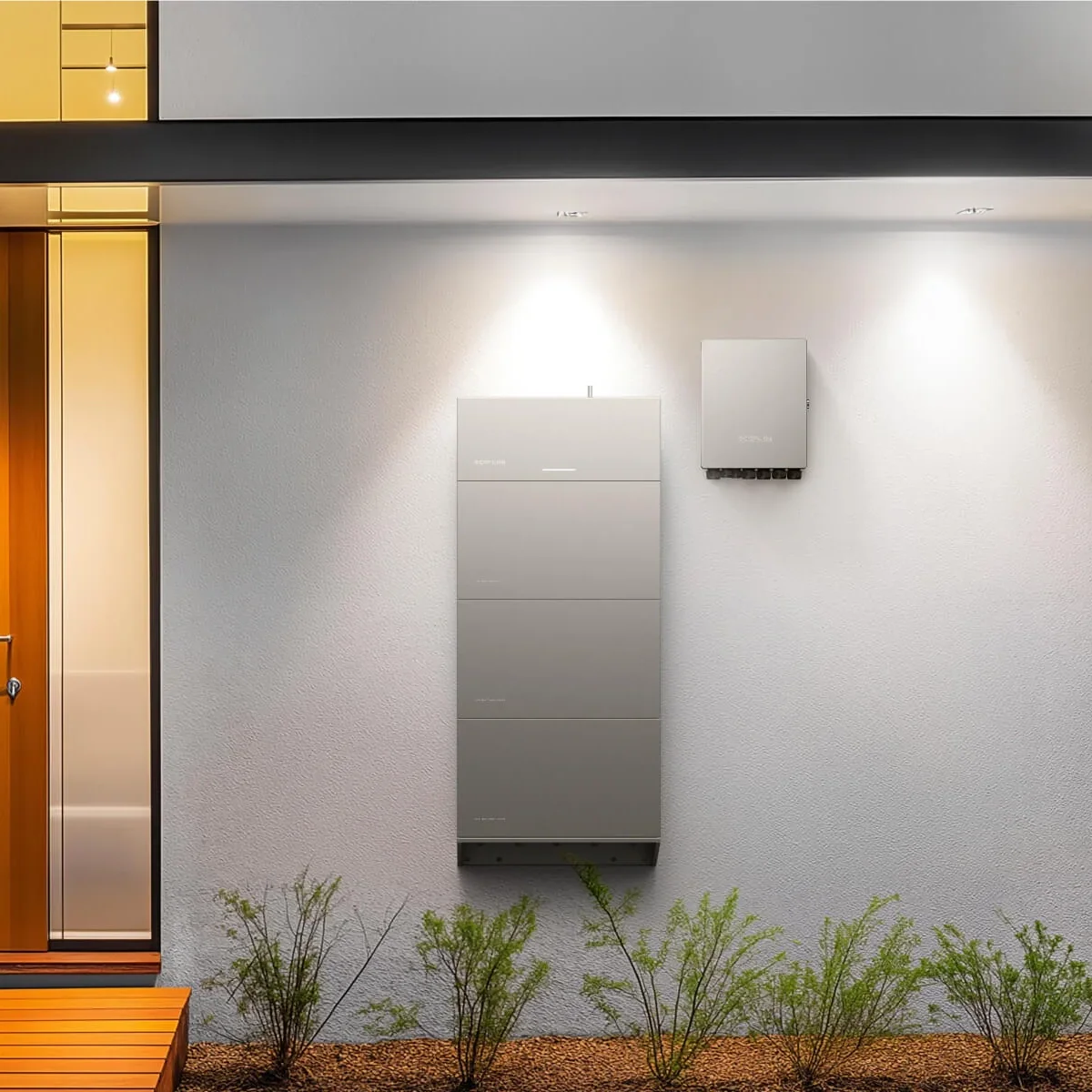

EcoFlow Gateway Backup Box Single-phase - Image 3
