Duracell Energy Dura-i G3 4.6kW Single Phase Hybrid Solar Inverter – Dura5 Battery, 10kWp PV, G99

Duracell Energy Dura-i G3 4.6kW Single Phase Hybrid Solar Inverter – Dura5 Battery, 10kWp PV, G99

4.6 kW AC Output5,500W Battery Throughput10 kWp Solar Input97.3% Peak Efficiency2 MPPT 70–540VDura5 Compatible10ms BackupIP6510-Year Warranty

The Duracell Energy Dura-i G3 4.6 kW (model PD-DH1P-4.6K-G3) is a single-phase hybrid solar inverter that steps up battery throughput significantly — supporting 5,500 W / 110A charge and discharge — while maintaining the same 10 kWp solar input, 97.3% peak efficiency, dual MPPT and 10ms emergency backup as the rest of the G3 range. Rated at 4.6 kW nominal AC output, it suits homes with larger energy demand, bigger battery banks or higher solar arrays. It integrates with the Dura5 battery and DuraCharger EV charger as part of the Duracell Energy Home Ecosystem, all managed through a single intelligent app.

4.6 kW
AC Output
97.3%
Peak Efficiency
10 kWp
Max PV Input
10ms
Backup Transfer
5,500W
Bat Throughput
10 yr
Warranty
⚠ G99 Application Required: Above 3.68 kW, this model requires a formal G99 application to your Distribution Network Operator (DNO) before installation. Allow additional lead time for DNO approval — typically 4–8 weeks, though this varies by network operator. Your installer will handle the application process.
Dura-i G3 Range — at a Glance
Size AC Output Max AC Bat Charge/Discharge Bat Current Max AC Out (A) Cooling
3.6 kW 3,600W 3,960W 4,000W / 4,000W 75A / 75A 18A Natural
4.6 kW ✓ 4,600W 4,600W 5,500W / 5,500W 110A / 110A 21A Natural
5.0 kW 5,000W 5,500W 5,500W / 5,500W 110A / 110A 25A Natural
6.0 kW 6,000W 6,600W 6,600W / 6,600W 135A / 135A 28.7A Smart fan

This listing is for the highlighted row. All models share the same PV input, MPPT, physical dimensions and certifications.

Key Features & Technology
97.3% Peak Efficiency PV-to-AC
Peak conversion efficiency of 97.3% (PV to AC) and 96.8% European weighted efficiency — among the highest in the hybrid inverter class. Higher efficiency means more of your solar generation reaches your home appliances and battery, reducing the amount lost as heat in the inverter itself.
10 kWp Solar Capacity — 2 MPPT Inputs
Accepts up to 10 kWp of connected solar PV across two independent MPPT trackers (up to 5,000 W per MPPT), each handling one string. Dual MPPT allows panels on different roof aspects or angles to be tracked independently, so shading or orientation differences on one string don't drag down the other.
Wide MPPT Range 70–540V — Starts Earlier, Runs Later
The MPPT operating voltage range of 70V to 540V (with start voltage of just 90V) means the inverter begins harvesting solar energy at lower irradiance levels — earlier in the morning and later in the evening — and continues operating in cloudy, overcast and low-sun winter conditions when narrower-range inverters have already shut down.
10ms Emergency Power Supply — Seamless Backup
In the event of a grid outage, the Dura-i switches to backup power in just 10ms (typical) — fast enough to be imperceptible to most home appliances, including computers and sensitive electronics. The backup output matches nominal grid parameters (230V / 50Hz) and supports the full rated inverter output, enabling the home to run normally from battery storage during outages.
Dura5 Battery Compatible — 20% Faster Charge/Discharge
Optimised for the Dura5 LiFePO4 battery, the Dura-i charges and discharges the battery 20% faster than other hybrid inverters, maximising the benefit of the Dura5's 1C rating. The lithium charge curve is self-adaptive via the BMS communication link (CAN/RS485), ensuring optimal charging at every state of charge without manual configuration.
Integrated Smart Meter — No External Energy Meter Needed
A built-in energy meter measures import, export and self-consumption directly — eliminating the need for a separate external remote energy meter (REM). This reduces installation cost, wiring complexity and potential points of failure, while still providing full energy monitoring data through the Duracell Energy app.
Modular — Up to 9 Inverters in Parallel
Multiple Dura-i units can be connected in parallel (up to 9 inverters), enabling system scaling for larger homes, commercial premises or properties with high energy demand. Each inverter contributes its rated AC output and battery capacity, creating a modular, upgradeable system without replacing existing equipment.
Solar Panel Optimiser Compatible
The Dura-i is compatible with market-leading solar panel optimisers (such as SolarEdge Power Optimisers and Tigo). Optimisers enable per-panel MPPT tracking, which is essential for installations where individual panels experience partial shading from chimneys, dormers, trees or roof obstructions — recovering generation that would otherwise be lost.

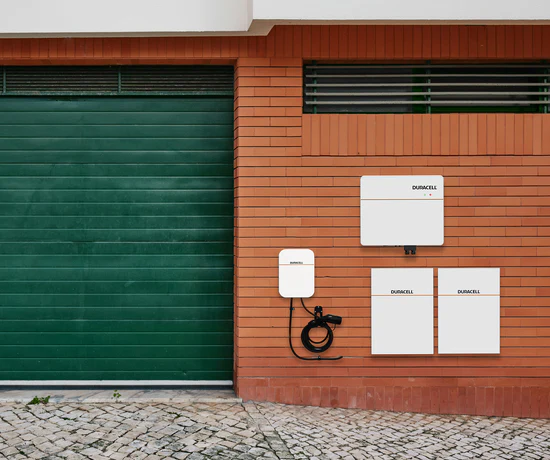

IP65 — Indoor and Outdoor Installation
IP65 ingress protection means the Dura-i can be installed outside on an exterior wall as well as indoors. The operating temperature range of -25°C to +60°C covers UK conditions in all seasons, and the wall-bracket mounting system keeps installation clean and straightforward.
G98 & G99 Certified — DNO Compliant
The Dura-i holds both G98 and G99 grid connection certifications, covering installations below and above 3.68 kW respectively. The 3.6 kW model qualifies for G98 (notification only — no full application required), simplifying and accelerating installation approval with the Distribution Network Operator.
10-Year Warranty
10-year product warranty supported by Puredrive Energy Ltd in Toddington, Gloucestershire, UK — providing domestic warranty support without international logistics delays.
Technical Specifications — Dura-i G3 4.6 kW (PD-DH1P-4.6K-G3)
Identity
Product Dura-i G3 Inverter
Model Number PD-DH1P-4.6K-G3
Efficiency
Max Efficiency (PV to AC) 97.3%
European Weighted Efficiency (PV to AC) 96.8%
Max Efficiency (Battery to AC) 94.3%
PV Input
Max PV Power 10,000 W (10 kWp)
Max PV Voltage 550 V
Max Input Current (String A / B) 18A / 18A
Max Short-Circuit Current (A / B) 25A / 25A
Start Operating Voltage 90 V
MPPT Voltage Range at Full Load 70 – 540 V
Max Power per MPPT 5,000 W
Number of MPPTs 2 (independent)
Strings per MPPT 1 per input
Battery Input/Output
Compatible Battery Lithium-ion (Dura5 LiFePO4)
Nominal Battery Voltage 48 V (51.2 V Dura5)
Battery Voltage Range 40 V – 65 V
Max Charge / Discharge Current 110A / 110A
Max Charge / Discharge Power 5,500 W / 110A / 5,500 W / 110A
Lithium Charge Curve Self-adaptive via BMS
AC Grid Output
Nominal AC Output Power 4.6 kW — see model spec row
Nominal AC Output Power (W) 4,600 W
Max AC Output Power (PF=1) 4,600 W
Max AC Output Current 21A
Rated AC Voltage 230 V
AC Voltage Range 215 – 253 V
Rated Grid Frequency 50 Hz
AC Frequency Range 45–55 Hz / 55–65 Hz (adjustable)
Grid Connection Single phase
Power Factor 0.99 at rated power (adjustable 0.8 LG – 0.8 LD)
THDi < 3%
Backup / EPS Output
Nominal Backup Voltage 230 V
Nominal Backup Frequency 50 / 60 Hz
Nominal Backup Power 4,600 W
Rated Backup Current 20A
Peak Backup Apparent Power 9,200 VA (>10s)
Transfer Time 10ms (typical)
THDV < 3% at 100% resistive load
General
Ingress Protection IP65
Operating Temperature -25°C to +60°C
Relative Humidity 0% – 100%
Cooling Natural convection (fanless)
Noise Emission < 35 dB
Dimensions (W × H × D) 377 × 452 × 206 mm
Weight 20 kg
Max Operating Altitude 4,000 m
Mounting Wall bracket
PV Connection MC4 / H4
Communication & Monitoring
Display LED + App
Communication RS485/CAN (BMS), RS485, USB, Ethernet, DRM/RS485 (meter); Optional: Wi-Fi/LAN
Monitoring Duracell Energy App (iOS / Android)
Certifications
Grid Safety IEC 61727 / 62116 / 61683 / 60068; NRS 097-2-1; G98; G99; VDE4105; EN50549-1/-10; AS4777.2
EMC IEC 61000-1 & -2
Warranty
Product Warranty 10 years
Warranty Support Puredrive Energy Ltd, Toddington, Gloucestershire, UK
ℹ Installation Note: The Dura-i must be installed by a suitably qualified electrician in accordance with BS 7671, MCS (where applicable) and the manufacturer's installation instructions. A G98 notification or G99 application must be submitted to your DNO before commissioning. For technical support contact Duracell Energy on 01386 577845 or [email protected].
Frequently Asked Questions
What does a hybrid inverter do that a standard solar inverter doesn't?
A standard solar (string) inverter converts DC from solar panels to AC for the home but cannot communicate with or manage a battery. A hybrid inverter adds a second DC port for a battery, along with the BMS communication link, charge/discharge control and grid/battery arbitrage logic. This means one unit manages solar generation, battery charging, grid import/export and backup power — replacing what would otherwise require two separate inverters.
Do I need solar panels to use the Dura-i?
No. The Dura-i can operate as a battery inverter only — without any solar panels connected — charging the Dura5 battery from the grid during cheap off-peak hours and discharging during expensive peak periods. Because the Dura-i is a hybrid inverter, solar panels can be added to the system at any point in the future without replacing the inverter.
What is the difference between G98 and G99?
G98 and G99 are UK grid connection standards. G98 applies to export-capable inverters up to 3.68 kW — installation requires notification to the DNO but no formal application or approval. G99 applies to systems above 3.68 kW — a formal application to the DNO is required, which can add several weeks to the installation timeline. The 3.6 kW Dura-i falls under G98 (notification only), while the 4.6 kW, 5 kW and 6 kW models require a G99 application.
How many Dura5 batteries can I connect to one Dura-i?
The Dura-i communicates with the Dura5 BMS and manages the battery bank as a single entity. The number of Dura5 units that can be connected is determined by the inverter's maximum charge/discharge current and the total battery capacity — your installer will calculate the optimal configuration. Up to 32 Dura5 modules can operate in a parallel battery bank; multiple Dura-i units (up to 9 in parallel) can be used to increase both AC output and battery throughput for larger systems.
Can the Dura-i run the home during a power cut?
Yes. The Dura-i has an Emergency Power Supply (EPS / backup) output that activates within 10ms of a grid outage — fast enough that most appliances continue running uninterrupted. The backup output delivers 230V / 50Hz at the full rated power of the inverter, sourced from the connected Dura5 battery. The home will continue operating from battery storage until the battery is depleted or the grid is restored.
