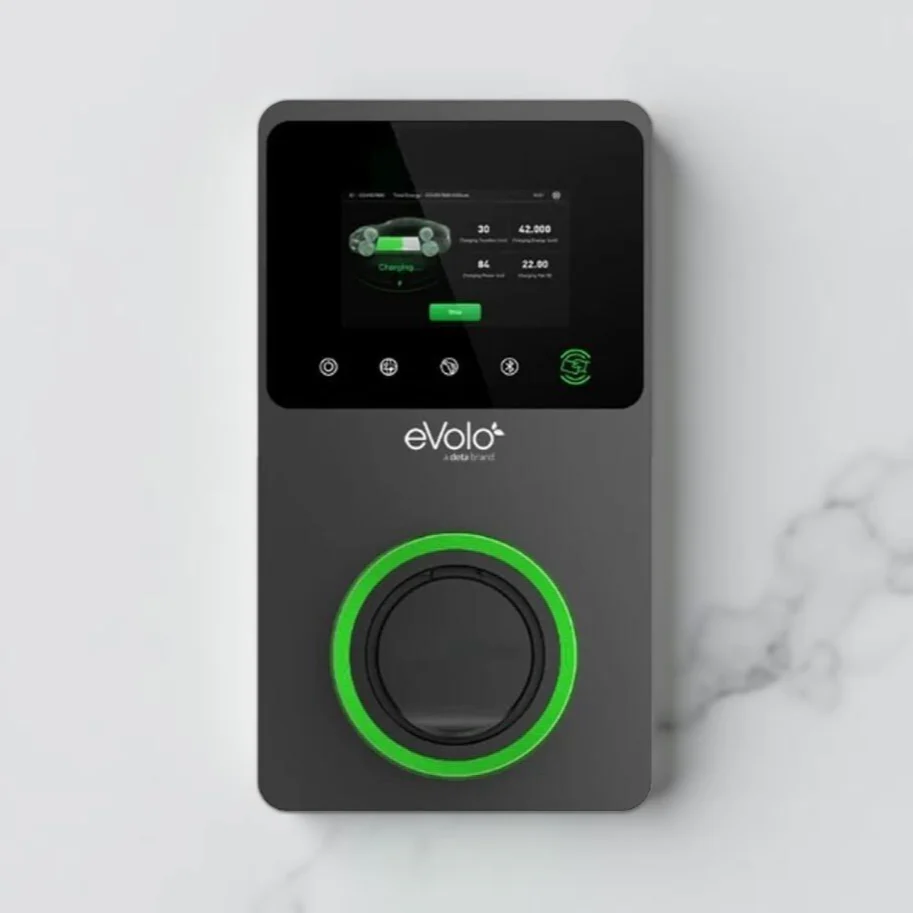

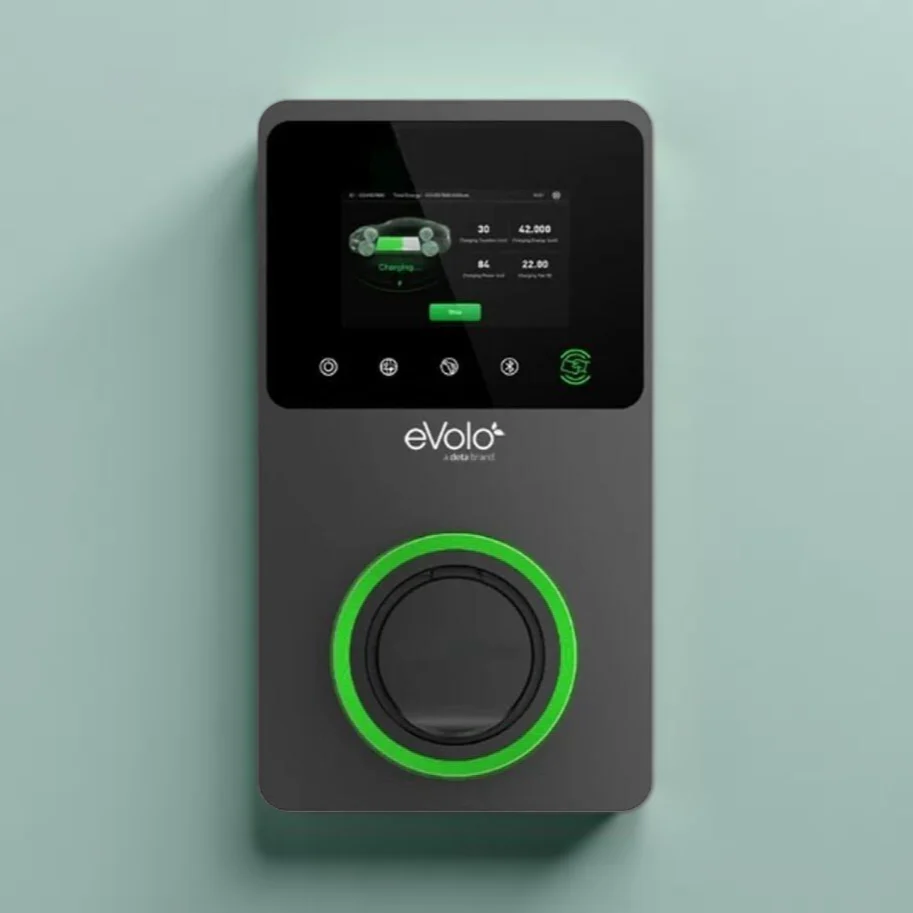

Deta eVolo eVoomXT 7.4kW Single Phase / 22kW Three Phase Communal EV Charge Point
Deta eVolo eVoomXT 7.4kW Single Phase / 22kW Three Phase Communal EV Charge Point (EVC7005)
The Deta eVolo eVoomXT is a versatile, untethered communal EV charge point designed for residential blocks, workplaces, and retail car parks. Supporting both 7.4kW single-phase and 22kW three-phase charging, it features a robust set of smart controls, advanced safety, and flexible connectivity options for efficient multi-user environments.
Key Features
- Selectable single-phase (7.4kW, 32A) or three-phase (up to 22kW, 32A) charging
- Untethered Type 2 socket for flexible cable use
- Designed for communal residential, workplace, and retail park car parks
- Built-in MID-approved energy meter for accurate billing
- Smartphone app and RFID card access for user management, scheduling, and monitoring
- 5" LCD touchscreen and multi-colour LED status indicators for clear, user-friendly operation
- Ethernet, WiFi, and 4G connectivity for remote management and real-time data
- RS485 communication for advanced load management and phase balancing
- Bluetooth commissioning for easy setup even without internet access
- Supports cloud-based management for Charge Point Operators (CPOs)
- Integrated 30mA AC & 6mA DC earth leakage protection
- Built-in open PEN fault detection and isolation—no earth rod required
- Surge protection and Isolation Class II for enhanced safety
- Easy wall or post mounting
- Complies with IEC 61851-1:2019, IEC 62955, EMC, ROHS, RED, and UK Smart Charge Point Regulations 2021
- Black fascia and robust construction
- Weight: 4.2 kg
Technical Specifications
- Charging Power: 7.4kW (single phase) / 22kW (three phase)
- Input Voltage: 230V AC (single phase) / 400V AC (three phase)
- Max Current: 32A
- Connector Type: Type 2 socket (untethered)
- Display: 5" LCD touchscreen + multi-colour LED indicators
- Energy Meter: MID approved, integrated
- Connectivity: Ethernet, WiFi, 4G, RS485, Bluetooth (for commissioning)
- Access Control: RFID cards and app
- Protection: 30mA AC & 6mA DC RCD, open PEN, surge, Class II isolation
- Mounting: Wall or post
- Weight: 4.2 kg
Applications
- Communal residential EV charging (apartments, shared parking)
- Workplace and retail car park charging
- Public and commercial EV charging with accurate billing
- Multi-user environments requiring smart access and load management
