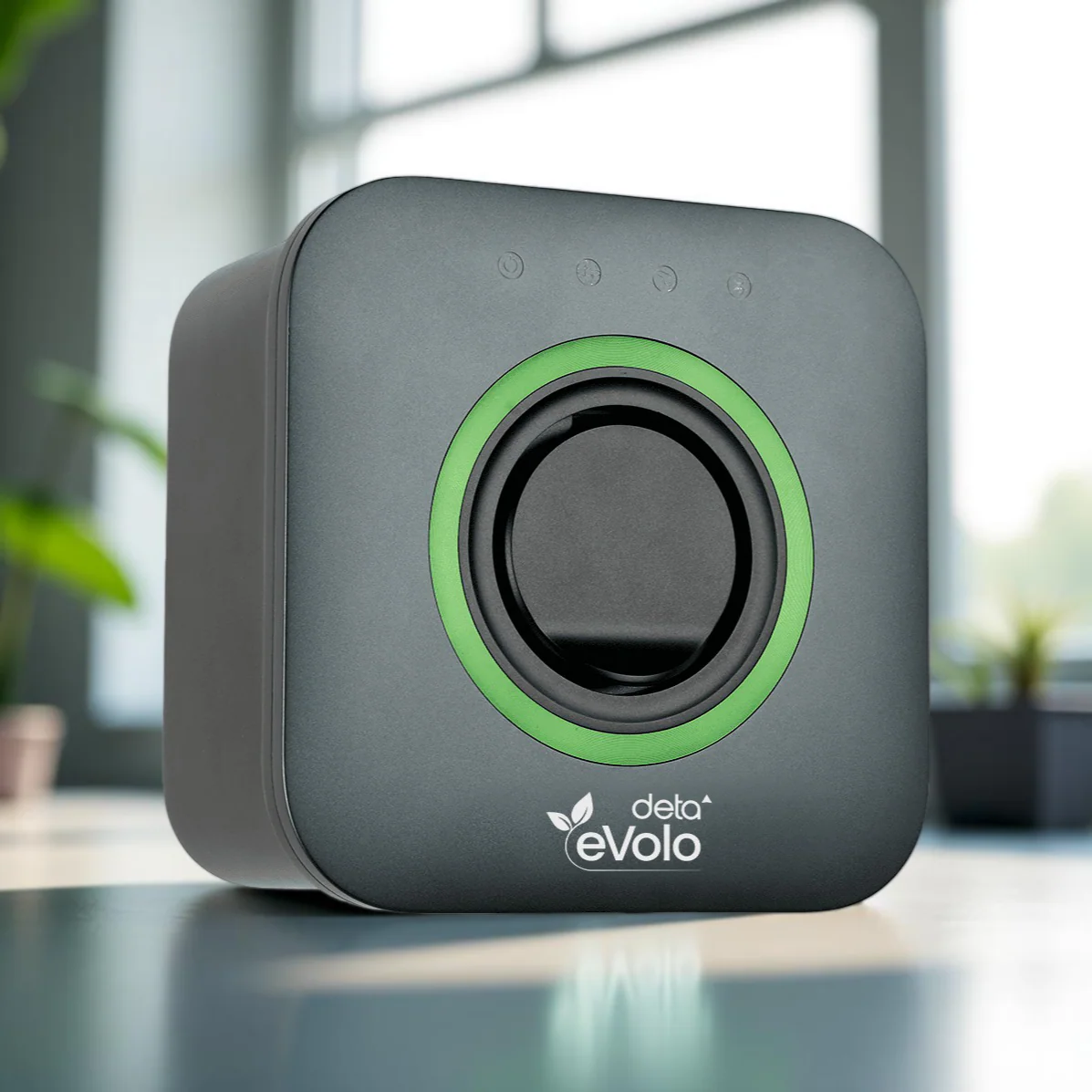

Deta eVolo eDock 7.4kW Single Phase 32A Domestic EV Charge Point
Deta eVolo eDock 7.4kW Single Phase 32A Domestic EV Charge Point (EVC7001)
The Deta eVolo eDock is a compact, untethered Mode 3 EV charge point designed for domestic properties. Offering up to 7.4kW charging power at 32A single phase, it features a Type 2 socket and smart connectivity for convenient control and scheduling via the dedicated smartphone app.
Key Features
- 7.4kW charging power (max. 32A, single phase)
- Untethered Type 2 socket for flexible cable use
- Smartphone app control for charge point management, scheduling, and energy monitoring
- Bluetooth commissioning with mobile device
- WiFi and Ethernet connectivity for remote management
- Built-in PEN fault detection and isolation for enhanced safety
- Integrated 30mA AC and 6mA DC earth leakage protection
- RS485 communication for load management systems
- Firmware updates over-the-air (OTA) once registered
- RFID ready (feature enabled via eVolo website)
- Suitable for wall or post mounting with multiple cable entry options
- Compact dimensions: 202 × 202 × 115 mm; weight approx. 2.5 kg
- IP54 ingress protection and IK10 impact resistance
- Complies with IEC 61851-1:2019, IEC 62955, EMC 2016, ROHS 2012, RED 2014/53/EU, and UK Smart Charge Point Regulations 2021
- Installation in accordance with BS7671
Technical Specifications
- Voltage: 220–240V AC, 50Hz, single phase
- Max Charging Current: 32A
- Connector Type: Type 2 socket (untethered)
- Load Management: Maximum charging current adjustable via app
- Cable Size: Up to 10mm²
- Built-in RCD: 30mA AC and 6mA DC
- Built-in PEN Fault Detection: Yes
- Built-in Metering Accuracy: ±2%
- Surge Protection: Level III lightning protection (4000 V recommended Type 2 SPD in consumer unit)
- Isolation: Class II
- Ingress Protection: IP54
- Impact Protection: IK10
- Operating Temperature: –30°C to +50°C
- Weight: Approx. 2.5 kg
- Dimensions (W × H × D): 202 × 202 × 115 mm
Applications
- Domestic electric vehicle charging
- Smart home integration with solar and battery storage
- Flexible installation on wall or post
- Remote management and scheduling for energy optimisation
$286.26
Original: $817.90
-65%Deta eVolo eDock 7.4kW Single Phase 32A Domestic EV Charge Point—
$817.90
$286.26More Images
