Biasi Pro Electric System Boiler 16kW Three Phase
The Biasi Pro Electric System Boiler 16kW Three Phase is a compact, efficient electric system boiler designed for integration with indirect hot water cylinders, providing heating and hot water for properties without gas supply.
Product Description

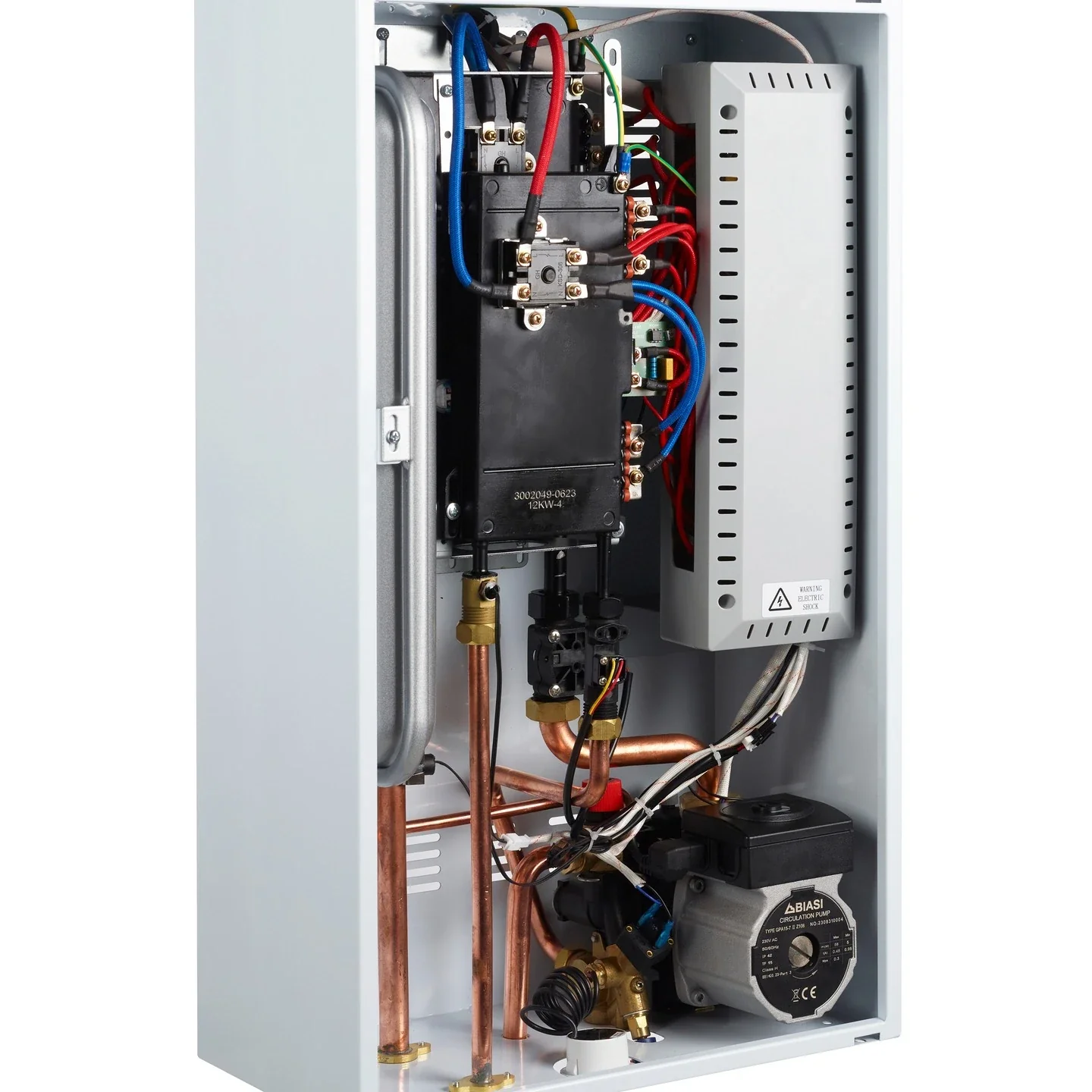

The Biasi Pro-Electric 16kW system boiler is a direct replacement for gas boilers, working with vented or unvented indirect cylinders to meet hot water needs, especially in larger properties with multiple bathrooms. It can integrate with solar PV systems and use timers for off-peak electricity heating. Featuring an integrated pump, expansion vessel, stylish touchscreen control panel, and minimal moving parts, it offers near-silent operation and zero carbon monoxide risk.
Key Features
- No flue or gas needed: Flexible installation anywhere.
- Compact design: Space-saving with integrated components.
- Near-silent operation: Sound pressure level of 15 dB.
- Touchscreen controls: User-friendly interface.
- Solar PV compatible: Integrates with renewable energy.
- Off-peak optimization: Timer-compatible for cost savings.
- Zero CO emissions: Safe and eco-friendly.
- App control: Optional connectivity for remote management.
Technical Specifications
- Model: Pro-Electric 16kW System Boiler Three Phase.
- Output power: 16 kW.
- Voltage: 400V three phase.
- Current: 23 A.
- Recommended breaker: 32 A.
- Recommended cable size: 3x4 mm².
- Maximum heating pressure: 2.5 bar.
- Minimum heating pressure: 0.5 bar.
- Maximum flow temperature: 80 °C.
- Minimum flow temperature: 30 °C.
- Energy rating (heating): D.
- Sound pressure level: 15 dB.
- Fuel: Electric.
- Mounting: Wall-mounted.

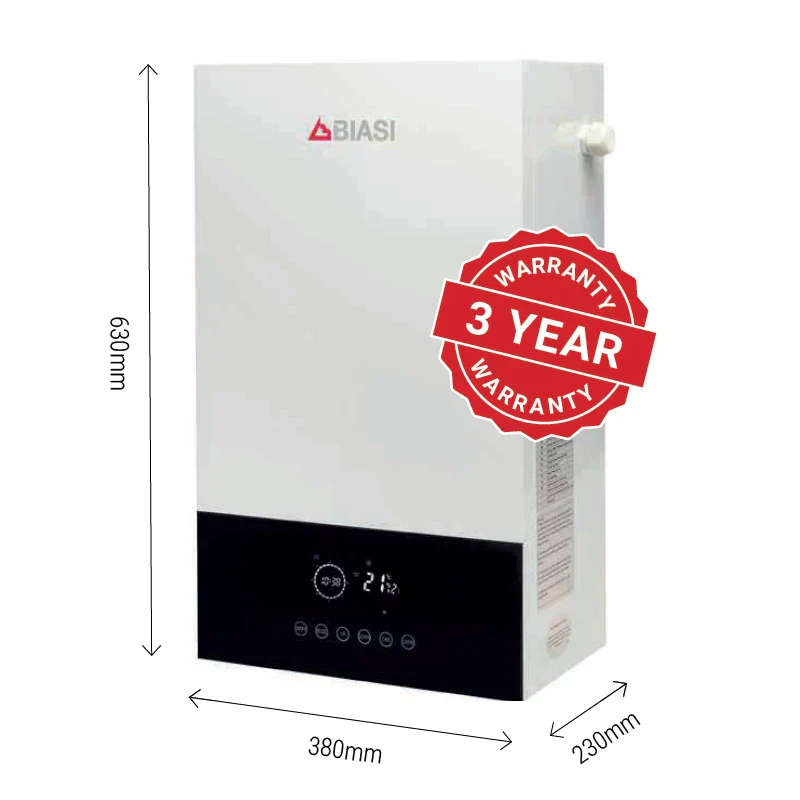

Dimensions & Weights
- Width: 380 mm.
- Depth: 230 mm.
- Height: 630 mm.
- Dry weight: ~20 kg.

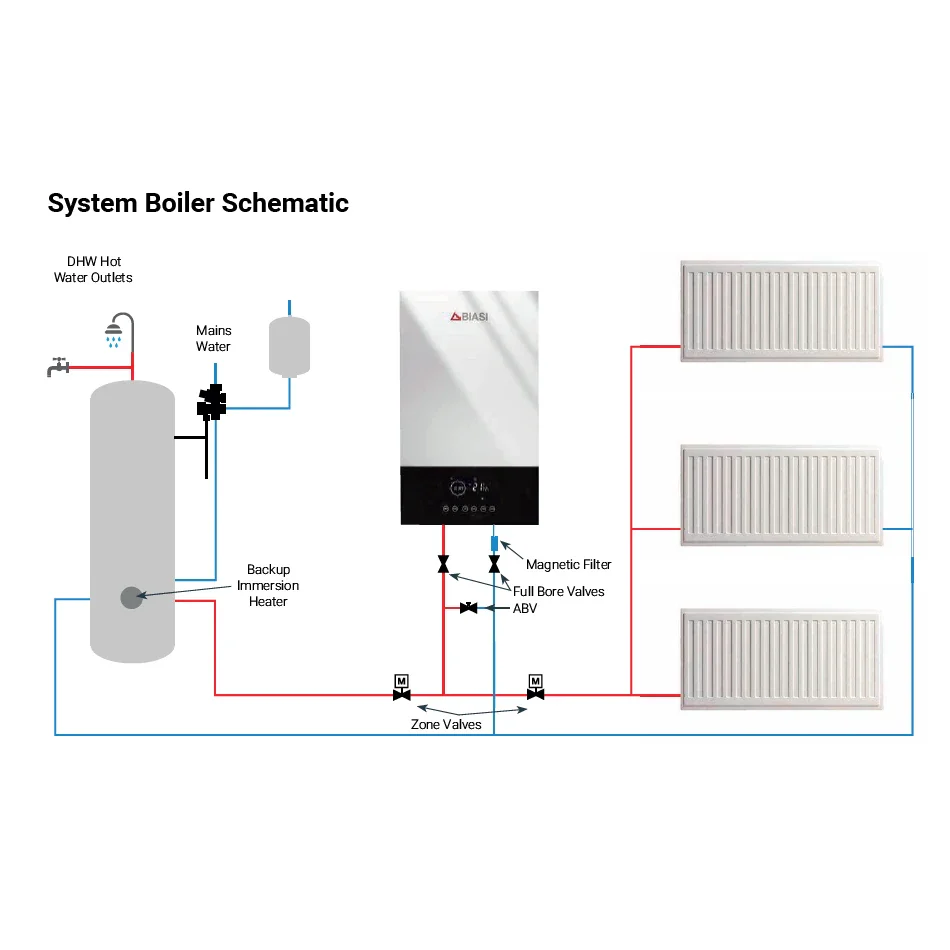

System & Application Notes
- Ideal for properties with indirect cylinders, multiple bathrooms, and no gas supply.
- Suitable for radiators, taps, showers, and baths when paired with vented/unvented cylinders.
- Compatible with existing pipework and solar PV systems.
- Heating connections: 3/4 inch male; PRV: 15 mm.
- Installation by qualified electricians or heating engineers following Biasi guidelines; requires three-phase supply.
- Warranty: 3 years.
Original: $1,696.54
-65%$1,696.54
$593.79More Images
