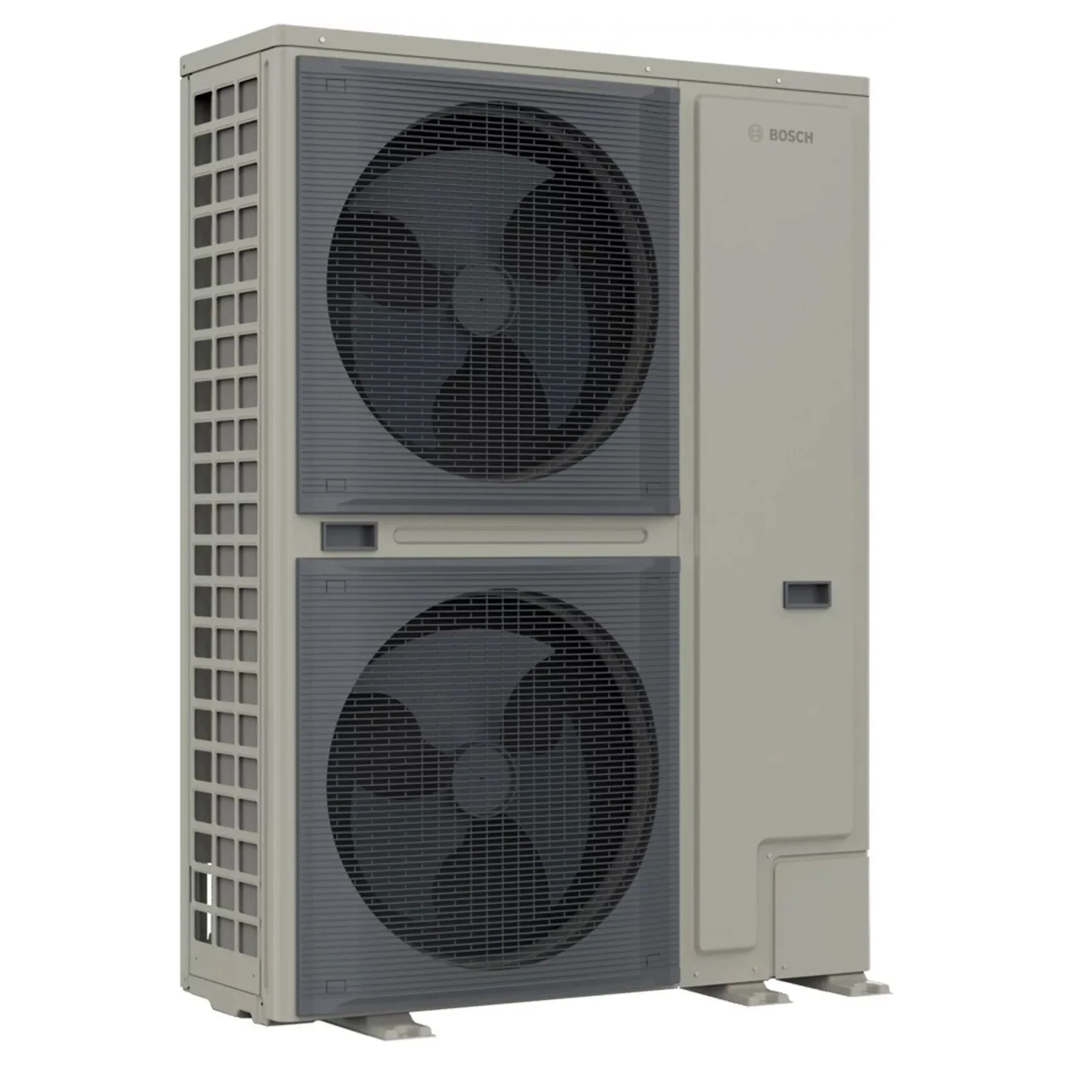

Worcester Bosch Compress 2000 AWF 3Phase 18kW Air Source Heat Pump
The Worcester Bosch Compress 2000 AWF 3Phase 18kW Air Source Heat Pump is a three-phase full monobloc air-to-water heat pump designed for efficient, low-carbon heating and hot water in UK homes and commercial properties, featuring R32 refrigerant and a compact design for easy installation without planning permission.
Product Description
The Compress 2000 AWF Heat Pump is an all-in-one full monobloc heat pump solution with a volume less than 0.6 cubic meters, built to speed up and simplify installation. It achieves an A+++ ErP rating with SCOP 4.54 and COP 3.59, providing 18kW heating capacity for larger homes up to 350m² or small commercial spaces. Hybrid compatible and weather-optimised for UK climates down to -25°C, it harnesses outdoor air for lower carbon heating and hot water. The compact outdoor unit requires no planning permission, making it ideal for retrofits and new builds.
Key Features
- Monobloc design: All-in-one unit with refrigeration components in the outdoor unit for simple plumbing and installation.
- R32 refrigerant: Low-GWP for eco-friendly, future-proof operation.
- A+++ ErP rated: High efficiency with SCOP 4.54 for reduced energy bills.
- Compact size: Less than 0.6m³ volume, no planning permission required for outdoor unit.
- Hybrid compatible: Works with existing boilers for seamless upgrades.
- Quiet operation: Low noise level suitable for residential areas.
- Easy commissioning: Guided setup for installers.
- Boiler Upgrade Scheme eligible: Up to £7,500 grant available.
Technical Specifications
- Model: CS2000AWF 18 R-T – Compress 2000 AWF 18kW Full Monobloc.
- Heating capacity: 18 kW.
- COP (A7/W35): 3.59.
- SCOP (average climate): 4.54.
- Refrigerant: R32 (GWP 675).
- ErP rating: A+++ (35°C), A++ (55°C).
- Power supply: 400V 3ph 50Hz.
- Noise level: 71 dB(A) at 1m (max).
- Operating temperature: -25°C to +43°C.
- Max flow temp: 65°C.
Dimensions & Weights
- Width: 1385 mm.
- Depth: 523 mm.
- Height: 864 mm.
- Weight: 143 kg.
- Clearances: Front min 800 mm, Sides min 200 mm for service.
System & Application Notes
- Ideal for homes up to 350m² or small commercial spaces with underfloor heating or radiators.
- Requires compatible indoor unit (e.g., pre-plumbed cylinder or wall-hung) for full system.
- Suitable for new builds and retrofits; integrates with smart controls.
- Installation by qualified MCS-certified engineers; qualifies for grants.
- 7-year warranty on unit; 10-year on compressor.
