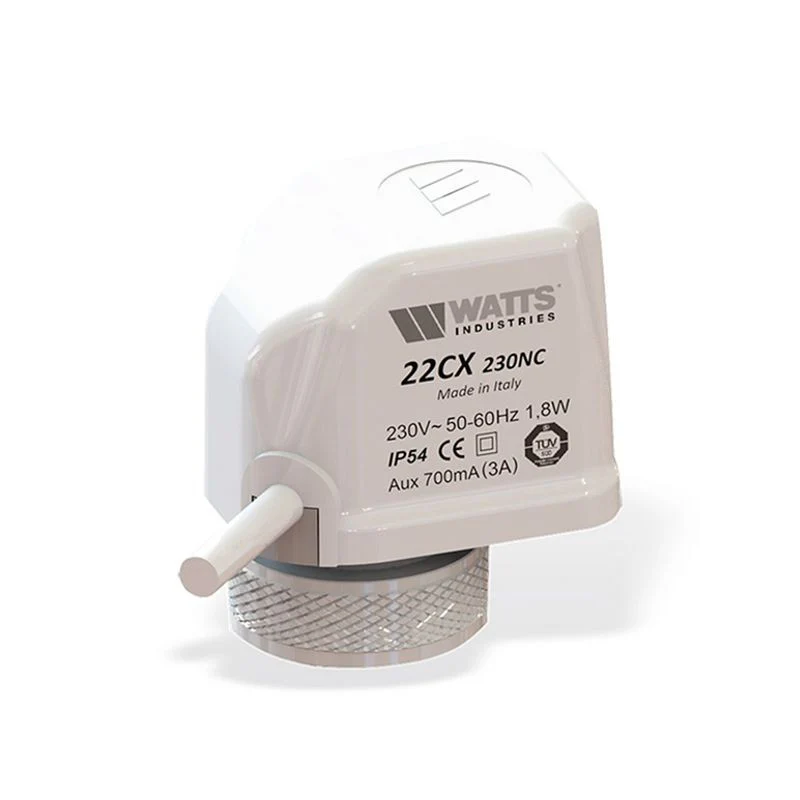

Watts Underfloor Heating Electrothermic Manifold Actuator
Watts Electrothermic Manifold Actuator
Description
The Watts Underfloor Heating Electrothermic Manifold Actuator 22CX230NC2 is an automatic thermal actuator designed to regulate water flow on individual zones or rooms of underfloor heating systems. Installed directly onto the manifold valves, these actuators open or close the water flow in response to signals from individual thermostats, allowing precise temperature control and efficient system operation.
Using electrothermic actuators instead of pure thermostatic versions enables remote control capabilities, making them ideal for modern smart heating systems requiring individual zone management.
What’s Included
- Single electrothermic manifold actuator unit
- 1 metre power cable (5.5 mm diameter)
- Installation instructions
Key Features
- Power supply: 230/240 volts AC
- Protection rating: IP44 (suitable for indoor installation with some moisture exposure)
- Compact actuator design with on/off operation
- Flame retardant plastic cap for safety
- Chrome-plated brass threaded ring nut with M30 x 1.5 thread for standard manifold valve attachment
- Normally Closed (N.C.) type—valve remains closed without power
- Stroke length: 3.5 mm for precise valve operation
- Power consumption: 2.5W
- Opening time: 90 seconds start, 3 minutes complete
- Plug thrust: 140 Newtons (normally closed version)
- Compliant with European standards including CE EN 60730-1 and related EMC and safety directives
Benefits
- Enables individual zone control for underfloor heating systems
- Energy efficient operation with low power consumption
- Simple installation on manifold valves with standard M30x1.5 fittings
- Reliable, long-lasting performance with robust design
- Ideal for automated or remotely controlled heating systems
Technical Specifications
| Power Supply | 230/240 V AC |
|---|---|
| Protection Class | IP44 |
| Connection Thread | M30 x 1.5 |
| Operation Type | Normally Closed (N.C.) |
| Stroke Length | 3.5 mm |
| Power Consumption | 2.5 W |
| Opening Time | 90 sec (start), 3 min (end) |
| Plug Thrust | 140 N (Normal Closed version) |
| Cable Length | 1 metre |
| Cap Material | Flame retardant plastic |
| Weight | Approx. 250 g |
| Certifications | CE marked, EN 60730-1 compliant |
The Electrothermic Manifold Actuator is an essential component for effective, automated underfloor heating zone control, providing quiet, precise, and reliable operation suitable for residential and commercial heating applications.
