ThermoSphere Ultimate Loose Lay Electric Underfloor Heating Cable – In-Line Joint, IP68, 195W or 130W/m², Lifetime Warranty
ThermoSphere Ultimate Loose Lay Electric Underfloor Heating Cable – In-Line Joint, IP68, 195W or 130W/m², Lifetime Warranty
The ThermoSphere Ultimate is a loose-lay electric underfloor heating cable for installation into decoupling membrane mats. It is the first and only cable combining TwistedTwin construction with an in-line joint — eliminating the conventional hot/cold joint that must be recessed into the membrane, transforming installation into a one-step, tool-free process. Achieves 195W/m² at 2-stud spacing or 130W/m² at 3-stud spacing. Cable lengths from 12m to 200m. Rated IP68 and extra heavy use (Robinson Test). Lifetime warranty on registration.
IP68
Protection
In-Line
Joint — No Cuts
195W/m²
2-Stud Output
130W/m²
3-Stud Output
12–200m
Cable Lengths
Lifetime
Warranty
Key Features
In-Line Joint — No Cutting Into the Floor
Conventional cables have a hot/cold joint thicker than the cable body — requiring a groove to be cut into the membrane to accommodate it. Ultimate's in-line joint is the same diameter as the cable throughout — it lies flat in the stud channel with no cutting required, keeping the membrane's waterproofing layer completely intact.
In-line jointNo cuttingWaterproofing preserved
TwistedTwin Heating Cable — Stress-Free, Fully Earthed
ThermoSphere's proprietary TwistedTwin cable uses a twisted-pair conductor construction that neutralises mechanical stress, preventing the fractures that develop in conventional cables under repeated thermal cycling. A continuous full earth braid runs the entire cable length — making these among the safest electric underfloor heating cables in the UK.
TwistedTwinFull earth braidStress-free
Selectable Output — 195W/m² or 130W/m²

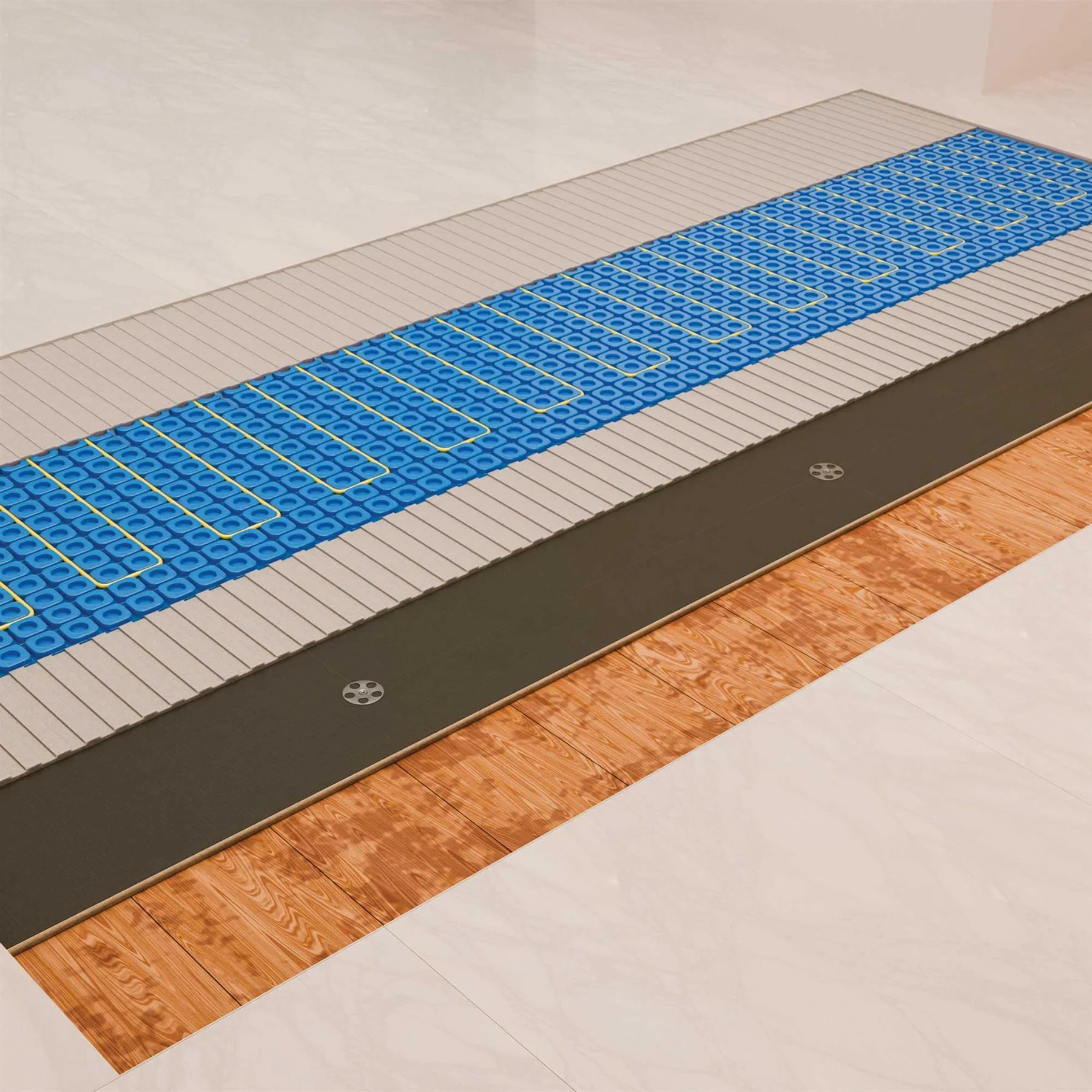

Output is determined by stud spacing in the membrane: 2 studs = 195W/m² (wet rooms and high heat-loss); 3 studs = 130W/m² (primary heating in well-insulated rooms). No tools or accessories needed to change — just vary the routing.
195W/m² or 130W/m²No tools to change
Extra Heavy Use — Robinson Test Rated
Rated for extra heavy use in the Robinson Test — the industry benchmark for cable durability under concentrated loading. Withstands heavy furniture, foot traffic and tile installation without damage.
Extra heavy useRobinson Test rated

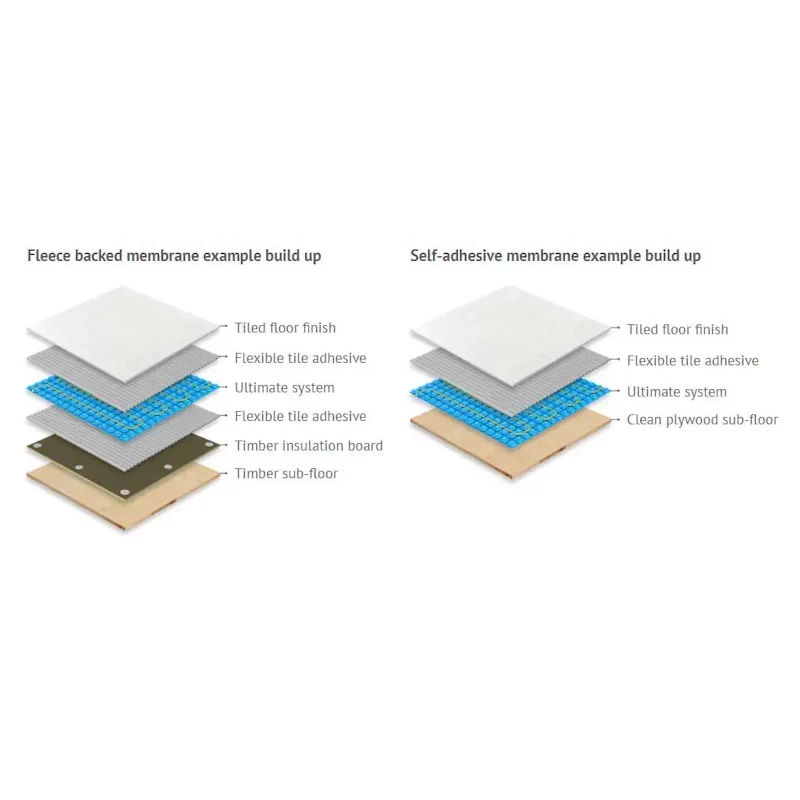

Compatible With All Decoupling Membrane Brands

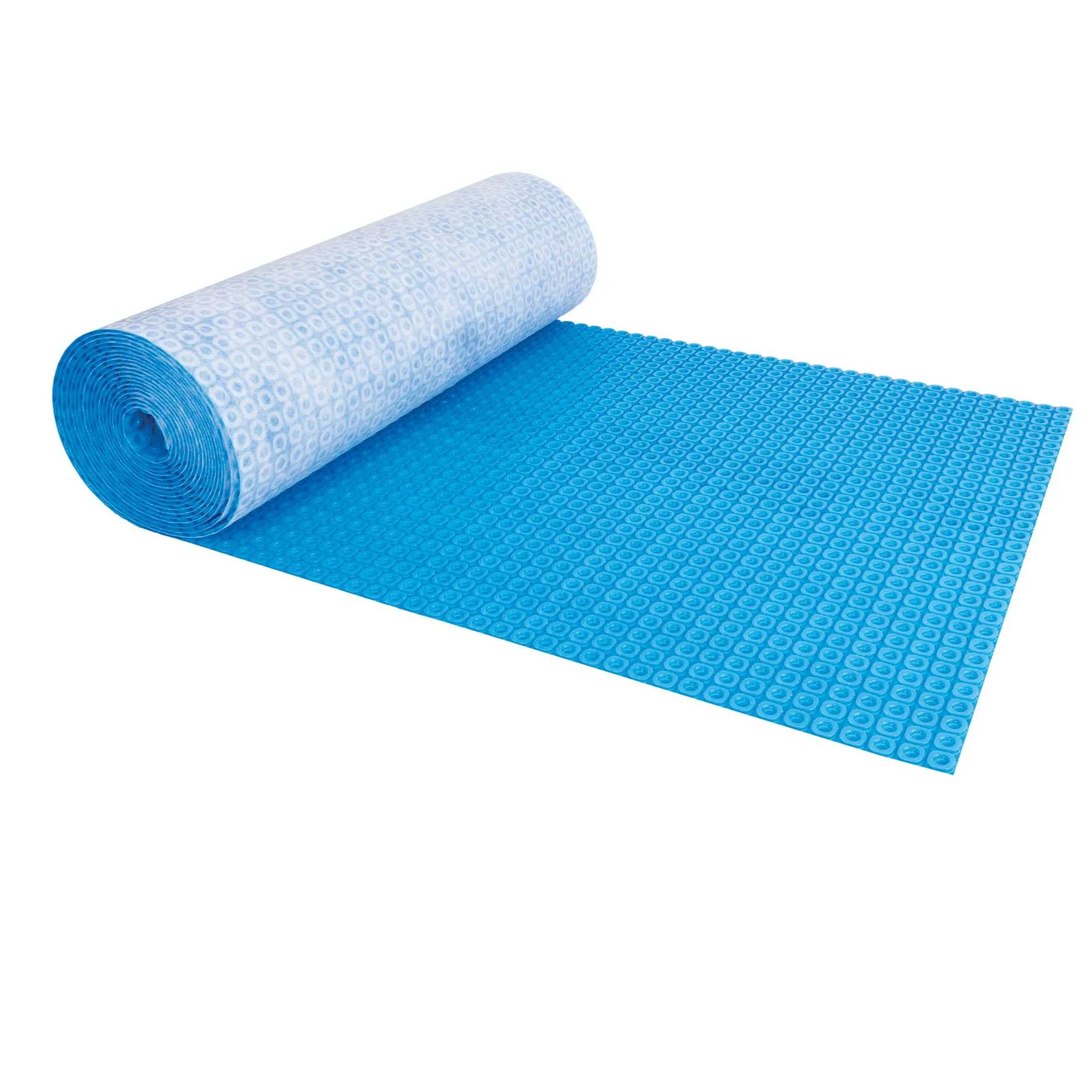

Optimised for ThermoSphere Membrane Mats but compatible with all decoupling membrane brands. Installers with a preferred membrane can retain it while upgrading to the most reliable cable available.
All membrane brandsUniversal
IP68 — Safe in Wet Rooms and Bathrooms
IP68 rated — completely impervious to moisture, safe in wet rooms, shower areas and bathrooms when installed with appropriate accessories.
IP68Wet room safe
Lifetime Warranty — Stays with the Property
Backed by a lifetime warranty when registered online. Uniquely, the warranty transfers with the property on sale — the new owners remain covered.
Lifetime warrantyProperty warranty
Technical Specifications
| Technical Data | |
| Voltage | 230V / 50Hz |
| Output (2-stud spacing) | 195 W/m² |
| Output (3-stud spacing) | 130 W/m² |
| Total Thickness | 3.5mm |
| Cable Lengths | 12m to 200m |
| Cable Insulation | FEP and HR-PVC |
| Protection Rating | IP68 |
| Robinson Test Rating | Extra heavy use |
| Recommended Max Floor Temperature | 27°C (limited by thermostat controls) |
| Joint Type | In-line (same diameter as cable body — no membrane cuts required) |
| Warranty | Lifetime (online registration required) |
| Country of Origin | United Kingdom |
ℹ Installation: All electrical connections must be made by a qualified electrician in accordance with BS 7671. Register your product with ThermoSphere online to activate your lifetime warranty.
