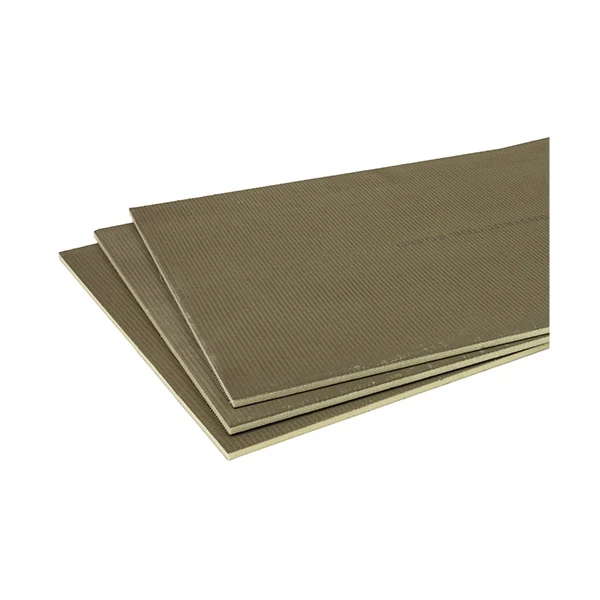

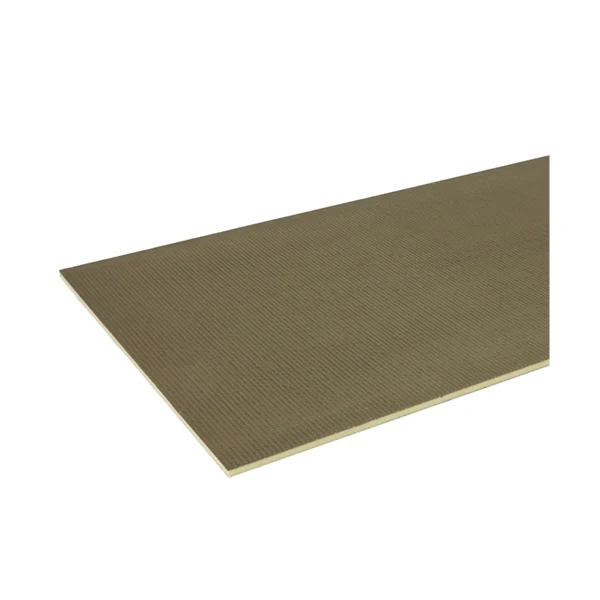

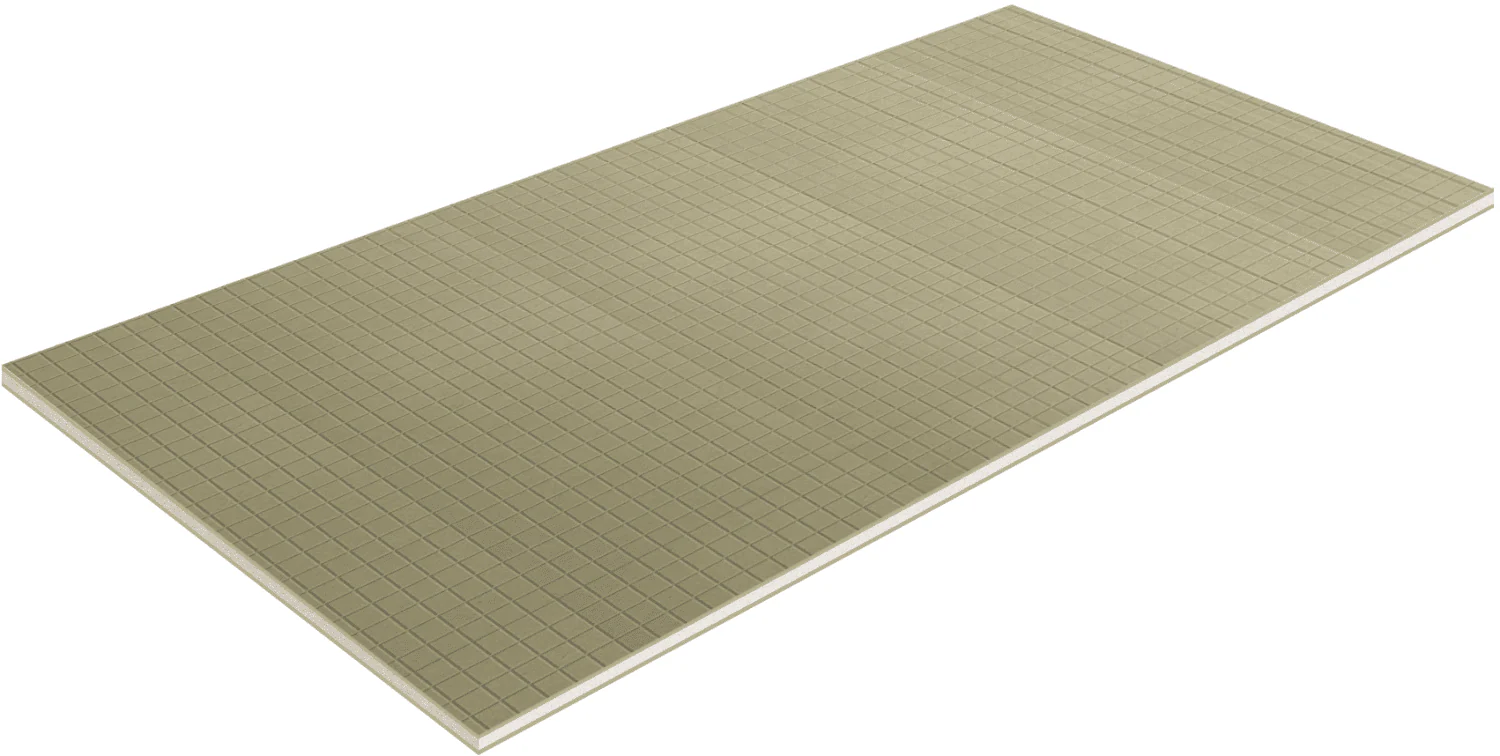

ThermoSphere Coated Timber Insulation Boards
ThermoSphere Coated Timber Insulation Boards
Maximise the efficiency and comfort of your electric underfloor heating system with ThermoSphere Coated Timber Insulation Boards. Manufactured from a high-density extruded polystyrene core and coated on both sides with a fibreglass reinforced cement, these boards add essential rigidity, strength, and thermal insulation to timber substrate floors. Their water-resistant and rot-proof properties make them an excellent choice for wet environments such as bathrooms and wet rooms.
Key Features
- High-Density Core: Extruded polystyrene core for superior thermal insulation performance.
- Fibreglass Reinforced Cement Coating: Both sides coated to add rigidity and enhance durability.
- Water-Resistant & Rot Proof: Ideal for use in moist or wet areas, including bathrooms and wet rooms.
- Improves Heating Efficiency: Boosts underfloor heating efficiency by increasing insulation and stiffening timber substrates.
- Available in Multiple Thicknesses: Choose from 6mm, 10mm, 12mm, 20mm, up to 50mm to suit different floor builds and insulation requirements.
- Impact Sound Reduction: Tested to BS EN 10140-3, providing up to 19dB reduction with 6mm thickness boards.
Technical Specifications
| Brand | ThermoSphere |
|---|---|
| Product Type | Coated Timber Insulation Board |
| Dimensions | 1200mm x 600mm |
| Available Thicknesses | 6mm, 10mm, 12mm, 20mm, up to 50mm |
| Compressive Strength | 300 kPa |
| Shear Strength | 85 Kg/m² |
| Thermal Conductivity | 0.033 W/mK |
| Water Absorption | 0.6% |
| Density (Foam) | 36 Kg/m³ |
| Temperature Range | -50°C to +75°C |
| Fire Performance | Class 0 BS476, Euro Class E EN13501 |
| Impact Sound Reduction | Up to 19dB (Tested to BS EN 10140-3, based on 6mm board thickness) |
| EAN | 5056257336343 |
| MPN | TIB-006 |
Applications
- Ideal for timber substrate floors in residential and commercial properties.
- Excellent choice for bathrooms, wet rooms, and other high-moisture environments.
- Enhances underfloor heating system efficiency whilst providing sound insulation and structural support.
Why Choose ThermoSphere Coated Insulation Boards?
- Manufactured to high standards in the UK with guaranteed quality and reliability.
- Waterproof and rot-proof design ensures longevity even in damp environments.
- Improves heating system performance, contributing to energy savings and comfort.
- Provides sound reduction and increased floor rigidity for safer, more durable floors.
