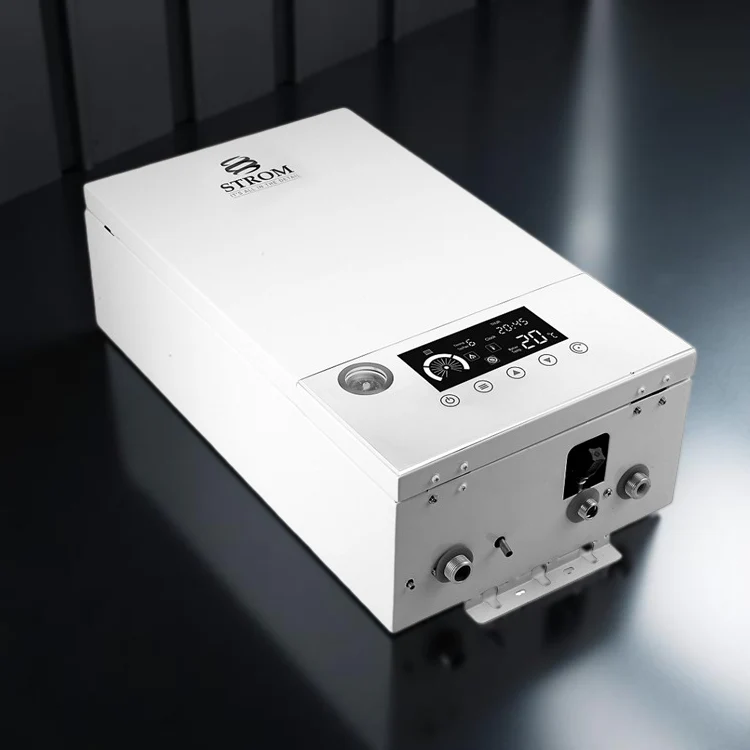

Strom 24kW Electric System Boiler – Three Phase
Strom 24kW Electric System Boiler – Three Phase
The Strom 24kW Electric System Boiler (Three Phase) is a powerful, compact, and highly efficient solution for large homes or commercial premises requiring robust central heating. With a familiar layout for installers, advanced touchscreen controls, and integrated pump and expansion vessel, this boiler delivers reliable, emission-free performance and is ideal for properties off the gas grid or where flueing is not possible.
Key Features
- High output: 24kW – suitable for large homes or commercial heating systems
- Three-phase power supply for maximum efficiency and performance
- Touchscreen digital control panel with LED display
- Integrated pump and expansion vessel for easy installation
- Serpentine heating element for rapid, efficient heat transfer
- Minimal moving parts for near-silent, low-maintenance operation
- No flue required – zero emissions at point of use
- Compatible with vented or unvented indirect cylinders
- Compatible with solar panels and underfloor heating
- Compact, wall-mounted design – fits in most plant rooms or cupboards
- 2-year manufacturer’s warranty (registration required)
Technical Specifications
| Model | 24kW Electric System Boiler (Three Phase) |
|---|---|
| EAN | 5060438332062 |
| Manufacturer Part Number | SBTP24S / WBTP24S |
| Power Supply | 400V, Three Phase |
| Output | 24kW |
| Amps | 36A |
| Recommended Breaker | 40A |
| Recommended Cable Size | 3 x 6mm² |
| Max Heating Pressure | 1.5 bar |
| Min Heating Pressure | 0.5 bar |
| Max Flow Temp | 80°C |
| Min Flow Temp | 20°C |
| Heating Connection | 3/4" Male |
| PRV Connection | 1/2" Female |
| BTU Output | 81,900 BTU |
| Dimensions (H x W x D) | 610 x 320 x 250 mm (some listings: 630 x 350 x 210 mm) |
| Weight | Approx. 20 kg |
| ERP Rating (Heating) | D |
| Sound Pressure Level | 15 dB |
| Mounting | Wall |
Benefits
- Perfect for large homes, commercial spaces, or properties with high heating demand
- No flue, no risk of carbon monoxide, and no emissions at point of use
- Minimal maintenance and silent operation
- Easy to install and compatible with modern heating controls
- Ideal for Economy 10 tariffs and renewable energy integration
Choose the Strom 24kW Electric System Boiler for reliable, high-capacity, and future-proof electric heating.
