Samsung Mono ClimateHub 200L Storage Tank - Single Phase
The Samsung EHS Mono ClimateHub 1‑Phase 200L Storage Tank (MPN AE200CNWMEG/EU) is an all‑in‑one indoor hydro unit and 200L domestic hot‑water tank for Samsung EHS Mono R290 systems, combining cylinder, hydraulics, controls and integrated Wi‑Fi in a single slimline floor‑standing unit.
Key Features
- All‑in‑one indoor unit – integrates 200L stainless‑steel DHW cylinder, hydro unit, pump, expansion vessel and electric backup heater in a single compact cabinet for neat plant‑room layouts.
- Integrated Wi‑Fi & smart control – built‑in Wi‑Fi module enables connection to Samsung SmartThings / AI Home for app‑based control, scheduling and energy monitoring when connected to the internet.
- Single‑phase supply – designed for 230V 50Hz single‑phase operation, pairing with single‑phase Samsung EHS Mono R290 outdoor units in typical UK domestic installations.
- High‑temperature operation – works with R290 EHS Mono units to deliver high DHW temperatures suitable for cylinders, with integrated booster heater to support hot water in extreme conditions.

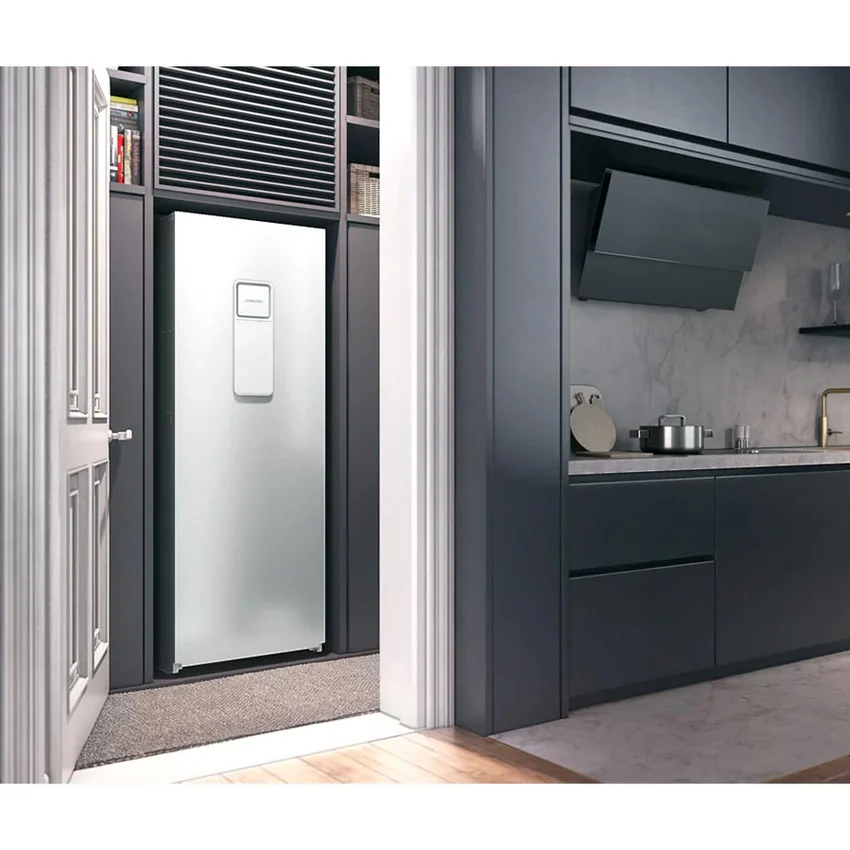

- Compact ClimateHub format – approximately 595mm wide and 1800mm high, allowing installation alongside other appliances and within standard utility spaces.
Technical Overview
- Model / MPN: AE200CNWMEG/EU (EHS Mono ClimateHub 200L, 1‑phase, integrated Wi‑Fi).
- Tank capacity: 200L domestic hot‑water accumulator in SUS 316L stainless steel for high corrosion resistance.
- Power supply: 230V, 50Hz, single‑phase connection for the hydro unit, pumps, controls and backup heater.
- Backup heater: integrated electric booster heater (typically 2–6kW, model‑dependent) to support DHW and space‑heating in peak load or emergency operation.
- Weight: around 128–130kg empty and approximately 330–340kg when full.
- Dimensions (W × H × D): roughly 595mm × 1800mm × 700mm, with a slim footprint that fits in line with standard white‑goods depths.
- Cylinder warranty: typically up to 7 years on the tank (and 2 years on other components) subject to Samsung terms and proper installation/commissioning.
Hydraulic & System Features
- Integrated hydraulics: includes brazed plate heat exchanger, circulation pump and expansion vessel for the heating circuit, reducing the need for separate internal components.
- DHW production: 200L internal cylinder with high‑efficiency heat exchanger, designed to work with EHS Mono R290 units for rapid hot‑water recovery and good DHW efficiency.
- Noise & comfort: designed to pair with outdoor units featuring multi‑stage quiet modes, supporting low overall system noise in residential applications.
Connectivity & Control
- Wi‑Fi and app control: integrated Wi‑Fi allows remote monitoring, mode selection and scheduling via Samsung SmartThings / Samsung climate apps, including viewing energy usage trends where supported.
- System integration: designed to work with Samsung room controllers (such as MWR‑WW10N) and AI Home panels, and to interface with smart grids and PV‑linked control strategies on compatible systems.
Applications

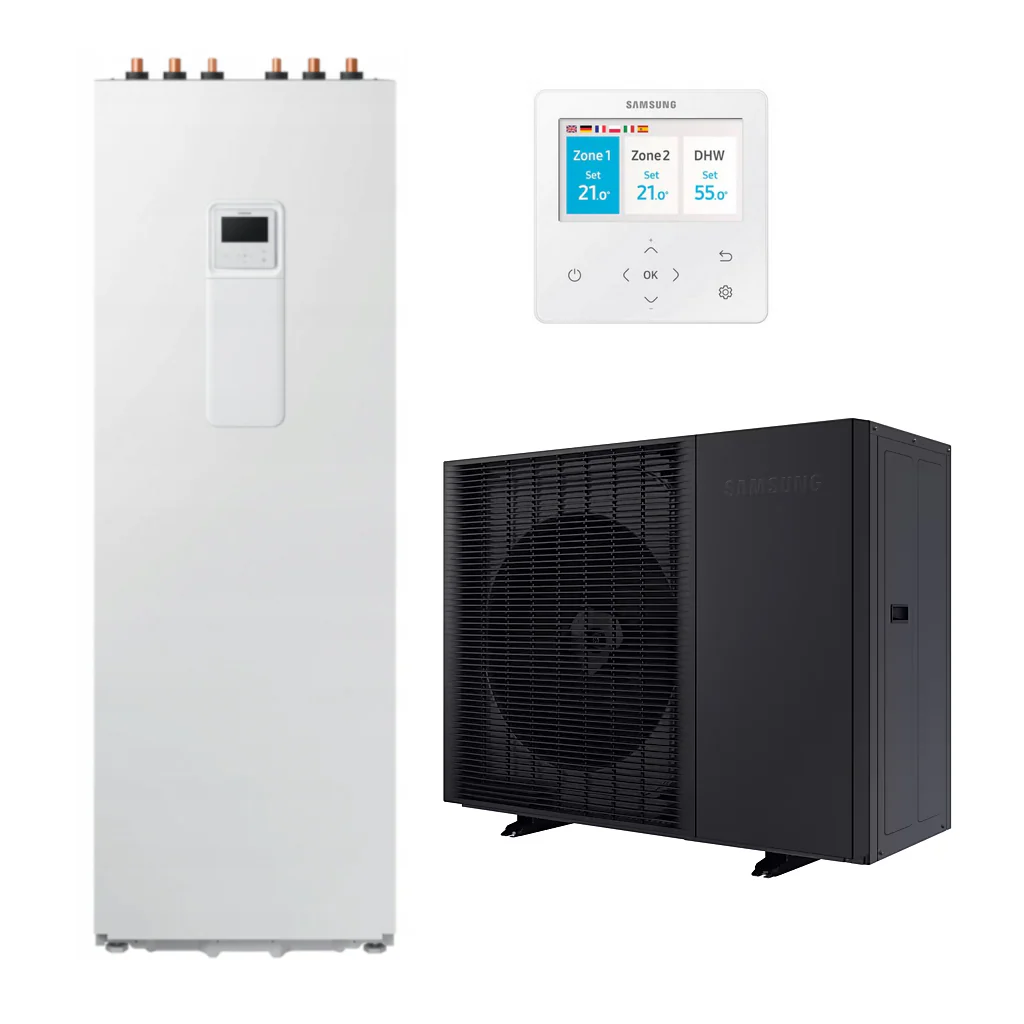

- Compatible outdoor units: intended for use with Samsung EHS Mono R290 single‑phase outdoor units (for example AE050CXYDEK/EU, AE080CXYDEK/EU, AE120CXYDEK/EU) to create a complete heating and hot‑water package.
- Typical properties: suitable for small to medium‑sized homes requiring an integrated 200L DHW store and compact internal plant, especially where clean aesthetics and connected control are priorities.
