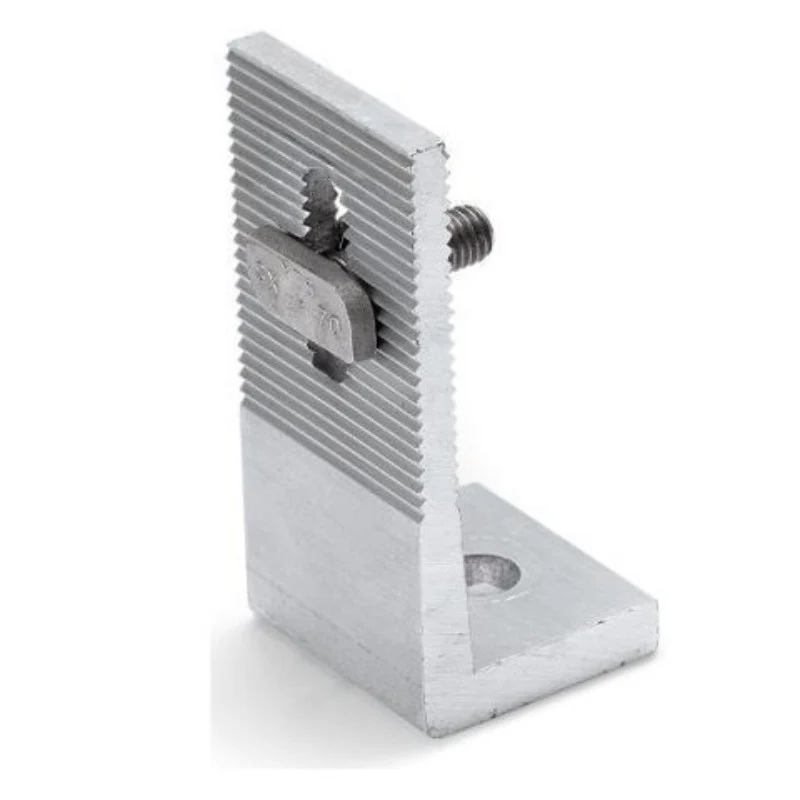

Renusol VarioSole Bracket M10 offset connection

VarioSole+ Bracket M10

The Renusol VarioSole+ Bracket M10 (Part No: REN-420014) is a precision-engineered mounting bracket made from durable aluminium and stainless steel components. Designed for secure fixation within the VarioSole+ and VS+ solar mounting systems, this bracket has dimensions of 40 x 38 x 85 mm and weighs approximately 0.098 kg. It includes 1 M10 bracket, 1 hammerhead bolt M8 x 25, and 1 hexagon nut with serration DIN6923 - M8 A2-70, allowing for reliable fastening of mounting rails or hooks. The bracket setup provides identical functionality to the M12 bracket model. This component ensures ease of installation and long-lasting structural stability, certified to meet quality standards required in photovoltaic mounting.

• Part No: REN-420014
• Material: Aluminium and stainless steel
• Dimensions: 40 x 38 x 85 mm
• Weight: 0.098 kg
• Includes: 1 x Bracket M10, 1 x Hammerhead bolt M8x25, 1 x Hexagon Nut w. serration DIN6923 - M8 A2-70
• Compatible with Renusol VarioSole+ and VS+ mounting systems
• Equivalent functionality to M12 bracket
• Certified for reliable photovoltaic installation performance
