Pressure Test Pump Unit
Pressure Test Pump Unit
Description

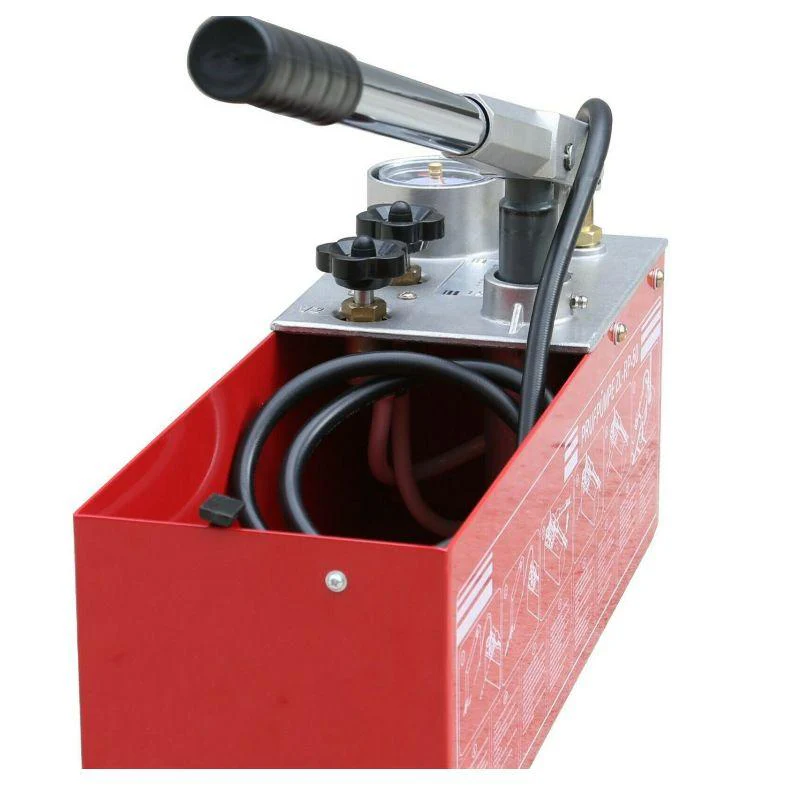

The Pressure Test Pump Unit is a reliable, manual hydraulic pump designed for pressure testing underfloor heating systems, pipework, and other pressurized installations. It is suitable for conducting tightness tests and verifying system integrity by accurately pressurizing and maintaining water or oil within the circuit.
Featuring a robust aluminium frame and a lockable pumping arm for ease of use, it includes a corrosion-resistant stainless steel water tank to withstand varied test conditions. The unit is portable and ergonomically designed for efficient one-person operation on site.
What’s Included
- Manual pressure test pump with ergonomic lockable arm
- Stainless steel water tank with a 3.0 gallon (approx. 12 litre) capacity
- Pressure gauge with a measuring range up to 50 bar
- High-quality hoses and connections (R 1/2” outlet connection)
- Detailed instruction manual
Key Features
- Testing pressure range: 0 to 50 bar
- Flow volume per pump stroke: approximately 45 ml
- Stainless steel water tank for durability and corrosion resistance
- Durable aluminium frame construction for stability and portability
- Lockable pumping arm to maintain pressure without continuous pumping
- Ergonomic design for comfortable and efficient manual operation
- Suitable for use with water, oil, and other compatible fluids
Benefits
- Enables accurate and safe pressure testing of underfloor heating installations
- Portable and easy to operate by a single technician on site
- Robust construction ensures long service life in demanding environments
- Lockable arm allows pressure to be held without fatigue
- Compatible with a wide range of testing applications beyond underfloor heating
Technical Specifications
| Pressure Range | 0 - 50 bar (0 - 725 psi) |
|---|---|
| Flow Volume per Stroke | Approximately 45 ml |
| Tank Capacity | 3.0 gallons (approx. 12 litres) |
| Outlet Connection | R 1/2” (male thread) |
| Material - Tank | Stainless steel |
| Frame Material | Aluminium |
| Dimensions (approx.) | Length: 650 mm, Width: 165 mm, Height: 260 mm |
| Weight | Approx. 7.6 kg (16.8 lbs) |
| Warranty | 2 years |
The Pressure Test Pump Unit is an essential tool for installers and maintenance technicians seeking to perform accurate pressure tests on underfloor heating and other pressurized systems, ensuring leak-free, safe, and energy-efficient installations.
