Mitsubishi ECODAN 150L Pre-Plumbed Slimline Cylinder - EHPT15X-UKHLDW
The Mitsubishi 150L R32 1Ph Mono Pre-Plumbed Cylinder Slimline Wifi EHPT15X-UKHLDW is a compact, pre-plumbed slimline unvented hot water cylinder designed for integration with Mitsubishi Ecodan R32 monobloc air source heat pumps, providing efficient domestic hot water (DHW) storage with WiFi connectivity for remote control.
Product Description

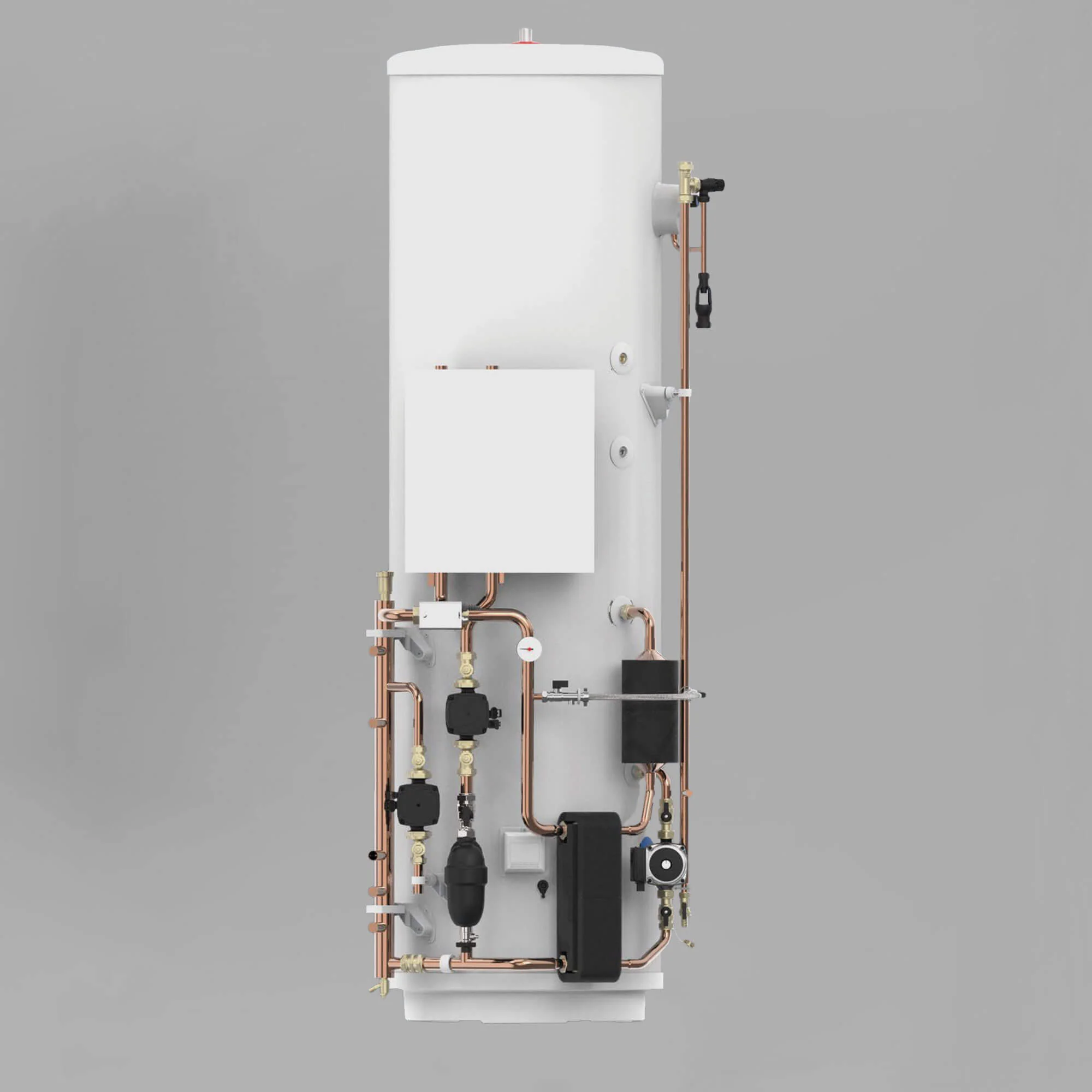

The EHPT15X-UKHLDW is a self-contained, plug-and-play pre-plumbed DHW cylinder optimised for Ecodan R32 1-phase monobloc units, featuring a slimline design for space-constrained installations. It includes factory-fitted components like the Flow Temperature Controller (FTC6), main controller, temperature sensors, magnetic & cyclonic filter, and pumps for rapid setup. With premium insulation for minimal heat loss and flexible 2-zone space heating control, it supports efficient, rapid heating up to 65°C. WiFi-enabled for remote monitoring via the MELCloud app, it ensures low maintenance and compliance with UK regulations.
Key Features
- Pre-plumbed slimline: Factory-assembled with FTC6 controller, sensors, filter, and pumps for quick installation.
- WiFi connectivity: MELCloud app for remote control, monitoring, and diagnostics.
- Stainless steel construction: Durable and corrosion-resistant for long-term reliability.
- Unvented mains pressure: High-flow hot water for multiple outlets.
- Heat pump optimised: Low thermal mass for faster heat-up and energy efficiency.
- Integrated filtration: Magnetic & cyclonic filter protects system from debris.
- 2-zone control: Flexible space heating management.
- WRAS approved: Certified for potable water systems.
Technical Specifications
- Model: EHPT15X-UKHLDW – 150L Slimline Pre-Plumbed Cylinder.
- Capacity: 150 litres.
- Material: Stainless steel.
- Maximum pressure: 3 bar.
- Maximum temperature: 65 °C.
- Insulation: Premium foam for low heat loss.
- Connectivity: WiFi via MELCloud app.
- Controller: FTC6 with temperature sensors.
- Certifications: WRAS approved, UKCA marked.
Dimensions & Weights
- Diameter: 475 mm (slimline).
- Height: 1500 mm.
- Weight (empty): ~40 kg.
- Weight (full): ~190 kg.
System & Application Notes
- Ideal for Mitsubishi Ecodan R32 1-phase monobloc heat pumps in residential systems.
- Compatible with underfloor heating or radiators; supports 2-zone control.
- Suitable for new builds and retrofits; optimises low-temperature systems.
- Installation by qualified plumbers following Mitsubishi guidelines; G3 unvented certification required.
- Enhances efficiency with pre-plumbed setup; 5-year cylinder warranty.
