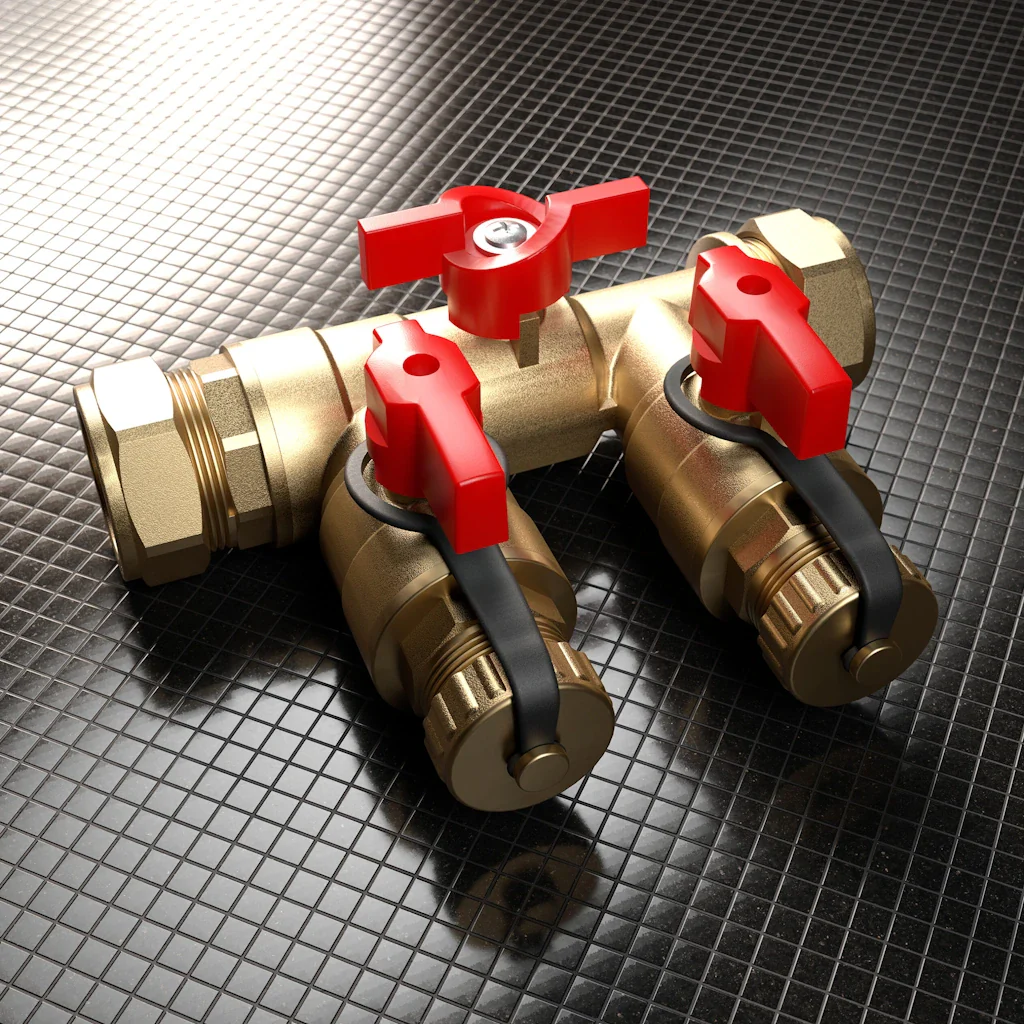

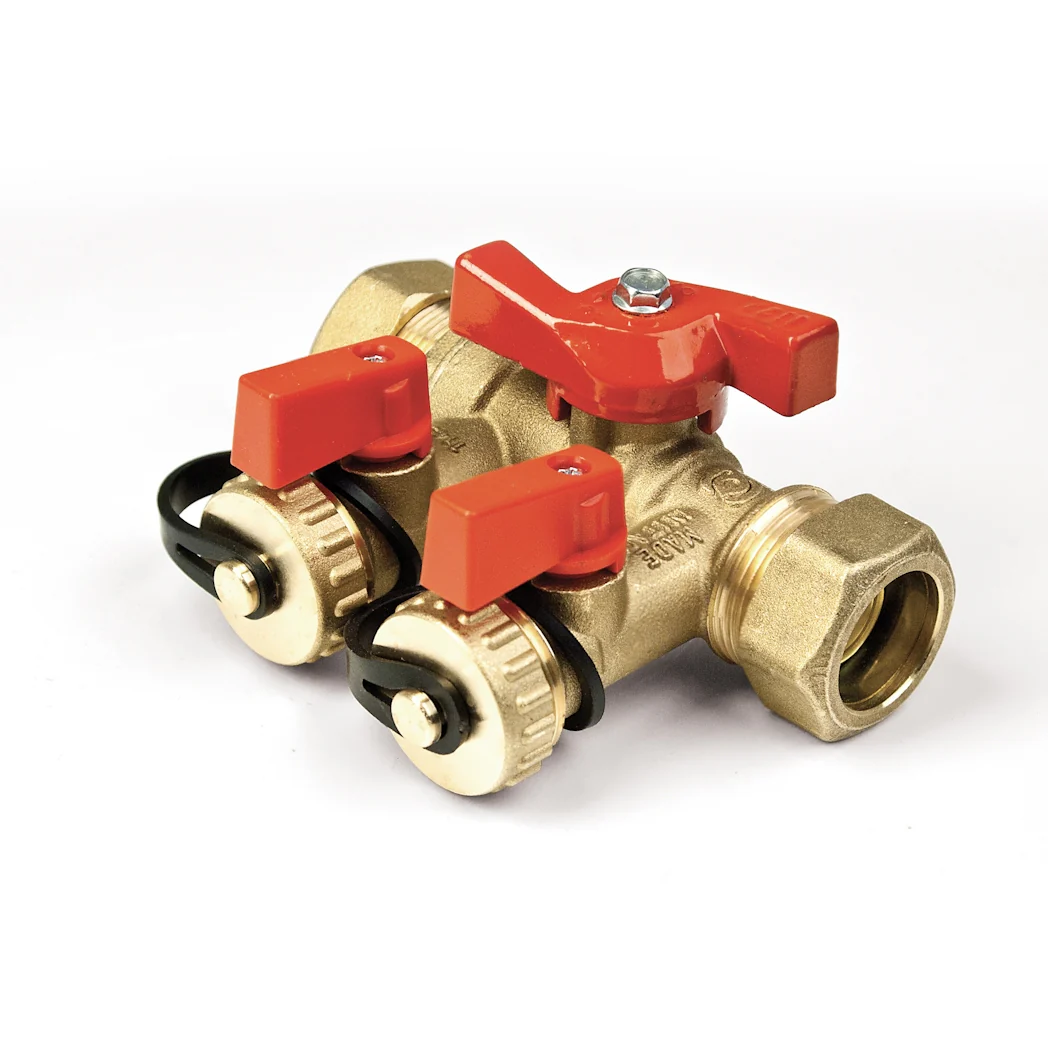

Intatec 22mm Fill and Flush Valve
The Intatec 22mm Fill And Flush Valve (INFAF22) is a brass ball valve designed to allow simple and easy filling and flushing of sealed heating systems in one convenient fitting, complete with end caps and compliant with water regulations for safe installation.
Product Description
The Intatec Fill and Flush Valve is a versatile component for sealed heating systems, enabling efficient filling and flushing without multiple fittings. Made from durable brass, it features 22mm compression connections and comes with end caps for secure closure. It complies with G24.1 and G24.2 of the water regulations, making it suitable for retrofit and new build projects. Supplied with a wall mounting bracket, it provides flexibility in installation orientation and is fully CPR compliant.
Key Features
- Convenient design: Allows filling and flushing in one fitting.
- 22mm connections: Compression fittings for easy pipe integration.
- Brass construction: Durable and corrosion-resistant.
- End caps included: For secure sealing when not in use.
- Wall mounting bracket: Provides installation flexibility.
- Regulatory compliance: Meets G24.1, G24.2, and CPR standards.
- Wide temperature range: Operates from -5°C to 99°C.
Technical Specifications
- Model: INFAF22 – 22mm Fill & Flush Valve.
- Connections: 22mm compression (G3/4").
- Maximum operating temperature: 99 °C.
- Minimum operating temperature: -5 °C (not in freezing conditions).
- Material: Brass.
- Certifications: Complies with G24.1 and G24.2 water regulations, CPR compliant.
Dimensions & Weights
- Length: 155 mm.
- Weight: 680 g.
System & Application Notes
- Ideal for sealed heating systems in heat pumps, boilers, or underfloor heating.
- Compatible with retrofit and new build projects.
- Suitable for domestic and light commercial use.
- Installation by qualified plumbers; mount using supplied bracket.
- Supports system maintenance with easy filling and flushing.
- Warranty: 2 years.
