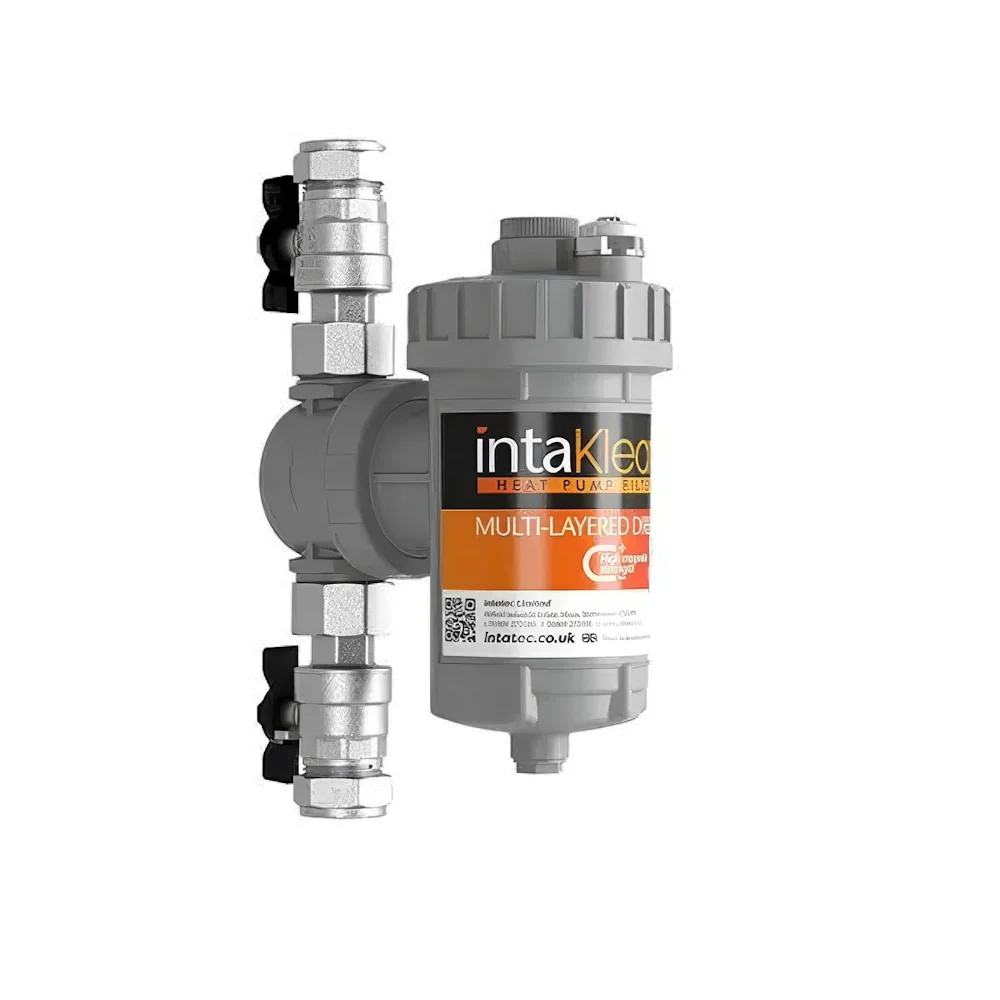

IntaKlean HP Magnetic Filter Heat Pump 28mm Full Bore Isolation Valves — IKHPMF28 — Intatec Triple-Action Air Source Heat Pump Filter
IntaKlean HP Magnetic Filter Heat Pump 28mm Full Bore Isolation Valves — IKHPMF28 — Intatec Triple-Action Air Source Heat Pump Filter
The IntaKlean HP Magnetic Filter (IKHPMF28) is a specialist triple-action heating system filter specifically engineered for air source heat pump systems, supplied complete with full-bore 28mm compression isolation valves. Unlike standard magnetic filters designed for conventional boiler systems, the IntaKlean HP addresses the different flow rates, operating pressures, and stricter debris-removal requirements of heat pump installations. It combines 11,000 gauss rare earth neodymium magnetic filtration, a unique direct-forced non-ferrous filtration system using multi-layered stainless steel gauze (300 micron fine + 800 micron mesh), and automatic air separation — all in one unit. The 360° rotatable body and any-orientation installation make it straightforward to position regardless of pipework layout.
ℹ Why standard magnetic filters fall short for heat pumps
Air source heat pump systems operate at lower flow temperatures and higher flow rates than gas boilers, and are far more sensitive to particulate contamination in system fluid. Many heat pump manufacturers specify minimum filtration standards as a warranty condition — a standard boiler magnetic filter providing only magnetite capture will not satisfy these requirements. The IntaKlean HP's dual-stage non-ferrous gauze filtration actively captures non-magnetic debris (installer flux residue, pipe scale, gasket material) that passes straight through a magnet-only filter.
Air source heat pump systems operate at lower flow temperatures and higher flow rates than gas boilers, and are far more sensitive to particulate contamination in system fluid. Many heat pump manufacturers specify minimum filtration standards as a warranty condition — a standard boiler magnetic filter providing only magnetite capture will not satisfy these requirements. The IntaKlean HP's dual-stage non-ferrous gauze filtration actively captures non-magnetic debris (installer flux residue, pipe scale, gasket material) that passes straight through a magnet-only filter.
Features & Benefits
✔ 11,000 Gauss Neodymium Magnet
The fully removable rare earth neodymium magnet at 11,000 gauss is one of the most powerful available in a residential filter. It draws magnetite and ferrous particles strongly to the centre of the filter body, keeping them securely held even at heat pump flow rates. Because the magnet is fully removable, the system can be serviced without draining — pull the magnet, wipe the captured debris, reinsert. No drain-down, no system interruption during routine filter maintenance.
✔ Unique Direct Non-Ferrous Filtration
Most magnetic filters only capture iron-based (ferrous) particles. The IntaKlean HP adds a multi-layered stainless steel gauze insert — with a 300 micron fine layer and an 800 micron mesh layer — through which system fluid is directly forced. This active filtration captures non-ferrous debris (copper fines, flux residue, solder particles, rubber fragments from seals) that would otherwise circulate through the heat pump's heat exchanger and cause fouling or damage to the compressor or refrigerant circuit.
✔ Air Separation — Manual Air Vent
The filter body incorporates an integrated manual air vent that allows trapped air to be released during commissioning and after system disturbance. Air pockets in a heat pump system cause flow noise, reduced performance, and pump cavitation — a particular concern given heat pumps' low noise tolerance. The low-profile drain valve on the filter pot allows captured debris to be flushed without disconnecting the unit.
✔ 360° Rotatable — Any Orientation
The filter body can be rotated through a full 360° after installation, allowing the drain valve and air vent to be positioned for maximum accessibility regardless of the pipework run direction. Combined with any-orientation installation (the filter works vertically, horizontally, or at any angle), the IKHPMF28 can be fitted in virtually any plant room or equipment cupboard layout without additional pipework offsets.
✔ Full Bore Isolation Valves Included
Supplied complete with full bore 28mm compression ball valves on both inlet and outlet connections. Full bore valves are essential for heat pump installations — restricting valves (such as standard isolation valves with reduced-bore ports) create unnecessary pressure drop and can reduce flow rate below the heat pump manufacturer's minimum requirements. The 28mm compression fittings connect directly to standard copper pipework without additional adaptors.
✔ Low Pressure Drop
The large-mesh gauze area and full-bore design deliver a minimal pressure drop across the filter, even as debris accumulates. This is critically important for heat pumps, where the minimum flow rate through the unit is a manufacturer specification — a filter that causes excessive pressure drop reduces flow and can trigger fault codes or compressor protection shutdowns. Maximum working pressure is 4 bar; suitable for sealed heating systems at typical heat pump operating pressures.
Technical Specifications
| Manufacturer / Part No. | Intatec — IKHPMF28 |
| Connection Size | 28mm compression |
| Magnet Strength | 11,000 gauss rare earth neodymium |
| Non-Ferrous Filter | Multi-layered SS gauze: 300 micron fine + 800 micron mesh |
| Max Working Pressure | 4 bar |
| Installation Orientation | Any — 360° rotatable body |
| Isolation Valves | Full-bore 28mm compression ball valves (supplied) |
| Air Vent | Manual — integrated |
| Drain Valve | Low-profile — integrated |
| Body Diameter | Ø90mm |
| Overall Width (inc. valves) | 271mm |
| Overall Height | 182mm |
$74.16
Original: $211.90
-65%IntaKlean HP Magnetic Filter Heat Pump 28mm Full Bore Isolation Valves — IKHPMF28 — Intatec Triple-Action Air Source Heat Pump Filter—
