Honeywell Home Underfloor Heating Multi-Zone Controller | HCC100M2022 Smart UFH Zone Management
Honeywell Home Underfloor Heating Multi-Zone Controller | HCC100M2022 Smart UFH Zone Management

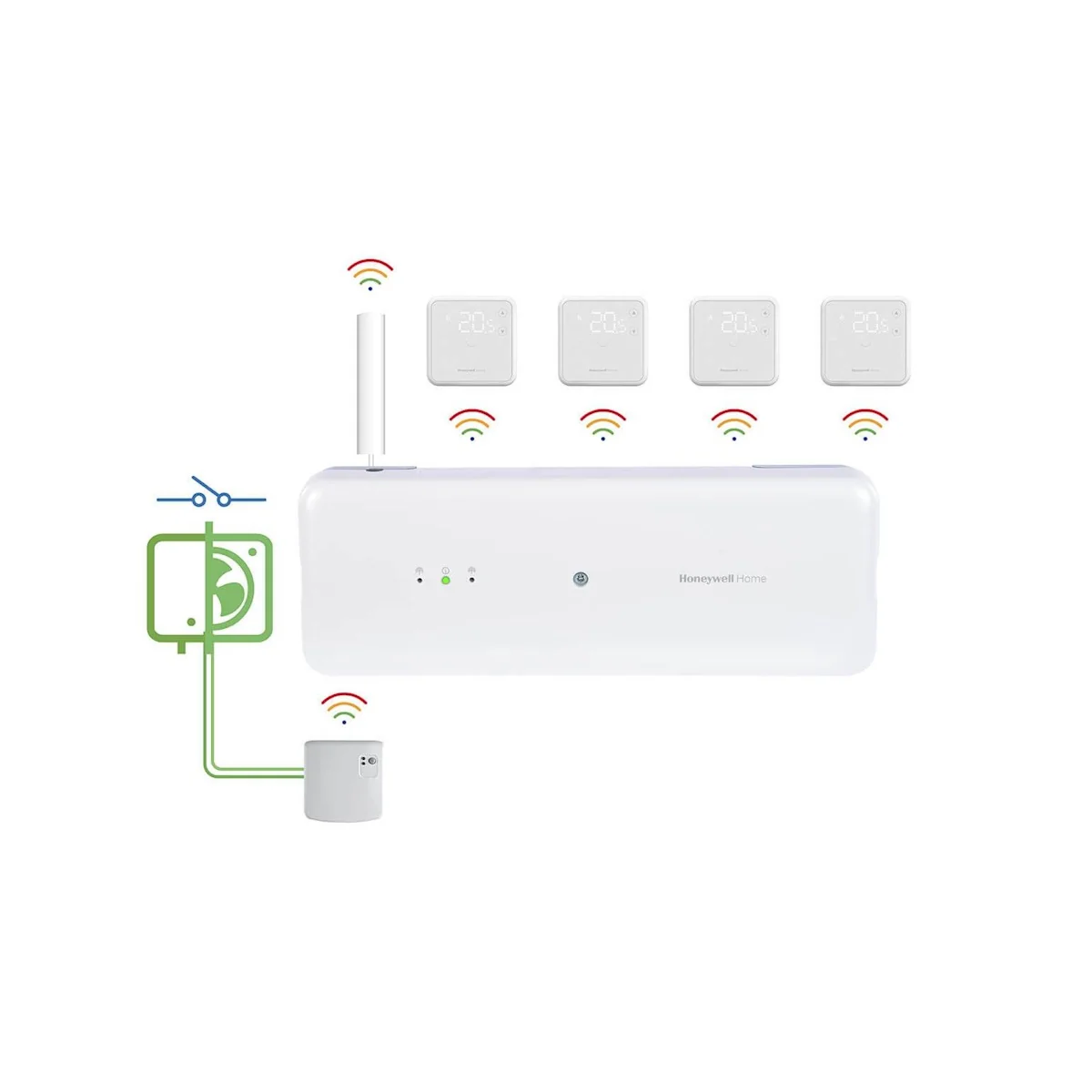

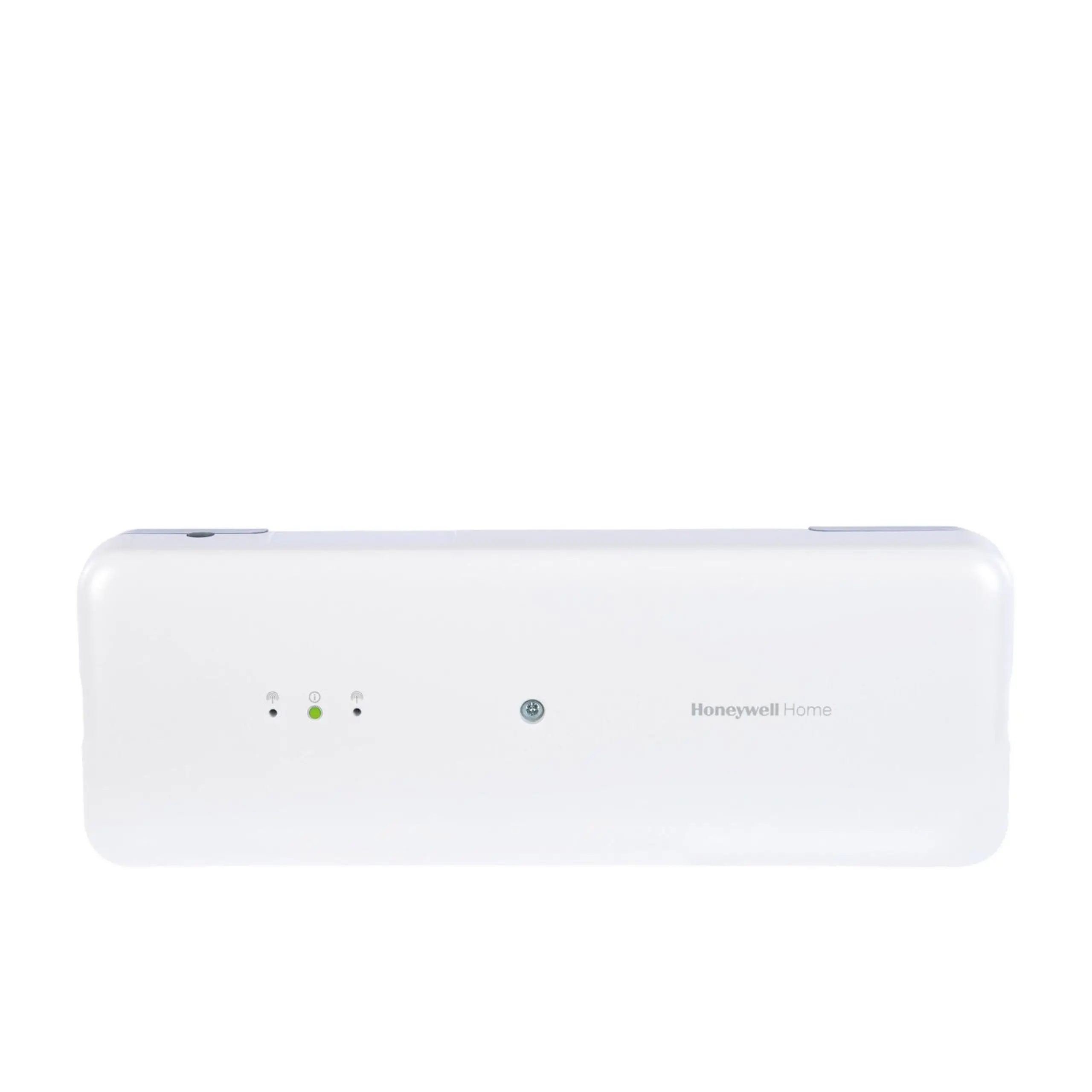

The Honeywell Home HCC100M2022 Underfloor Heating Multi-Zone Controller is an advanced smart controller for managing up to 8 independent underfloor heating/cooling zones. Featuring Bluetooth connectivity, self-learning fuzzy logic control, and Resideo Pro app configuration, it optimises comfort and energy efficiency across residential and commercial installations.
Key Features
- Up to 8 zones: 6 wired OpenTherm® + 2 wireless, or 8 wireless thermostats.
- 20 configurable 230V/0.5A thermo-actuator outputs for manifold control.
- Integrated 230V pump relay with optimised runtime management.
- Bluetooth® and RF 868 MHz bi-directional communication for smartphone control.
- Self-learning fuzzy logic algorithm for precise zone temperature control.
- Heating and cooling modes with external sensor compensation and condensation protection.
Why Choose Honeywell HCC100M2022?
All-in-one solution combining wired/wireless zoning, intelligent actuator control, and app-based commissioning for maximum system efficiency and installation flexibility.
ErP Class VIII rating with cascade connectivity and evohome compatibility for scalable multi-zone applications.
Suitable For
-
New build and retrofit underfloor heating manifolds up to 20 circuits.
- Hybrid heating/cooling systems with heat pumps and mixed zones.
- Residential and light commercial multi-room temperature management.
Technical Specifications
- Brand: Honeywell Home by Resideo
- Model: HCC100 Multi-Zone UFH Controller
- MPN: HCC100M2022
- GTIN: 5059085002565
- Power Supply: 230 VAC +10/-15%, 50 Hz
- Zone Inputs: 6 wired OpenTherm® + 2 wireless (max 8 zones)
- Actuator Outputs: 20 x 230V/0.5A (MT8-230-NC compatible)
- Pump Relay: Integrated 230V
- RF Frequency: 868.3 MHz (25 mW), Bluetooth 2.4 GHz (100 mW)
- App Control: Resideo Pro (iOS/Android)
- Sensor Inputs: External hot/cold/flow compensation
- ErP Class: Class VIII
- Mounting: DIN-rail or wall
- Dimensions: White enclosure
- Weight: 1 kg
- Includes: Controller, 2m antenna, EU power cable, fixings
- Warranty: 18 months
Installation & Smart Features
Screwless wired terminals and guided app commissioning with automatic detection. Supports cascade connection, OpenTherm® device control, and optimised pump/actuator sequencing. Status LEDs and antenna positioning ensure reliable RF coverage.
Original: $384.66
-65%$384.66
$134.63More Images
