Grid (1kW to 3kW) Tie Wind Power Kit & Solar Hybrid Power Kits & 24kWh Battery Bank
Harness reliable renewable energy with our scalable grid-tie wind and solar hybrid kits, available in 1kW, 2kW, and 3kW wind capacities. These complete 48V systems combine powerful wind turbines, high-efficiency Sharp solar panels, a versatile 5.5kW hybrid inverter, and a substantial 24kWh AGM battery bank to slash electricity bills, ensure backup power, and deliver energy independence for homes and businesses in windy locations.
Product Overview
Optimised for consistent wind sites like coastal regions, open fields, or hilltops, these kits generate up to 3kW from wind plus 3.2kW to 6.5kW from solar, feeding into a robust 24kWh battery for grid export, self-consumption, or off-grid use. The G98/G99-compliant hybrid inverter supports seamless grid-tie operation with UPS functionality, protecting against outages while maximising savings amid rising energy costs. Bluetooth monitoring via app keeps performance at your fingertips, with easy scalability for additional turbines or panels.
Key Features
- Hybrid Versatility: Grid-tie, off-grid, hybrid, and UPS modes for uninterrupted power and flexible energy use.
- Premium Components: High-efficiency Sharp PERC monocrystalline panels (IP68-rated, shade-tolerant), MPPT wind controllers with boost charging, and durable 3-blade turbines with tail furling for safety.

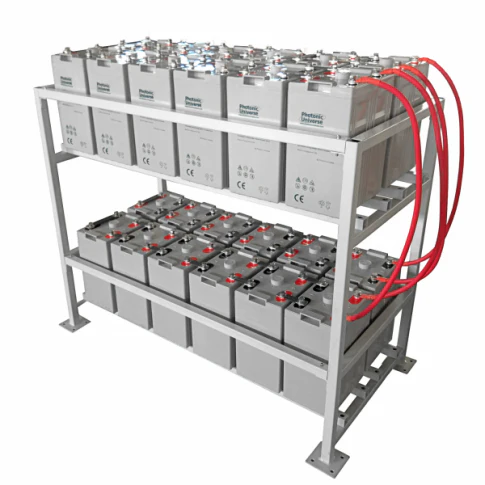

- Massive Storage: 24kWh (48V 500Ah) AGM battery bank from 24 x 2V cells for deep discharge and long life.
- Smart Monitoring: LCD displays, Bluetooth shunt, RS232 software, and optional Wi-Fi/remote access.

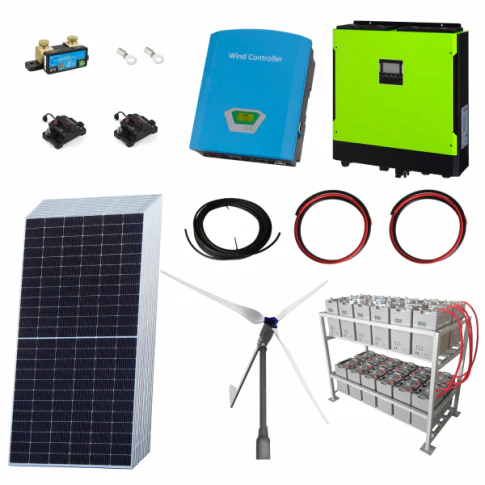

- Complete Kit: Includes cables, breakers, connectors, and dump loads—ready for professional installation.
- Certifications: CE, G98/G99, TUV for compliance and peace of mind.
Why Buy
Invest in these kits to cut electricity bills by prioritising free wind and solar power over grid imports, with 'peak/off-peak' settings for maximum savings. Enjoy blackout-proof UPS operation that standard grid-tie systems lack, plus future-proof expandability for growing needs. Built for UK conditions, they offer exceptional ROI through reliable output in varied weather, backed by strong warranties including 15 years on solar panels.
Suitable For
- Homeowners with high usage (EVs, heat pumps, pools, AC) in exposed, windy spots away from urban turbulence.
- Trade professionals installing for rural homes, farms, coastal properties, or small commercial sites.
- Anyone seeking hybrid renewables for energy security, bill reduction, and green credentials.
Technical Specifications
Choose your power level below. All kits share the 5.5kW 48V hybrid inverter, 24kWh battery bank, and Sharp 540W panels.
| Component | 1kW Kit | 2kW Kit | 3kW Kit |
|---|---|---|---|
| Wind Turbine Rated Power | 1kW (48V, 3.2m diameter) | 2kW (48V, 3.8m diameter) | 3kW (120V, 3.8m diameter) |
| Start-up Wind Speed | 2.5m/s | 2.5m/s | 2.5m/s |
| Rated Wind Speed | 12m/s | 12m/s | 12m/s |
| Solar Panels | 6 x 540W (3.2kW total) | 10 x 540W (5.4kW total) | 12 x 540W (6.5kW total) |
| Panel Dimensions (each) | 2279 x 1134 x 35 mm | 2279 x 1134 x 35 mm | 2279 x 1134 x 35 mm |
| Panel Weight (each) | 27.8kg | 27.8kg | 27.8kg |
| Hybrid Inverter | 5.5kW continuous (11kW surge), 93% efficiency, 120-450V MPPT | 5.5kW continuous (11kW surge), 93% efficiency, 120-450V MPPT | 5.5kW continuous (11kW surge), 93% efficiency, 120-450V MPPT |
| Inverter Size / Weight | 110 x 450 x 445 mm / 16kg | 110 x 450 x 445 mm / 16kg | 110 x 450 x 445 mm / 16kg |
| Battery Bank | 48V 500Ah (24kWh), 1290 x 1140 x 670 mm / 720kg | 48V 500Ah (24kWh), 1290 x 1140 x 670 mm / 720kg | 48V 500Ah (24kWh), 1290 x 1140 x 670 mm / 720kg |
| Wind Controller Max Power | 1kW | 2kW | 3kW |
| Operating Temp | -10°C to +40°C (all components) | -10°C to +40°C (all components) | -10°C to +40°C (all components) |
| Warranty | 1 year (turbine/controller/batteries), 15 year workmanship (panels) | 1 year (turbine/controller/batteries), 15 year workmanship (panels) | 1 year (turbine/controller/batteries), 15 year workmanship (panels) |
Note: Mounting pole for turbine sold separately. Professional installation recommended. G98/G99 compliant for UK grid connection.
Original: $11,546.43
-65%$11,546.43
$4,041.25More Images
