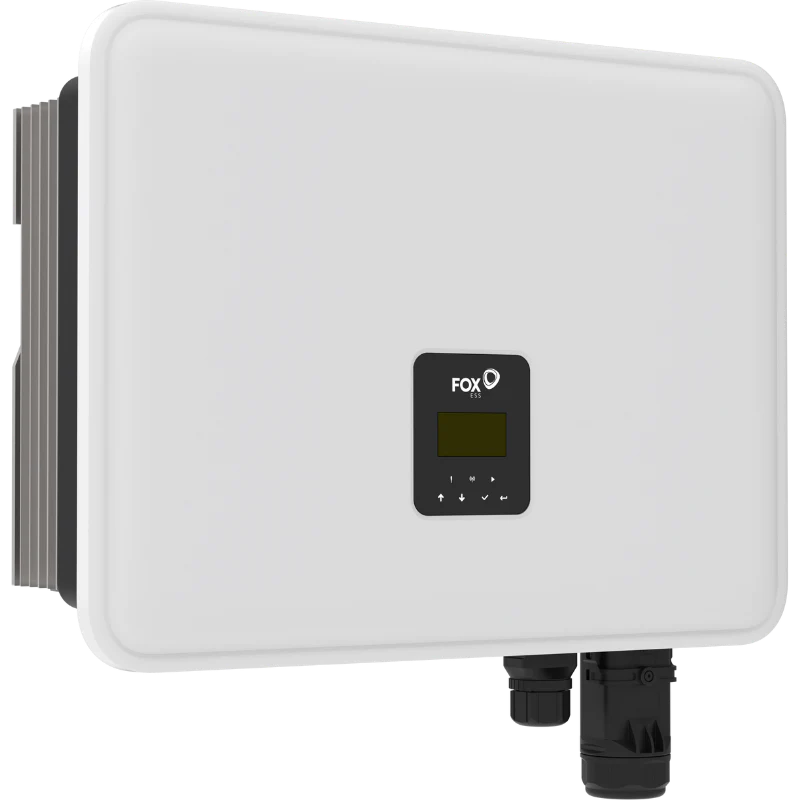

FOX ESS H3 Smart 10.0kW 3PH Hybrid/AC Inverter

FE-H3-10.0-SMART | Three-phase 10kW hybrid inverter with 3 MPPT trackers, true 3-phase backup, IP65 rating and flexible high-voltage battery compatibility.

Key Features

• 10kW rated three-phase output with 3 MPPT trackers (max 18kW PV input).
• True 3-phase backup power with seamless grid transition.
• High-voltage battery support (ECS2900/4100/4300/4800 series).
• 98% Euro efficiency with wide MPPT range 140-1000V DC.
• IP65 rated enclosure with integrated DC switch and fuses.
• Plug & play installation including 3PH smart meter and CT clamps.
• Remote monitoring via Fox ESS app/web portal (WiFi/LAN/4G).
• Surge capacity 11kW for 1 second.

Electrical Characteristics

Rated AC Power	10,000 W (3-phase)
Max PV Input	18,000 W
MPPT Voltage Range	140-1000 V DC
Max Efficiency	98%
Max DC Current	60 A
AC Surge Power	11kW (1 sec)
Battery Compatibility	ECS series HV batteries

Mechanical Specifications

Dimensions (W×H×D)	449 × 519 × 198 mm
Weight	28-34 kg
Protection Rating	IP65
Cooling	Intelligent air cooling
Operating Temp	-25°C ~ +60°C
Communication	RS485, CAN, WiFi/LAN

Installation & Package Contents

• Includes 3PH smart meter, CT clamps (3x), MC4 connectors (6x).
• Compatible with Tigo optimizers (not SolarEdge/Huawei).
• 5-10 year warranty depending on configuration.
• Designed for residential/commercial 3-phase installations.

MPN: FE-H3-10.0-SMART
Model: Fox H3 Smart 10.0kW 3PH Hybrid

Powerful three-phase hybrid solution delivering true backup power, high PV flexibility and seamless battery integration for demanding residential and light commercial applications.
