Fox ECS HV ECM2900 Connector Type A, 11.52kWh 1x Master 3x Slave

Fox ECS HV ECM2900 Connector Type A, 11.52kWh 1x Master 3x Slave

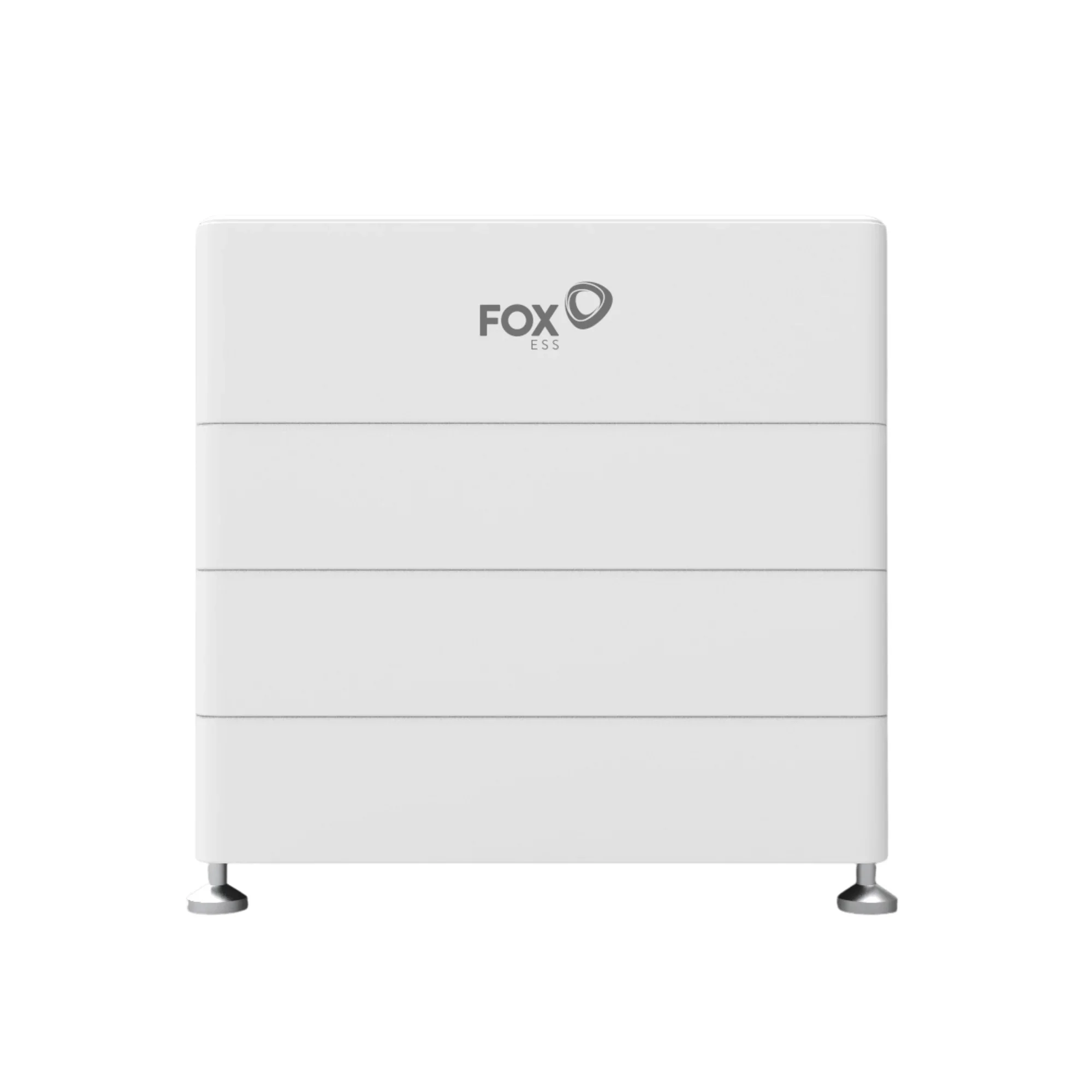

FE-HV-EC-A-4-2.9-11.6 | Complete Fox ECS2900 high-voltage battery stack with 1× master and 3× slave modules, delivering 11.52kWh nominal (≈10.4kWh usable) storage in a compact modular tower.

System Composition

  • 1 × Fox ECS2900 2.88kWh HV Battery (Master) V2.0, Connector Type A.
  • 3 × Fox ECS2900 2.88kWh HV Battery (Slave) V2.0, Connector Type A.
  • Total nominal capacity: 4 × 2.88kWh = 11.52kWh.
  • Usable capacity at 90% DoD: ≈ 10.4kWh.

Key Features

  • High-voltage LiFePO₄ battery stack for Fox ESS hybrid and AC-coupled systems.
  • Modular, stackable “Energy Cube” design – no battery-to-battery cabling required.
  • 90% depth of discharge for excellent usable energy without compromising cycle life.
  • Wide operating temperature range and IP65 enclosure for indoor or outdoor installation.
  • CAN/RS485 communication with compatible Fox ESS inverters/chargers for control and monitoring.
  • Connector Type A (V2.0), ensuring compatibility within the stack and with matching inverters.

Electrical Characteristics (Full 4‑Module Stack)

Chemistry Lithium Iron Phosphate (LiFePO₄)
Nominal Energy 11.52kWh
Usable Energy (90% DoD) ≈ 10.4kWh
Nominal Voltage 230.4V
Operating Voltage Range ≈ 194.4–262.8V
Recommended Charge/Discharge Current 25A
Max Charge/Discharge Current 50A
Continuous Power ≈ 11.5kW (at 50A, 230V)
Round-trip Efficiency >95%
Cycle Life >6000 cycles at 90% DoD, 25°C

Mechanical & Environmental

Stack Dimensions (W × H × D) ≈ 570 × 590 × 380 mm (4‑module tower)
Stack Weight ≈ 135–140 kg
Enclosure Rating IP65
Operating Temperature -10°C to +55°C
Storage Temperature -20°C to +55°C
Cooling Natural convection
Installation Floor‑standing, interlocking modules with master at top

Compatibility & Warranty

  • Compatible with Fox ESS HV hybrid inverters (H1/H3 series) and AC chargers (AC1/AC3) that support ECS2900 batteries.
  • Connector Type A – any additional modules added later must be ECS2900 V2.0 Type A.
  • Standard product warranty 5 years, extendable (typically up to 10–12 years) with online registration per Fox ESS terms.

MPN: FE-HV-EC-A-4-2.9-11.6
Model: Fox ECS HV ECM2900 Connector Type A, 11.52kWh (1× Master + 3× Slave)

Balanced mid‑size HV storage stack ideal for whole‑home retrofits and new PV systems, offering over 10kWh usable LiFePO₄ capacity in a compact, easily expandable tower.

$2,023.22

Original: $5,780.64

-65%
