ESi 22 mm 2 Port Motorised Zone Valve
HomeStore

ESi 22 mm 2 Port Motorised Zone Valve

ESi 22 mm 2 Port Motorised Zone Valve

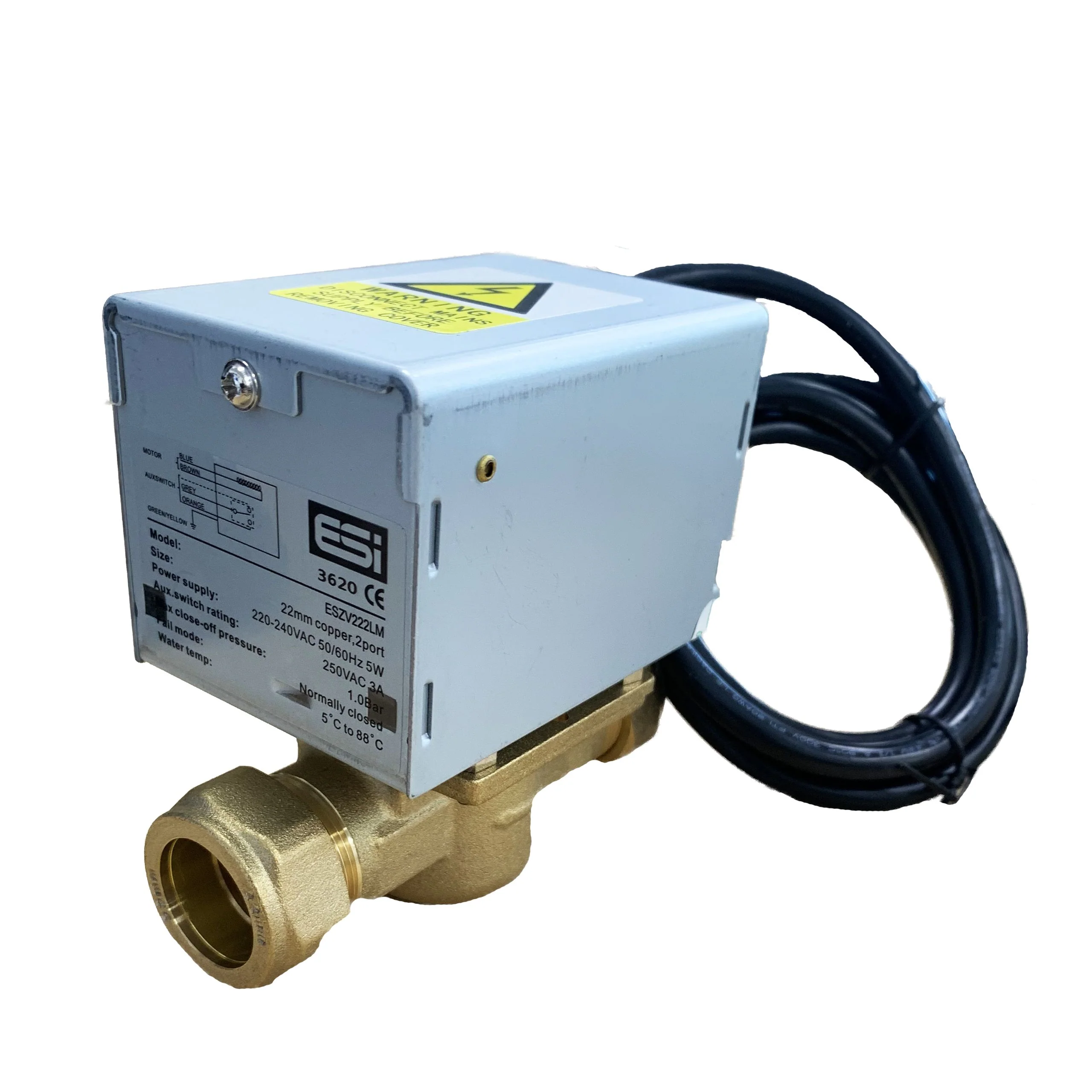

The ESi 22 mm 2 Port Motorised Zone Valve (SKU: 5913, MPN: ESZV222LM) is a high-quality, reliable motorized valve designed for controlling water flow in central heating and hot water systems, featuring a spring-return action and removable actuator head for easy maintenance.

Product Description

The ESi ESZV222LM is a 2-port motorized zone valve suitable for domestic and light commercial heating systems. It features a normally closed configuration with spring-return action, ensuring the valve closes when power is removed for safety. The removable actuator head allows for quick replacement without draining the system, and the quiet operation minimizes noise. Compatible with chilled or hot water, it is ideal for zone control in underfloor heating, radiators, or hot water circuits, and serves as a direct replacement for popular models like Honeywell V4043H.

Key Features

  • Spring-return action: Normally closed for fail-safe operation.
  • Removable actuator head: Enables easy servicing without system drainage.
  • Quiet operation: Minimal noise during use.
  • Manual lever: For filling/draining the system.
  • Low power consumption: Efficient 5W motor.
  • Brass body: Durable and corrosion-resistant construction.
  • 22mm compression connections: Quick and secure fitting to copper pipes.
  • Direct replacement: Compatible with Honeywell V4043H and similar valves.

Technical Specifications

  • Model: ESZV222LM – 2 Port Motorised Zone Valve 22mm.
  • Valve type: 2-port, normally closed, spring return.
  • Supply voltage: 220-240V AC, 50/60Hz.
  • Power consumption: 5W.
  • Fluid temperature range: +5°C to +88°C.
  • Operating pressure: Max 0.5-8.6 bar (static).
  • Cable: 5-core, 1m length.
  • Connections: 22mm compression.
  • Ambient temperature: Up to 52°C.

Dimensions & Weights

  • Width (valve body): 90 mm.
  • Depth: 60 mm.
  • Height (with actuator): 110 mm.
  • Weight: ~0.8 kg.

System & Application Notes

  • Ideal for zone control in central heating systems, underfloor heating, or hot water circuits.
  • Compatible with most thermostats and controls for S-plan or Y-plan systems.
  • Suitable for use with boilers, heat pumps, or district heating.
  • Replaces Honeywell V4043H or similar valves.
  • Installation by qualified heating engineers; ensure correct wiring for auxiliary switch.
  • Warranty: 1 year standard.
